Gas Walk-Behind Mower

Model # 917387242 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917387242 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Lawn Mower Height Adjuster Knob 701037
#29

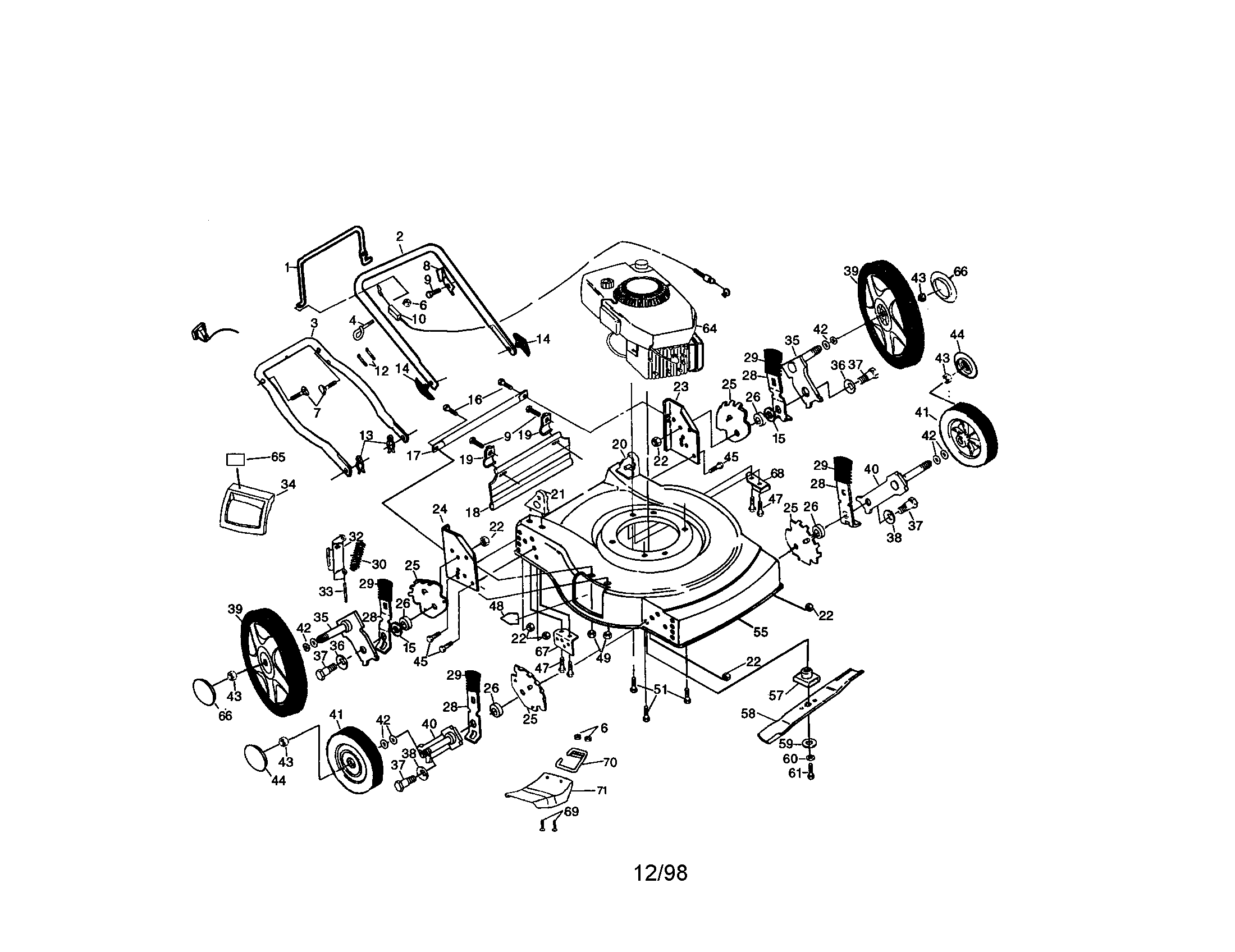

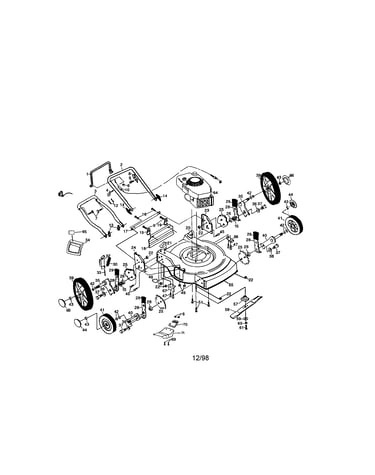

Rotary lawn mower diagram

Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
#57

Rotary lawn mower diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Rope Guide 153638
#4

Rotary lawn mower diagram

Rope guide

Part #153638

Replaced by #586122501

?
Manufacturer substitution
This part replaces 153638. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Torsion Spring 152124
#30

Rotary lawn mower diagram

Torsion spring

Part #152124

Replaced by #532152124

?
Manufacturer substitution
This part replaces 152124. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Discharge Guard 151889
#34

Rotary lawn mower diagram

Discharge guard

Part #151889

Replaced by #582979401

?
Manufacturer substitution
This part replaces 151889. Substitute parts can look different from the original.
This item is not returnable
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Tapping Screw 750097
#9

Rotary lawn mower diagram

Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
American Yard Products Lawn & Garden Equipment Washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384) 88348
#15

Rotary lawn mower diagram

American yard products lawn & garden equipment washer (replaces 532088343, 532088348, 5320883-48, 532-088348, 532088384)

Part #88348

Replaced by #532088348

?
Manufacturer substitution
This part replaces 88348. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Spring 700331X004
#28

Rotary lawn mower diagram

Spring

Part #700331X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 700331X004. Substitute parts can look different from the original.
$8.54
In Stock
Screw, 5/16-in 149741
#47

Rotary lawn mower diagram

Screw, 5/16-in

Part #149741

Replaced by #532171877

?
Manufacturer substitution
This part replaces 149741. Substitute parts can look different from the original.
$8.54
In Stock
Grass Chute Mounting Bracket 751399
#70

Rotary lawn mower diagram

Grass chute mounting bracket

Part #751399

Replaced by #532751399

?
Manufacturer substitution
This part replaces 751399. Substitute parts can look different from the original.
$20.54
In Stock
