Model # HTH15CBRELWW Official Hotpoint refrigerator - r series
Here are the diagrams and repair parts for Official Hotpoint HTH15CBRELWW refrigerator - r series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forHTH15CBRELWW Refrigerators
- #740

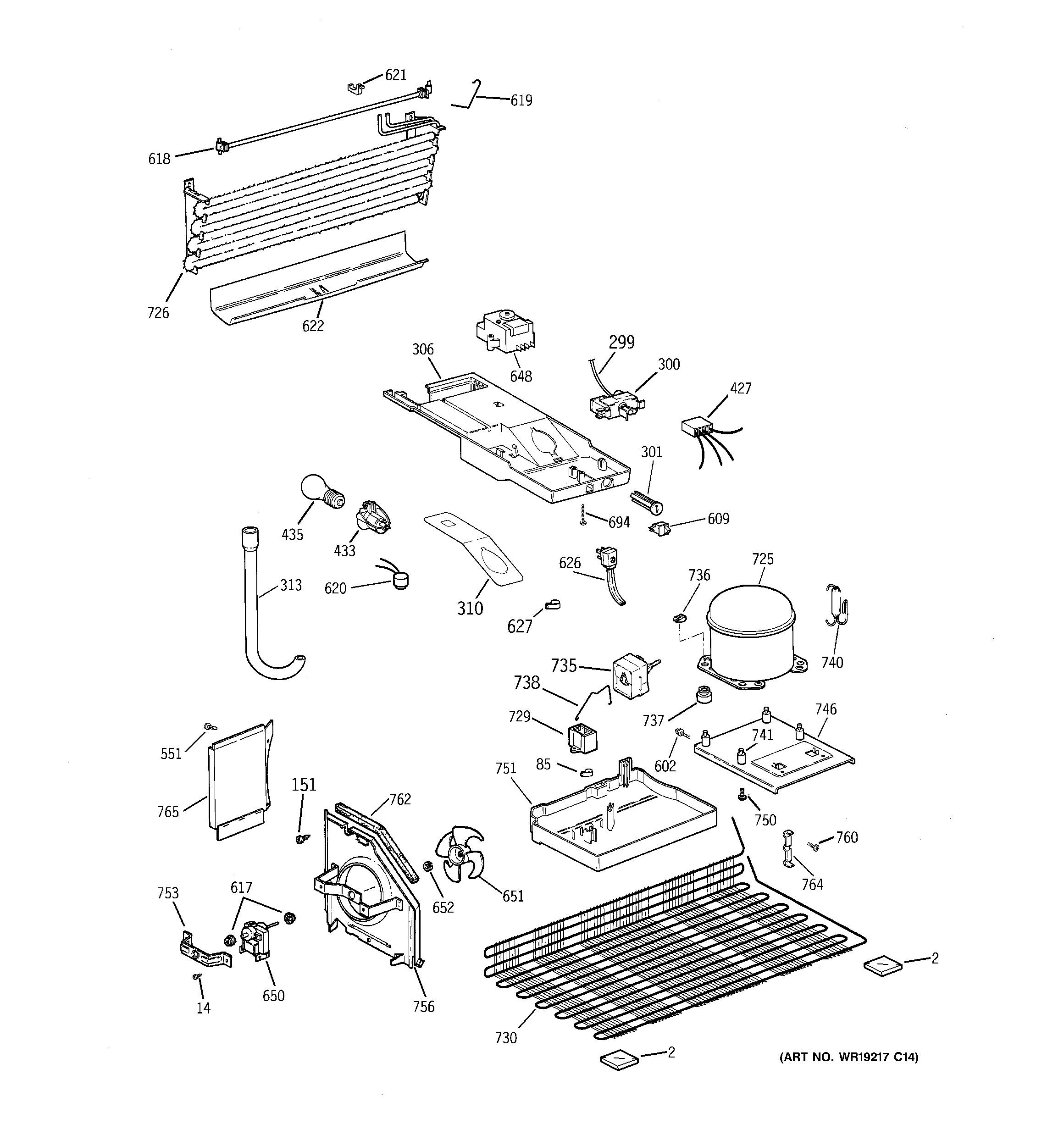

Unit parts diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #435
Unit parts diagram
G.e. appliance light bulb, 40-wattPart #40A15
$14.62 |12% OFF Phone Price : $16.62In Stock - #610

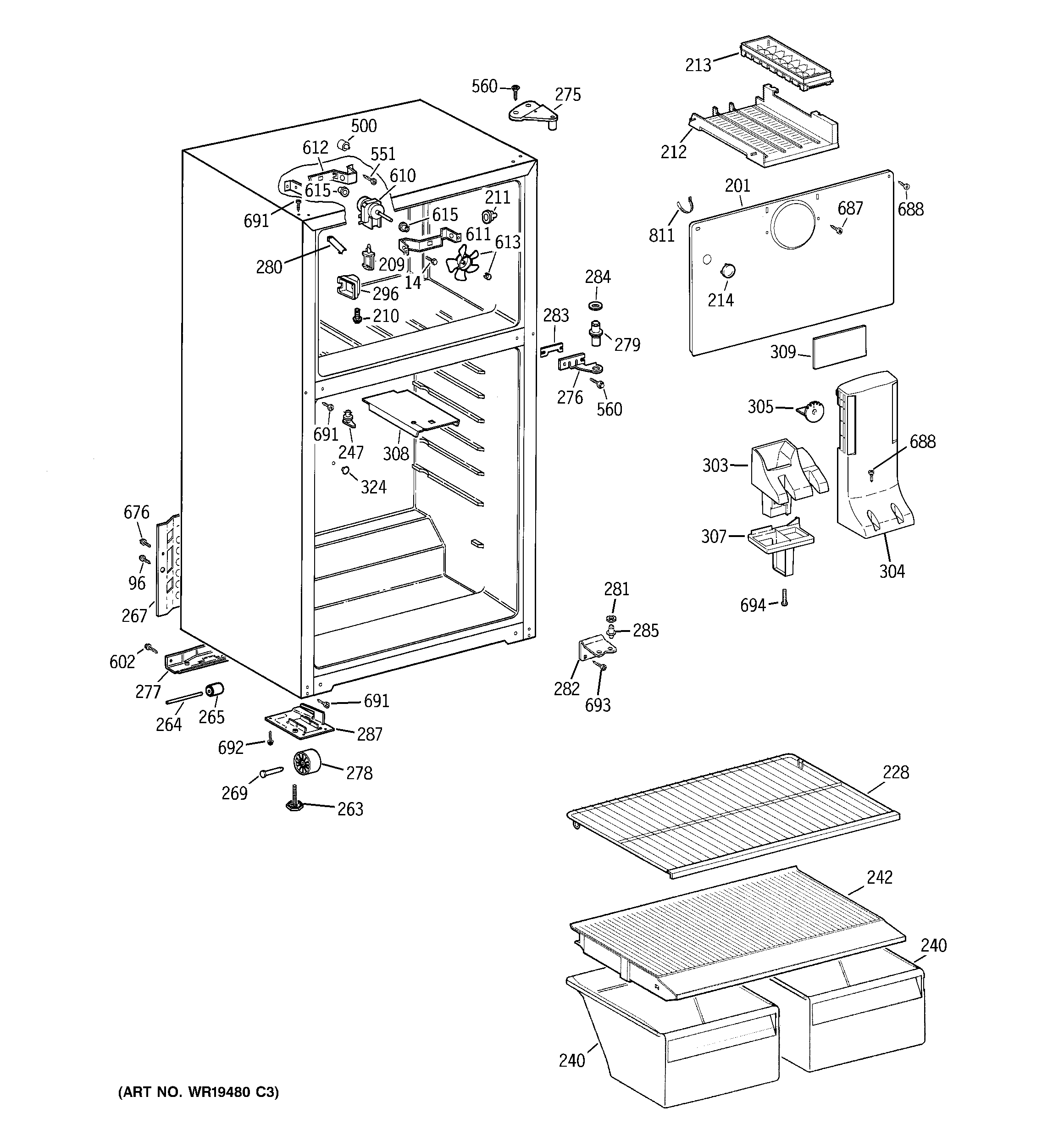

Cabinet diagram
Refrigerator ac/dc motorPart #WR60X10138
Replaced by #WR60X31522
?Manufacturer substitutionThis part replaces WR60X10138. Substitute parts can look different from the original.$73.02 |8% OFF Phone Price : $79.02In Stock - #613
Cabinet diagram
Refrigerator evaporator fan bladePart #WR60X10047
Replaced by #WR60X10204
?Manufacturer substitutionThis part replaces WR60X10047. Substitute parts can look different from the original.$18.94 |10% OFF Phone Price : $20.94In Stock - #648
Unit parts diagram
Refrigerator defrost controlPart #WR09X0489
Replaced by #WR9X489
?Manufacturer substitutionThis part replaces WR09X0489. Substitute parts can look different from the original.$46.36 |11% OFF Phone Price : $52.36In Stock - #281
Cabinet diagram
Refrigerator door hinge nylon washerPart #WR01X10146
Replaced by #WR01X27364
?Manufacturer substitutionThis part replaces WR01X10146. Substitute parts can look different from the original.This item is not returnable$7.40 |12% OFF Phone Price : $8.40In Stock - #242
Cabinet diagram
G.e. refrigerator drawer coverPart #WR32X10398
$69.83 |8% OFF Phone Price : $75.83In Stock - #609
Unit parts diagram
Refrigerator light switchPart #WR23X10143
The manufacturer no longer makes this part, and there's no substitute part
- #300
Unit parts diagram
Refrigerator temperature controlPart #WR09X10042
The manufacturer no longer makes this part, and there's no substitute part
- #126

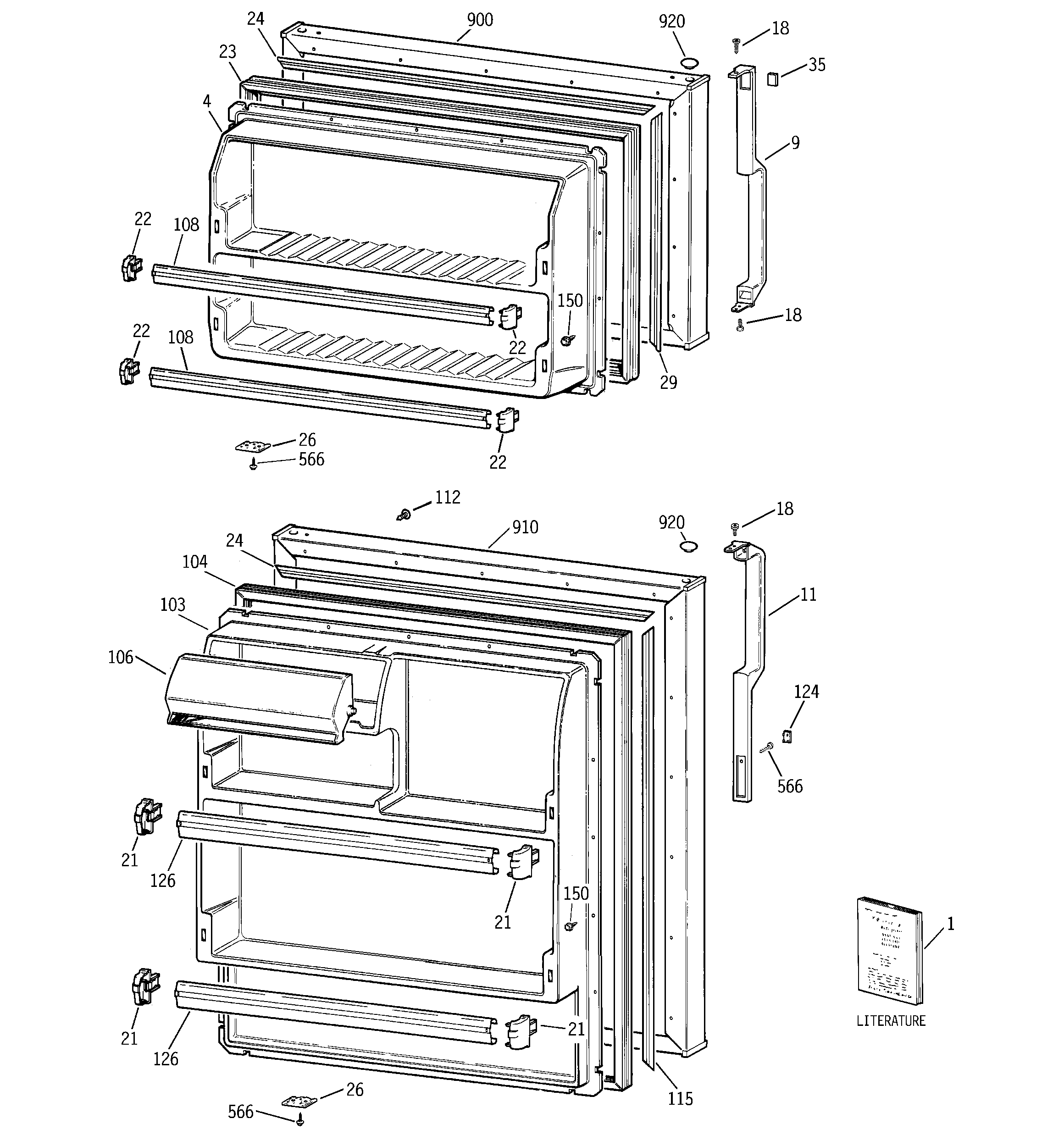

Doors diagram
Refrigerator door shelfPart #WR17X3691
Replaced by #WR17X3880
?Manufacturer substitutionThis part replaces WR17X3691. Substitute parts can look different from the original.$29.31 |17% OFF Phone Price : $35.31In Stock
