Model # 8852BVZ Official Eureka vacuum

Here are the diagrams and repair parts for Official Eureka 8852BVZ vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

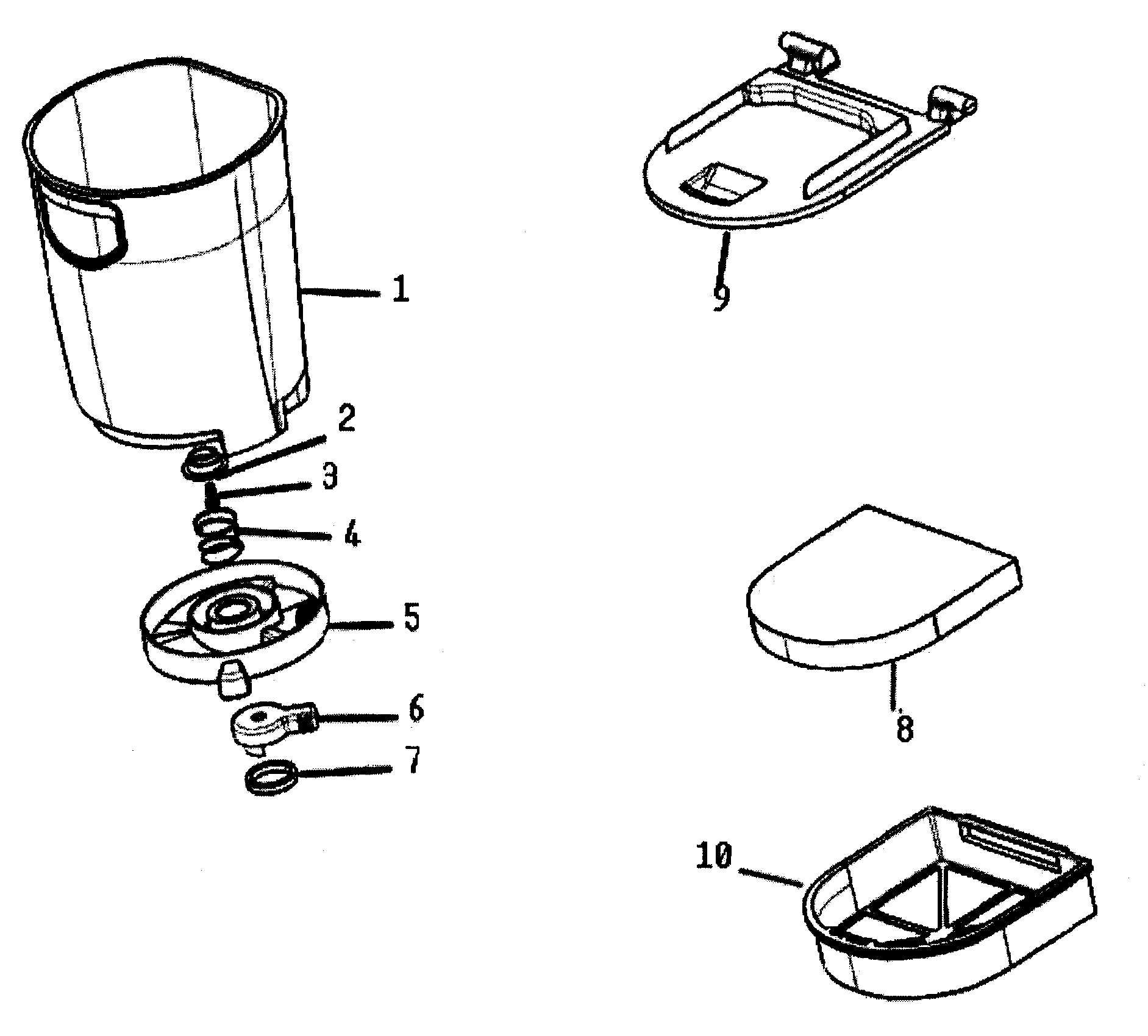

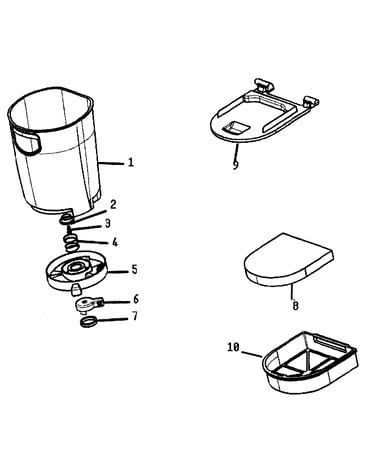

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Gasket 77658
#6

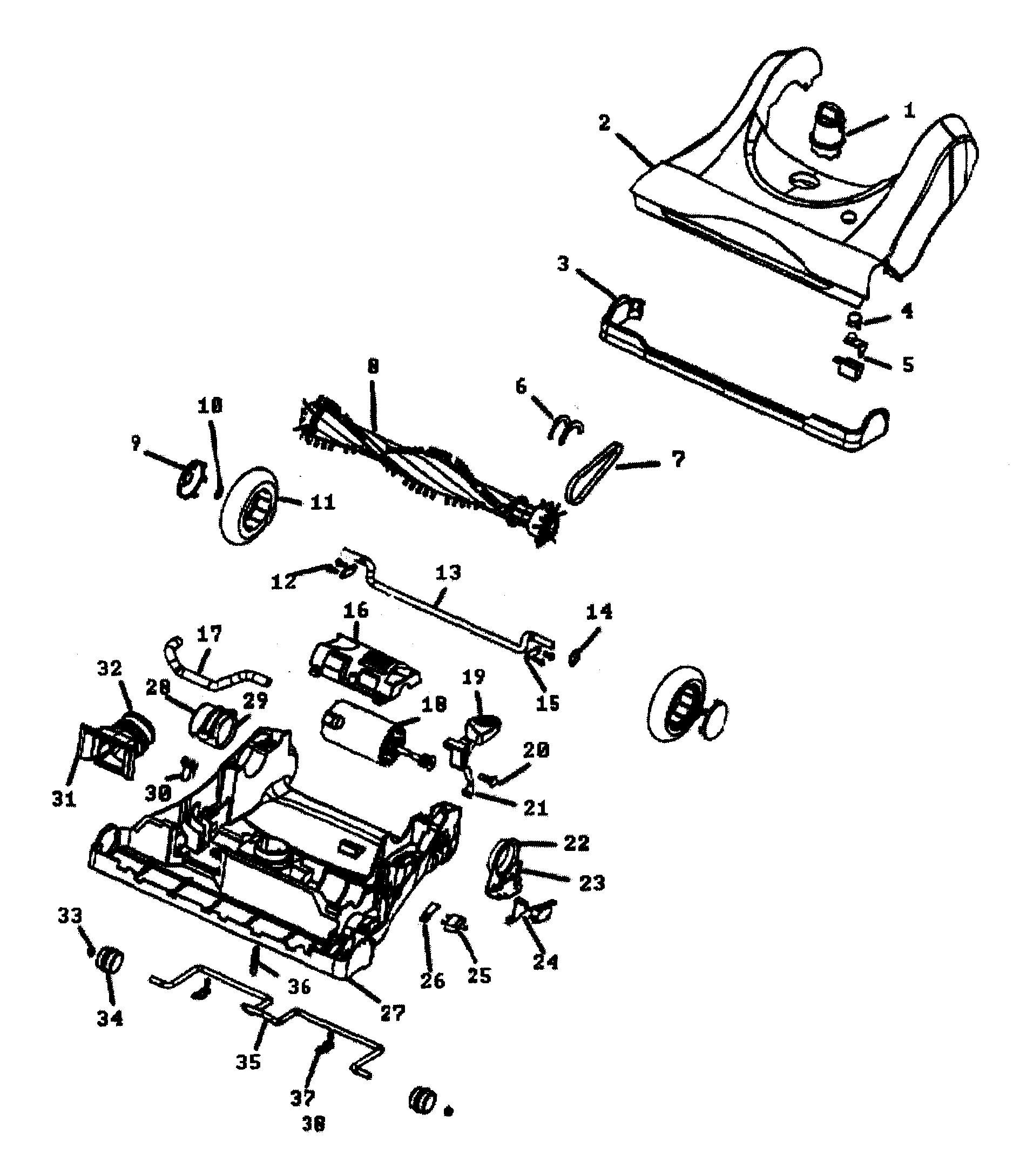

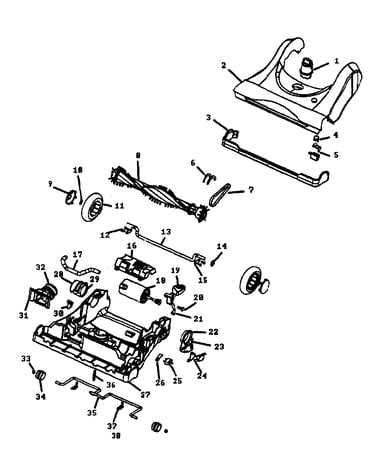

Base diagram

Gasket

Part #77658

The manufacturer no longer makes this part, and there's no substitute part

Eureka Axle 77693
#35

Base diagram

Eureka axle

Part #77693

The manufacturer no longer makes this part, and there's no substitute part

Bracket Ci 72514
#26

Base diagram

Bracket ci

Part #72514

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cover 77631-489N
#14

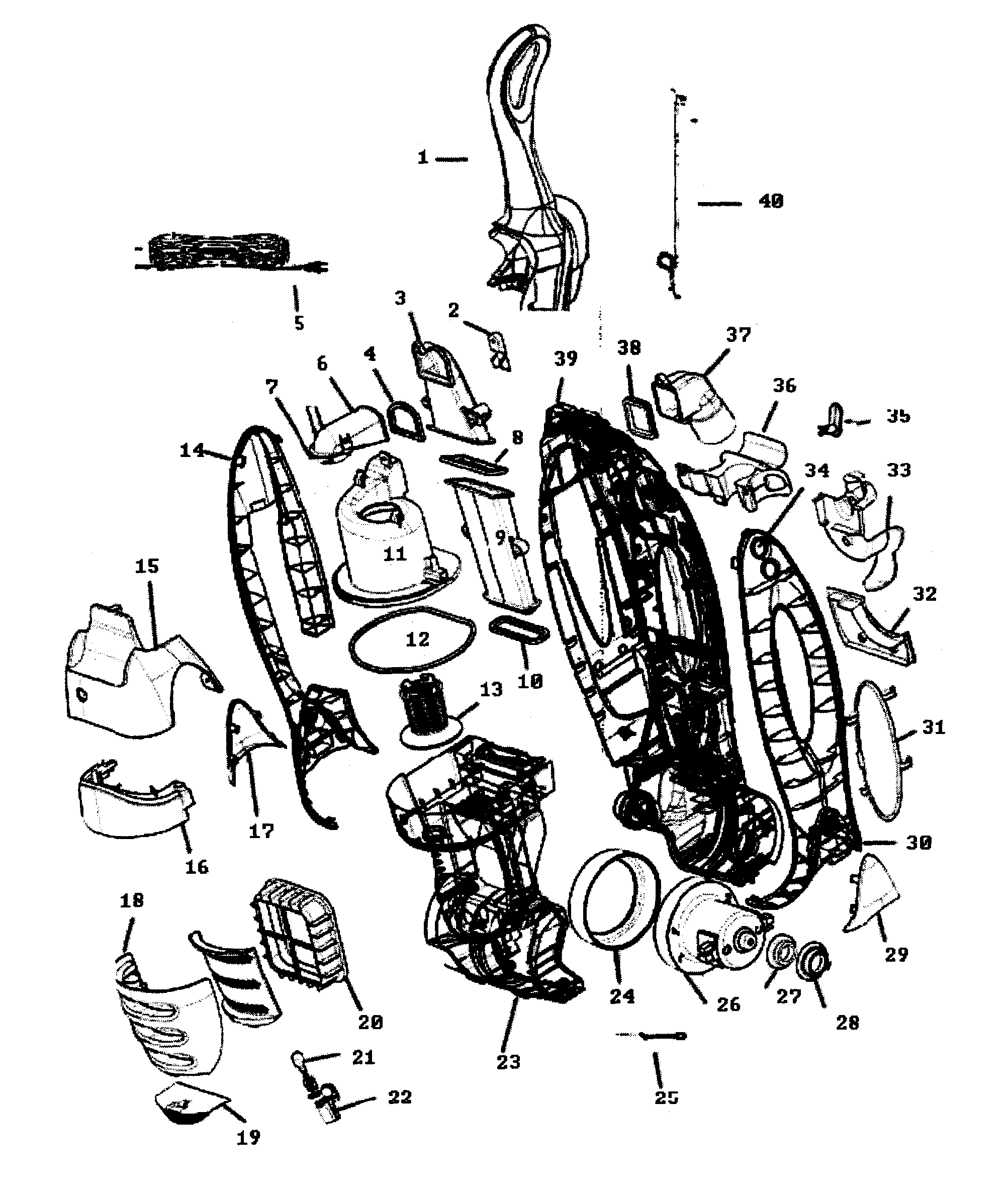

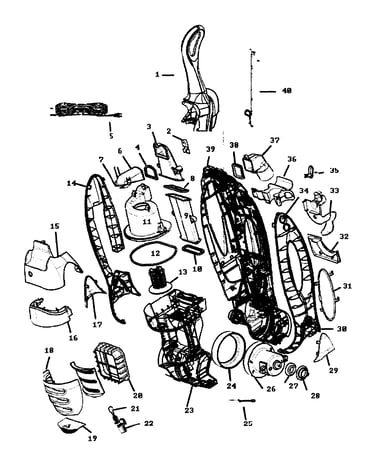

Main body diagram

Vacuum cover

Part #77631-489N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 72393
#7

Base diagram

Vacuum beater bar belt

Part #72393

The manufacturer no longer makes this part, and there's no substitute part

Eureka Base Assembly 65128-1
#27

Base diagram

Eureka base assembly

Part #65128-1

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Carpet Cleaner Screw, 10-pack 53238-27
#23

Base diagram

Electrolux carpet cleaner screw, 10-pack

Part #53238-27

The manufacturer no longer makes this part, and there's no substitute part

Eureka Cyclne Cvr 65132-3
#15

Main body diagram

Eureka cyclne cvr

Part #65132-3

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-8
#NI

Base diagram

Vacuum screw, 10-pack

Part #53238-8

The manufacturer no longer makes this part, and there's no substitute part

Eureka Lamp A 78576
#5

Base diagram

Eureka lamp a

Part #78576

The manufacturer no longer makes this part, and there's no substitute part
