Electric Cooktop

Model # JP385BV1BB Official GE counter unit

Here are the diagrams and repair parts for Official GE JP385BV1BB counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

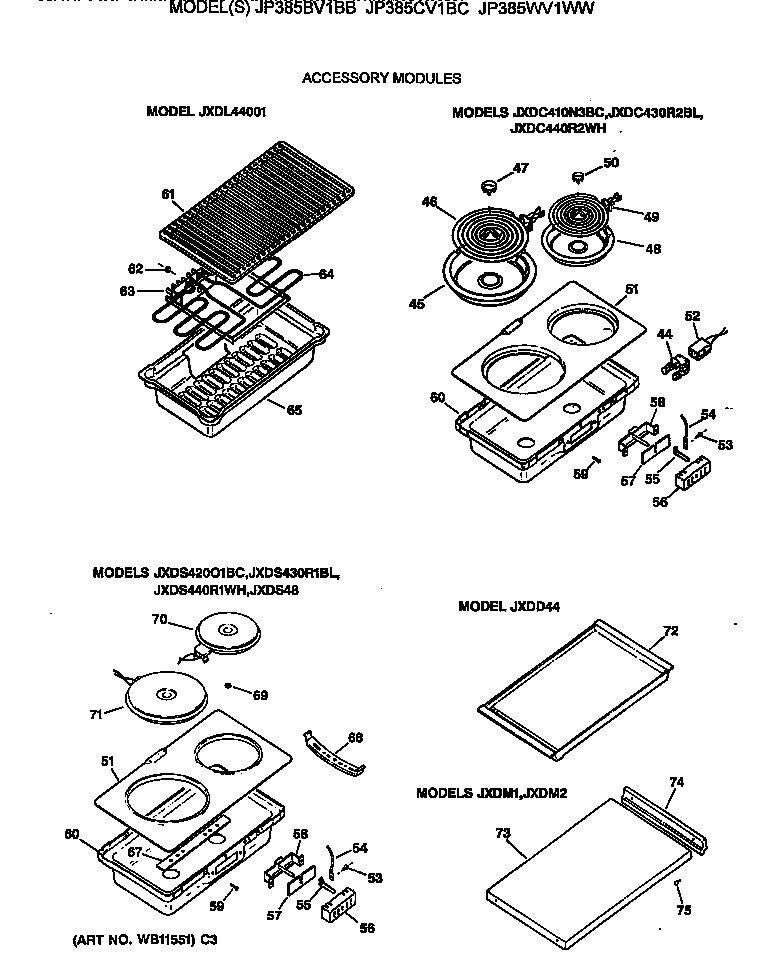

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

8" Surf Elem WB30M0002
8" surf elem

Part #WB30M0002

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30M0002. Substitute parts can look different from the original.
BEST SELLER
$46.48
11% OFF Phone Price : $52.48
In Stock
Bowl Brnr 8" WB32X5085
Bowl brnr 8"

Part #WB32X5085

Replaced by #WB31T10015

?
Manufacturer substitution
This part replaces WB32X5085. Substitute parts can look different from the original.
$18.85
10% OFF Phone Price : $20.85
In Stock
Bowl Brnr 6" WB32X5083
Bowl brnr 6"

Part #WB32X5083

Replaced by #WB31T10014

?
Manufacturer substitution
This part replaces WB32X5083. Substitute parts can look different from the original.
$9.39
10% OFF Phone Price : $10.39
In Stock
Range Surface Element Receptacle (replaces Wb02x8228, Wb62x5358, Wb62x5393, Wb62x5394, Wb62x5397, Wb62x5401, Wb62x5405) WB2X8228
Range surface element receptacle (replaces wb02x8228, wb62x5358, wb62x5393, wb62x5394, wb62x5397, wb62x5401, wb62x5405)

Part #WB2X8228

This item is not returnable
$30.23
17% OFF Phone Price : $36.23
Back Order
Receptacle WB17X5094
Receptacle

Part #WB17X5094

Replaced by #WB17X5113

?
Manufacturer substitution
This part replaces WB17X5094. Substitute parts can look different from the original.
This item is not returnable
$31.51
16% OFF Phone Price : $37.51
In Stock
Harn Asm C.p WB18X5131
#32

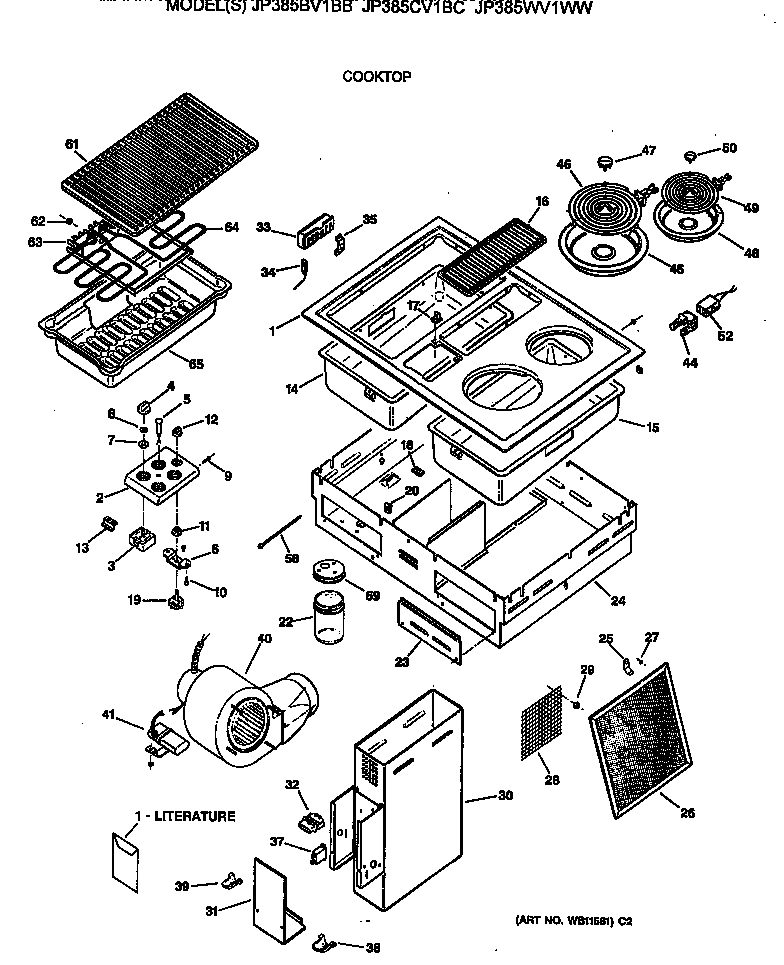

Cooktop diagram

Harn asm c.p

Part #WB18X5131

In Stock
Fustat 15amp Type S OBT LOCAL
#22

Cooktop diagram

Fustat 15amp type s

Part #OBT LOCAL

The manufacturer no longer makes this part, and there's no substitute part

Infinite Heat Switch WB21X5302
#3

Cooktop diagram

Infinite heat switch

Part #WB21X5302

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Knob WB3X5796
#4

Cooktop diagram

Cooktop knob

Part #WB3X5796

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover WB2X8135
#31

Cooktop diagram

Wire cover

Part #WB2X8135

The manufacturer no longer makes this part, and there's no substitute part
