GE
Top-Mount Refrigerator

Model # TBX16AMCRAD Official GE refrigerator

Here are the diagrams and repair parts for Official GE TBX16AMCRAD refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Refrigerator Ice Maker WR30X259

#820

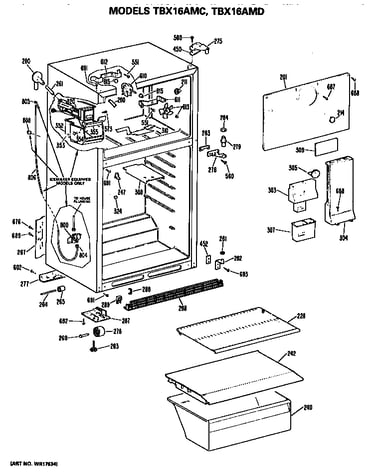

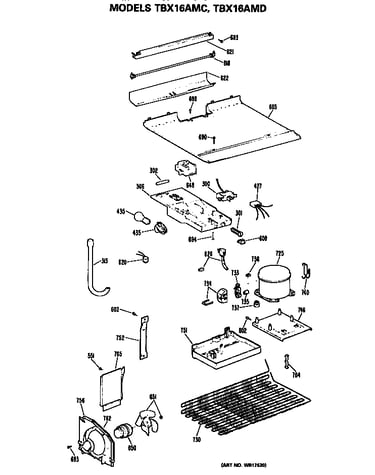

All parts diagram

Refrigerator ice maker

Part #WR30X259

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X259. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Assembly WR86X86

#740

All parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402

#435

All parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Water Inlet Valve WR57X95

#800

All parts diagram

Water inlet valve

Part #WR57X95

Replaced by #WR57X10033

?
Manufacturer substitution
This part replaces WR57X95. Substitute parts can look different from the original.
BEST SELLER
$39.92 |
13% OFF Phone Price : $45.92
In Stock
Refrigerator Condenser Fan Motor WR60X179

#650

All parts diagram

Refrigerator condenser fan motor

Part #WR60X179

Replaced by #WR60X187

?
Manufacturer substitution
This part replaces WR60X179. Substitute parts can look different from the original.
BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
Refrigerator Pan Cover WR32X1094

#242

All parts diagram

Refrigerator pan cover

Part #WR32X1094

Replaced by #WR32X10398

?
Manufacturer substitution
This part replaces WR32X1094. Substitute parts can look different from the original.
$83.52 |
7% OFF Phone Price : $89.52
In Stock
Refrigerator Dairy Door WR22X414

#106

All parts diagram

Refrigerator dairy door

Part #WR22X414

Replaced by #WR22X10068

?
Manufacturer substitution
This part replaces WR22X414. Substitute parts can look different from the original.
This item is not returnable
$13.84 |
13% OFF Phone Price : $15.84
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Fan Blade WR2X3198

#613

All parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Heater WR51X330

#618

All parts diagram

Refrigerator heater

Part #WR51X330

Replaced by #WR51X444

?
Manufacturer substitution
This part replaces WR51X330. Substitute parts can look different from the original.
$45.81 |
12% OFF Phone Price : $51.81
