Amana
Upright Freezer

Model # AQU1625BEW Official Amana upright freezer

Here are the diagrams and repair parts for Official Amana AQU1625BEW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

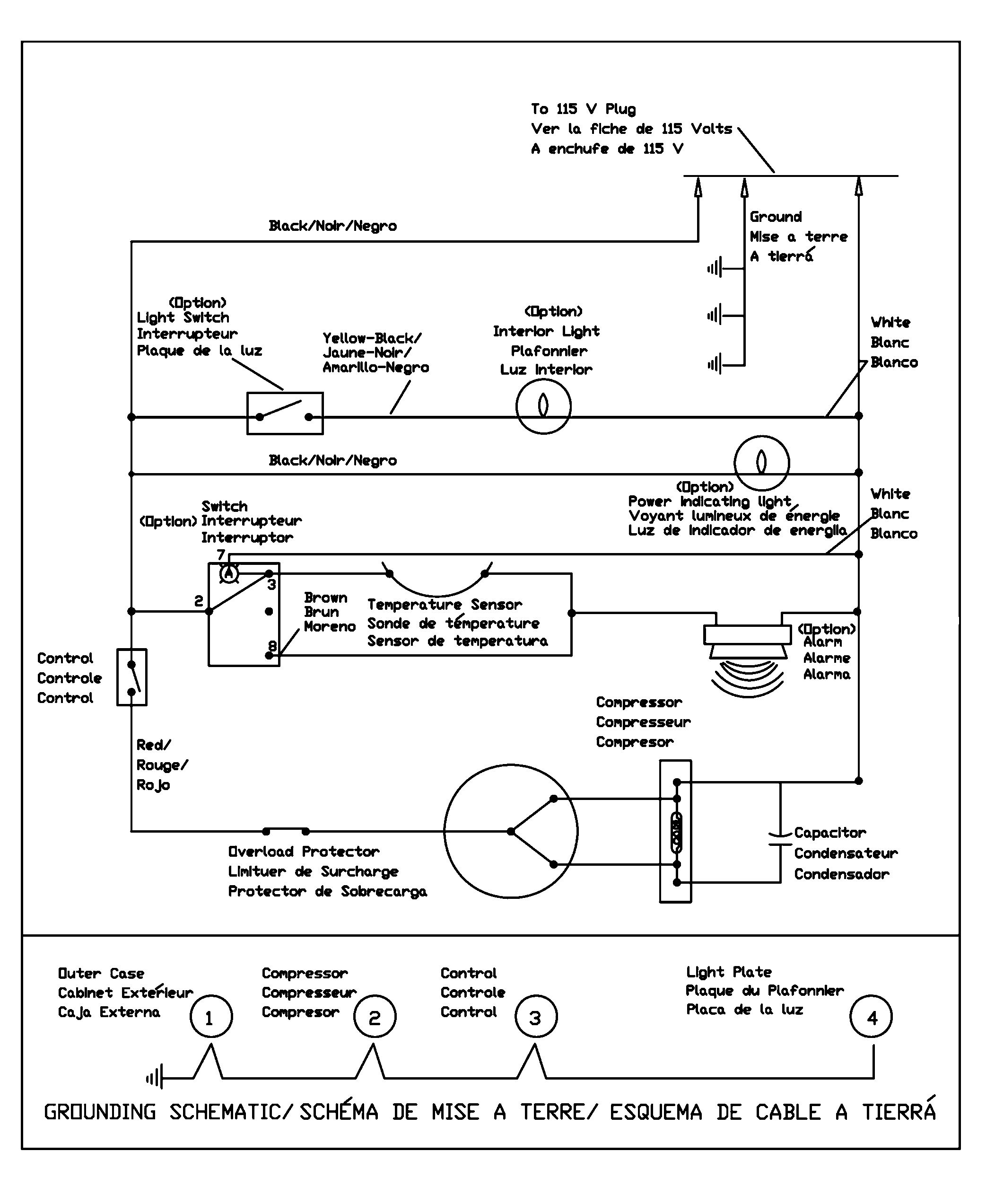

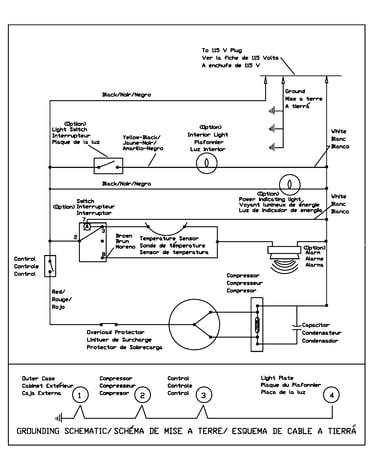

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

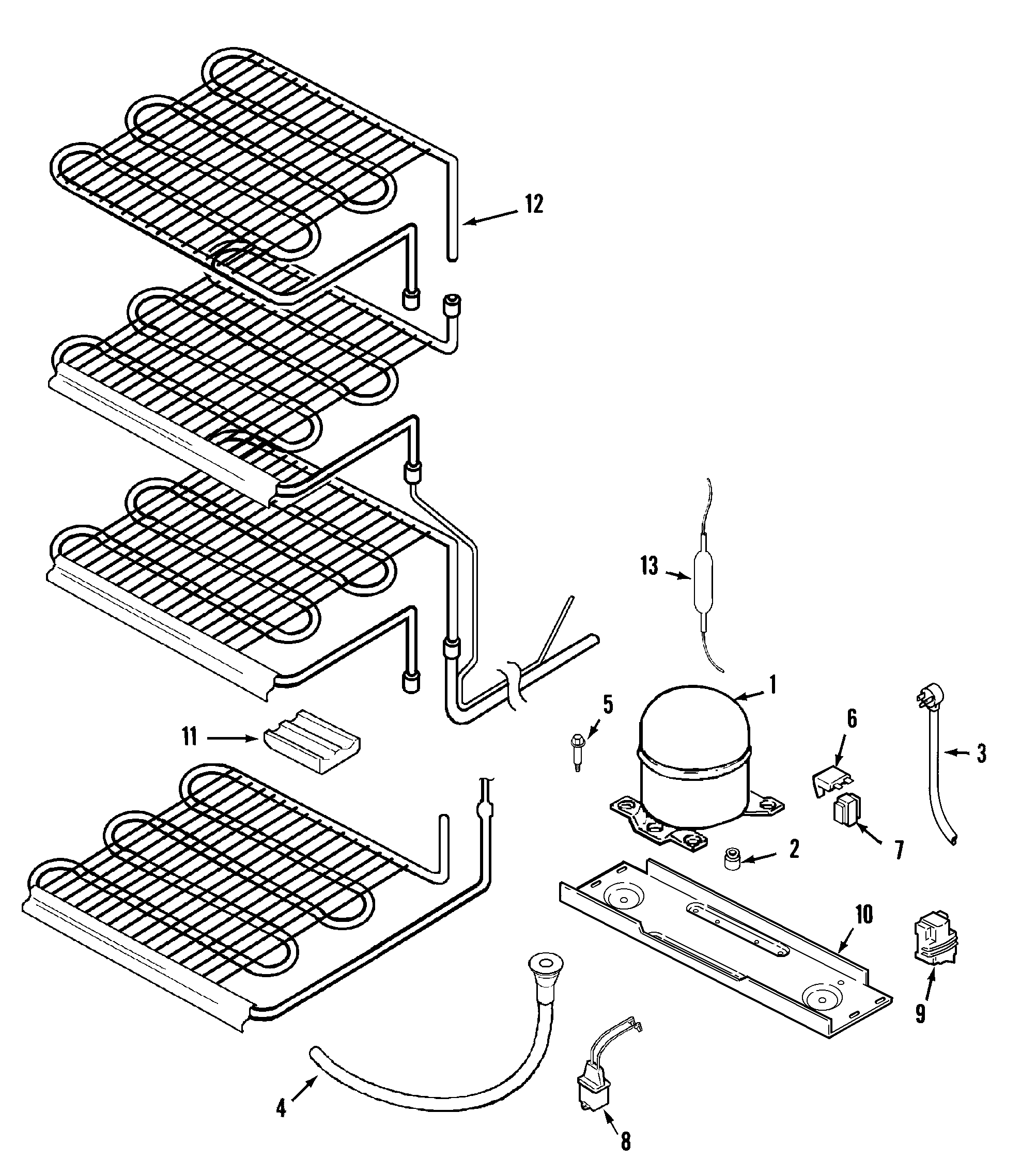

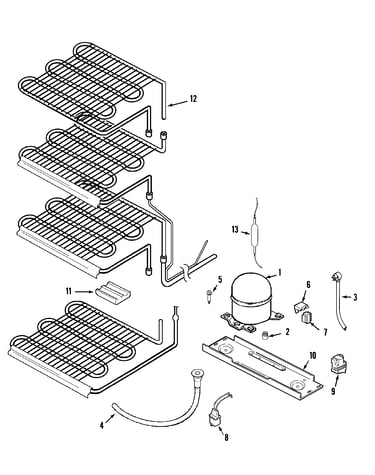

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Bulb 68001557
#12

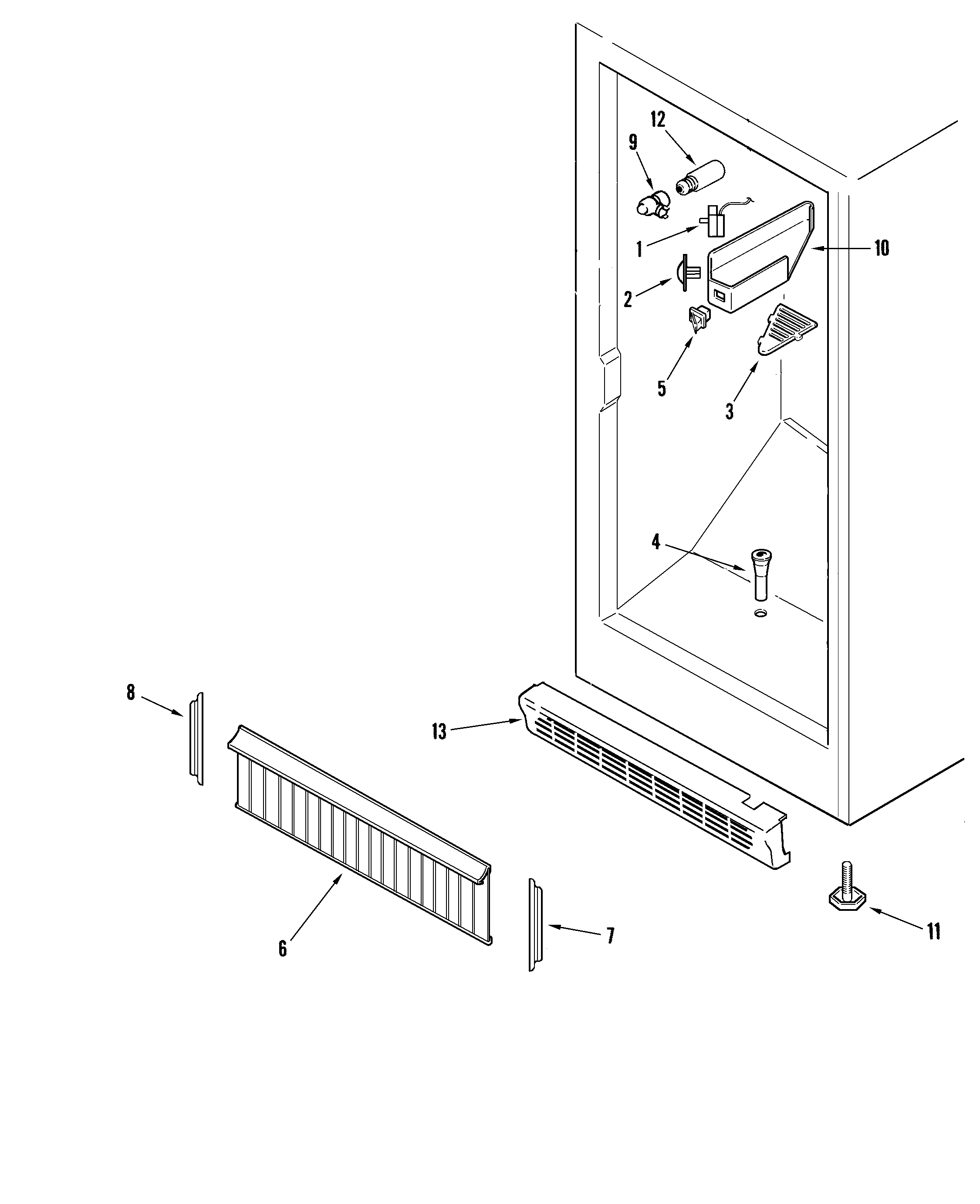

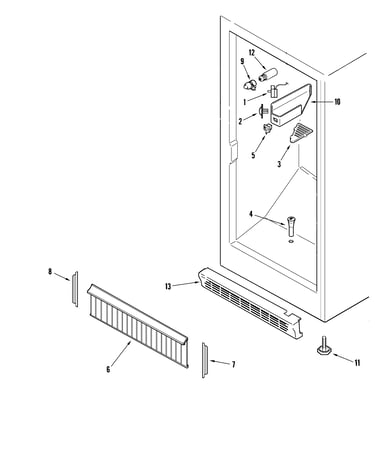

Freezer compartment diagram

Light bulb

Part #68001557

Replaced by #40A15

?
Manufacturer substitution
This part replaces 68001557. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Light Switch 68001324
#5

Freezer compartment diagram

Light switch

Part #68001324

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001324. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Compressor Kit 68001458
#1

Unit compartment & system diagram

Compressor kit

Part #68001458

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 68001458. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Door Handle Screw 68001413
#2A

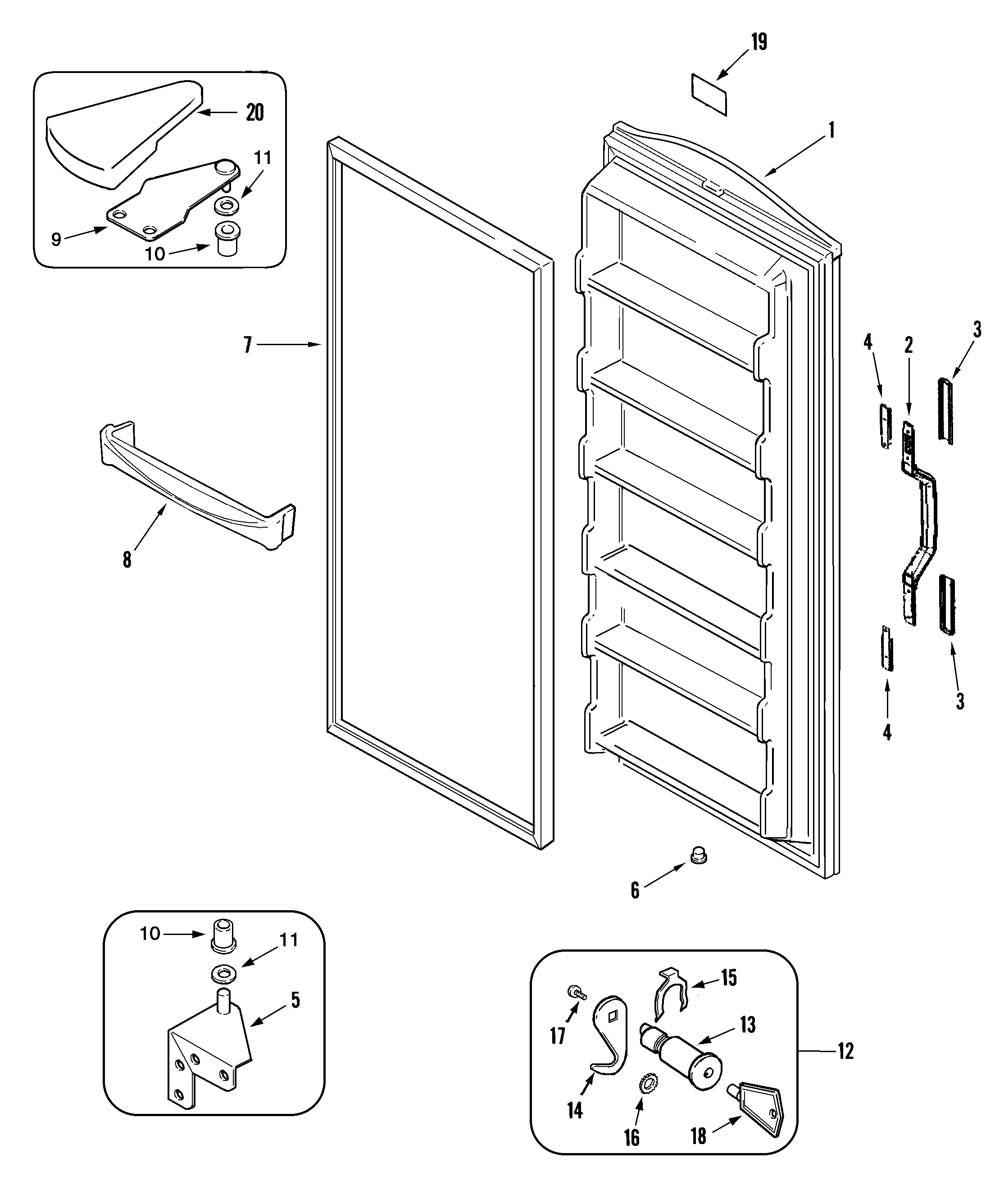

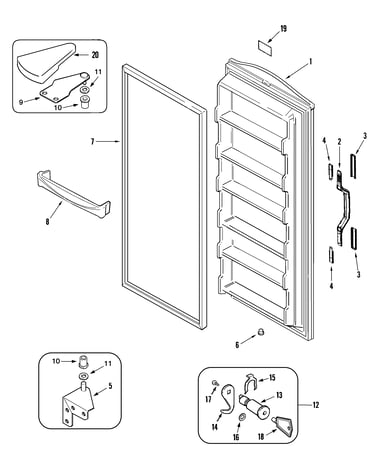

Door diagram

Door handle screw

Part #68001413

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001413. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw (1 1/4 68001196
#12B

Unit compartment & system diagram

Screw (1 1/4

Part #68001196

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Key 2-80060-106
#18

Door diagram

Key

Part #2-80060-106

Replaced by #WP4356840

?
Manufacturer substitution
This part replaces 2-80060-106. Substitute parts can look different from the original.
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Overload 68001459
#7

Unit compartment & system diagram

Overload

Part #68001459

Replaced by #WP2214067

?
Manufacturer substitution
This part replaces 68001459. Substitute parts can look different from the original.
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Door Gasket 68001734
#7

Door diagram

Door gasket

Part #68001734

Replaced by #WP4-65151-001

?
Manufacturer substitution
This part replaces 68001734. Substitute parts can look different from the original.
$187.89 |
6% OFF Phone Price : $199.89
In Stock
Temperature Control 68001744
#1

Freezer compartment diagram

Temperature control

Part #68001744

Replaced by #WP4-83053-001

?
Manufacturer substitution
This part replaces 68001744. Substitute parts can look different from the original.
$100.64 |
11% OFF Phone Price : $112.64
In Stock
