KitchenAid
Stand Mixer

Model # KSM3316XCU0 Official KitchenAid stand mixer

Here are the diagrams and repair parts for Official KitchenAid KSM3316XCU0 stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Ring 354987
#11

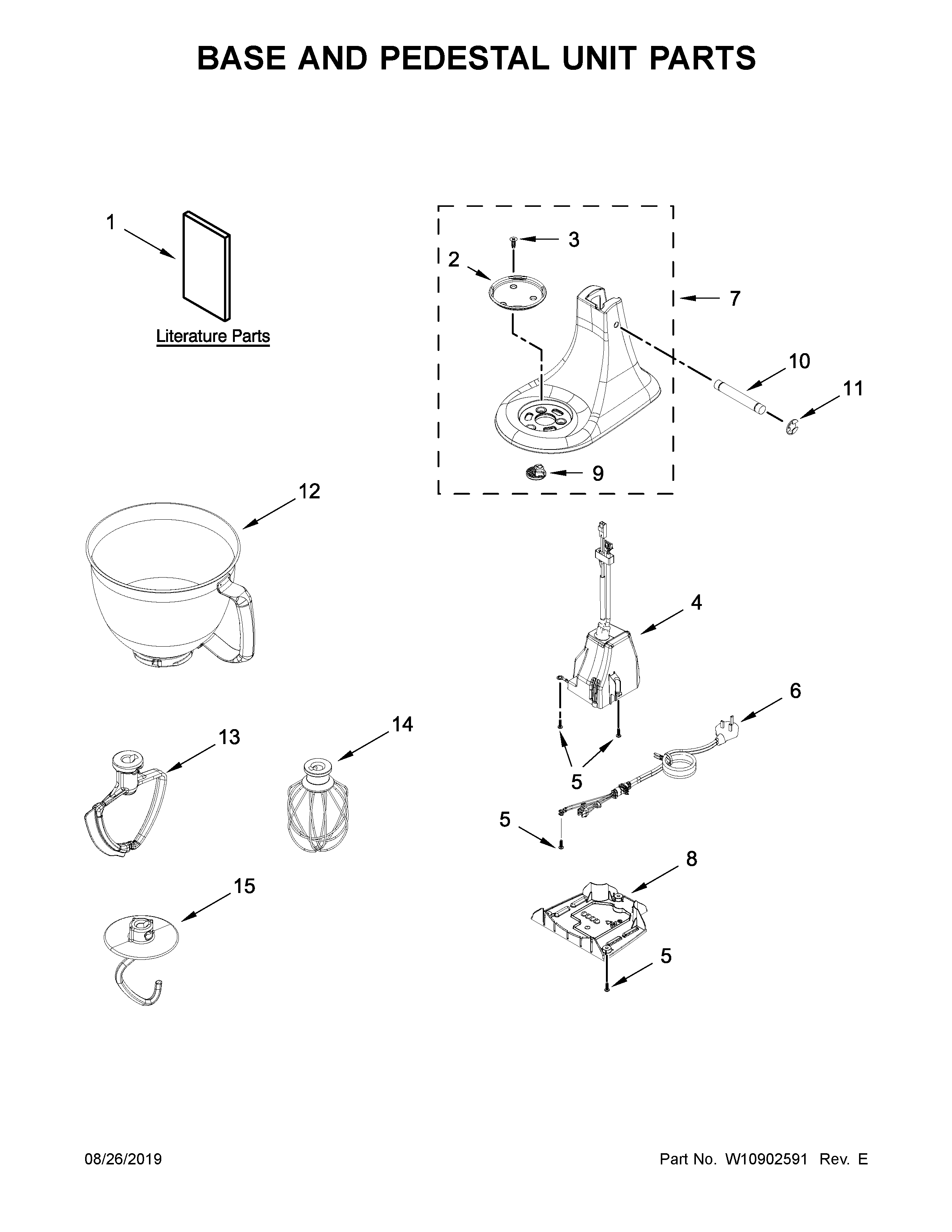

Base and pedestal unit parts diagram

Ring

Part #354987

Replaced by #WP354987

?
Manufacturer substitution
This part replaces 354987. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Foot 9709707
#9

Base and pedestal unit parts diagram

Foot

Part #9709707

Replaced by #WP9709707

?
Manufacturer substitution
This part replaces 9709707. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 3400020
#3

Base and pedestal unit parts diagram

Screw

Part #3400020

Replaced by #W11544572

?
Manufacturer substitution
This part replaces 3400020. Substitute parts can look different from the original.
This item is not returnable
$4.20
In Stock
Screw 110679
#10

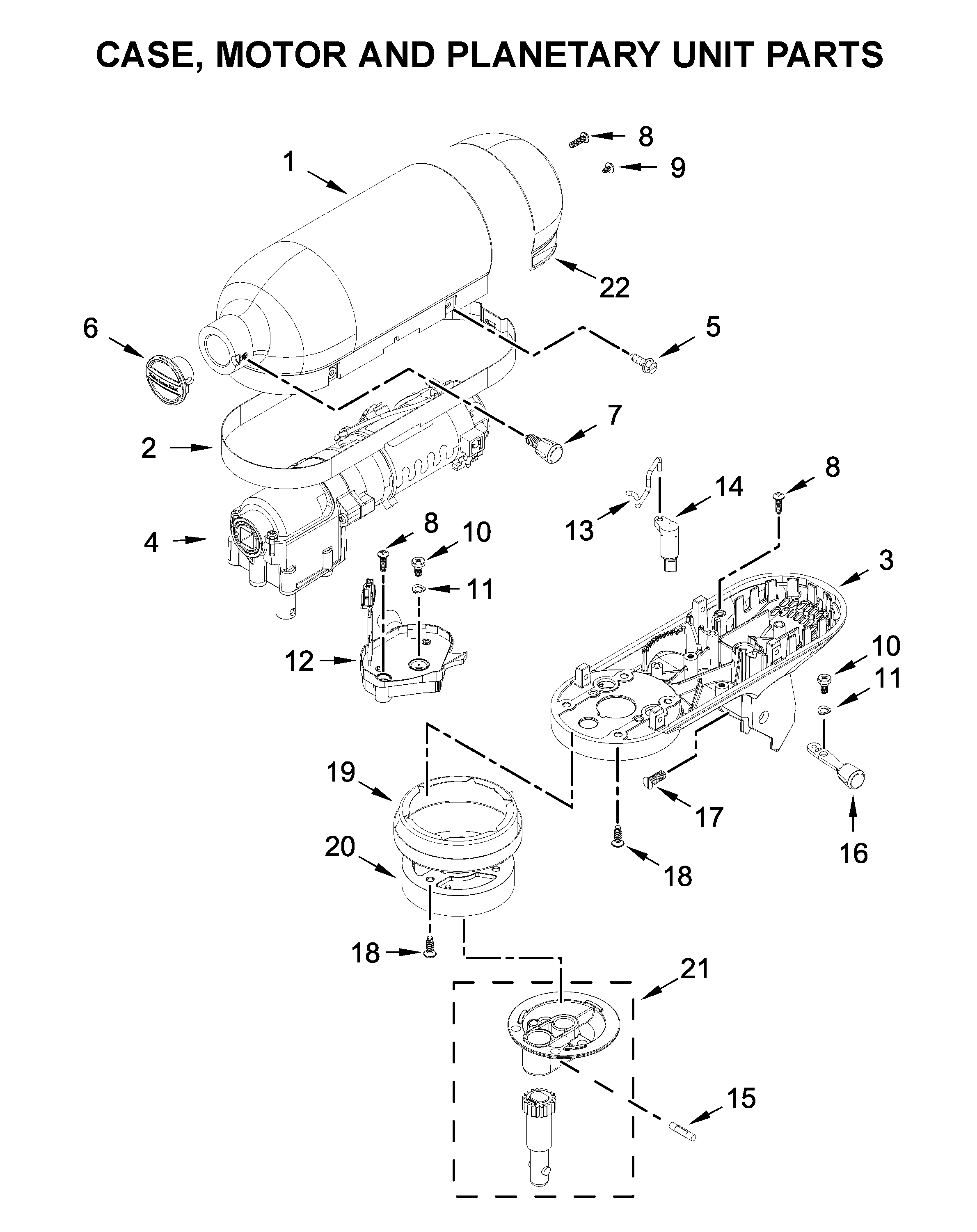

Case, motor and planetary unit parts diagram

Screw

Part #110679

Replaced by #WP110679

?
Manufacturer substitution
This part replaces 110679. Substitute parts can look different from the original.
This item is not returnable
$3.79
In Stock
Empire Red U W10870578
#1E

Case, motor and planetary unit parts diagram

Empire red u

Part #W10870578

$57.29
In Stock
Trim Band-3. W10752933
#2

Case, motor and planetary unit parts diagram

Trim band-3.

Part #W10752933

$49.78
In Stock
Pedestal (cast Iron Black) W11186735
#7C

Base and pedestal unit parts diagram

Pedestal (cast iron black)

Part #W11186735

$73.89
In Stock
End Cover (matte Avocado) W11113798
#22

Case, motor and planetary unit parts diagram

End cover (matte avocado)

Part #W11113798

$44.80
In Stock
Upper Housing W10835945
#1F

Case, motor and planetary unit parts diagram

Upper housing

Part #W10835945

$57.29
In Stock
Lower Housing (matte Avocado) W11113795
#3

Case, motor and planetary unit parts diagram

Lower housing (matte avocado)

Part #W11113795

$83.25
In Stock

Most common symptoms to help you fix your stand mixers

Choose a symptom to see related stand mixer repairs.

View all

Why does my stand mixer run on low speed, but rotate slowly?

Main causes: bad wiring connections, faulty speed control plate, electronic control board failure…

Read more

Why does my stand mixer run on high speed only?

Main causes: phase control board failure, wiring connection problem, faulty electronic control board…

Read more

Why does my stand mixer leak oil?

Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m…

Read more

Why is my stand mixer motor sparking?

Main cause: worn carbon motor brushes…

Read more

Why isn't my stand mixer spinning?

Main causes: bad worm gear, damaged planetary gear assembly…

Read more

Why do the stand mixer attachments rub the bottom of the bowl?

Main cause: attachment clearance setting needs adjustment…

Read more

Why won't my stand mixer run at all?

Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit…

Read more
