Gas Cooktop

Model # SGS305FS/02 Official Thermador gas cooktop

Here are the diagrams and repair parts for Official Thermador SGS305FS/02 gas cooktop, as well as links to manuals and error code tables, if available.

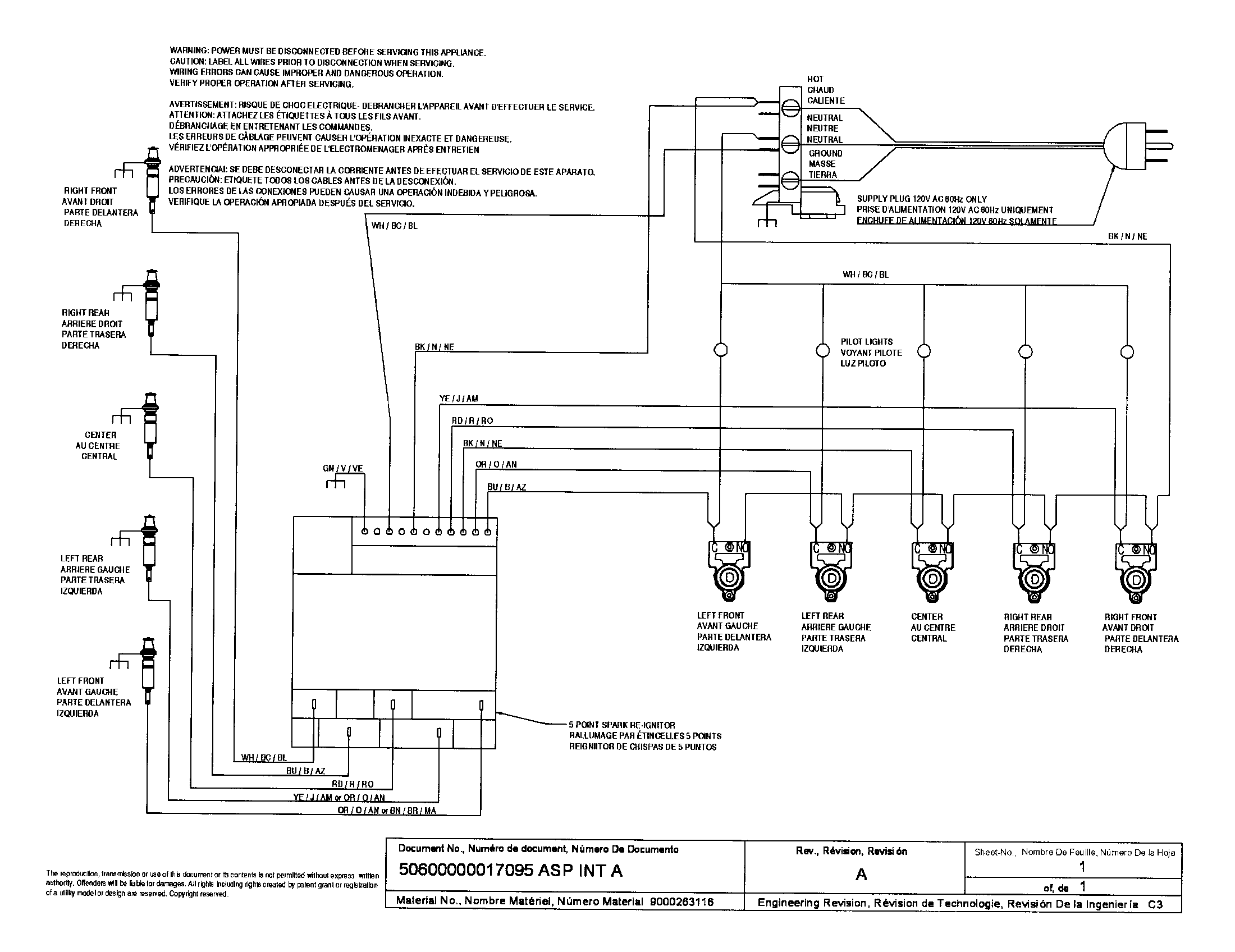

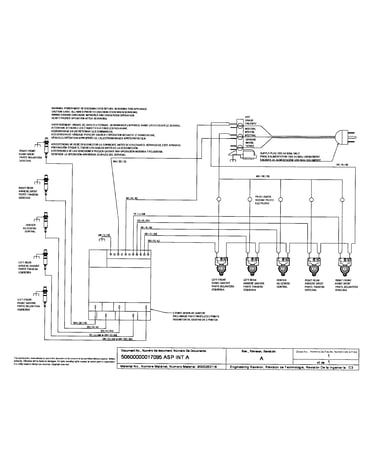

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forSGS305FS/02 Cooktops

  • Nut 188978
    #212

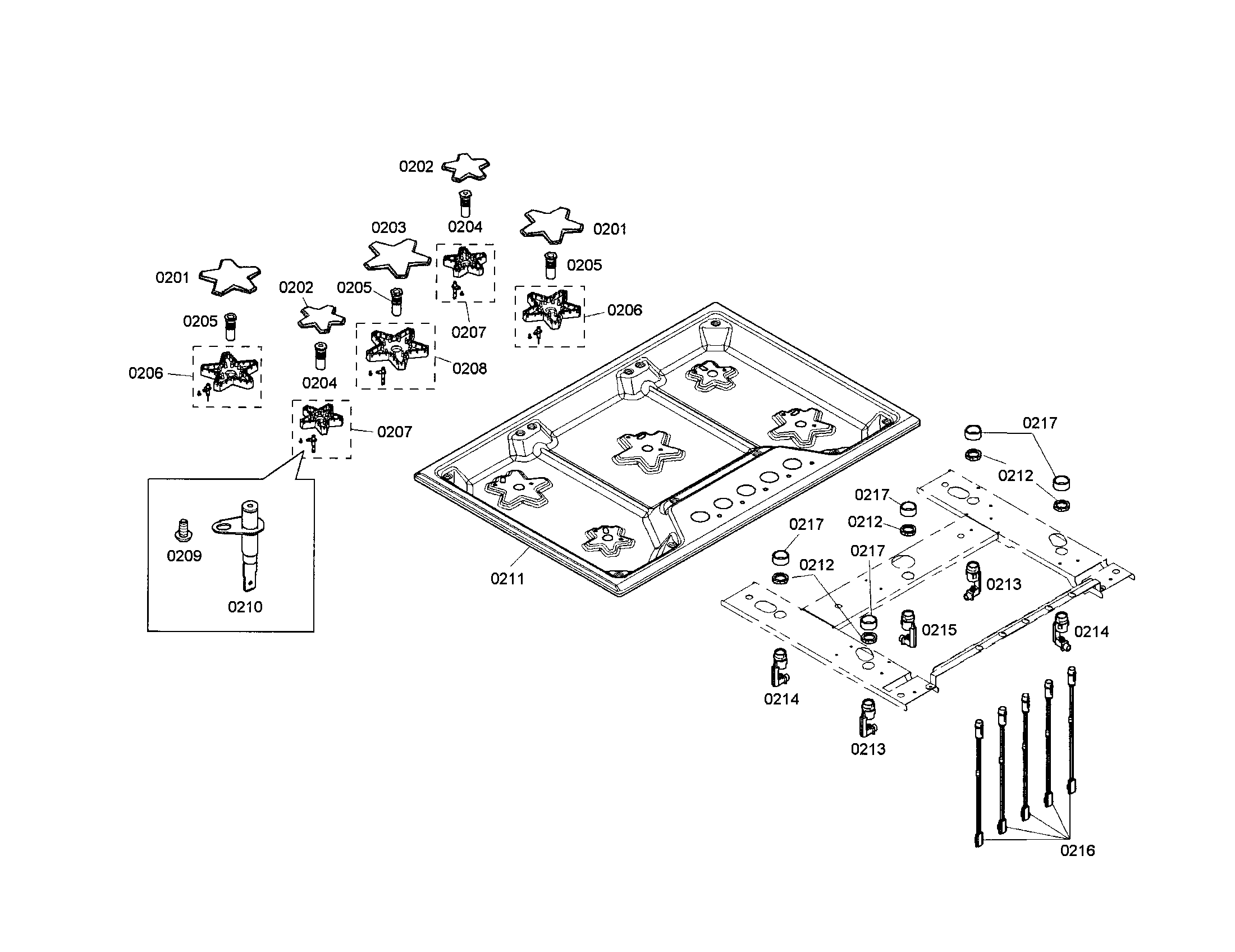

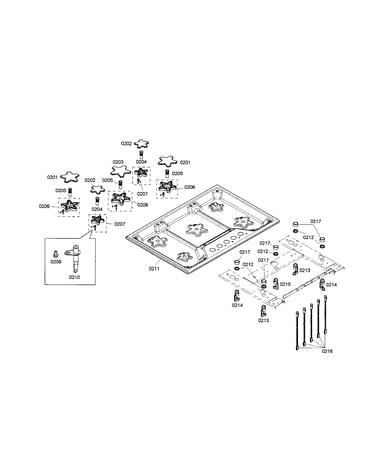

    Cooktop diagram

    Nut

    Part #188978

    Replaced by #00188978

    ?
    Manufacturer substitution
    This part replaces 188978. Substitute parts can look different from the original.
    $20.59
    23% OFF Phone Price : $26.59
    In Stock
  • Mod.cntrol 645443
    #401

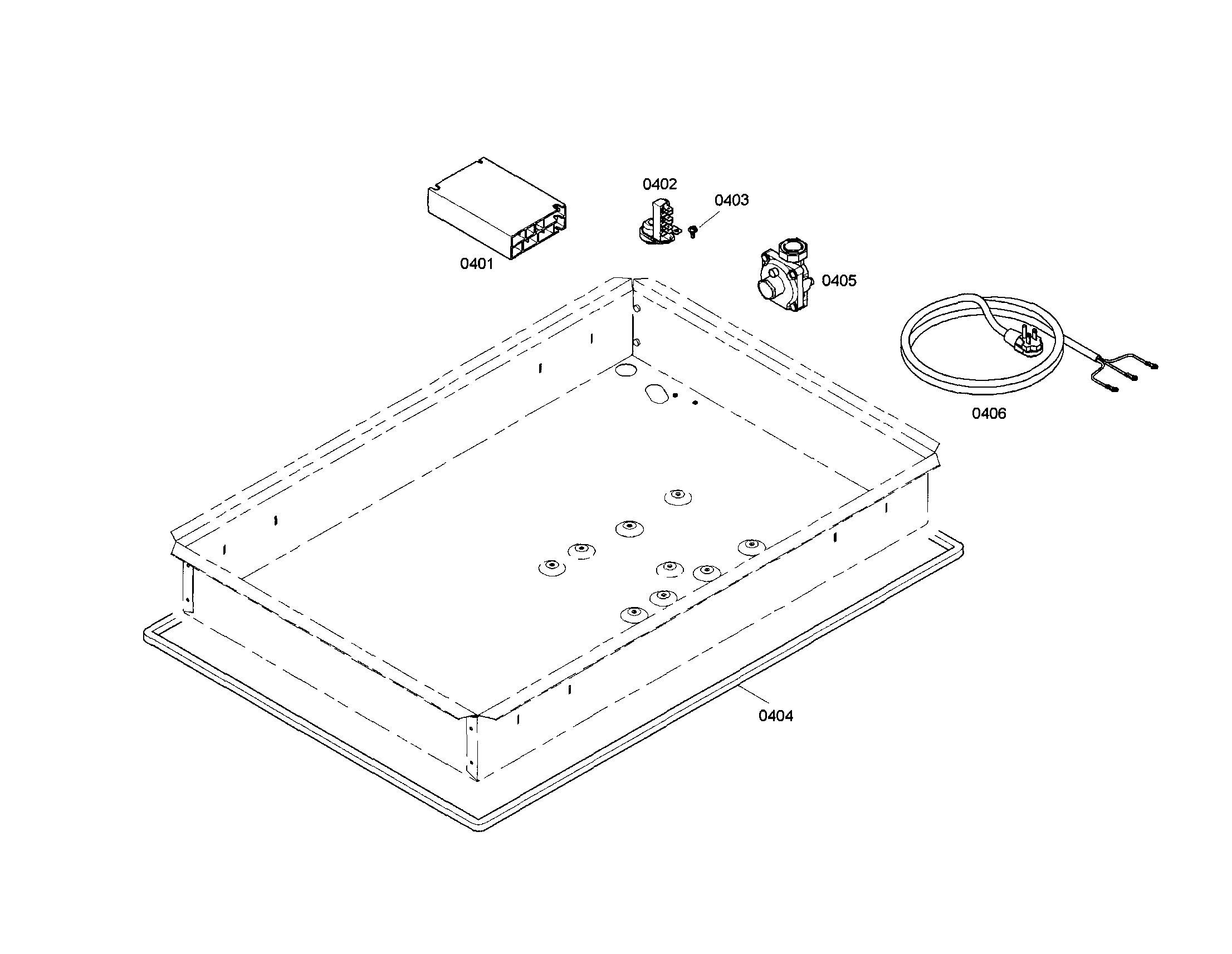

    Spark module/regulator diagram

    Mod.cntrol

    Part #645443

    The manufacturer no longer makes this part, and there's no substitute part

  • Ring 611956
    #104

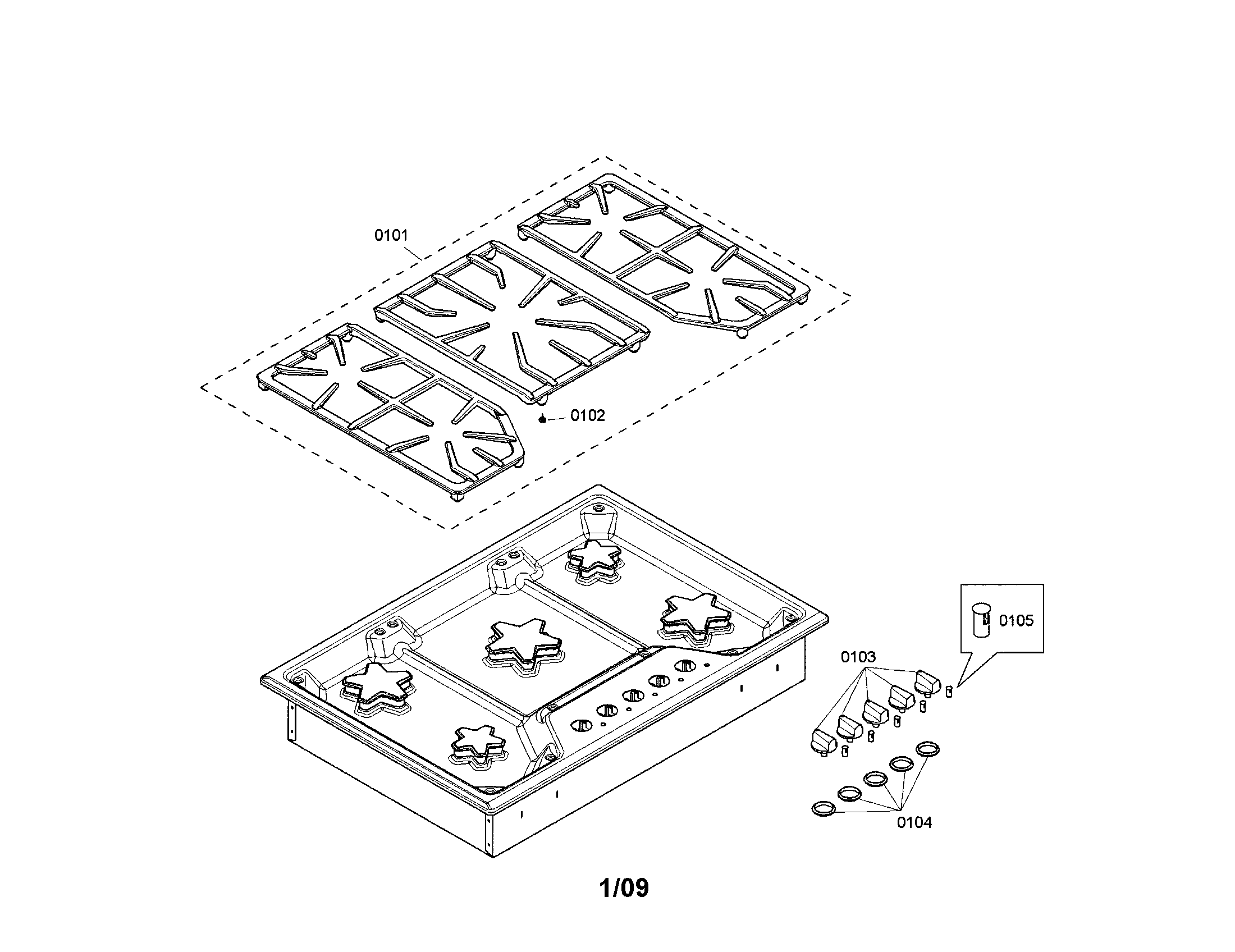

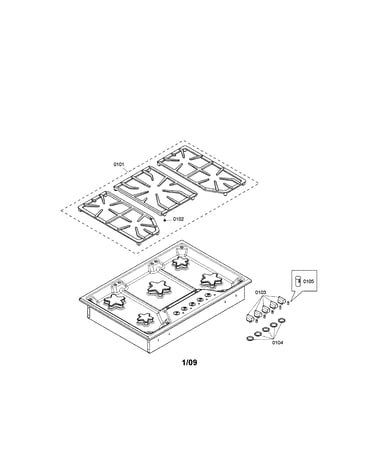

    Grates/knobs diagram

    Ring

    Part #611956

    Replaced by #00611956

    ?
    Manufacturer substitution
    This part replaces 611956. Substitute parts can look different from the original.
    $32.29
    16% OFF Phone Price : $38.29
    In Stock
  • Regulator 611976
    #405

    Spark module/regulator diagram

    Regulator

    Part #611976

    Replaced by #00611976

    ?
    Manufacturer substitution
    This part replaces 611976. Substitute parts can look different from the original.
    $34.59
    15% OFF Phone Price : $40.59
    In Stock
  • Holder 611989
    #214

    Cooktop diagram

    Holder

    Part #611989

    Replaced by #00611989

    ?
    Manufacturer substitution
    This part replaces 611989. Substitute parts can look different from the original.
    $32.29
    16% OFF Phone Price : $38.29
    In Stock
  • Switch 189008
    #309

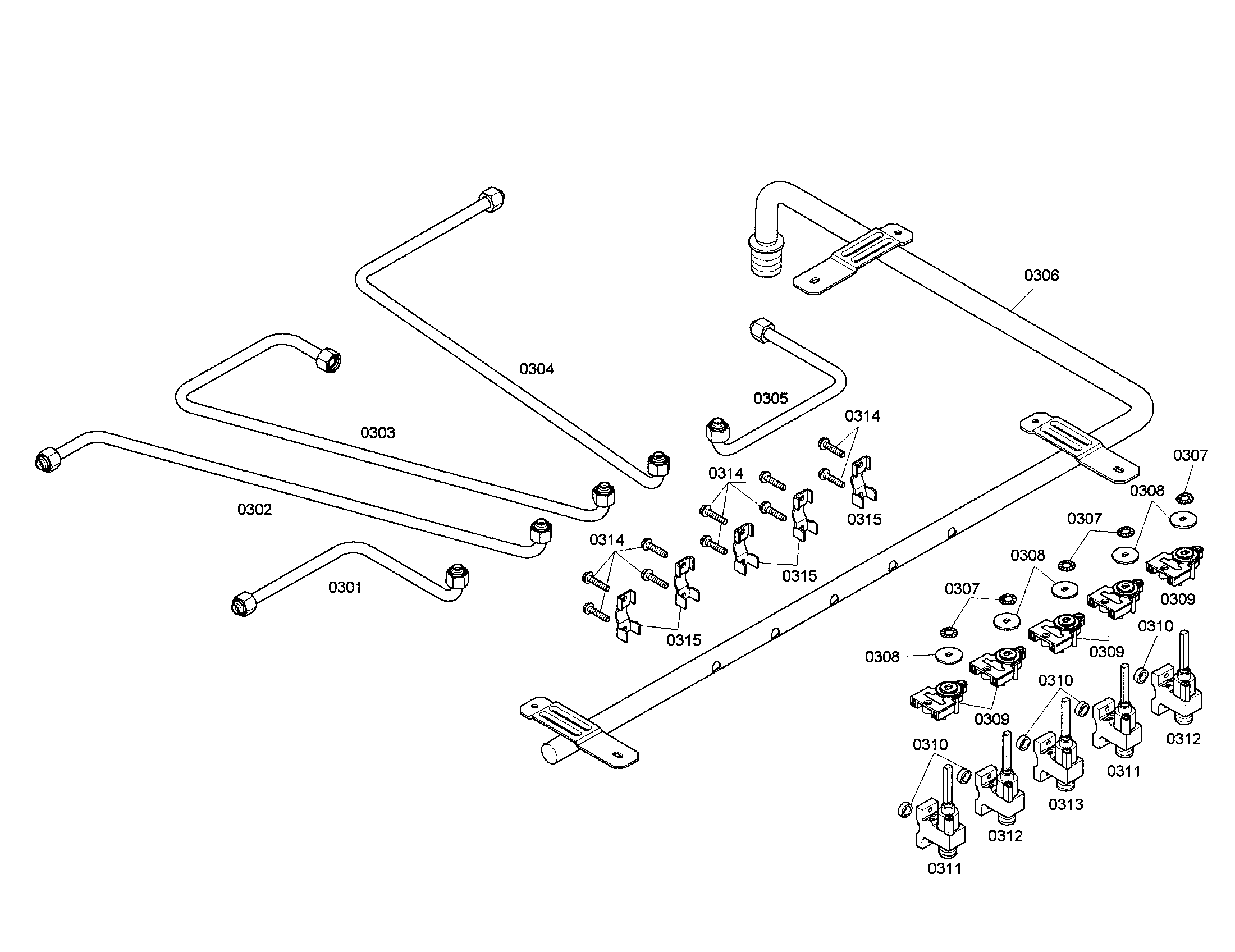

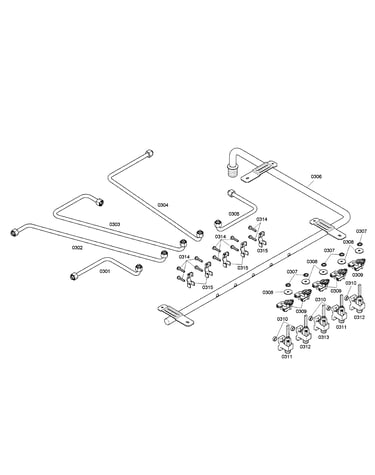

    Valves/manifold diagram

    Switch

    Part #189008

    Replaced by #00189008

    ?
    Manufacturer substitution
    This part replaces 189008. Substitute parts can look different from the original.
    $33.59
    15% OFF Phone Price : $39.59
    In Stock
  • Holder 611991
    #215

    Cooktop diagram

    Holder

    Part #611991

    Replaced by #611991

    ?
    Manufacturer substitution
    This part replaces 611991. Substitute parts can look different from the original.
    In Stock
  • Grid 668752
    #101

    Grates/knobs diagram

    Grid

    Part #668752

    Replaced by #00701373

    ?
    Manufacturer substitution
    This part replaces 668752. Substitute parts can look different from the original.
    $270.39
    $12.00 OFF Phone Price : $282.39
    In Stock
  • Tube 668703
    #305

    Valves/manifold diagram

    Tube

    Part #668703

    Replaced by #00668703

    ?
    Manufacturer substitution
    This part replaces 668703. Substitute parts can look different from the original.
    In Stock
  • Holder 611995
    #213

    Cooktop diagram

    Holder

    Part #611995

    Replaced by #00611995

    ?
    Manufacturer substitution
    This part replaces 611995. Substitute parts can look different from the original.
    In Stock

Most common symptoms to help you fix your cooktops

Choose a symptom to see related cooktop repairs.

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…

Repair guides for gas cooktops

How to replace a spark igniter switch on a gas cooktop

How to replace a spark igniter switch on a gas cooktop

Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…

Repair difficulty
Time required
 45 minutes or less
How to replace a spark module on a gas cooktop

How to replace a spark module on a gas cooktop

No flame on your gas cooktop? Installing a new spark module could be the fix you need.…

Repair difficulty
Time required
 30 minutes or less

Effective articles & videos to help repair your cooktops

Use the advice and tips in these articles and videos to get the most out of your cooktop.

5 Holiday cleaning tasks essential to boosting your home’s image

5 Holiday cleaning tasks essential to boosting your home’s image

Get tips on completing essential holiday cleaning tasks to brighten your home.…

How to repair broken or damaged wires video

How to repair broken or damaged wires video

Learn how to repair broken, frayed or damaged wires in your appliances.…

Cooktop common questions

Cooktop common questions

These common questions can help you make the most of your cooktop.…
