Amana
Electric Wall Oven

Model # AO24DD-P8556708S Official Amana wall oven

Here are the diagrams and repair parts for Official Amana AO24DD-P8556708S wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

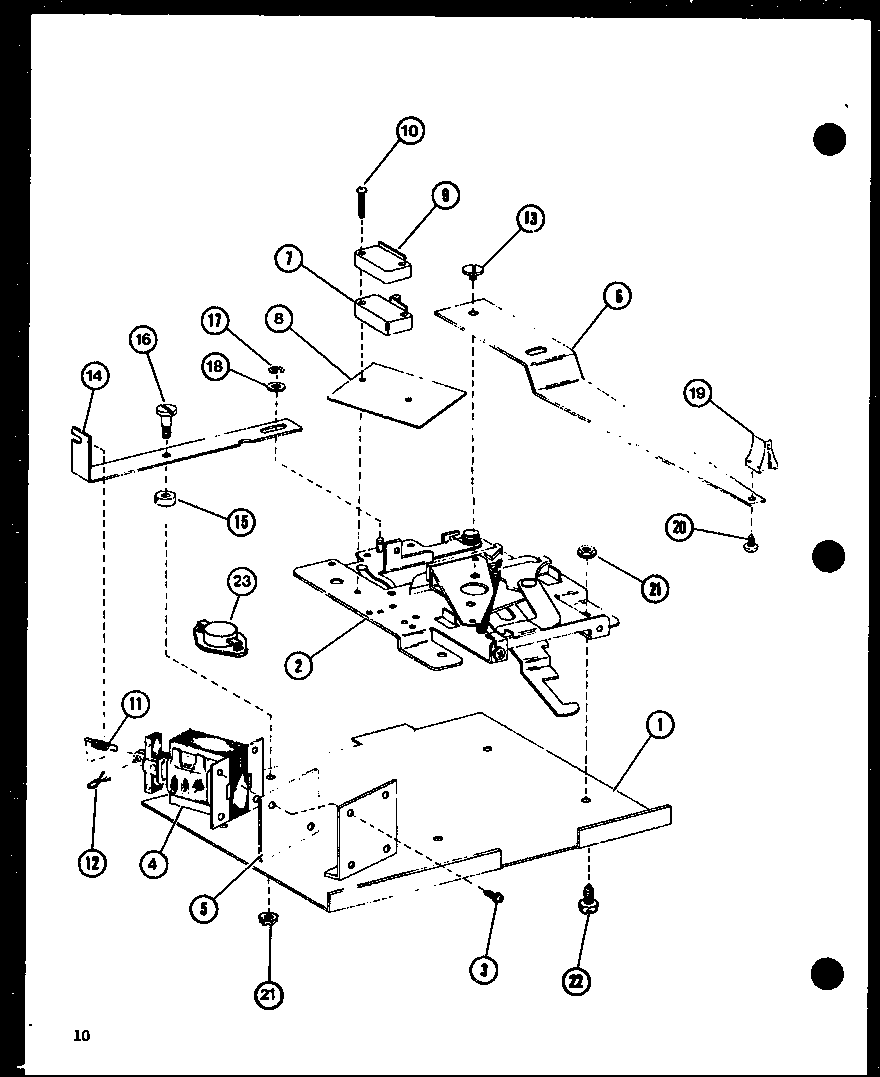

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Lamp A0282803
#22

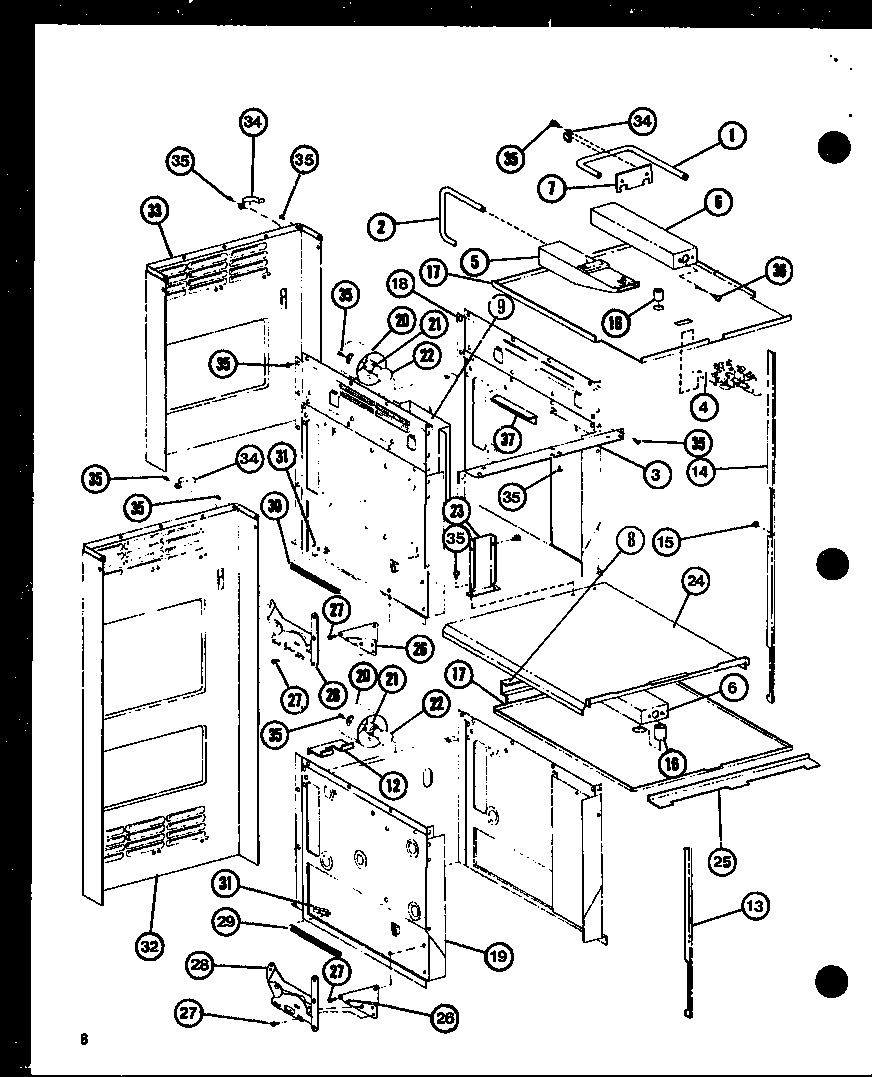

Cabinet parts diagram

Lamp

Part #A0282803

Replaced by #40A15

?
Manufacturer substitution
This part replaces A0282803. Substitute parts can look different from the original.
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Knob, Thermostat, Lower Oven R0703516
#1C

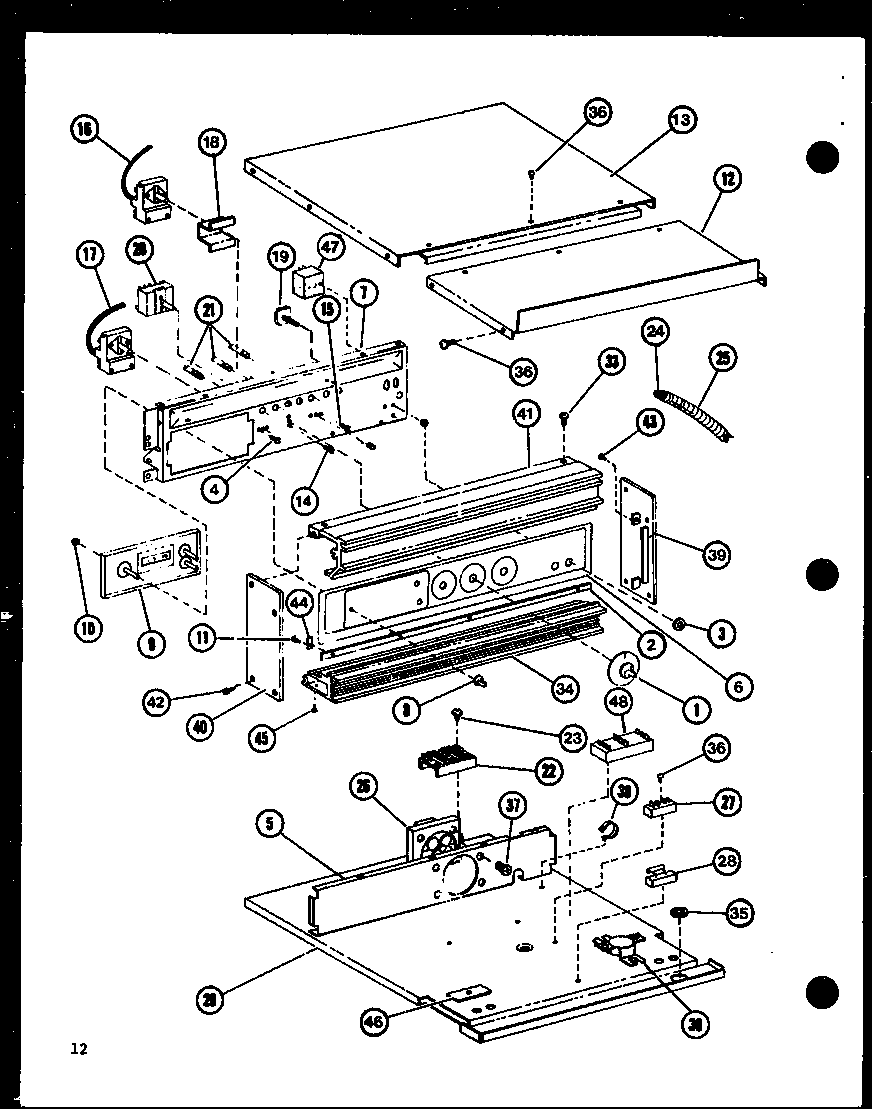

Controls diagram

Knob, thermostat, lower oven

Part #R0703516

The manufacturer no longer makes this part, and there's no substitute part

Screw, #8-32 X 1/4" R0700011
#14

Controls diagram

Screw, #8-32 x 1/4"

Part #R0700011

The manufacturer no longer makes this part, and there's no substitute part

Glass Mounting Bracket R0705574
#16

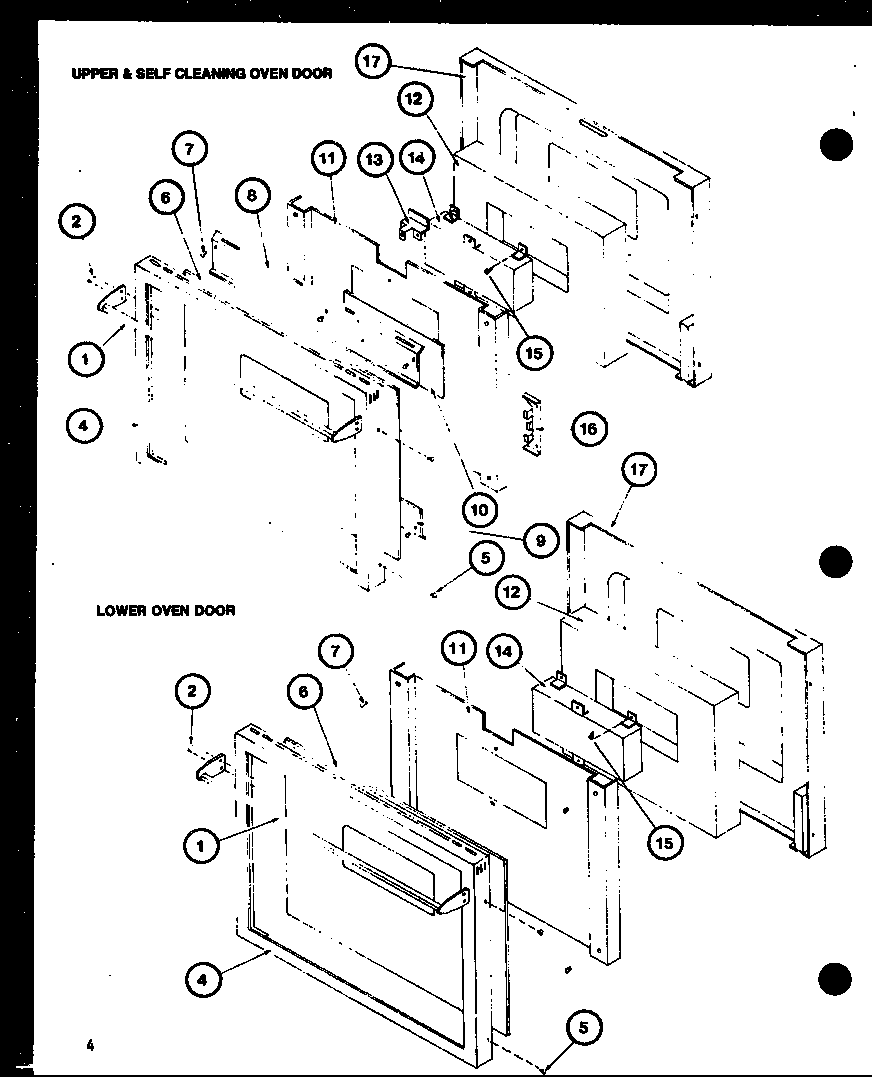

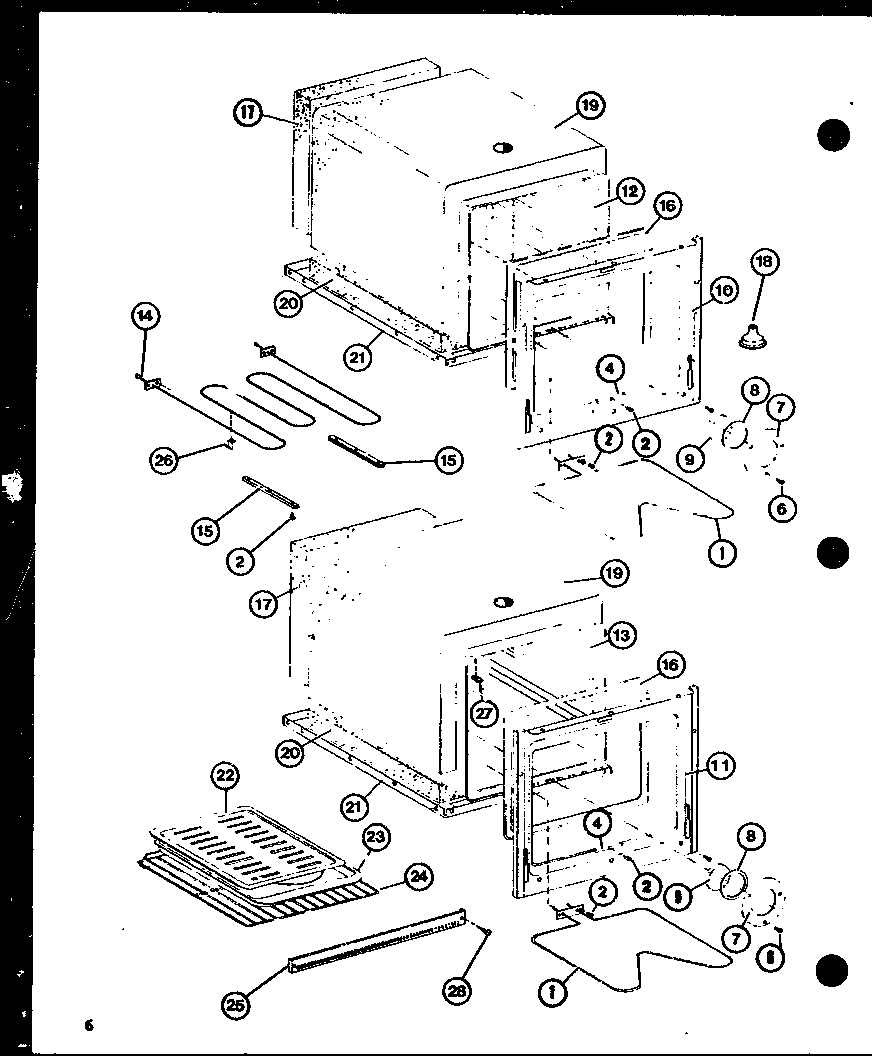

Upper & self cleaning oven door diagram

Glass mounting bracket

Part #R0705574

The manufacturer no longer makes this part, and there's no substitute part

Rubber Bumper R0157698
#7

Upper & self cleaning oven door diagram

Rubber bumper

Part #R0157698

The manufacturer no longer makes this part, and there's no substitute part

Oven Support, Upper R0703018
#24

Cabinet parts diagram

Oven support, upper

Part #R0703018

The manufacturer no longer makes this part, and there's no substitute part

Distribution Block R0710015
Distribution block

Part #R0710015

The manufacturer no longer makes this part, and there's no substitute part

Mounting Panel, Control R0157611
#7

Controls diagram

Mounting panel, control

Part #R0157611

The manufacturer no longer makes this part, and there's no substitute part

Cabinet, Side Extension R0703027
#37

Cabinet parts diagram

Cabinet, side extension

Part #R0703027

The manufacturer no longer makes this part, and there's no substitute part

Support, Control Panel, Upper Double & Single Oven R0705516
#3

Cabinet parts diagram

Support, control panel, upper double & single oven

Part #R0705516

The manufacturer no longer makes this part, and there's no substitute part
