Model # OML075B10B1 Official ICP oil furnace

Here are the diagrams and repair parts for Official ICP OML075B10B1 oil furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Capacitor 100192

#6

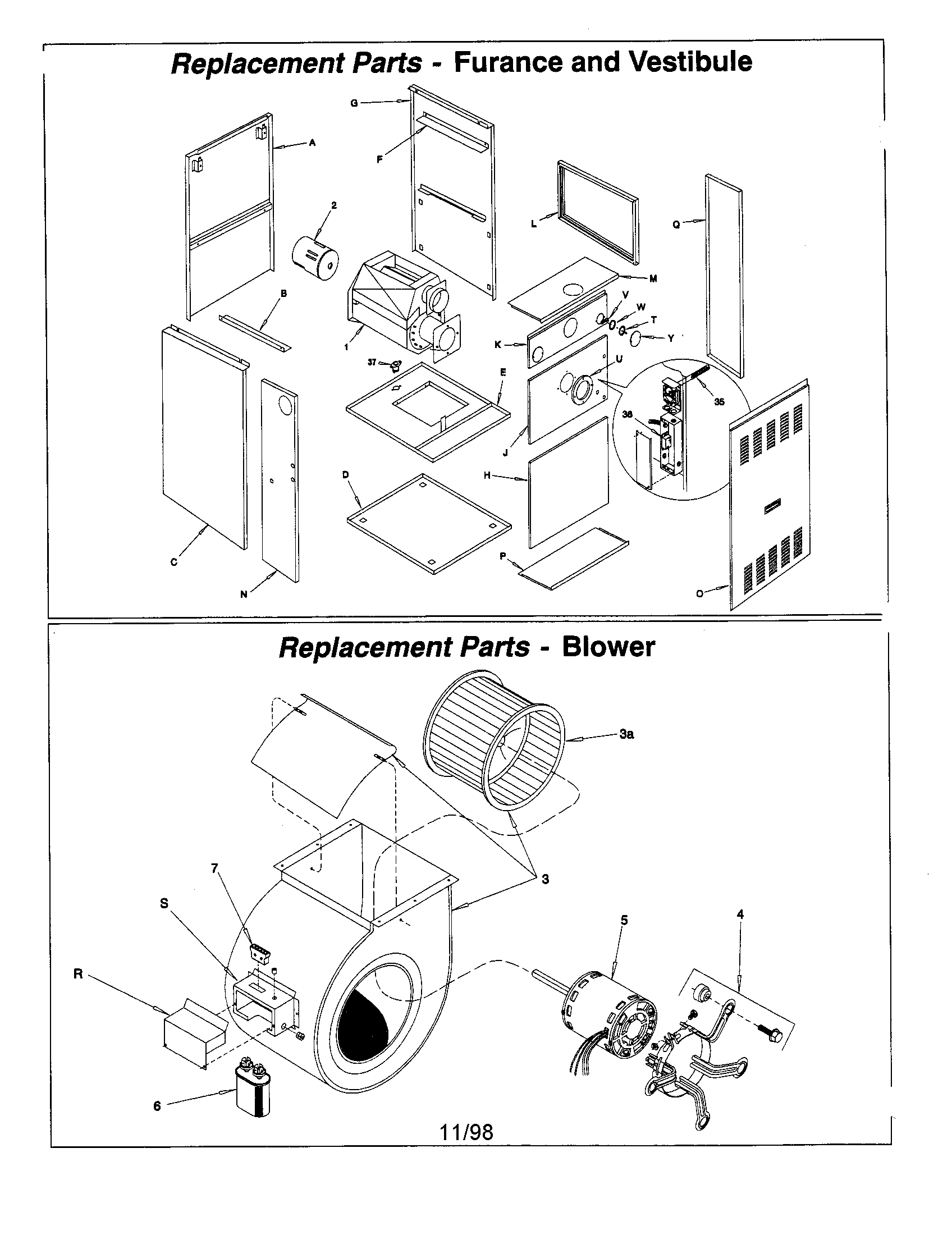

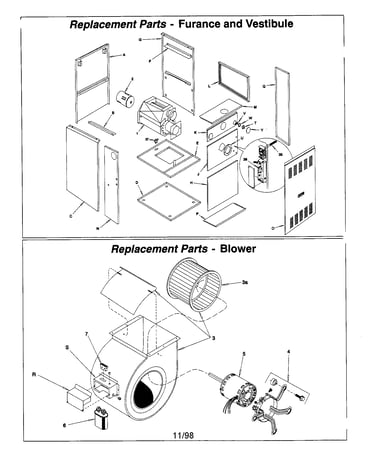

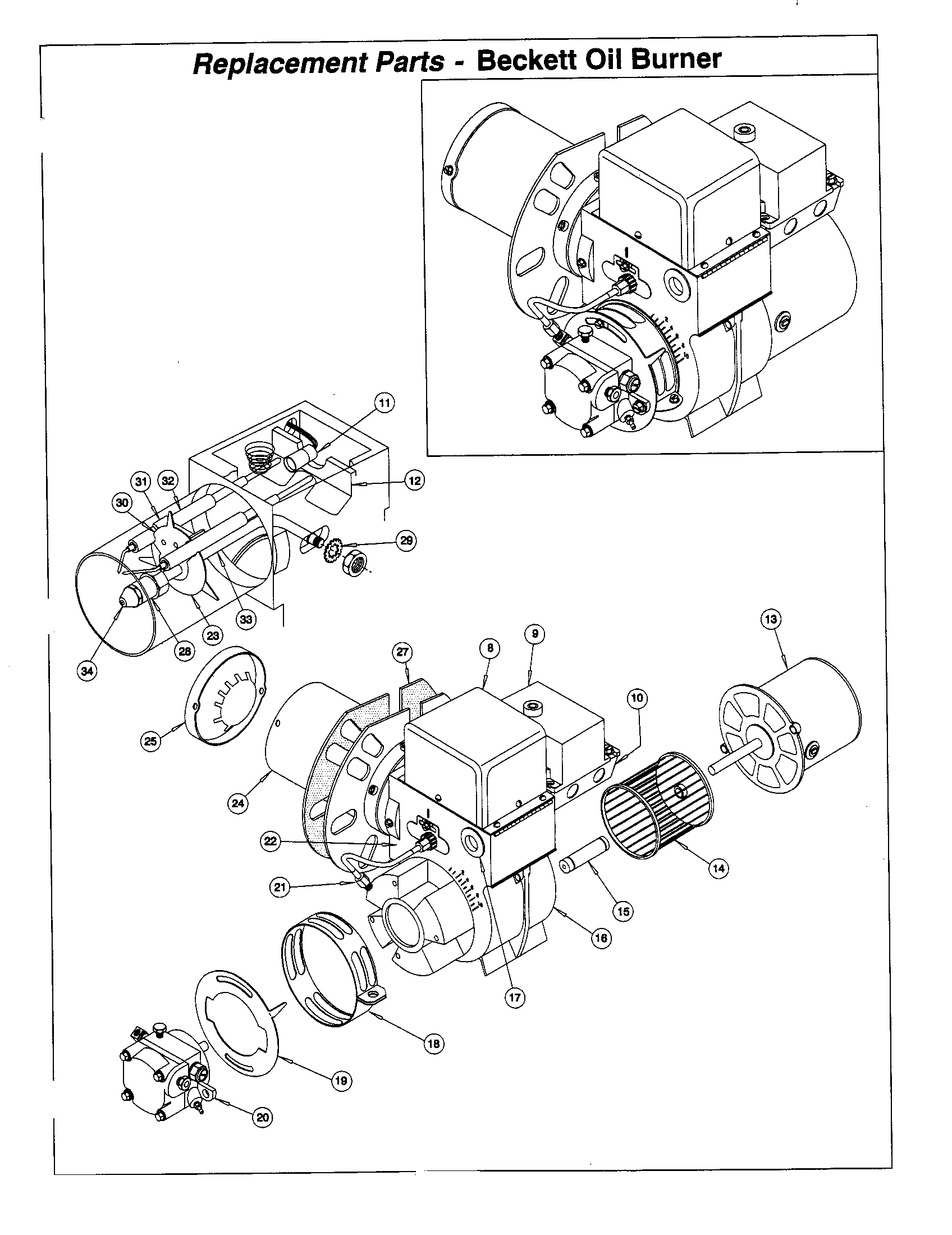

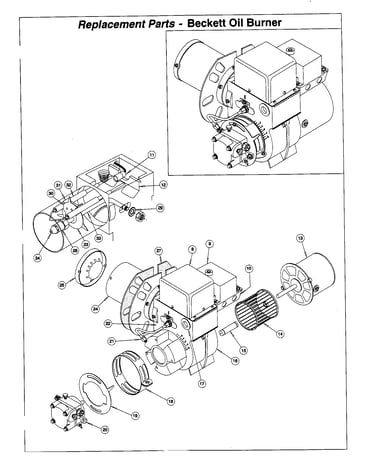

All parts diagram

Capacitor

Part #100192

Replaced by #12908

?
Manufacturer substitution
This part replaces 100192. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Nozzle 1162375

#34A

All parts diagram

Nozzle

Part #1162375

$33.56
In Stock
Cad Cell " 636063

#11

All parts diagram

Cad cell "

Part #636063

$52.96
In Stock
Switch 711410

#37

All parts diagram

Switch

Part #711410

$10.20
In Stock
Primary Rela 612454

#9

All parts diagram

Primary rela

Part #612454

Replaced by #R8184M1051

?
Manufacturer substitution
This part replaces 612454. Substitute parts can look different from the original.
$393.58
In Stock
Wheel 1162422

#3A

All parts diagram

Wheel

Part #1162422

Replaced by #600587

?
Manufacturer substitution
This part replaces 1162422. Substitute parts can look different from the original.
$130.20 |
8% OFF Phone Price : $142.20
In Stock
Relay 11803024

#36

All parts diagram

Relay

Part #11803024

Replaced by #L01H009

?
Manufacturer substitution
This part replaces 11803024. Substitute parts can look different from the original.
$55.78
In Stock
Wheel 1650237

#14

All parts diagram

Wheel

Part #1650237

Replaced by #1150448

?
Manufacturer substitution
This part replaces 1650237. Substitute parts can look different from the original.
$74.96
In Stock
Radiant Shield 1805051

#NI

All parts diagram

Radiant shield

Part #1805051

The manufacturer no longer makes this part, and there's no substitute part

Tube 1162371

#33

All parts diagram

Tube

Part #1162371

The manufacturer no longer makes this part, and there's no substitute part
