Model # BD-1025VR Official Ryobi cordless drill/driver

Here are the diagrams and repair parts for Official Ryobi BD-1025VR cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

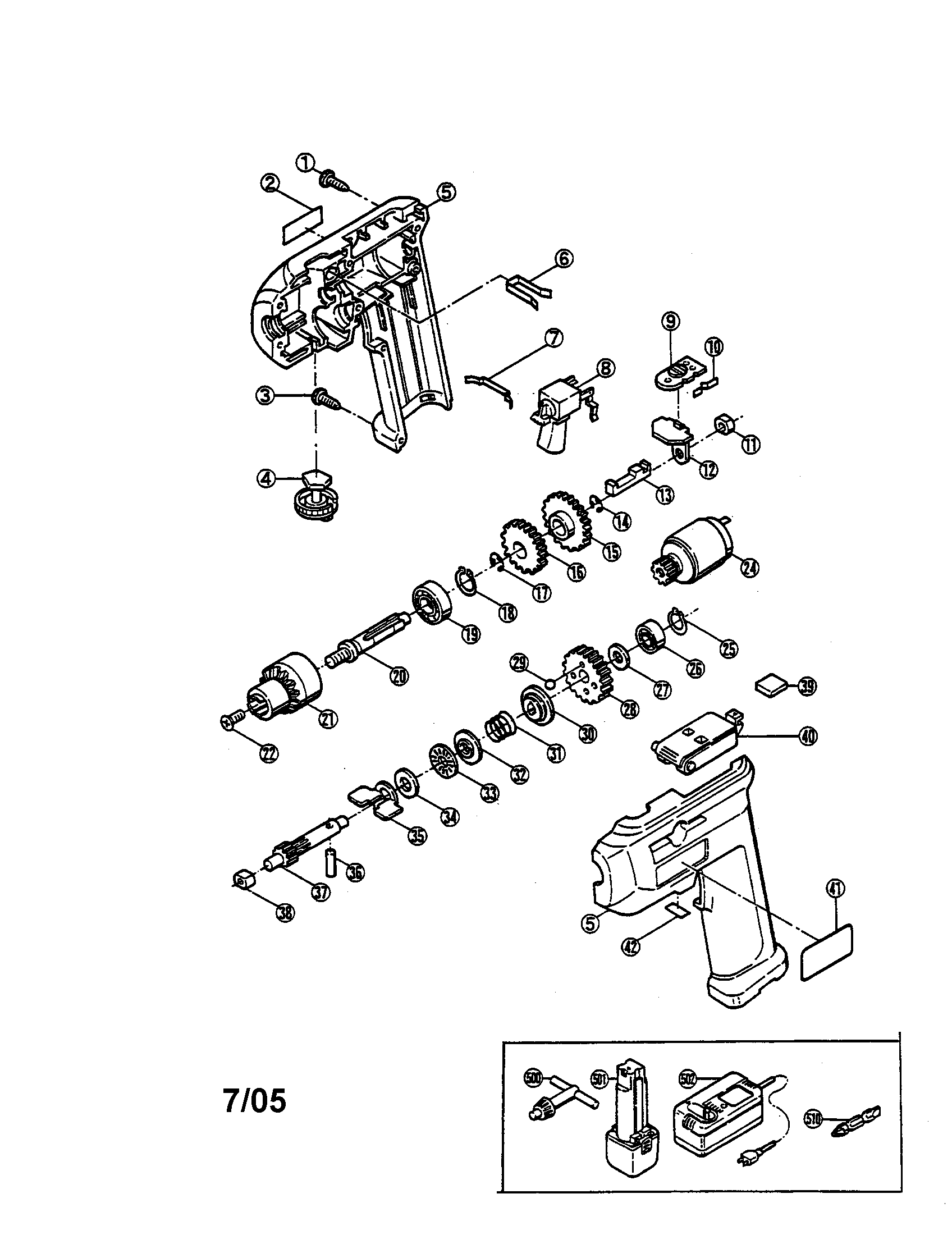

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Gear Shaft 6110109
#20

Cordless driver drill diagram

Gear shaft

Part #6110109

The manufacturer no longer makes this part, and there's no substitute part

10mm (3/8") Drill Chuck 6071573
#21

Cordless driver drill diagram

10mm (3/8") drill chuck

Part #6071573

The manufacturer no longer makes this part, and there's no substitute part

Thrust Plate 6151145
#32

Cordless driver drill diagram

Thrust plate

Part #6151145

The manufacturer no longer makes this part, and there's no substitute part

Reversible Switch 6550041
#8

Cordless driver drill diagram

Reversible switch

Part #6550041

The manufacturer no longer makes this part, and there's no substitute part

Guide Plate 6151202
#12

Cordless driver drill diagram

Guide plate

Part #6151202

The manufacturer no longer makes this part, and there's no substitute part

Intermediate Shaft 6050051
#37

Cordless driver drill diagram

Intermediate shaft

Part #6050051

The manufacturer no longer makes this part, and there's no substitute part

Parallel Key 6100161
#13

Cordless driver drill diagram

Parallel key

Part #6100161

The manufacturer no longer makes this part, and there's no substitute part

Steel Ball 3/16" (4) 6290053
#29

Cordless driver drill diagram

Steel ball 3/16" (4)

Part #6290053

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring E-8 6100138
Retaining ring e-8

Part #6100138

The manufacturer no longer makes this part, and there's no substitute part

Bit Case 6360149
#40

Cordless driver drill diagram

Bit case

Part #6360149

The manufacturer no longer makes this part, and there's no substitute part
