Model # 167430588 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167430588 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Teflon Tape 089-6713

#NI

All parts diagram

Teflon tape

Part #089-6713

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 066-6221
#8

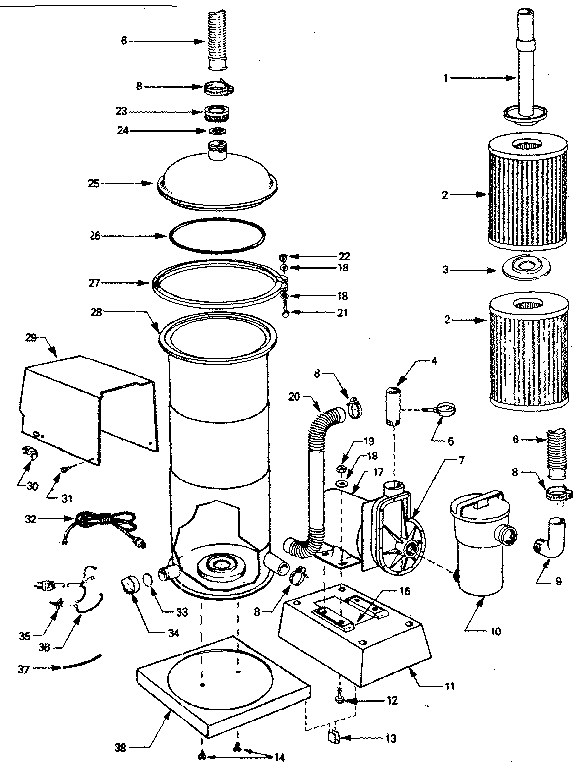

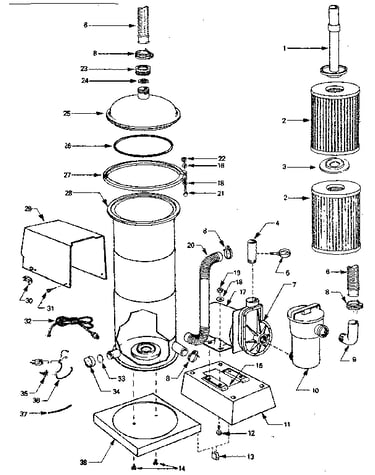

Replacement parts diagram

Hose clamp

Part #066-6221

The manufacturer no longer makes this part, and there's no substitute part

U-clip 055-3717
#13

Replacement parts diagram

U-clip

Part #055-3717

The manufacturer no longer makes this part, and there's no substitute part

Cartridge 195-8712
#2

Replacement parts diagram

Cartridge

Part #195-8712

The manufacturer no longer makes this part, and there's no substitute part

Pump Cover 098-7125
#49

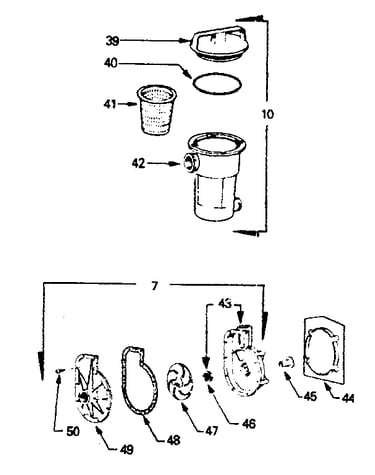

Pump assembly diagram

Pump cover

Part #098-7125

The manufacturer no longer makes this part, and there's no substitute part

Pr Gauge 265-10602
#5

Replacement parts diagram

Pr gauge

Part #265-10602

The manufacturer no longer makes this part, and there's no substitute part

Slip Nut 098-6957
#23

Replacement parts diagram

Slip nut

Part #098-6957

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 051-3735
#19

Replacement parts diagram

Hex nut

Part #051-3735

The manufacturer no longer makes this part, and there's no substitute part

Hose 102-7035
#20

Replacement parts diagram

Hose

Part #102-7035

The manufacturer no longer makes this part, and there's no substitute part

Drain Cap 098-7007
#34

Replacement parts diagram

Drain cap

Part #098-7007

The manufacturer no longer makes this part, and there's no substitute part
