Troybilt
Front-Tine Tiller

Model # 12215 Official Troybilt tiller/edger

Here are the diagrams and repair parts for Official Troybilt 12215 tiller/edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Cable Tie 1763682
#13

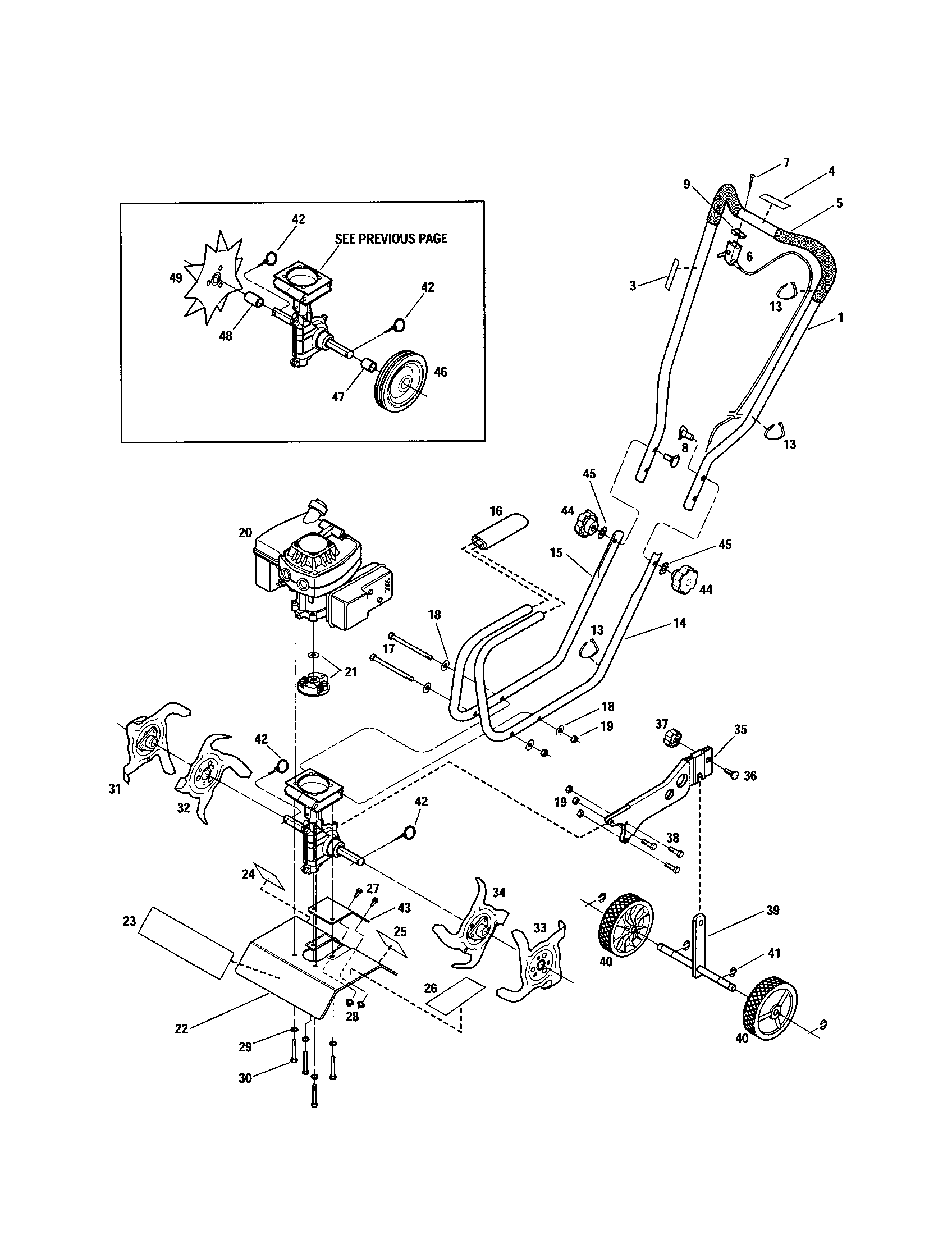

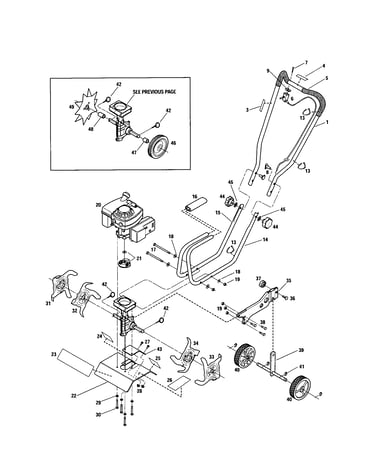

Engine/handle/tines/wheels diagram

Cable tie

Part #1763682

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 1763682. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Oil Seal 1983632
#3

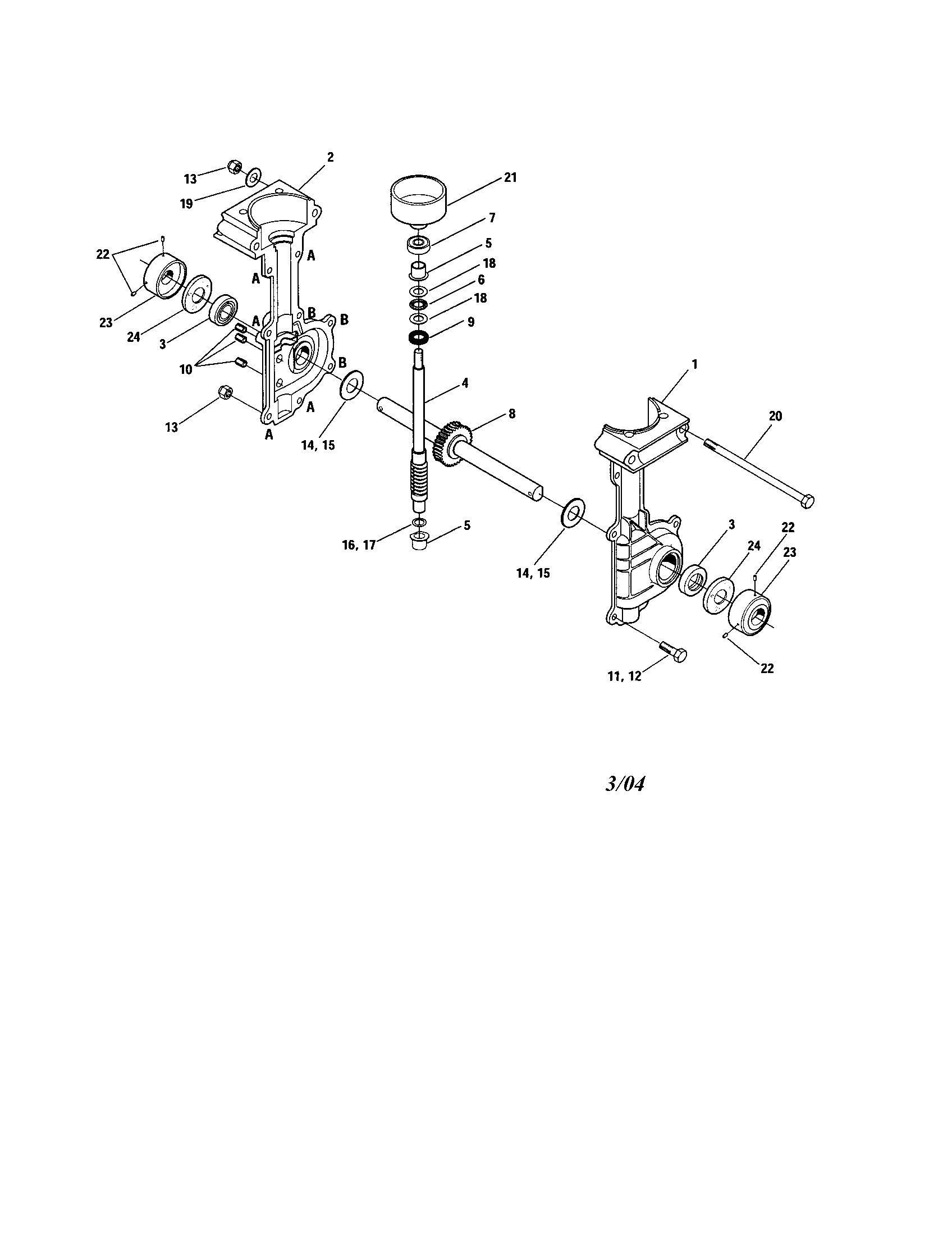

Transmission assembly diagram

Oil seal

Part #1983632

Replaced by #921-04044

?
Manufacturer substitution
This part replaces 1983632. Substitute parts can look different from the original.
$13.91
In Stock
Screw 1747166
#22

Transmission assembly diagram

Screw

Part #1747166

This item is not returnable
$6.97
In Stock
Thrust Washer 1983640
#15

Transmission assembly diagram

Thrust washer

Part #1983640

$11.31
In Stock
Brg Ball Pt/ 1983637
#7

Transmission assembly diagram

Brg ball pt/

Part #1983637

$51.36
In Stock
Clutch 1909486
#21

Transmission assembly diagram

Clutch

Part #1909486

$77.47
In Stock
Tine Spacer 1983648
#48

Engine/handle/tines/wheels diagram

Tine spacer

Part #1983648

$10.91
In Stock
Input Bearing 1983731
#5

Transmission assembly diagram

Input bearing

Part #1983731

$20.86
In Stock
Dust Cap 1915055
#23

Transmission assembly diagram

Dust cap

Part #1915055

$20.40
In Stock
Tiller Thrust Washer 1983641
#16

Transmission assembly diagram

Tiller thrust washer

Part #1983641

This item is not returnable
$5.71
In Stock
