Model # AL2800 Official Campbell Hausfeld airless paint sprayer

Here are the diagrams and repair parts for Official Campbell Hausfeld AL2800 airless paint sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Support Foot AL048700AV
#2

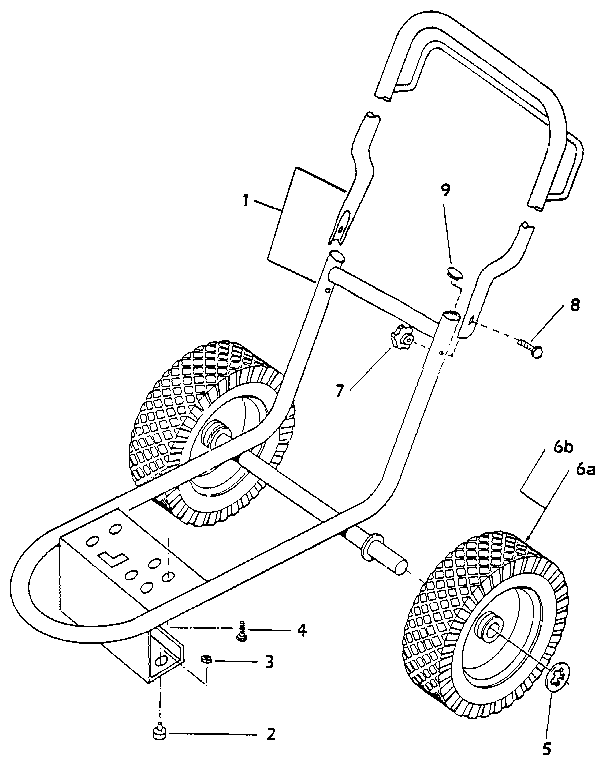

Cart diagram

Support foot

Part #AL048700AV

The manufacturer no longer makes this part, and there's no substitute part

Inlet Vavle AL052400AV
#25

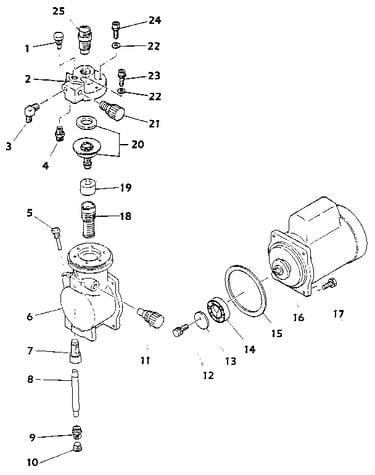

Pump diagram

Inlet vavle

Part #AL052400AV

The manufacturer no longer makes this part, and there's no substitute part

Head Bolt AL055300AV
#24

Pump diagram

Head bolt

Part #AL055300AV

The manufacturer no longer makes this part, and there's no substitute part

1" Plug ST073707AV
#9

Cart diagram

1" plug

Part #ST073707AV

The manufacturer no longer makes this part, and there's no substitute part

Gasket Motor AL053500AV
#15

Pump diagram

Gasket motor

Part #AL053500AV

The manufacturer no longer makes this part, and there's no substitute part

Pump Case AL051000AV
#6

Pump diagram

Pump case

Part #AL051000AV

The manufacturer no longer makes this part, and there's no substitute part

Bypass Hose AL055700AV
#3

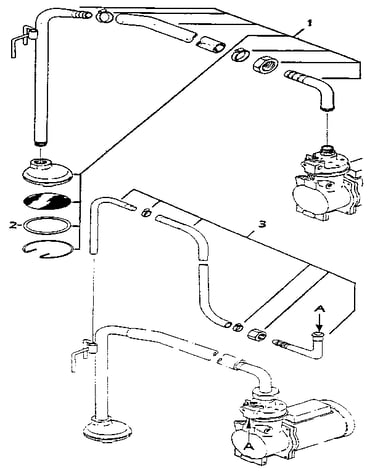

Hose diagram

Bypass hose

Part #AL055700AV

The manufacturer no longer makes this part, and there's no substitute part

Elbow AL054500AV
#3

Pump diagram

Elbow

Part #AL054500AV

The manufacturer no longer makes this part, and there's no substitute part

Suction Hose AL054100AV
#1

Hose diagram

Suction hose

Part #AL054100AV

The manufacturer no longer makes this part, and there's no substitute part

Spec Wrench AL056400AV

#NI

All parts diagram

Spec wrench

Part #AL056400AV

The manufacturer no longer makes this part, and there's no substitute part
