Model # 28-185 Official Delta 8" band saw

Here are the diagrams and repair parts for Official Delta 28-185 8" band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Screw 1341951
#207

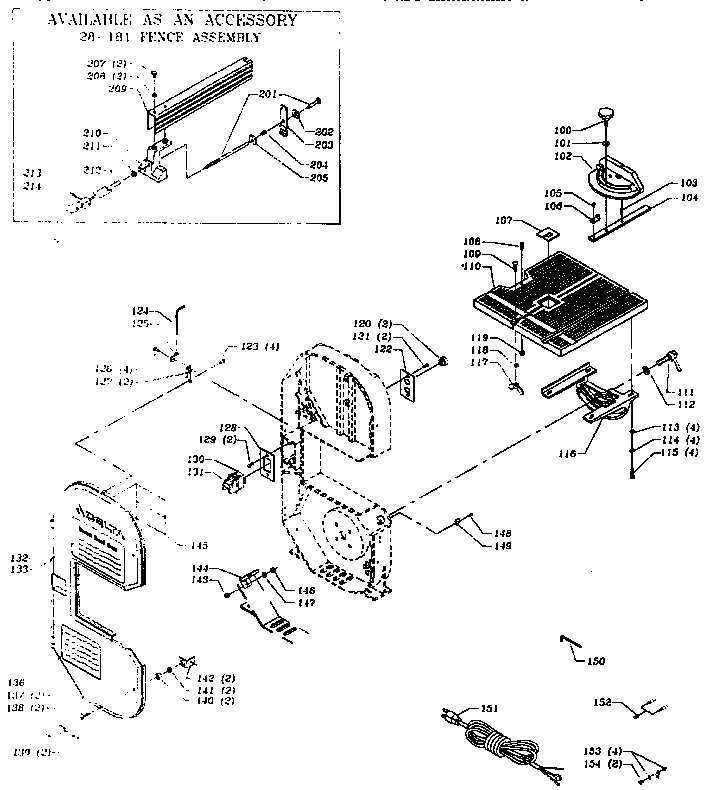

Miter gauge and rip fence assembly diagram

Screw

Part #1341951

The manufacturer no longer makes this part, and there's no substitute part

M6 Hex Nut 1243456
M6 hex nut

Part #1243456

The manufacturer no longer makes this part, and there's no substitute part

Ring 1320166
#52

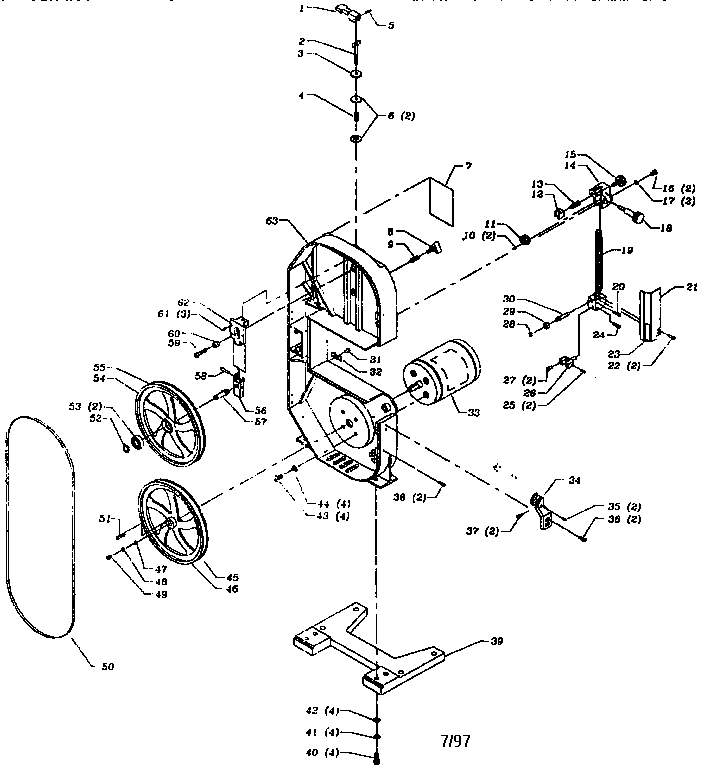

Unit parts diagram

Ring

Part #1320166

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246090
#109

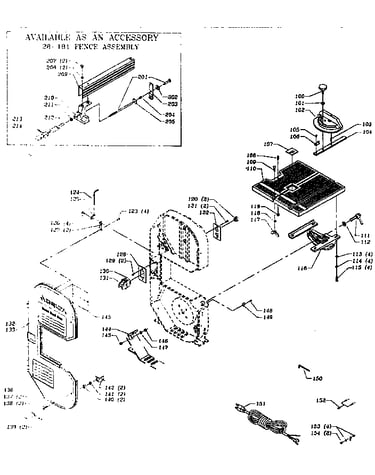

Miter gauge and rip fence assembly diagram

Screw

Part #1246090

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246113
#43

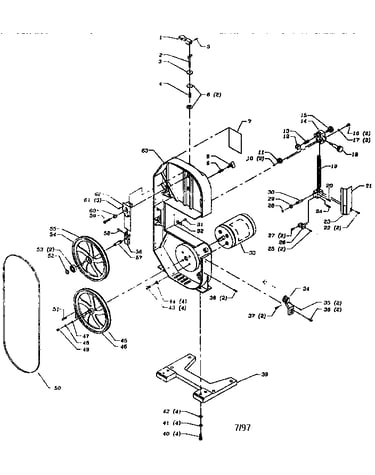

Unit parts diagram

Screw

Part #1246113

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Tire 1345013
Band saw tire

Part #1345013

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Screw 1345042
#137

Miter gauge and rip fence assembly diagram

Adjusting screw

Part #1345042

The manufacturer no longer makes this part, and there's no substitute part

Screw 1341441
#36

Unit parts diagram

Screw

Part #1341441

The manufacturer no longer makes this part, and there's no substitute part

Screw 1340406
#123

Miter gauge and rip fence assembly diagram

Screw

Part #1340406

The manufacturer no longer makes this part, and there's no substitute part

Delta Cover 1346506
#132

Miter gauge and rip fence assembly diagram

Delta cover

Part #1346506

The manufacturer no longer makes this part, and there's no substitute part
