Craftsman
Impact Wrench

Model # 875199101 Official Craftsman impact wrench

Here are the diagrams and repair parts for Official Craftsman 875199101 impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Rear Plate 8700611
#22

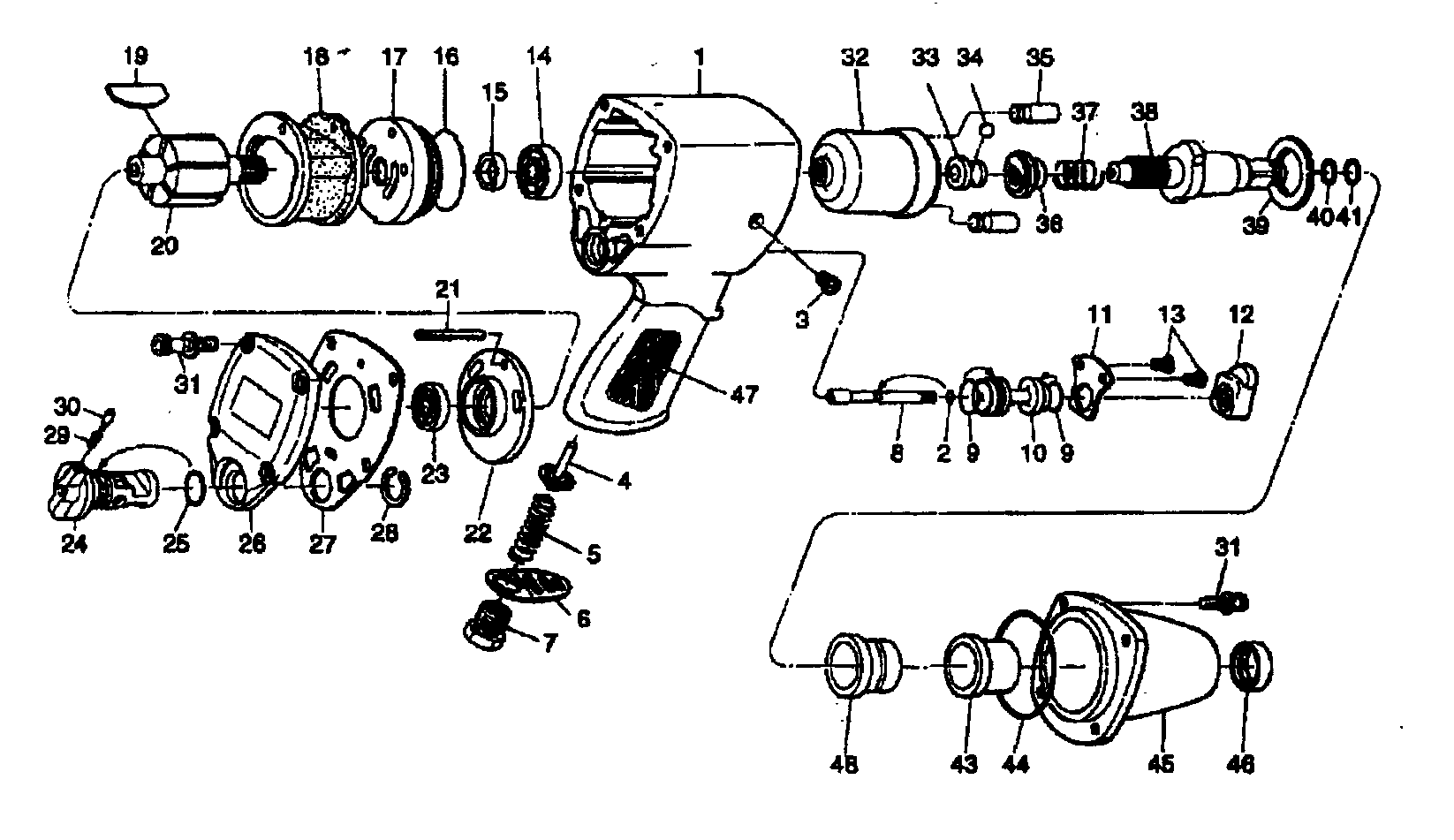

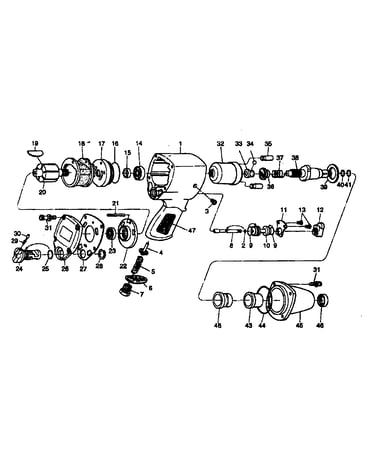

Cabinet parts diagram

Rear plate

Part #8700611

The manufacturer no longer makes this part, and there's no substitute part

Housing 8700595
#1

Cabinet parts diagram

Housing

Part #8700595

The manufacturer no longer makes this part, and there's no substitute part

Cam Ball 8574034
#34

Cabinet parts diagram

Cam ball

Part #8574034

The manufacturer no longer makes this part, and there's no substitute part

Hammer 8700616
#32

Cabinet parts diagram

Hammer

Part #8700616

The manufacturer no longer makes this part, and there's no substitute part

Screw 8700615
#31

Cabinet parts diagram

Screw

Part #8700615

The manufacturer no longer makes this part, and there's no substitute part

Spring 8700597
#5

Cabinet parts diagram

Spring

Part #8700597

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Bushing 8700804
#43

Cabinet parts diagram

Craftsman bushing

Part #8700804

The manufacturer no longer makes this part, and there's no substitute part

Pin 8700600
#8

Cabinet parts diagram

Pin

Part #8700600

The manufacturer no longer makes this part, and there's no substitute part

Valve Stem 8700596
#4

Cabinet parts diagram

Valve stem

Part #8700596

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 8729775
#41

Cabinet parts diagram

Retaining ring

Part #8729775

The manufacturer no longer makes this part, and there's no substitute part
