Side-By-Side Refrigerator

Model # TFF24ZAC Official GE side-by-side refrigerator

Here are the diagrams and repair parts for Official GE TFF24ZAC side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

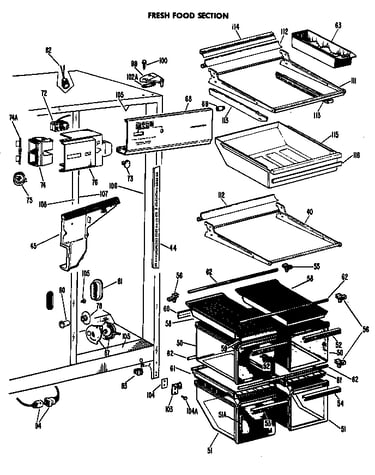

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Light Switch WR23X193
Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X108
#200

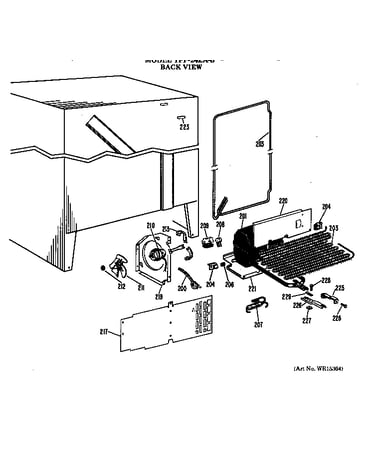

Backview diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Defrost Control WR9X354
#153

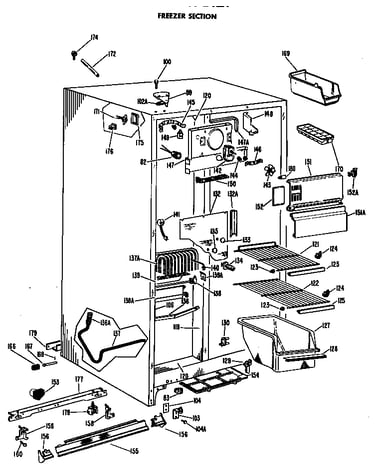

Freezer section diagram

Defrost control

Part #WR9X354

Replaced by #WR9X482

?
Manufacturer substitution
This part replaces WR9X354. Substitute parts can look different from the original.
$50.07 |
11% OFF Phone Price : $56.07
In Stock
Refrigerator Roller WR2X3594
#166

Freezer section diagram

Refrigerator roller

Part #WR2X3594

This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#223

Backview diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Water Tubing Clip WR1X5278
#200B

Backview diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Door Closer Cam (replaces Swr2x4901, Wr02x4901) WR2X4901
#16

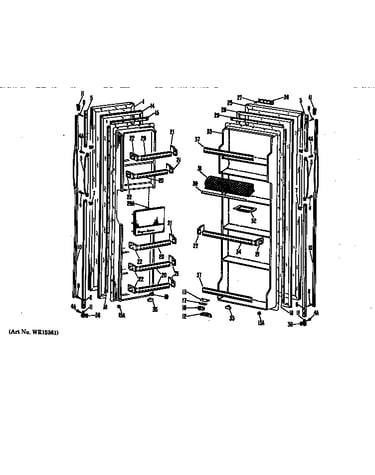

Refrigerator doors diagram

Refrigerator door closer cam (replaces swr2x4901, wr02x4901)

Part #WR2X4901

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
#143

Freezer section diagram

Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Str Relief WR2X3736
#217

Backview diagram

Str relief

Part #WR2X3736

Replaced by #WR1X5278

?
Manufacturer substitution
This part replaces WR2X3736. Substitute parts can look different from the original.
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Fan Blade WR2X3198
#143

Freezer section diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
