Gas Walk-Behind Mower

Model # 917386181 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917386181 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Lawn Mower Blade Adapter 851514
#61

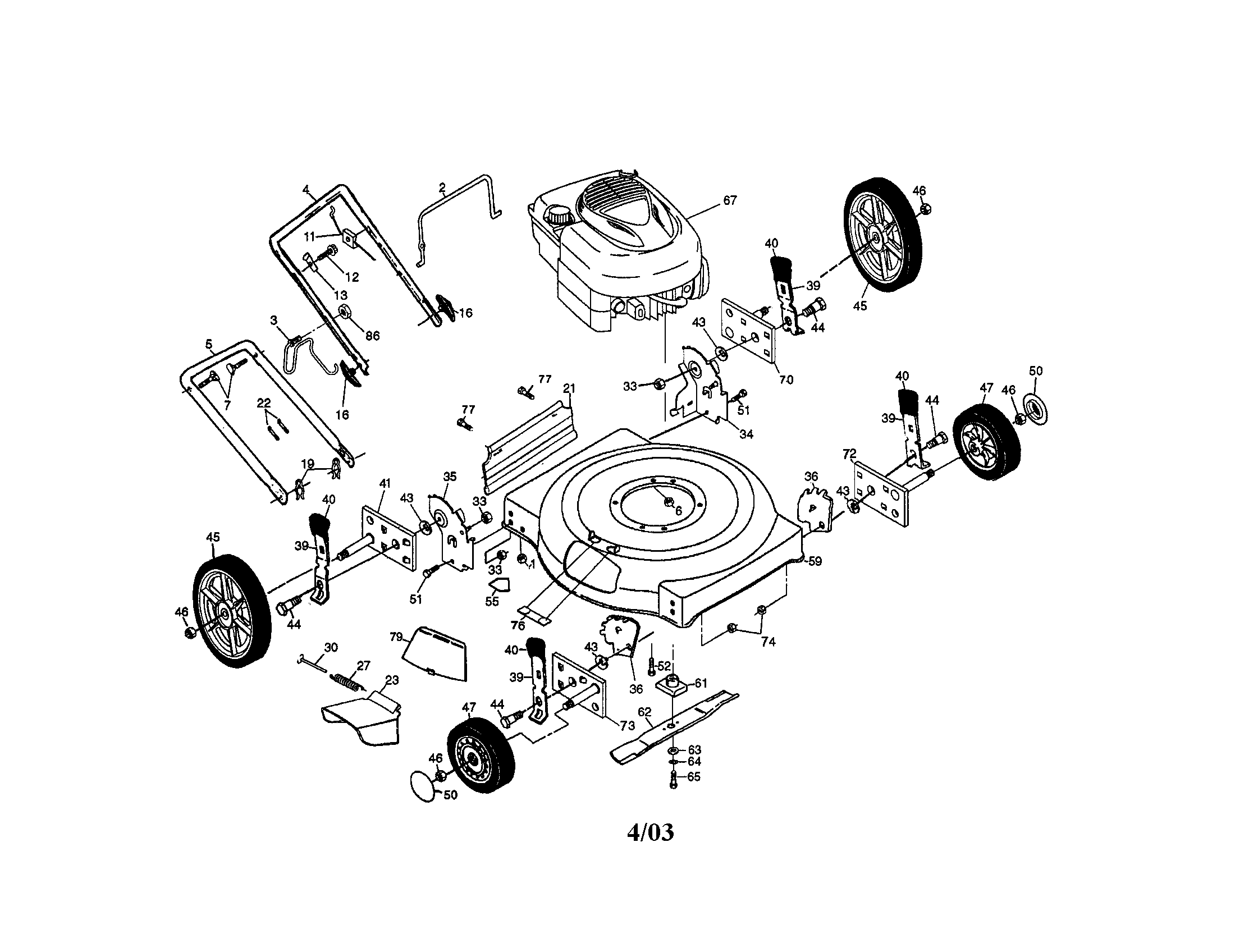

Engine/handle/housing/wheels diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#1

Engine/handle/housing/wheels diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#86

Engine/handle/housing/wheels diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
American Yard Products Lawn Mower Anti-fold Bracket 186079
#3

Engine/handle/housing/wheels diagram

American yard products lawn mower anti-fold bracket

Part #186079

Replaced by #586122501

?
Manufacturer substitution
This part replaces 186079. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Selector 170143
#40

Engine/handle/housing/wheels diagram

Selector

Part #170143

Replaced by #532087877

?
Manufacturer substitution
This part replaces 170143. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Nut 166785
#74

Engine/handle/housing/wheels diagram

Hex flange nut

Part #166785

Replaced by #585802801

?
Manufacturer substitution
This part replaces 166785. Substitute parts can look different from the original.
$8.54
In Stock
Lawn Mower Cable Bracket 86899X004
#13

Engine/handle/housing/wheels diagram

Lawn mower cable bracket

Part #86899X004

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86899X004. Substitute parts can look different from the original.
$10.26
In Stock
Tower Lawn Tractor Bolt (replaces 532002274, 532057968, 74760412x008) 74760412
#77

Engine/handle/housing/wheels diagram

Tower lawn tractor bolt (replaces 532002274, 532057968, 74760412x008)

Part #74760412

Replaced by #874760412

?
Manufacturer substitution
This part replaces 74760412. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Handle Bolt 131959
#7

Engine/handle/housing/wheels diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#63

Engine/handle/housing/wheels diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
