Here are the diagrams and repair parts for Official Craftsman 919152144 air compressor, as well as links to manuals and error code tables, if available.

Owner’s manual

By Schematic

SELECT DIAGRAM

Browse Parts for919152144 Power Tools

#17

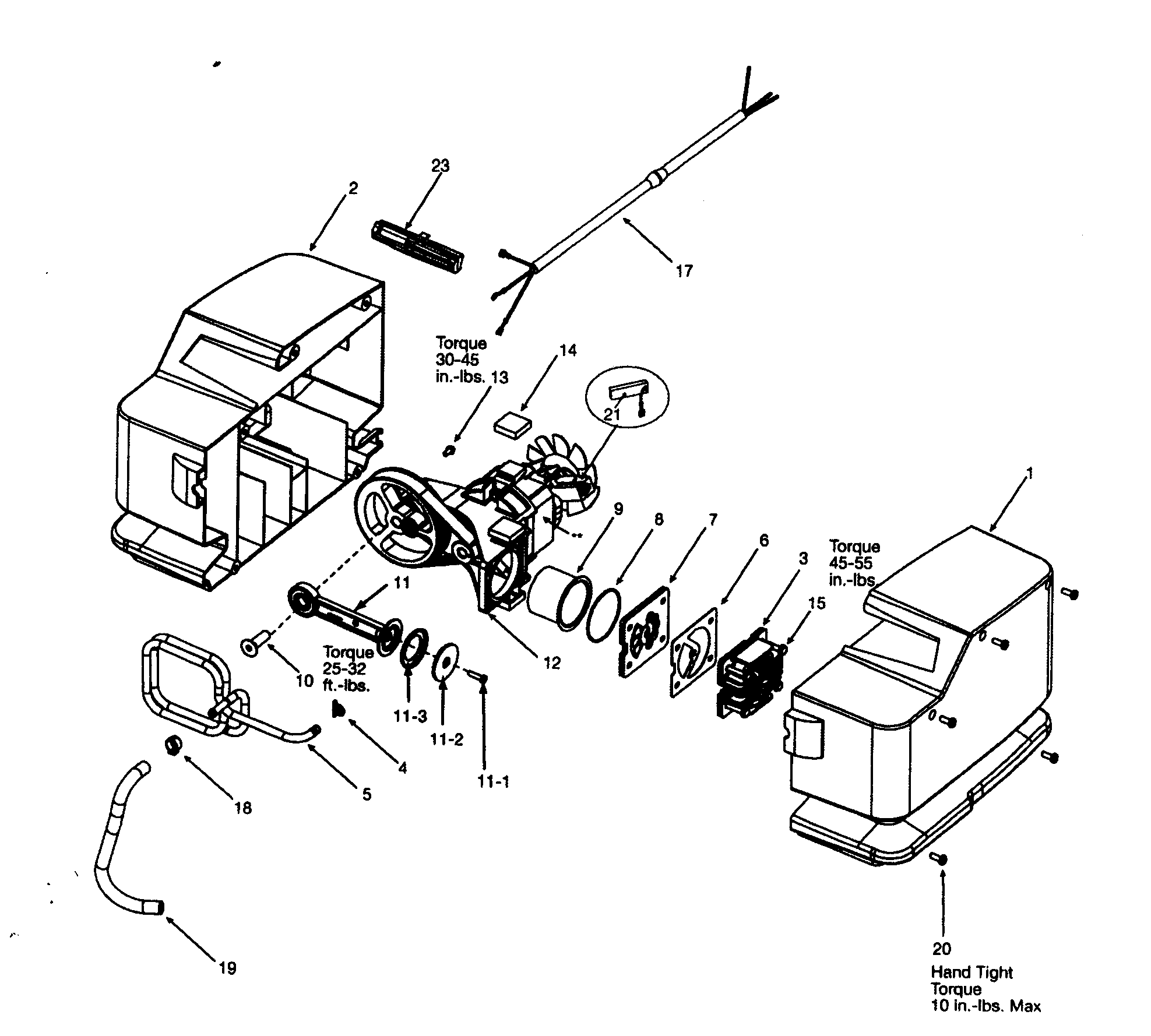

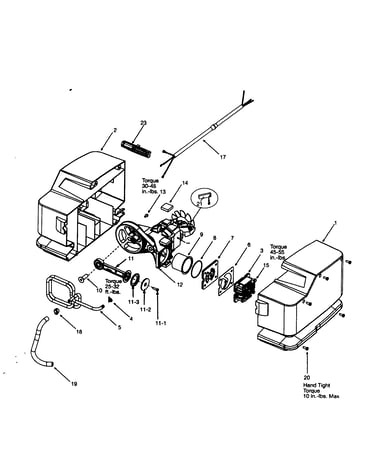

Pump assy diagram
Motor cord
Part #D27279
The manufacturer no longer makes this part, and there's no substitute part
#23
Pump assy diagram
Air compressor handle
Part #A00470
The manufacturer no longer makes this part, and there's no substitute part
#20
Pump assy diagram
Porter cable air compressor shroud screw
Part #SSF-3156
The manufacturer no longer makes this part, and there's no substitute part
#NI
Pump assy diagram
Label
Part #LA-3270
The manufacturer no longer makes this part, and there's no substitute part
#11

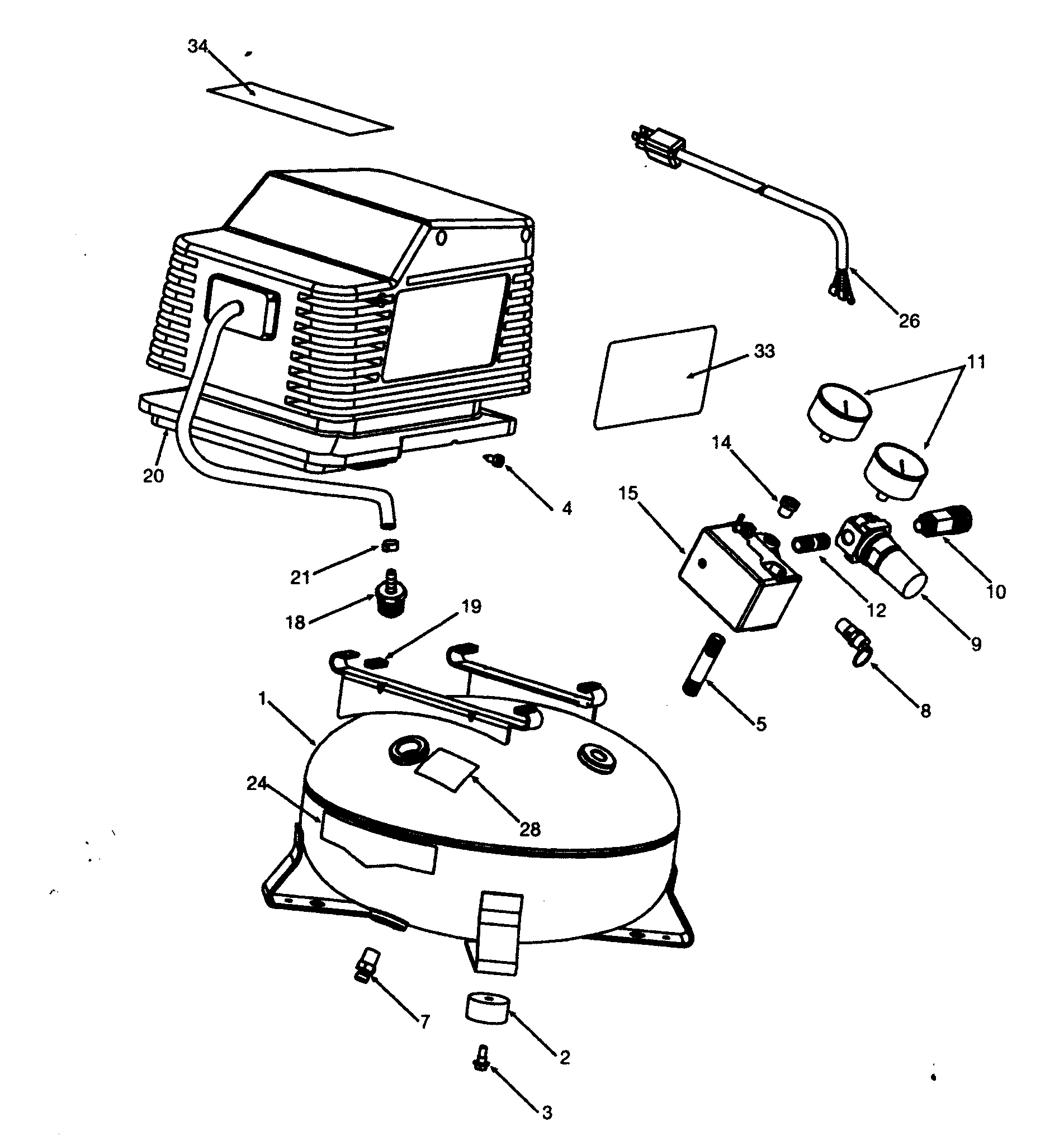

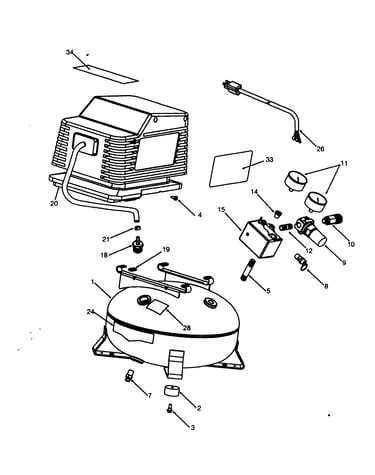

Air compressor diagram
Porter cable air compressor pressure gauge, 200-psi
Part #Z-D27212
The manufacturer no longer makes this part, and there's no substitute part
#21C
Pump assy diagram
Air compressor motor brush set
Part #Z-D27196
The manufacturer no longer makes this part, and there's no substitute part
#18
Air compressor diagram
Air compressor check valve
Part #D27022
The manufacturer no longer makes this part, and there's no substitute part
#11-1
Pump assy diagram
Screw
Part #D21127
The manufacturer no longer makes this part, and there's no substitute part
#14
Pump assy diagram
Air compressor pump isolator
Part #D25731
The manufacturer no longer makes this part, and there's no substitute part
#13
Pump assy diagram
Screw
Part #SUDL-9-1
The manufacturer no longer makes this part, and there's no substitute part
