GE
Electric Cooktop

Model # JP3030DW2BB Official GE electric counter unit

Here are the diagrams and repair parts for Official GE JP3030DW2BB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

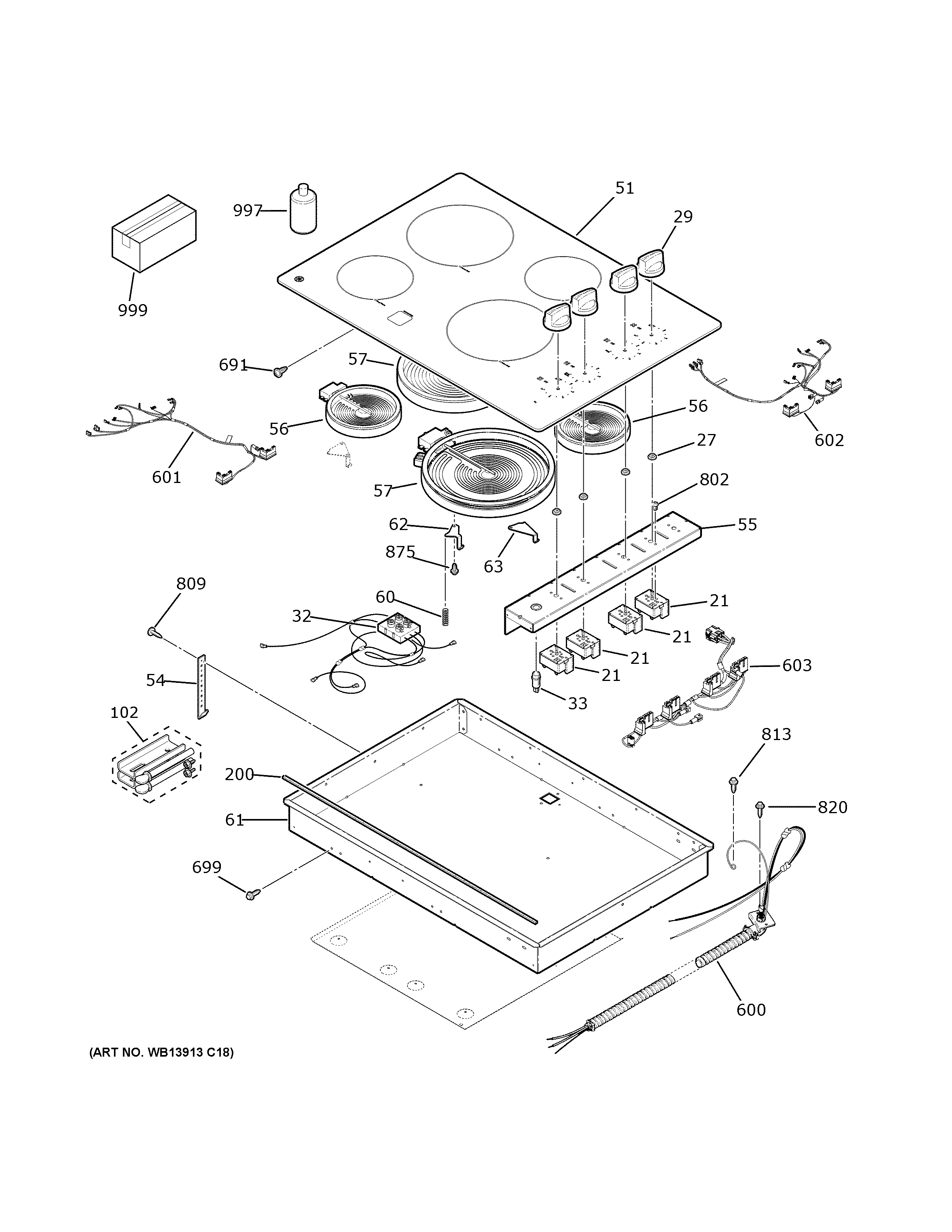

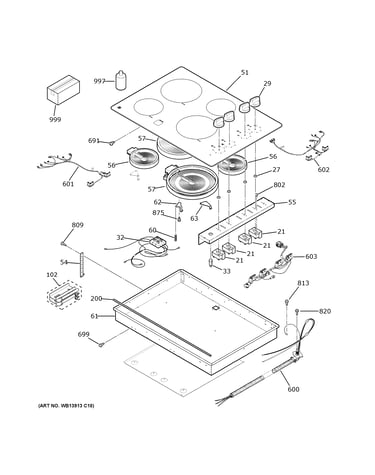

Control panel & cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Radiant Surface Element, 8-in WB30T10136
#57

Control panel & cooktop diagram

Range radiant surface element, 8-in

Part #WB30T10136

BEST SELLER
$107.70 |
10% OFF Phone Price : $119.70
In Stock
Cooktop Indicator Light WB25T10012
#33

Control panel & cooktop diagram

Cooktop indicator light

Part #WB25T10012

This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Cooktop Main Top Seal (replaces Wb2x9902) WB02X26088
#200

Control panel & cooktop diagram

Cooktop main top seal (replaces wb2x9902)

Part #WB02X26088

$51.24 |
10% OFF Phone Price : $57.24
In Stock
Range Surface Element Spring (replaces Wb09t10013) WB09X40389
#60

Control panel & cooktop diagram

Range surface element spring (replaces wb09t10013)

Part #WB09X40389

$9.54
In Stock
Indicator Module WB18T10349
#32

Control panel & cooktop diagram

Indicator module

Part #WB18T10349

$20.49 |
23% OFF Phone Price : $26.49
In Stock
Brkt Hold Dn WB02K5328
#54

Control panel & cooktop diagram

Brkt hold dn

Part #WB02K5328

Replaced by #WB2K5328

?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Knob Bk WB03X29629
#29

Control panel & cooktop diagram

Knob bk

Part #WB03X29629

This item is not returnable
$5.55
In Stock
Range Installation WB01X24570
#102

Control panel & cooktop diagram

Range installation

Part #WB01X24570

$29.87 |
17% OFF Phone Price : $35.87
In Stock
Cooktop Main Top Foam Tape WB02X21898
#200

Control panel & cooktop diagram

Cooktop main top foam tape

Part #WB02X21898

$127.52 |
9% OFF Phone Price : $139.52
In Stock
