Model # 15812471 Official Kenmore sewing machine head

Here are the diagrams and repair parts for Official Kenmore 15812471 sewing machine head, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

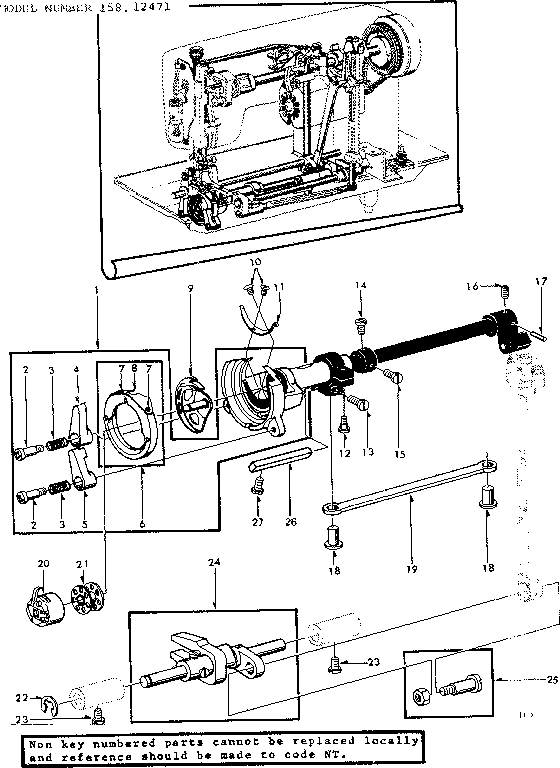

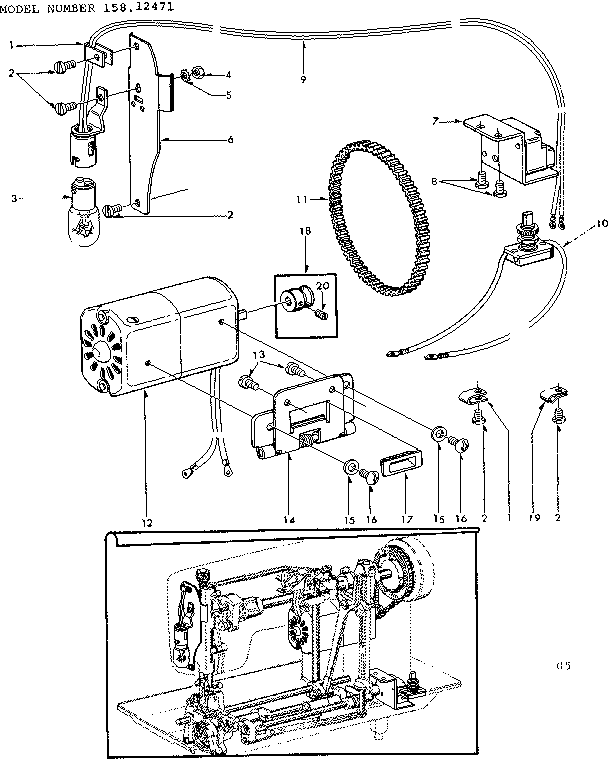

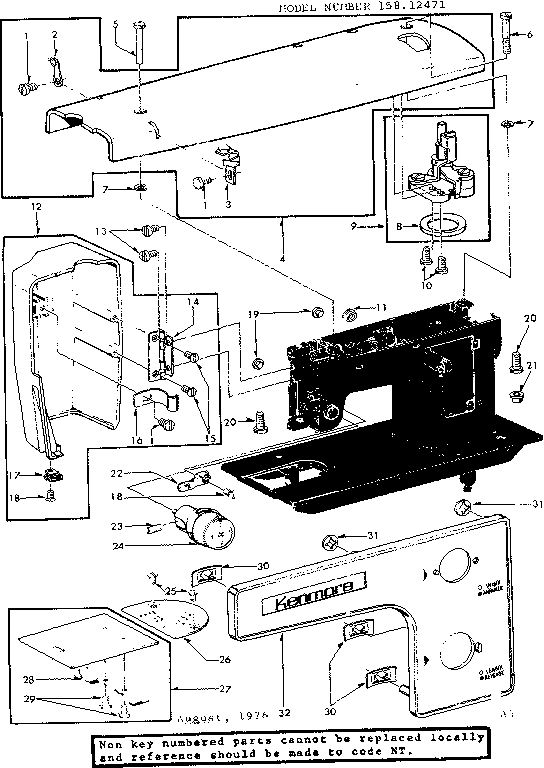

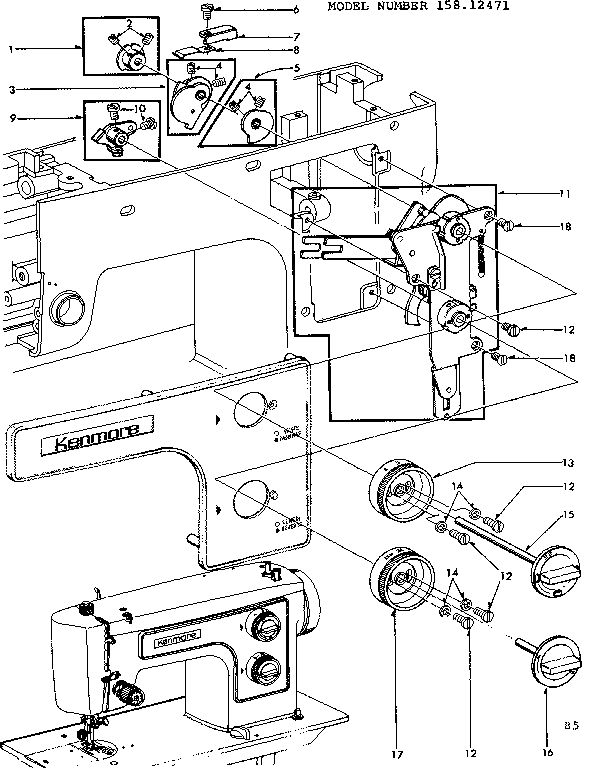

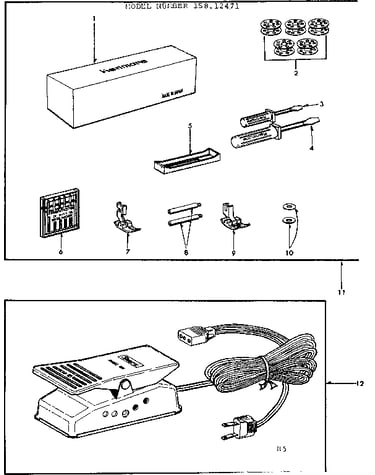

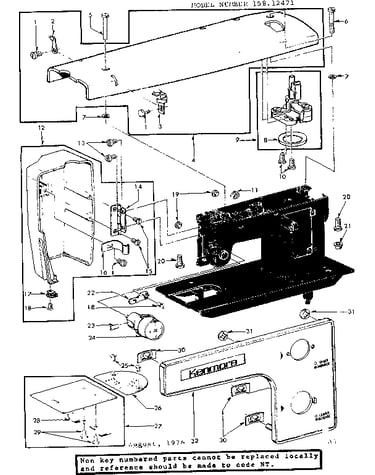

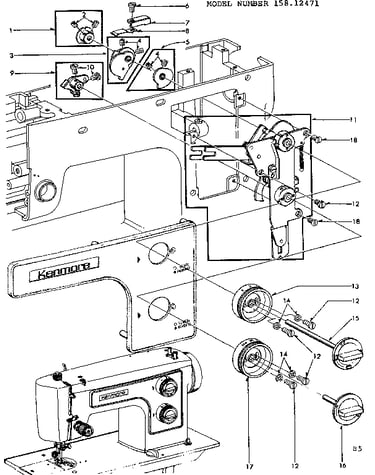

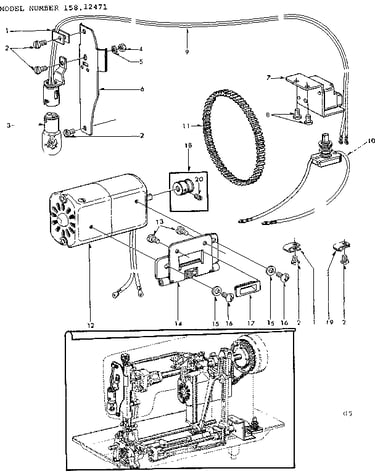

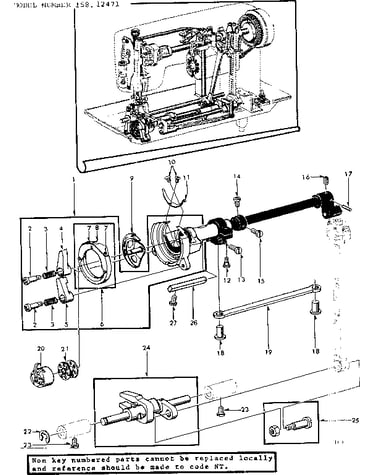

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Washer 9100
#47

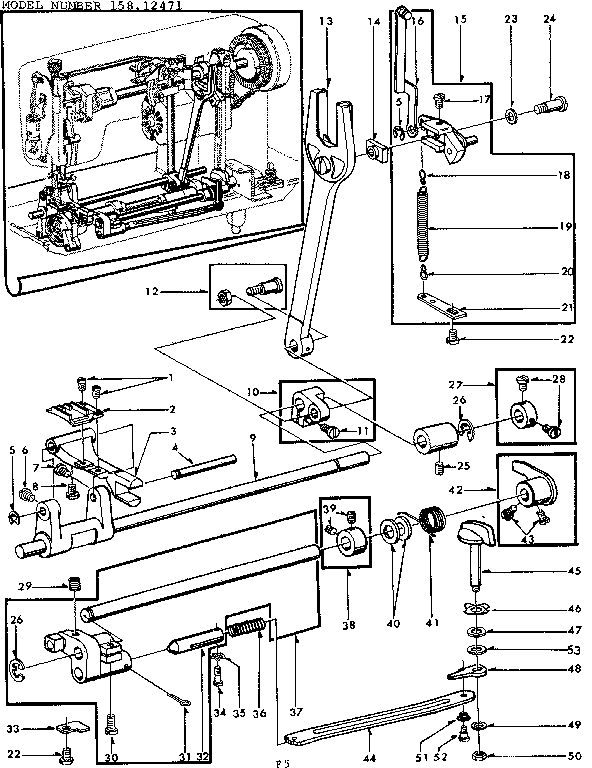

Feed regulator assembly diagram

Washer

Part #9100

The manufacturer no longer makes this part, and there's no substitute part

Feed Cam 4820
#48

Feed regulator assembly diagram

Feed cam

Part #4820

The manufacturer no longer makes this part, and there's no substitute part

Guard Plate 37895
#6

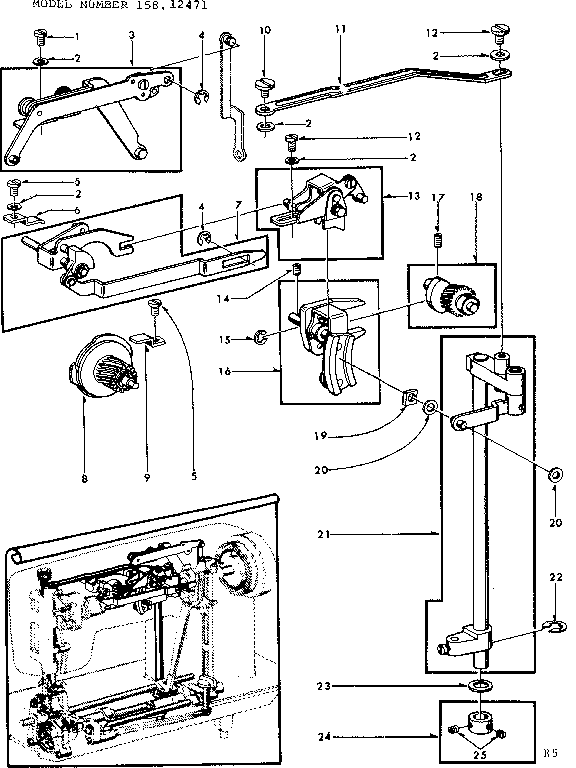

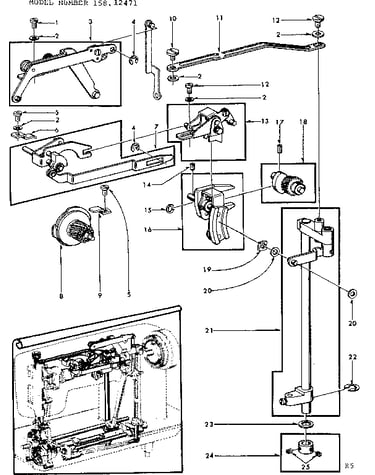

Geared cam assembly diagram

Guard plate

Part #37895

The manufacturer no longer makes this part, and there's no substitute part

Rocker Shaft 48062
#10

Feed regulator assembly diagram

Rocker shaft

Part #48062

The manufacturer no longer makes this part, and there's no substitute part

Bracket 24807
#21

Feed regulator assembly diagram

Bracket

Part #24807

The manufacturer no longer makes this part, and there's no substitute part

Guard Plate 37882
#9

Geared cam assembly diagram

Guard plate

Part #37882

The manufacturer no longer makes this part, and there's no substitute part

Conect Plate 39326
#16

Feed regulator assembly diagram

Conect plate

Part #39326

The manufacturer no longer makes this part, and there's no substitute part

Stud 39387
#24

Feed regulator assembly diagram

Stud

Part #39387

The manufacturer no longer makes this part, and there's no substitute part

Spring 40194
#39

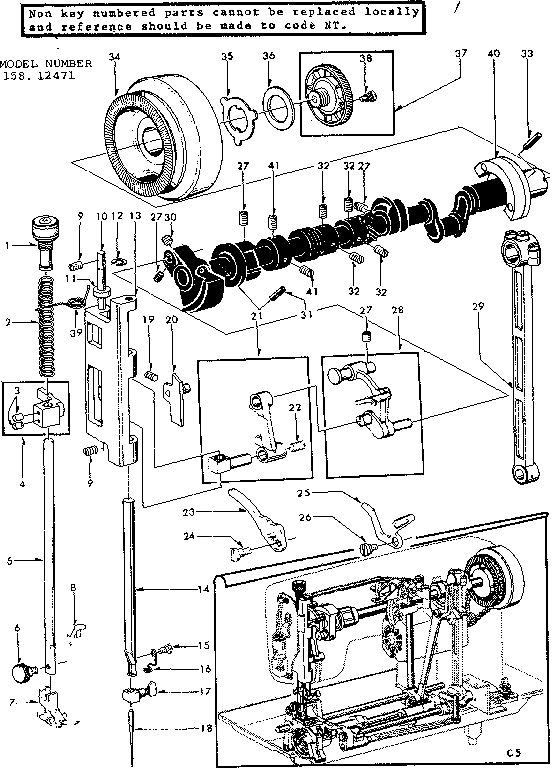

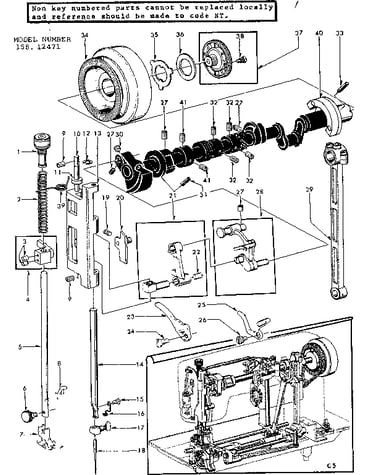

Presser bar assembly diagram

Spring

Part #40194

The manufacturer no longer makes this part, and there's no substitute part

Support Stud 40187
#10

Presser bar assembly diagram

Support stud

Part #40187

The manufacturer no longer makes this part, and there's no substitute part
