Model # 106639500 Official Kenmore coldspot combination unit humidifier & dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106639500 coldspot combination unit humidifier & dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Screw 487052
#25

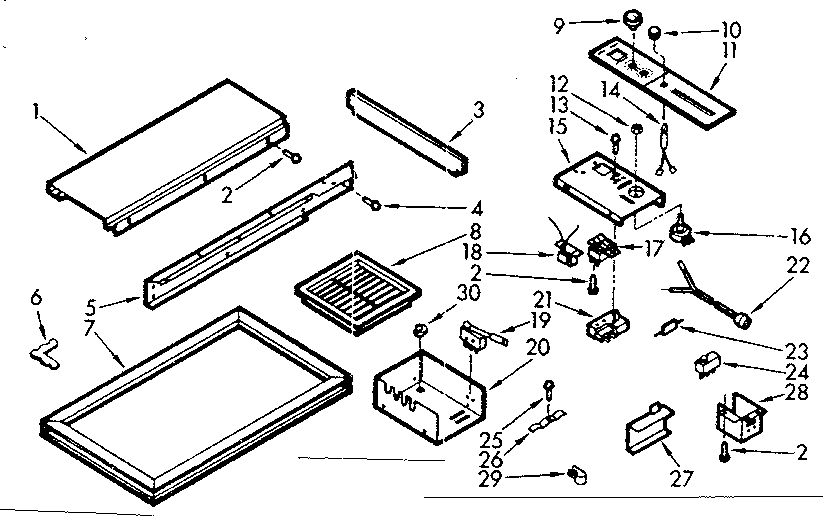

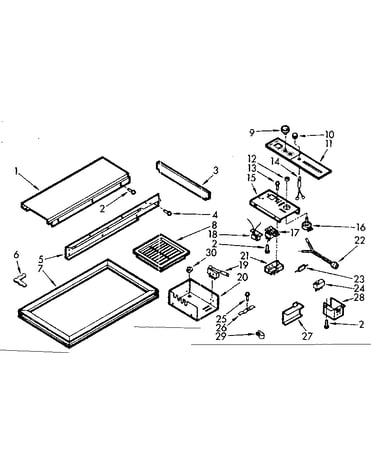

Top & control parts diagram

Screw

Part #487052

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487052. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 488113
Screw

Part #488113

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 488113. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Screw 47275
#2

Top & control parts diagram

Screw

Part #47275

Replaced by #WP487353

?
Manufacturer substitution
This part replaces 47275. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer 487405
#15

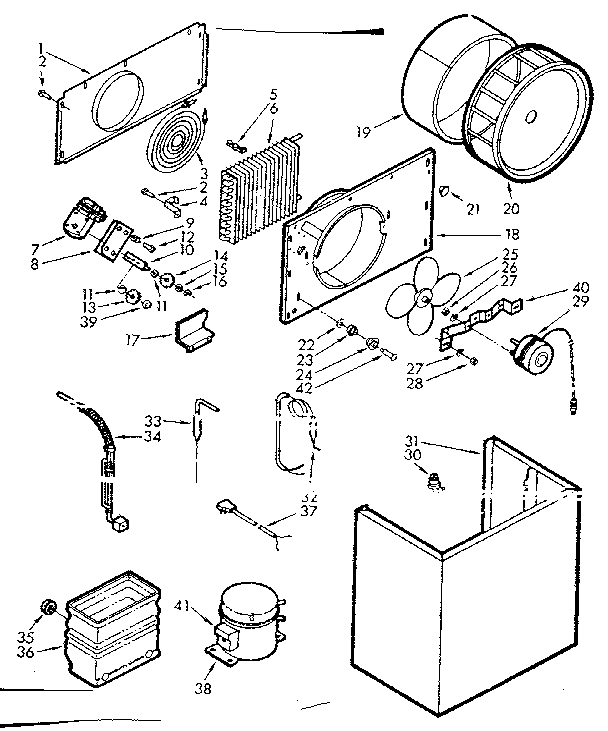

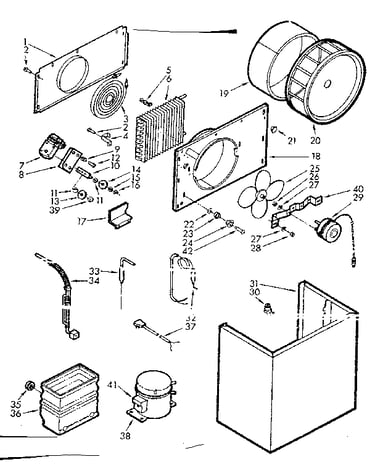

Cabinet and unit parts diagram

Washer

Part #487405

Replaced by #90315

?
Manufacturer substitution
This part replaces 487405. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Heat Exchange 798857
#32

Cabinet and unit parts diagram

Heat exchange

Part #798857

The manufacturer no longer makes this part, and there's no substitute part

Switch 798838
#19

Top & control parts diagram

Switch

Part #798838

The manufacturer no longer makes this part, and there's no substitute part

Lever 798852
#27

Top & control parts diagram

Lever

Part #798852

The manufacturer no longer makes this part, and there's no substitute part

Trim 798867
#7

Top & control parts diagram

Trim

Part #798867

The manufacturer no longer makes this part, and there's no substitute part

Compressor 798856
#38

Cabinet and unit parts diagram

Compressor

Part #798856

The manufacturer no longer makes this part, and there's no substitute part

Screw 595395
#13

Top & control parts diagram

Screw

Part #595395

The manufacturer no longer makes this part, and there's no substitute part
