KitchenAid
Trash Compactor

Model # 5UCS200S Official KitchenAid compactor

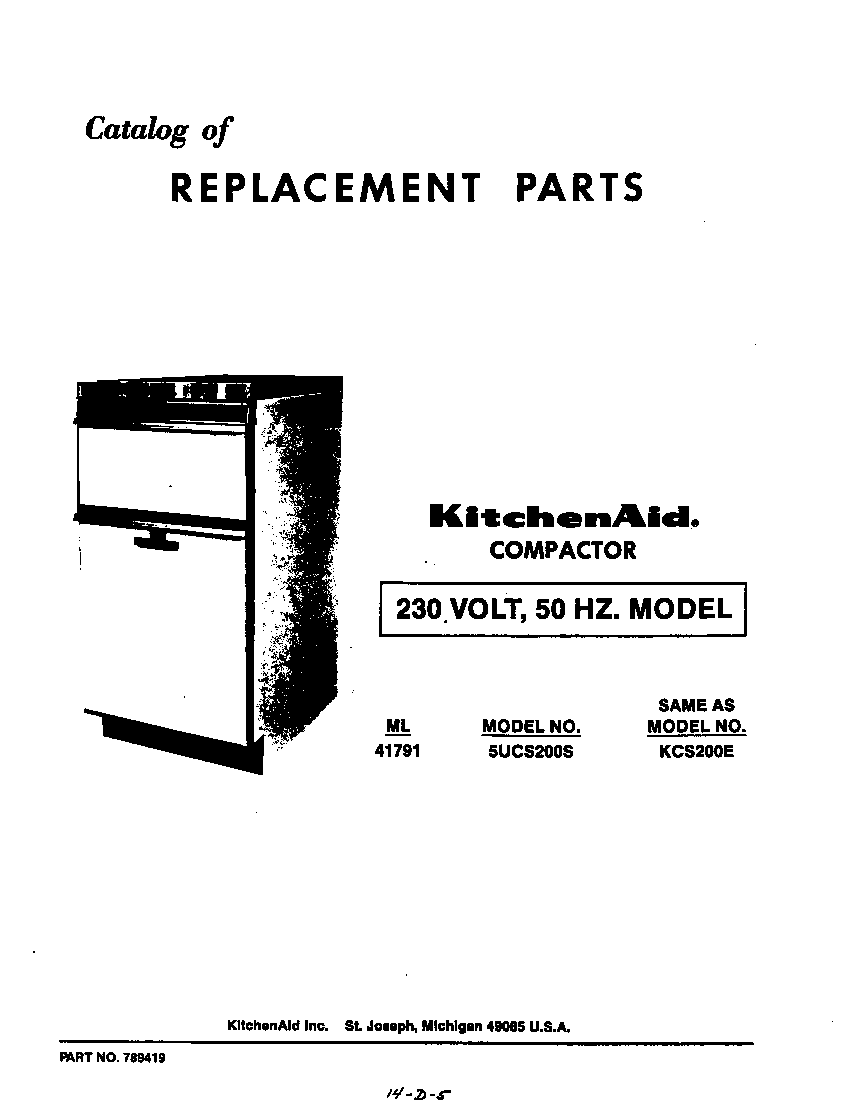

Here are the diagrams and repair parts for Official KitchenAid 5UCS200S compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

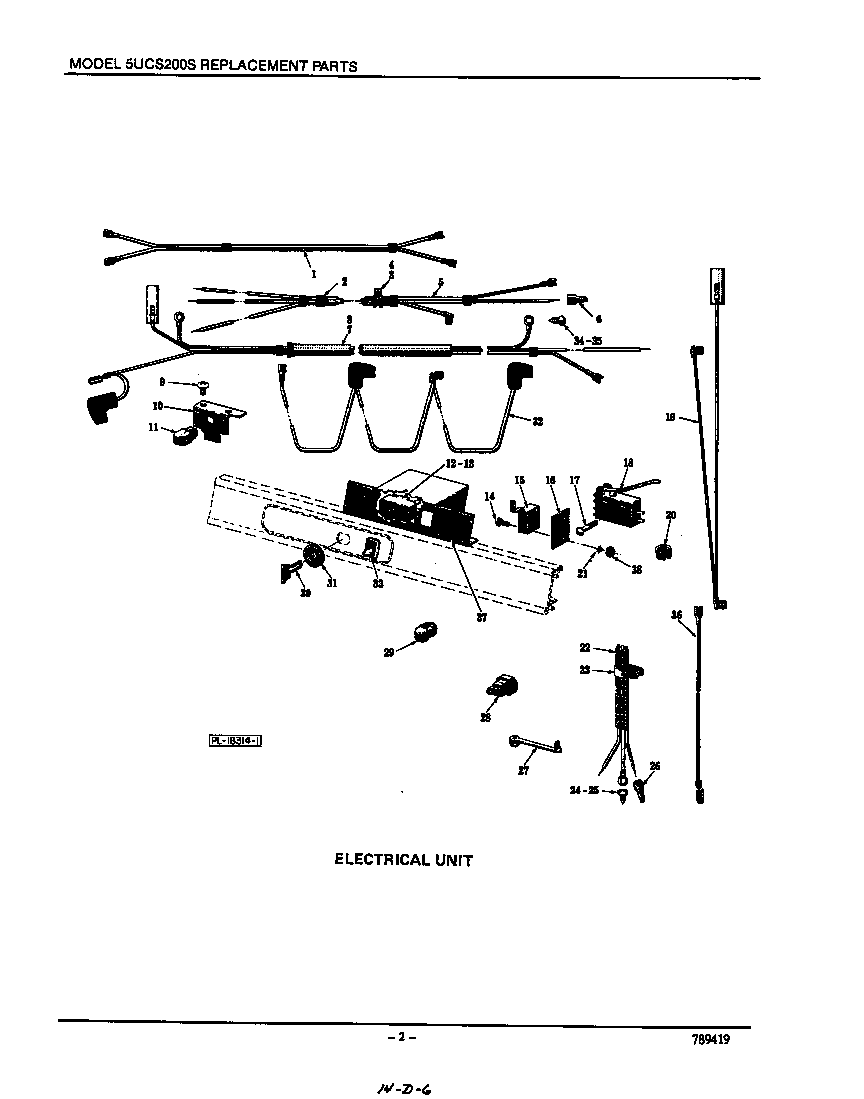

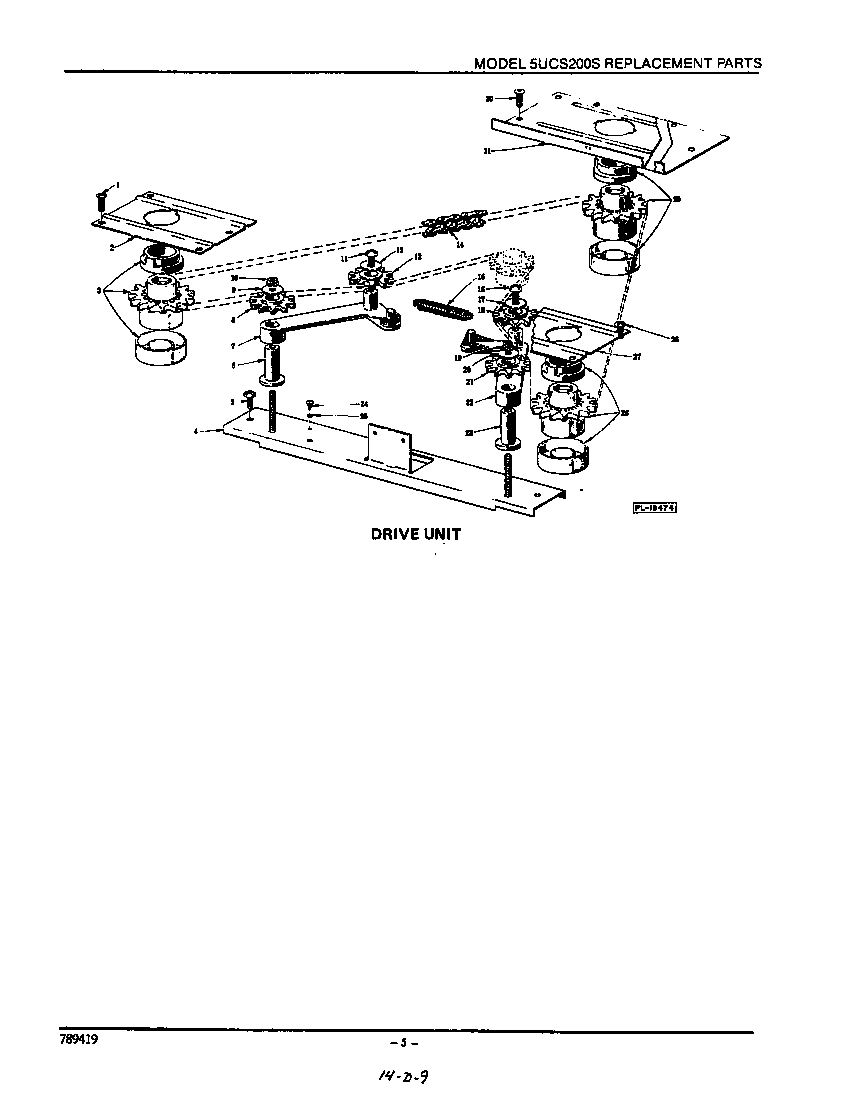

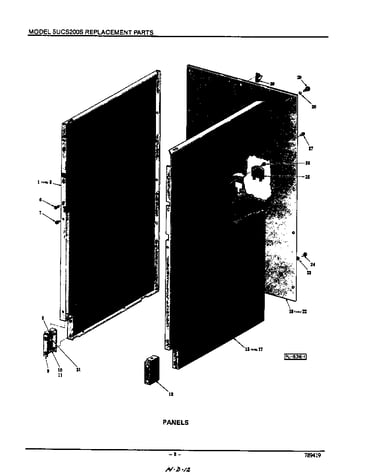

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Track Asm-rt D-241007
#7

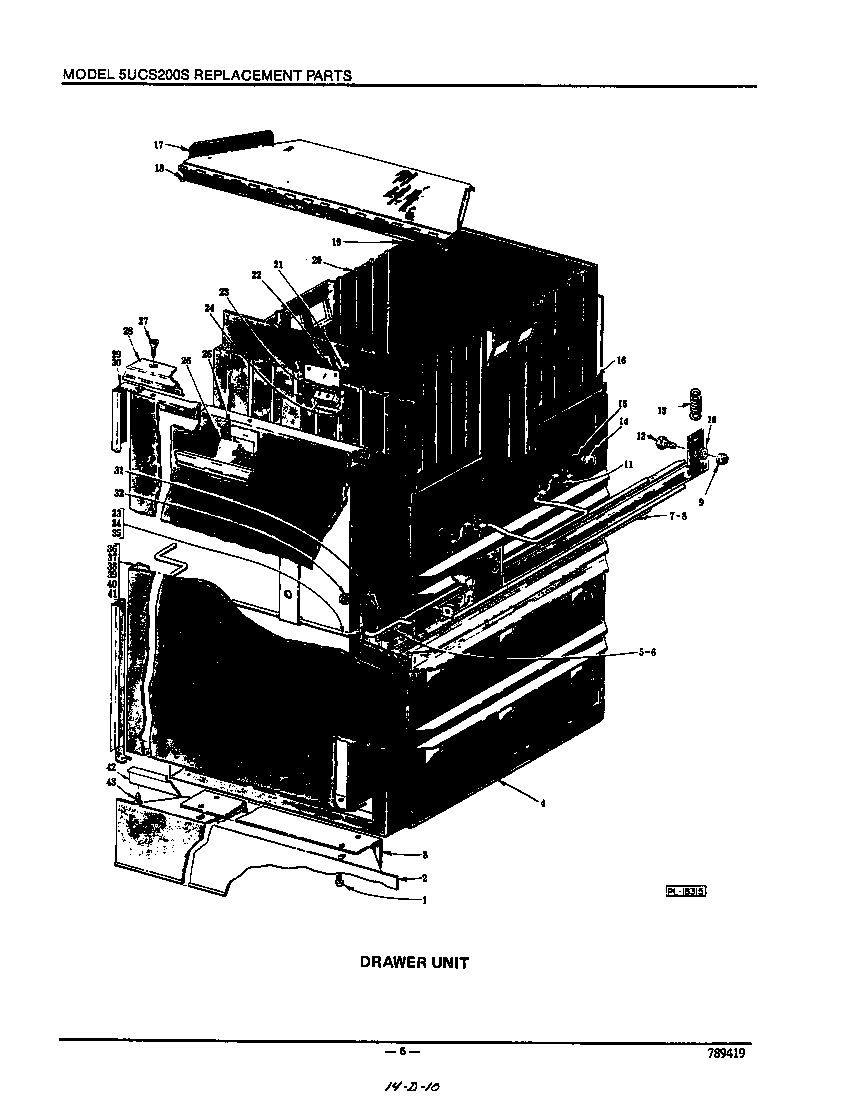

Drawer diagram

Track asm-rt

Part #D-241007

Replaced by #4162448

?
Manufacturer substitution
This part replaces D-241007. Substitute parts can look different from the original.
$218.40 |
5% OFF Phone Price : $230.40
In Stock
Screw SD-17-11
Screw

Part #SD-17-11

Replaced by #WP4159387

?
Manufacturer substitution
This part replaces SD-17-11. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Door Catch C-240176
#1

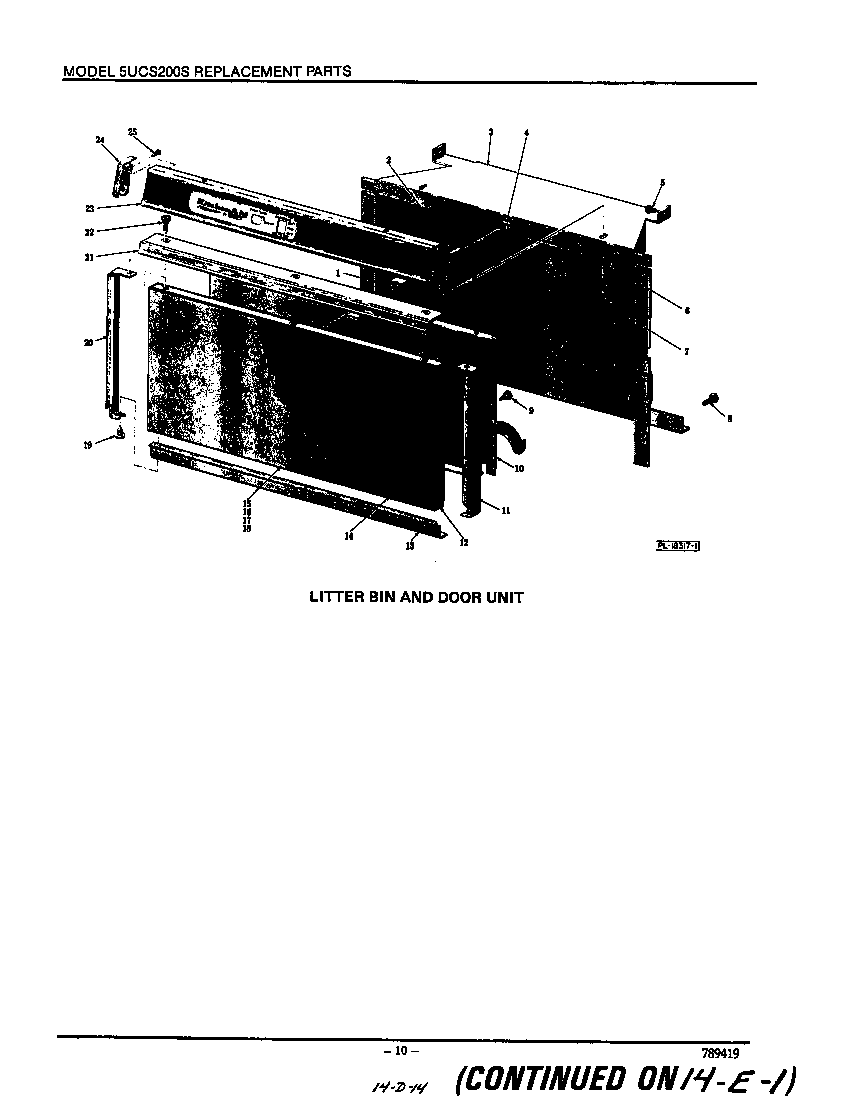

Litter bin and door diagram

Door catch

Part #C-240176

Replaced by #4162660

?
Manufacturer substitution
This part replaces C-240176. Substitute parts can look different from the original.
$29.89
In Stock
Track Asm-lh D-241008
#8

Drawer diagram

Track asm-lh

Part #D-241008

Replaced by #4162448

?
Manufacturer substitution
This part replaces D-241008. Substitute parts can look different from the original.
$218.40 |
5% OFF Phone Price : $230.40
In Stock
Filler - Drawer C-241773
#37

Drawer diagram

Filler - drawer

Part #C-241773

The manufacturer no longer makes this part, and there's no substitute part

Self-tapping Screw #8 X 5/16" Phil. Rd. Hd., Type Bf SD-11-18
Self-tapping screw #8 x 5/16" phil. rd. hd., type bf

Part #SD-11-18

The manufacturer no longer makes this part, and there's no substitute part

Drawer Assembly B-115837
#4

Drawer diagram

Drawer assembly

Part #B-115837

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut #6-32 (2) NS-38-1
#31

Miscellaneous diagram

Lock nut #6-32 (2)

Part #NS-38-1

The manufacturer no longer makes this part, and there's no substitute part

Screw - Cushion Shoulder C-240182
#15

Miscellaneous diagram

Screw - cushion shoulder

Part #C-240182

The manufacturer no longer makes this part, and there's no substitute part

Door Back & Stop Assembly D-115051-2
#10

Litter bin and door diagram

Door back & stop assembly

Part #D-115051-2

The manufacturer no longer makes this part, and there's no substitute part
