Model # 21138 Official Jenn-Air electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air 21138 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Screw 704238
#7

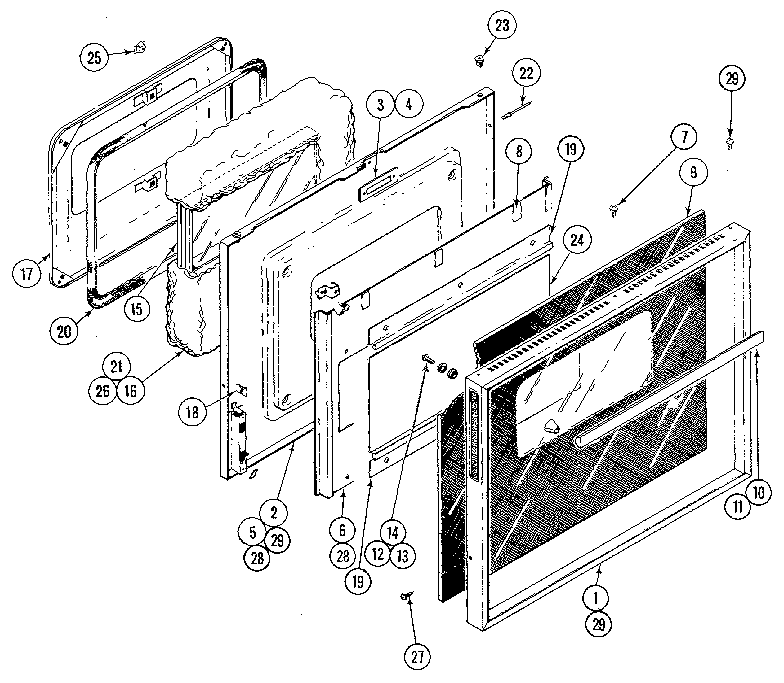

Door diagram

Screw

Part #704238

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 704238. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 700906
#28

Door diagram

Screw

Part #700906

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 700906. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 703817
#21

Internal controls diagram

Screw

Part #703817

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 703817. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 707745
#15

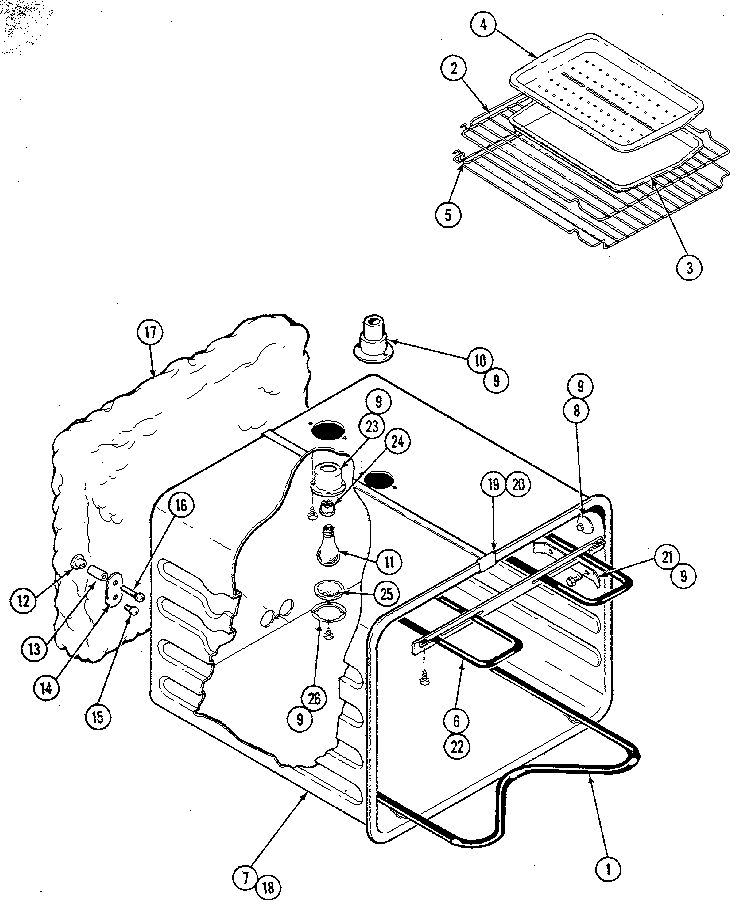

Oven liner diagram

Screw

Part #707745

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 707745. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 708310
#25

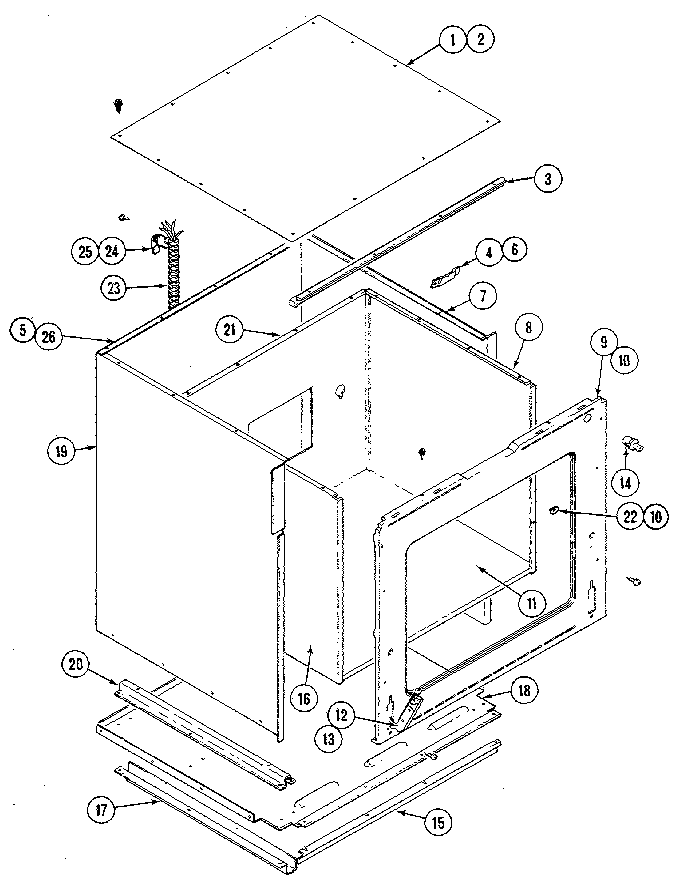

Basic body diagram

Screw

Part #708310

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 708310. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Window 701648
#15

Door diagram

Window

Part #701648

Replaced by #WP5700M600-60

?
Manufacturer substitution
This part replaces 701648. Substitute parts can look different from the original.
$313.68 |
$12.00 OFF Phone Price : $325.68
In Stock
Screw 708955
Screw

Part #708955

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 708955. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Nut 701719
#6

Cooling fan diagram

Nut

Part #701719

Replaced by #M0282005

?
Manufacturer substitution
This part replaces 701719. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Timer Knob 704484
#10

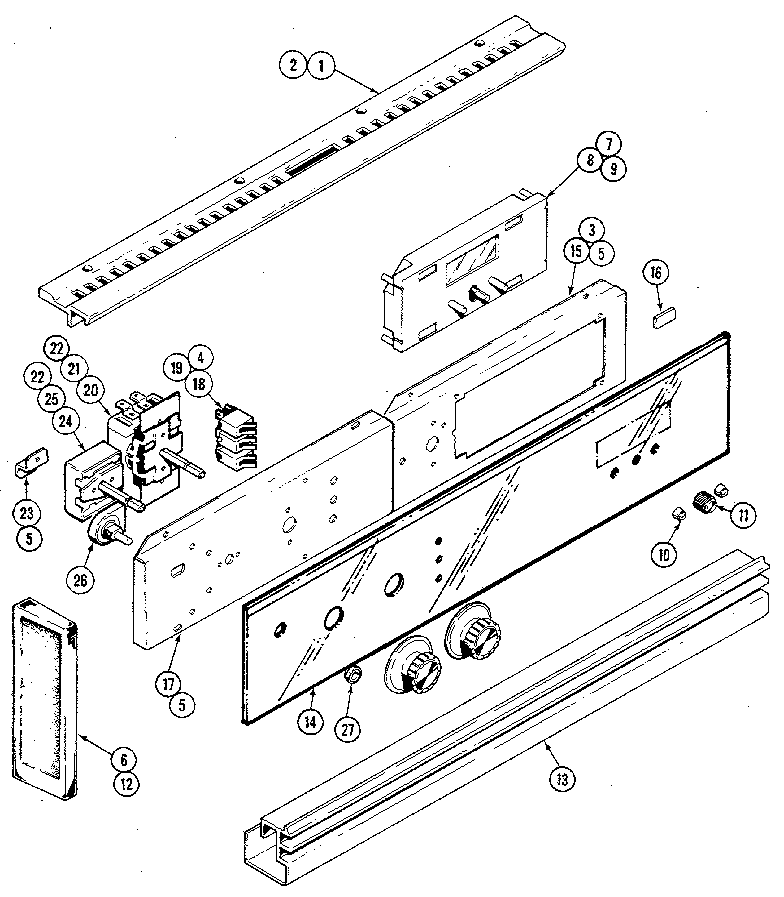

Control panel diagram

Timer knob

Part #704484

Replaced by #WP7711P492-60

?
Manufacturer substitution
This part replaces 704484. Substitute parts can look different from the original.
This item is not returnable
$13.20 |
13% OFF Phone Price : $15.20
In Stock
Screw 700582

#NI

All parts diagram

Screw

Part #700582

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces 700582. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
