Model # 143569042 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143569042 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Fuel Line 29774
#154

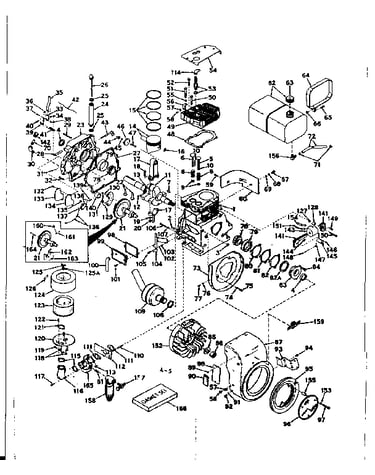

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

/fuel Clamp 26460
#71

Basic engine diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#32

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Screw 28403
#65

Basic engine diagram

Screw

Part #28403

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

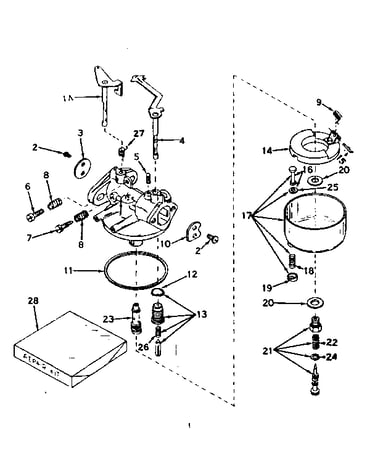

Carburetor no. 631226 diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Start Pulley 31980
#95

Basic engine diagram

Start pulley

Part #31980

The manufacturer no longer makes this part, and there's no substitute part

Spring 27114
#8

Carburetor no. 631226 diagram

Spring

Part #27114

The manufacturer no longer makes this part, and there's no substitute part

Gasket Set 31993
#166

Basic engine diagram

Gasket set

Part #31993

The manufacturer no longer makes this part, and there's no substitute part

Flywheel Nut 650594
#86

Basic engine diagram

Flywheel nut

Part #650594

The manufacturer no longer makes this part, and there's no substitute part

Screw 28547
#77

Basic engine diagram

Screw

Part #28547

The manufacturer no longer makes this part, and there's no substitute part
