Model # 143589032 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143589032 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
/fuel Clamp 26460
#71

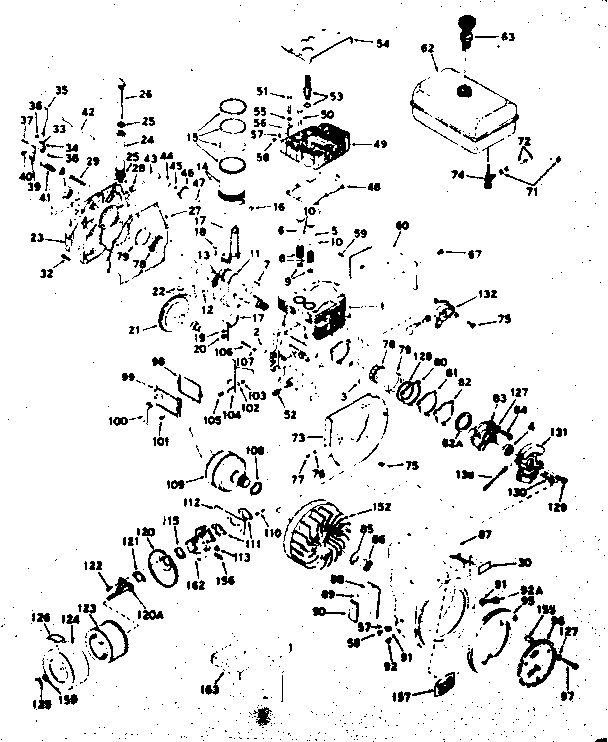

Basic engine diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#32

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Start Pulley 31980
#95

Basic engine diagram

Start pulley

Part #31980

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

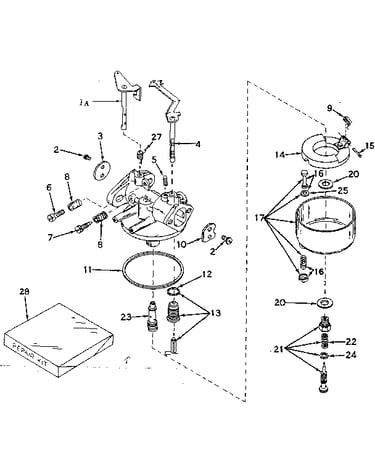

Carburetor diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Pistn/pin 32001
#14

Basic engine diagram

Pistn/pin

Part #32001

The manufacturer no longer makes this part, and there's no substitute part

Bolt 32077
#18

Basic engine diagram

Bolt

Part #32077

The manufacturer no longer makes this part, and there's no substitute part

Piston Pin 32003
#14B

Basic engine diagram

Piston pin

Part #32003

The manufacturer no longer makes this part, and there's no substitute part

Screw 650399
#122

Basic engine diagram

Screw

Part #650399

The manufacturer no longer makes this part, and there's no substitute part

/top Seal 31950
#4

Basic engine diagram

/top seal

Part #31950

The manufacturer no longer makes this part, and there's no substitute part

Valve Lifter 31939
#22

Basic engine diagram

Valve lifter

Part #31939

The manufacturer no longer makes this part, and there's no substitute part
