Reciprocating Saw

Model # 900171700 Official Craftsman saw

Here are the diagrams and repair parts for Official Craftsman 900171700 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Craftsman Shoe Assembly 498755-00
#16

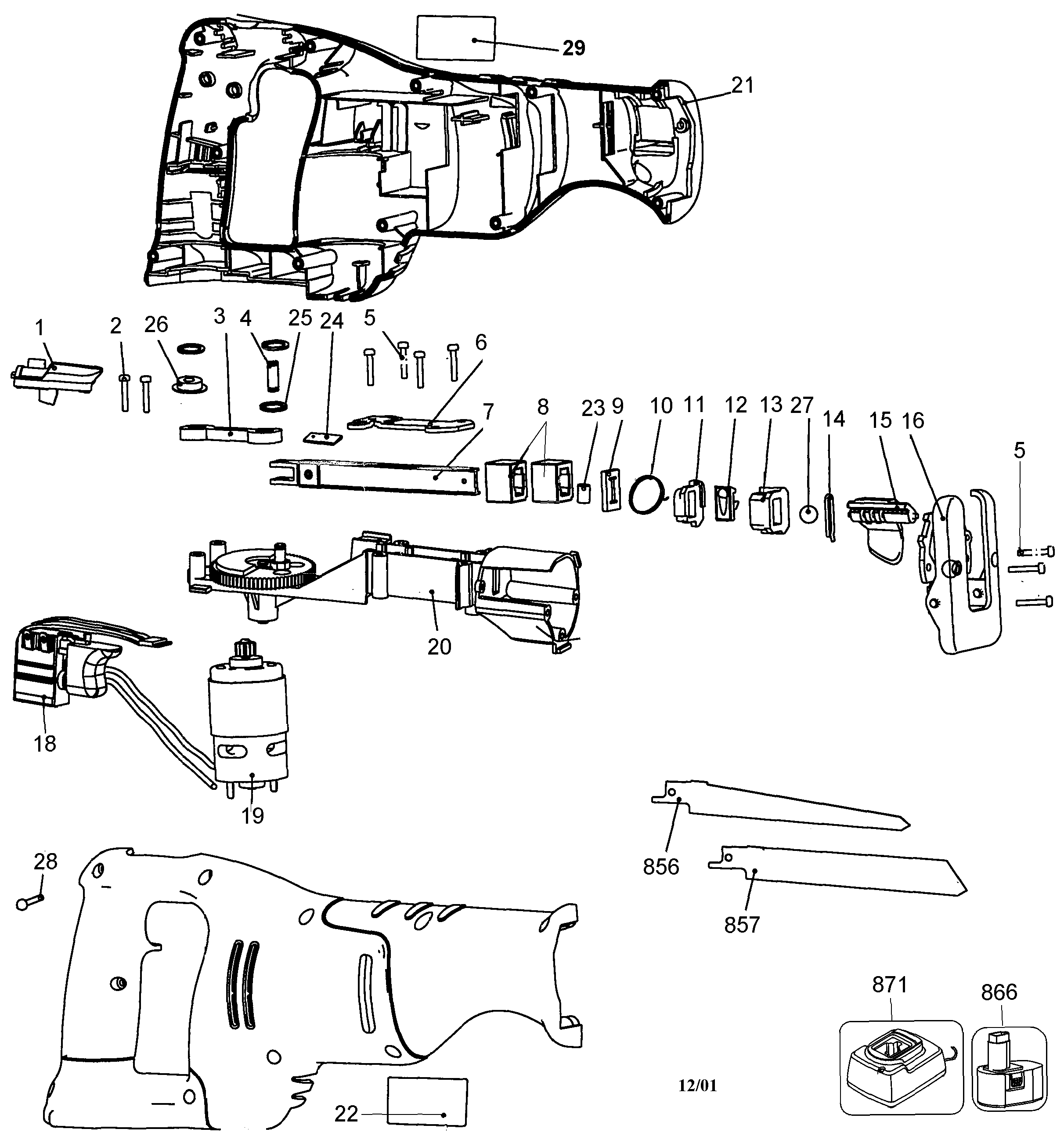

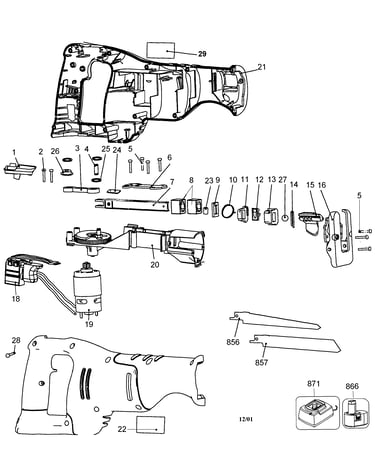

Saw diagram

Craftsman shoe assembly

Part #498755-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Bridge Retainer 498922-00
#6

Saw diagram

Craftsman bridge retainer

Part #498922-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 498974-00
#2

Saw diagram

Craftsman screw

Part #498974-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Retaining Ring 498946-00
#25

Saw diagram

Black & decker retaining ring

Part #498946-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Clamp Pin 498566-00
#14

Saw diagram

Craftsman clamp pin

Part #498566-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Switch 498753-01
#18

Saw diagram

Craftsman switch

Part #498753-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Seal 499574-00
#24

Saw diagram

Black & decker seal

Part #499574-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Seal 499687-00
#9

Saw diagram

Black & decker seal

Part #499687-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Pin 498918-40
#4

Saw diagram

Craftsman pin

Part #498918-40

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Slider 498561-00
#12

Saw diagram

Craftsman slider

Part #498561-00

The manufacturer no longer makes this part, and there's no substitute part
