Model # 66516042403 Official Kenmore dishwasher

Here are the diagrams and repair parts for Official Kenmore 66516042403 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

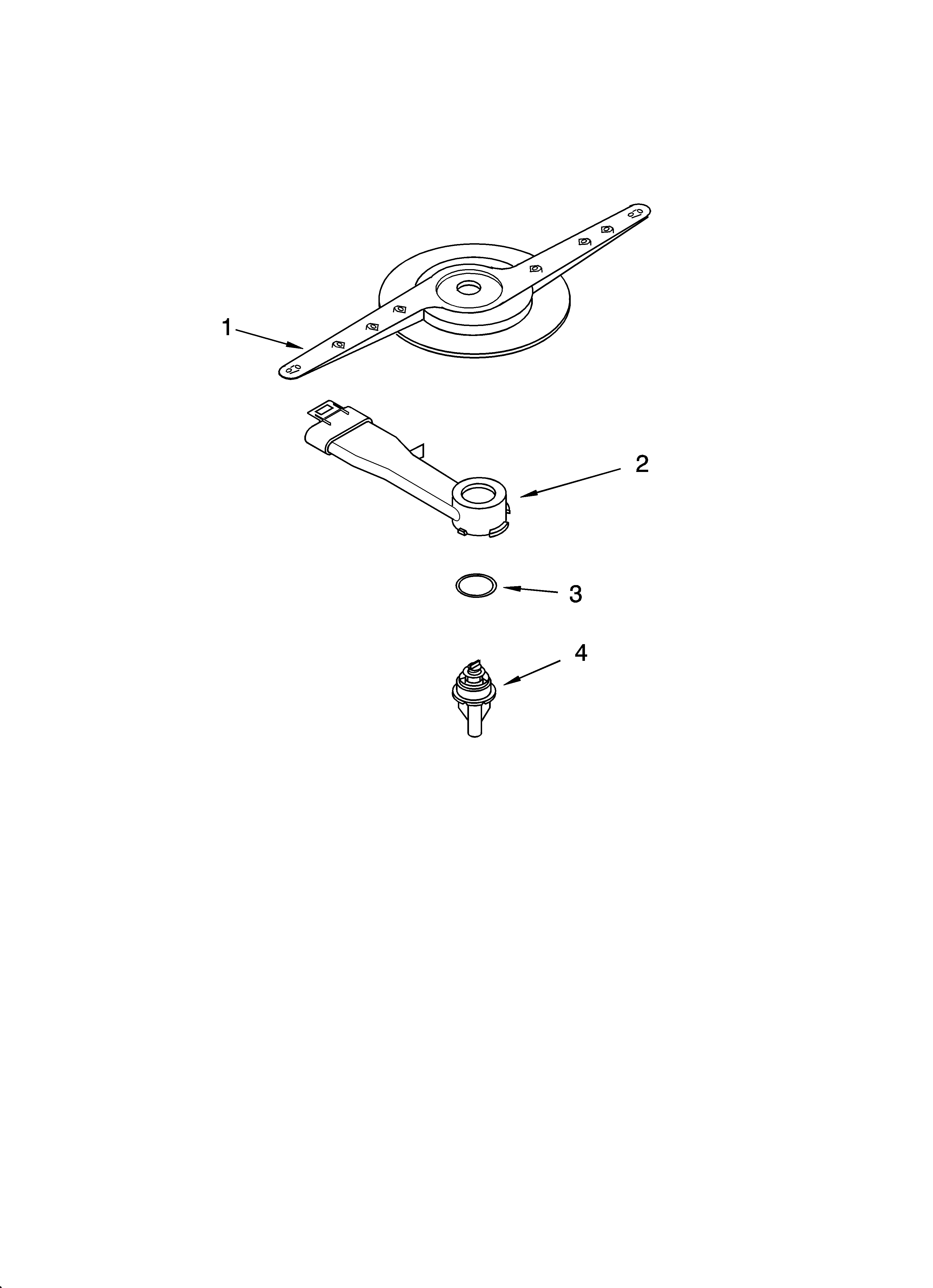

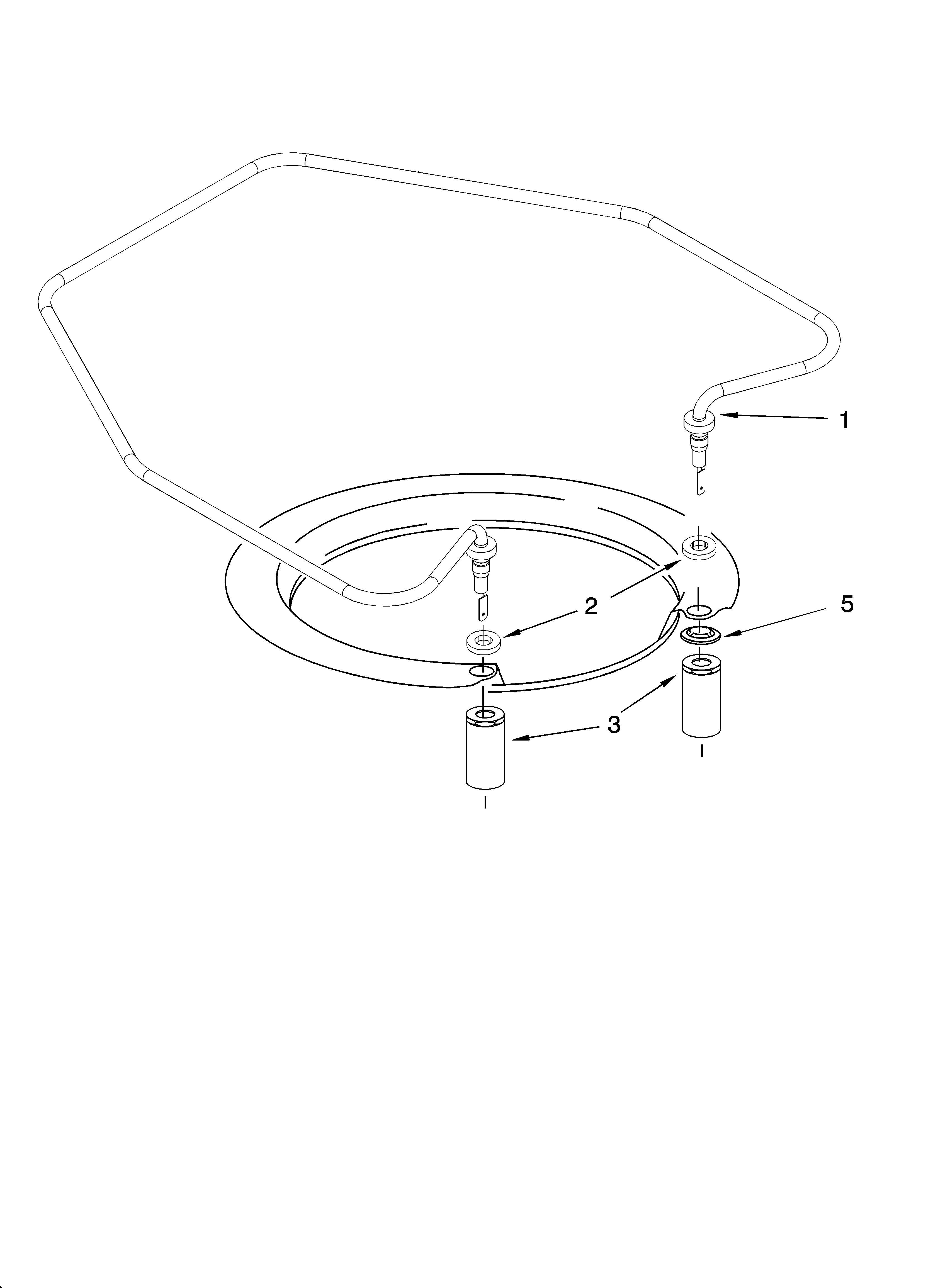

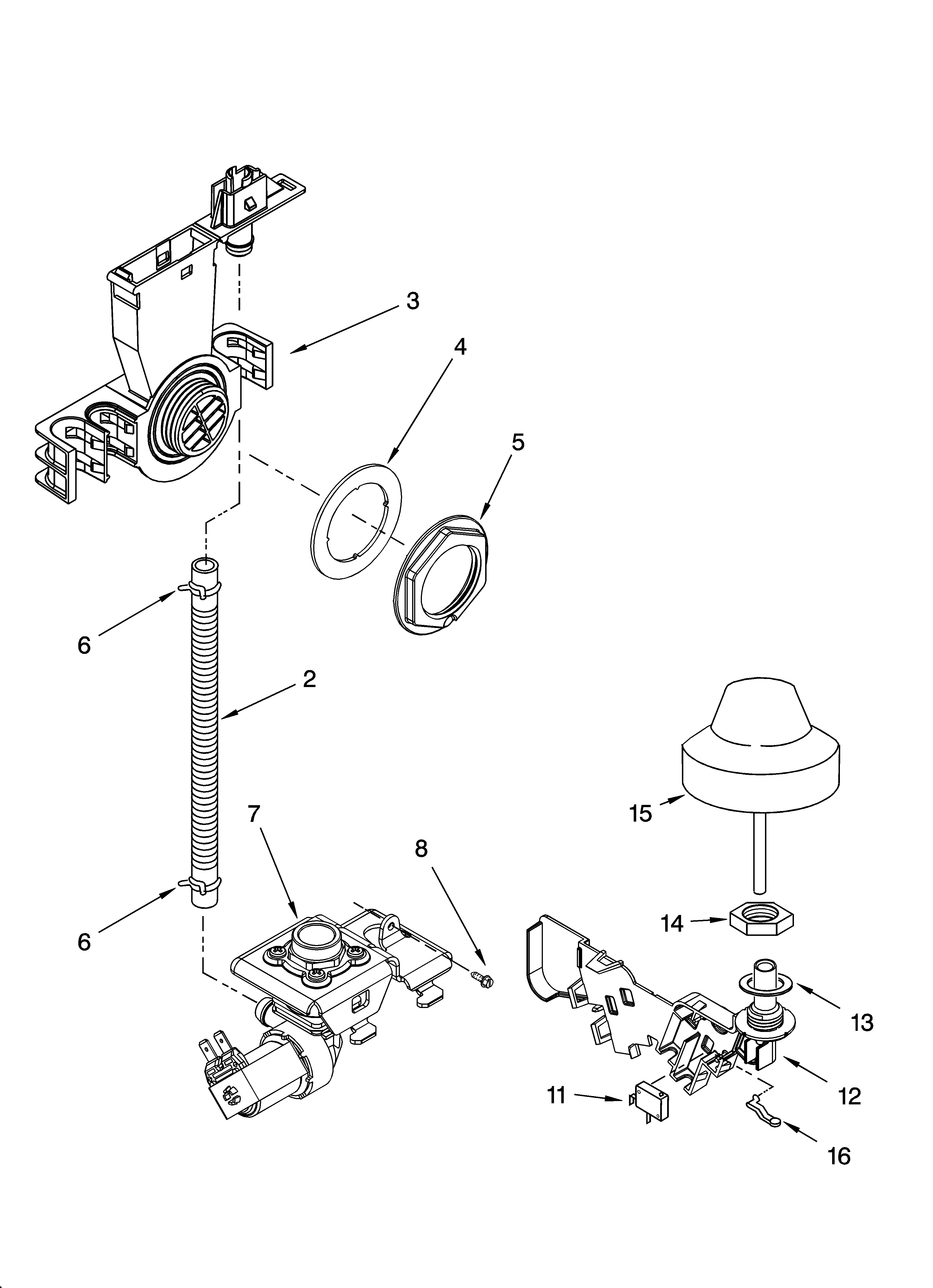

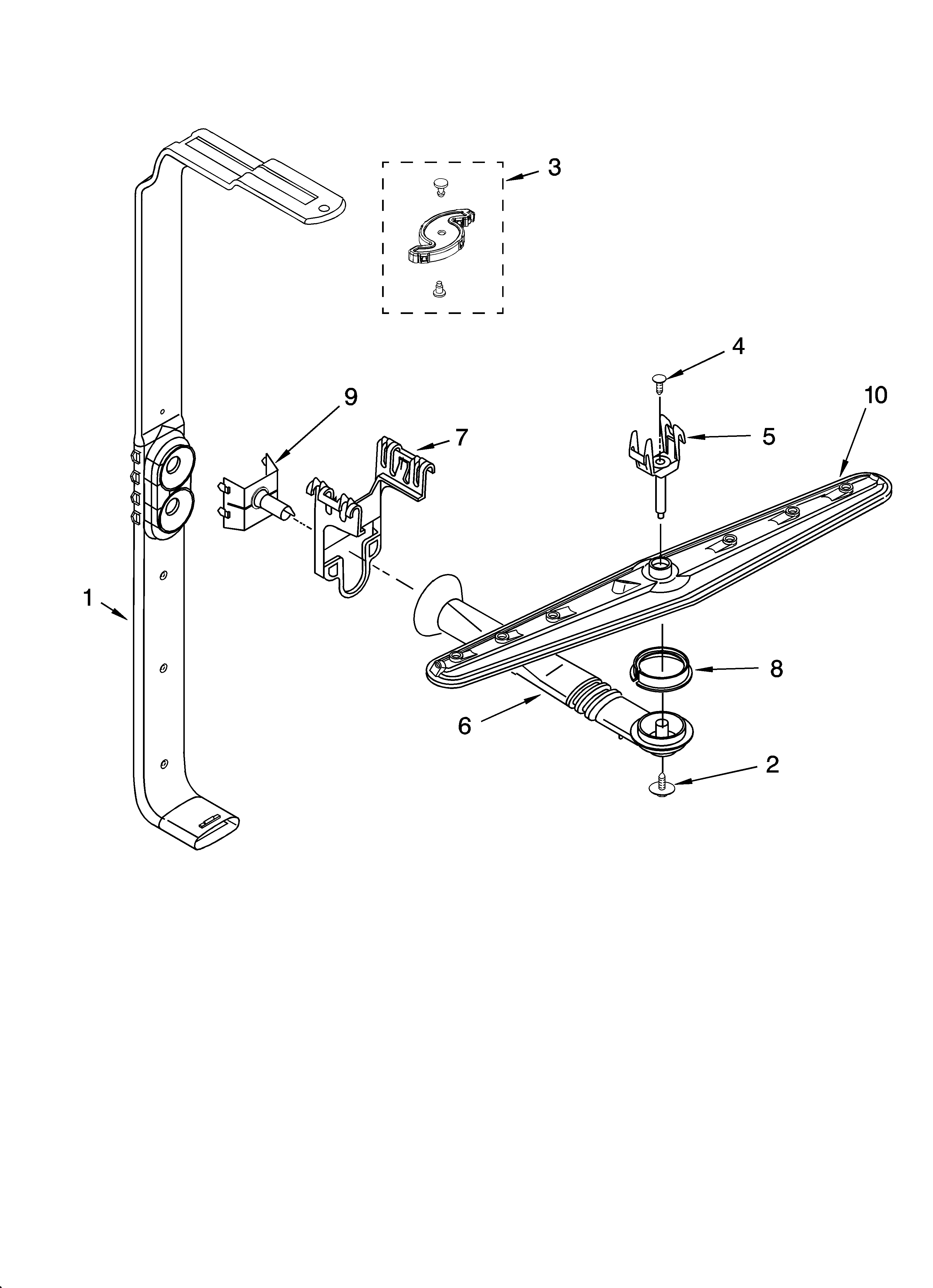

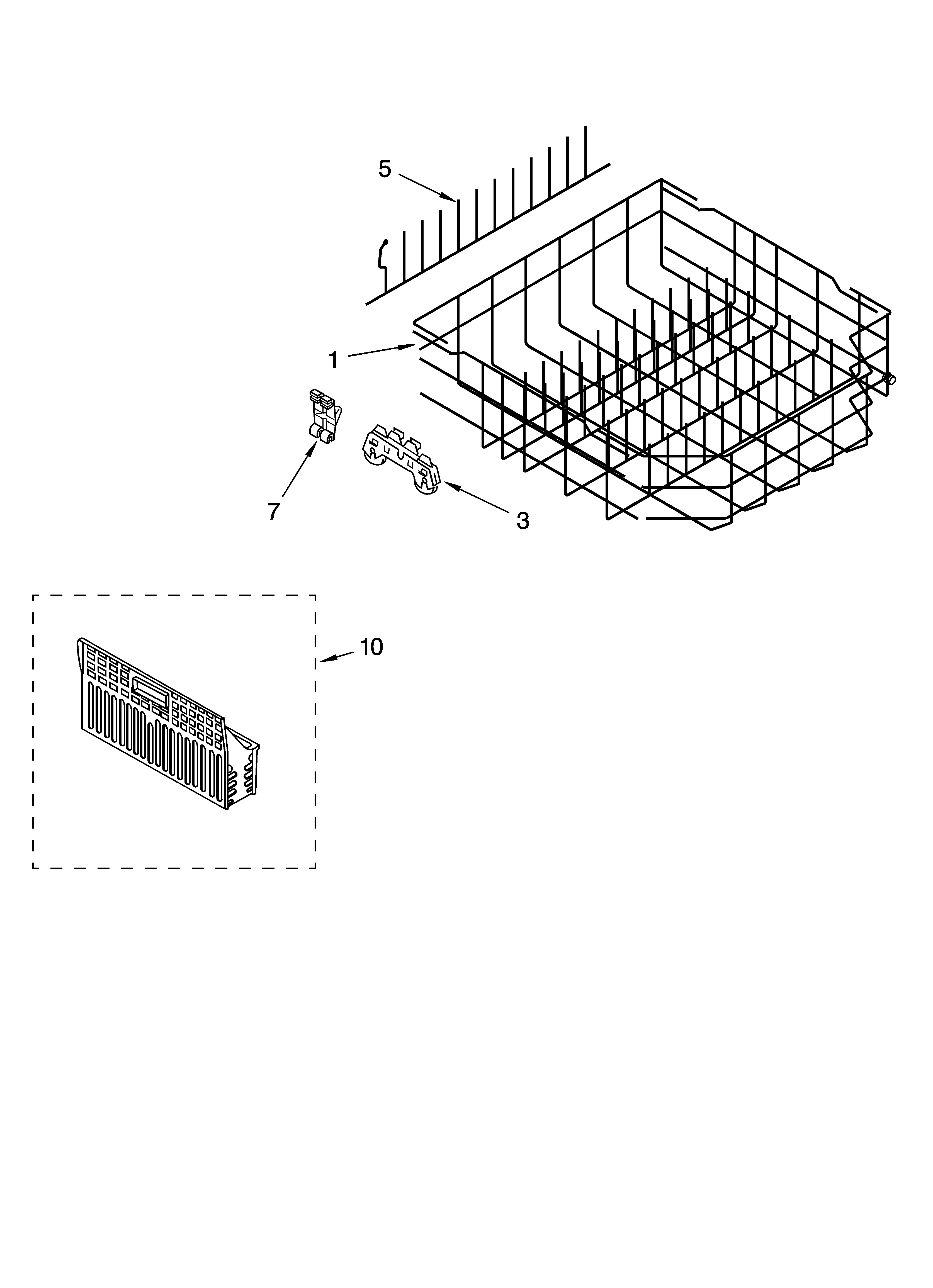

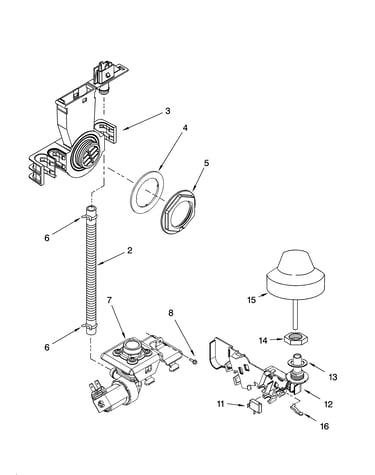

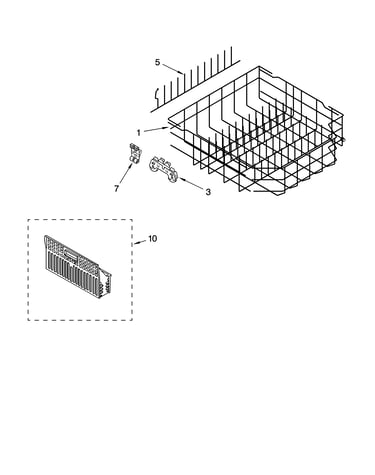

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for66516042403 Dishwasher

  • Dishwasher Drain Pump 661662
    #17

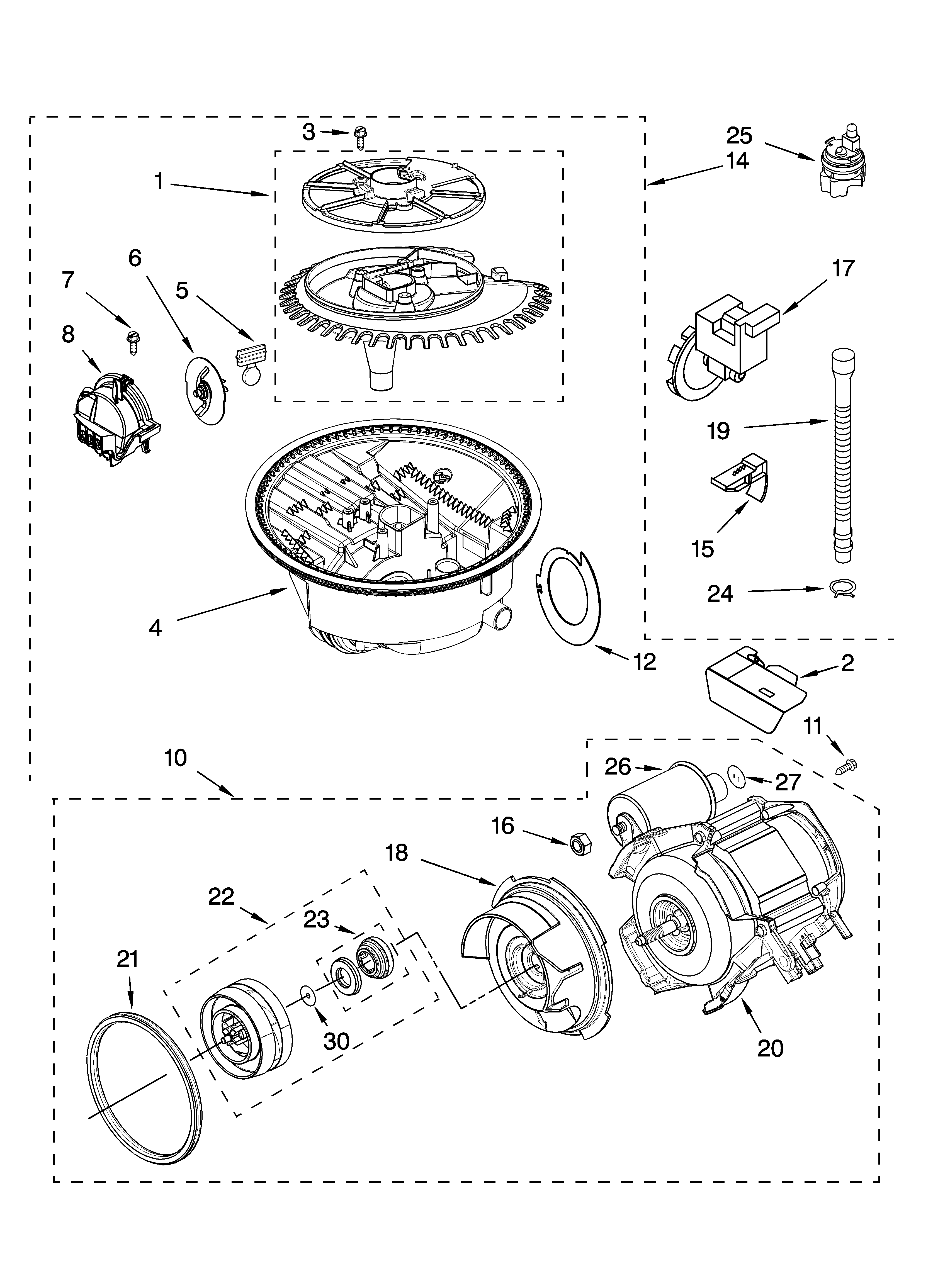

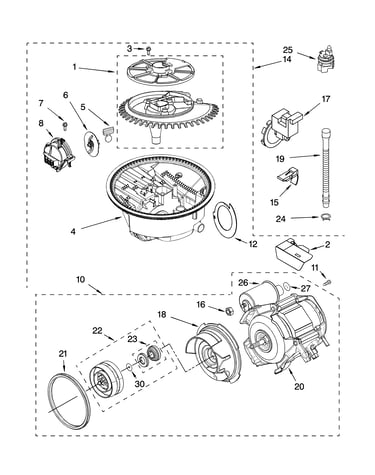

    Pump and motor parts diagram

    Dishwasher drain pump

    Part #661662

    Replaced by #WPW10348269

    ?
    Manufacturer substitution
    This part replaces 661662. Substitute parts can look different from the original.
    BEST SELLER
    $51.40
    10% OFF Phone Price : $57.40
    In Stock
  • Link 8535568
    #24

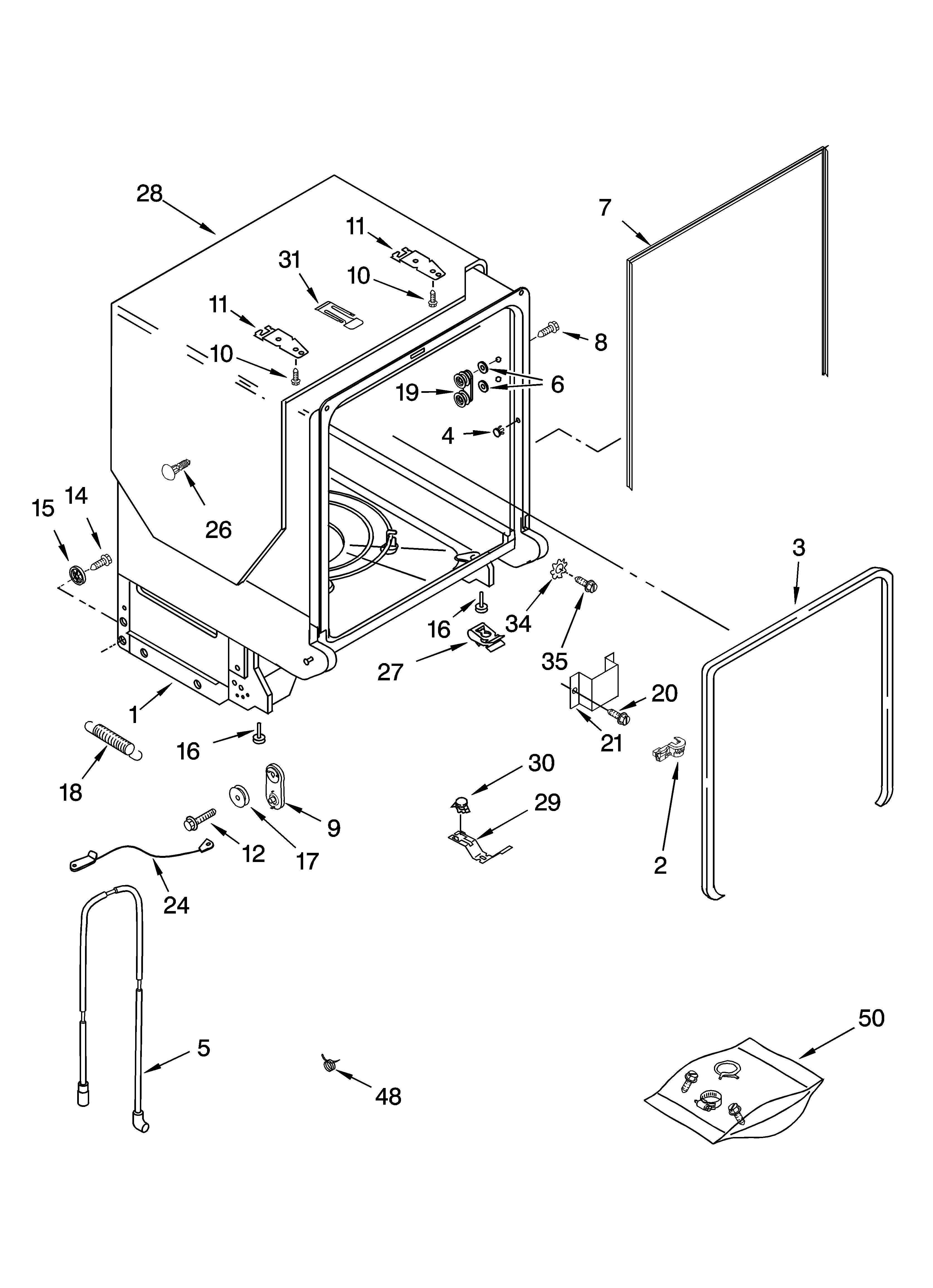

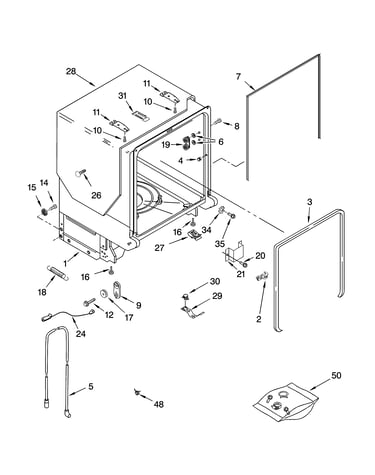

    Tub and frame parts diagram

    Link

    Part #8535568

    Replaced by #8194001

    ?
    Manufacturer substitution
    This part replaces 8535568. Substitute parts can look different from the original.
    BEST SELLER
    $24.69
    20% OFF Phone Price : $30.69
    In Stock
  • Dishwasher Dishrack Slide Rail Stop, Upper 8565925
    #20

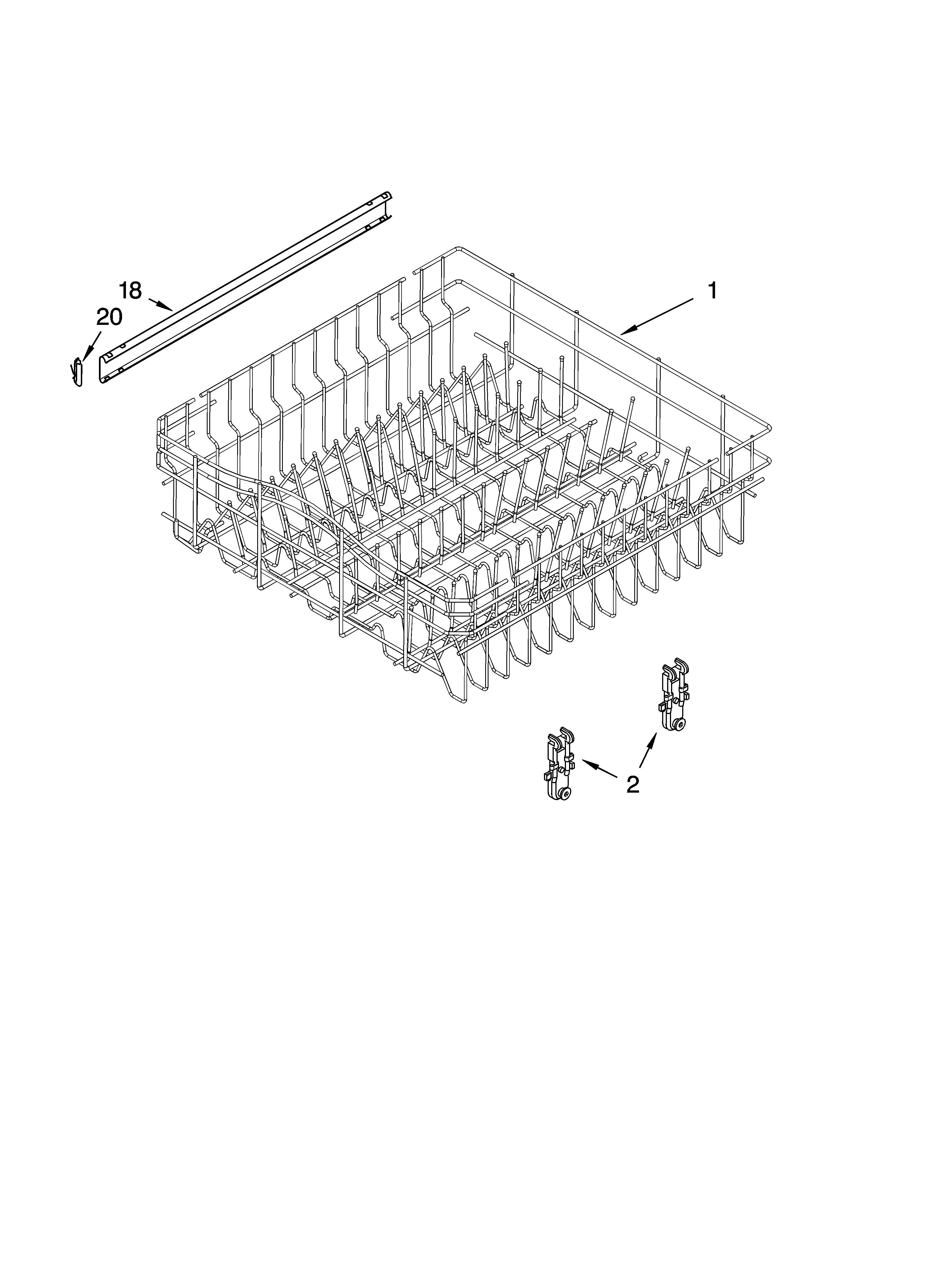

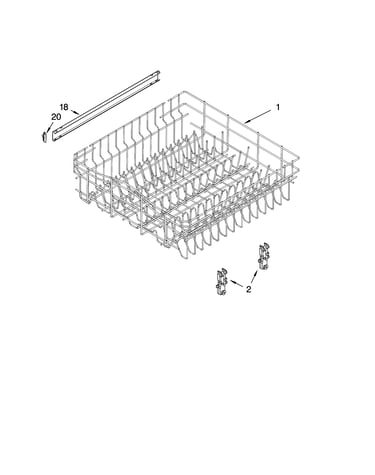

    Upper rack and track parts diagram

    Dishwasher dishrack slide rail stop, upper

    Part #8565925

    Replaced by #WP8565925

    ?
    Manufacturer substitution
    This part replaces 8565925. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.92
    13% OFF Phone Price : $7.92
    In Stock
  • Pump Motor 8572615
    #14

    Pump and motor parts diagram

    Pump motor

    Part #8572615

    Replaced by #WPW10780877

    ?
    Manufacturer substitution
    This part replaces 8572615. Substitute parts can look different from the original.
    BEST SELLER
    $172.19
    7% OFF Phone Price : $184.19
    In Stock
  • Dishwasher Drain Hose 8269144
    #19

    Pump and motor parts diagram

    Dishwasher drain hose

    Part #8269144

    Replaced by #8269144A

    ?
    Manufacturer substitution
    This part replaces 8269144. Substitute parts can look different from the original.
    BEST SELLER
    $17.35
    10% OFF Phone Price : $19.35
    In Stock
  • Sensor 8563432
    #25

    Pump and motor parts diagram

    Sensor

    Part #8563432

    Replaced by #WPW10705575

    ?
    Manufacturer substitution
    This part replaces 8563432. Substitute parts can look different from the original.
    BEST SELLER
    $22.00
    21% OFF Phone Price : $28.00
    In Stock
  • Dishwasher Electronic Control 8562997
    #11

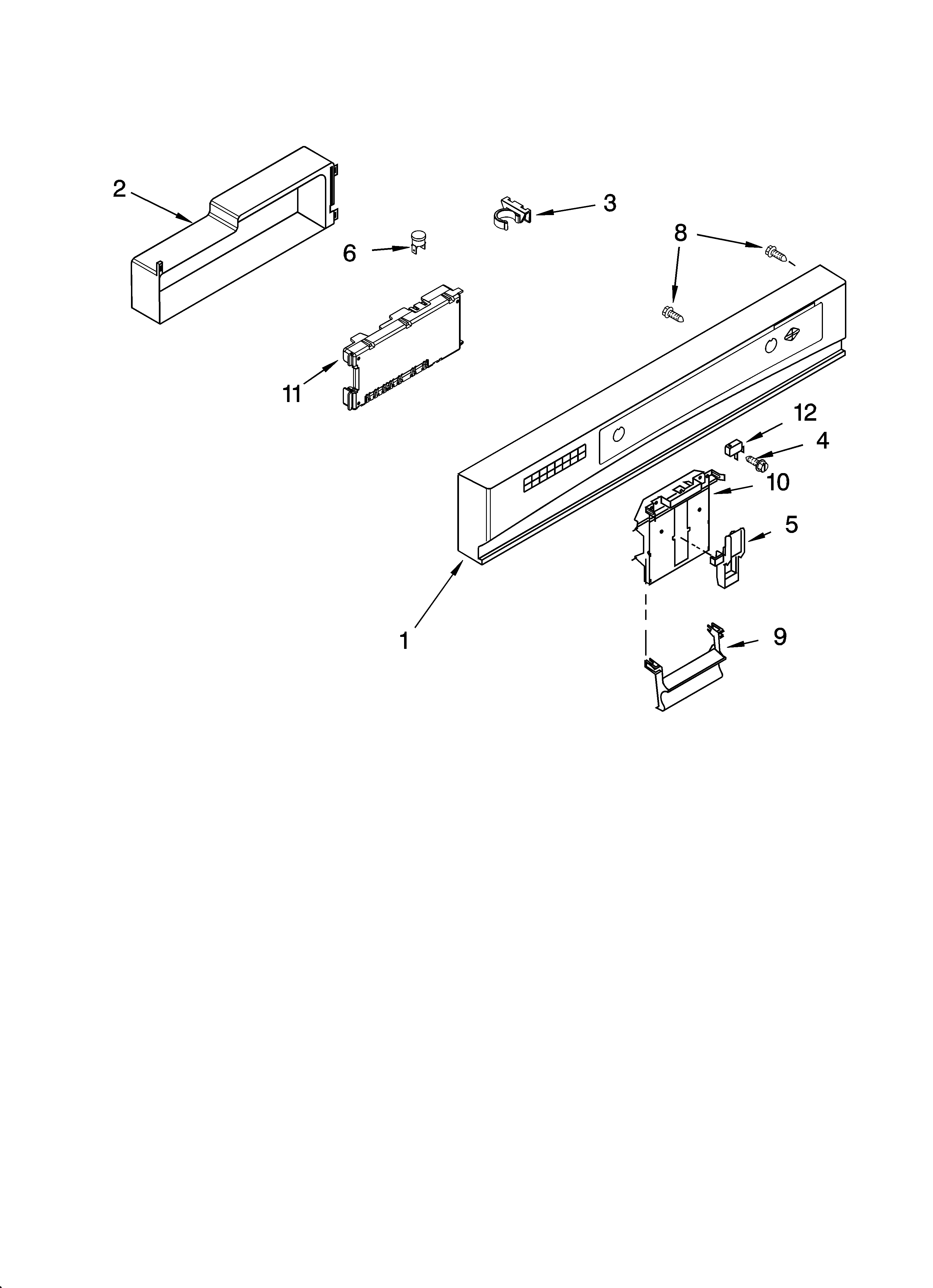

    Control panel parts diagram

    Dishwasher electronic control

    Part #8562997

    Replaced by #WPW10084141

    ?
    Manufacturer substitution
    This part replaces 8562997. Substitute parts can look different from the original.
    BEST SELLER
    $196.71
    6% OFF Phone Price : $208.71
    In Stock
  • Fuse 661663
    #6

    Control panel parts diagram

    Fuse

    Part #661663

    Replaced by #W10258275

    ?
    Manufacturer substitution
    This part replaces 661663. Substitute parts can look different from the original.
    BEST SELLER
    $23.50
    20% OFF Phone Price : $29.50
    In Stock
  • Dishwasher Thermostat 661566
    #30

    Tub and frame parts diagram

    Dishwasher thermostat

    Part #661566

    Replaced by #WP661566

    ?
    Manufacturer substitution
    This part replaces 661566. Substitute parts can look different from the original.
    BEST SELLER
    $21.20
    22% OFF Phone Price : $27.20
    In Stock
  • Dishwasher Dispenser 8565815
    #8

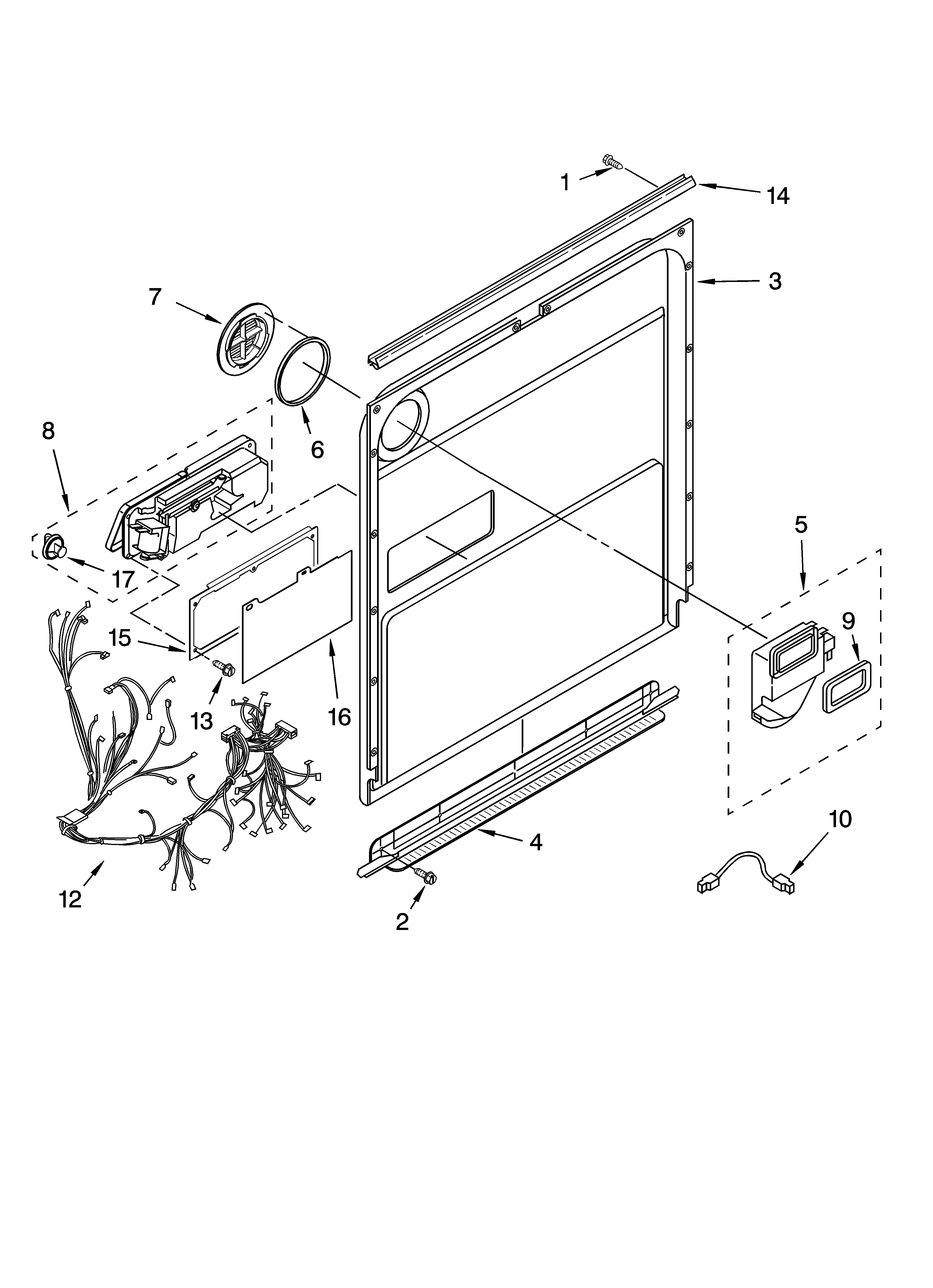

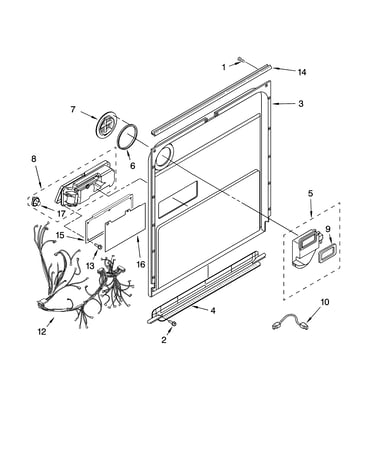

    Door and latch parts diagram

    Dishwasher dispenser

    Part #8565815

    Replaced by #WPW10199696

    ?
    Manufacturer substitution
    This part replaces 8565815. Substitute parts can look different from the original.
    BEST SELLER
    $134.78
    8% OFF Phone Price : $146.78
    In Stock
