Craftsman
Water Pump

Model # 471445740 Official Craftsman piston pump

Here are the diagrams and repair parts for Official Craftsman 471445740 piston pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
O-ring 5072066
#4

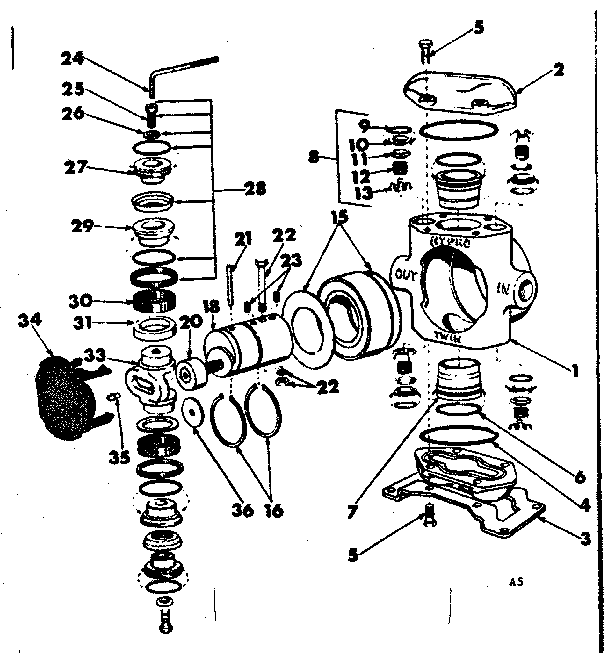

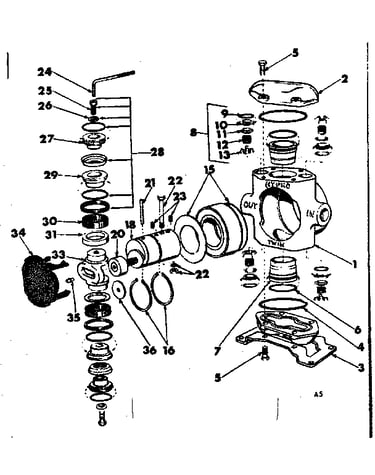

Replacement parts diagram

O-ring

Part #5072066

Replaced by #U9-49

?
Manufacturer substitution
This part replaces 5072066. Substitute parts can look different from the original.
This item is not returnable
$5.23
In Stock
Spring 5019042
#12

Replacement parts diagram

Spring

Part #5019042

The manufacturer no longer makes this part, and there's no substitute part

Ring 5110061
#31

Replacement parts diagram

Ring

Part #5110061

The manufacturer no longer makes this part, and there's no substitute part

Cover 5001147
#34

Replacement parts diagram

Cover

Part #5001147

The manufacturer no longer makes this part, and there's no substitute part

Plate 5017120
#36

Replacement parts diagram

Plate

Part #5017120

The manufacturer no longer makes this part, and there's no substitute part

Ring 5110027
#16

Replacement parts diagram

Ring

Part #5110027

The manufacturer no longer makes this part, and there's no substitute part

Overhaul Kit 5168090
#28

Replacement parts diagram

Overhaul kit

Part #5168090

The manufacturer no longer makes this part, and there's no substitute part

Gasket 5072036
#26

Replacement parts diagram

Gasket

Part #5072036

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5124010
#7

Replacement parts diagram

Sleeve

Part #5124010

The manufacturer no longer makes this part, and there's no substitute part

Retainer 5108030
#13

Replacement parts diagram

Retainer

Part #5108030

The manufacturer no longer makes this part, and there's no substitute part
