Model # WOS92EC0AS01 Official Whirlpool 30" electric built-in single oven
Here are the diagrams and repair parts for Official Whirlpool WOS92EC0AS01 30" electric built-in single oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forWOS92EC0AS01 Wall Ovens
- #7

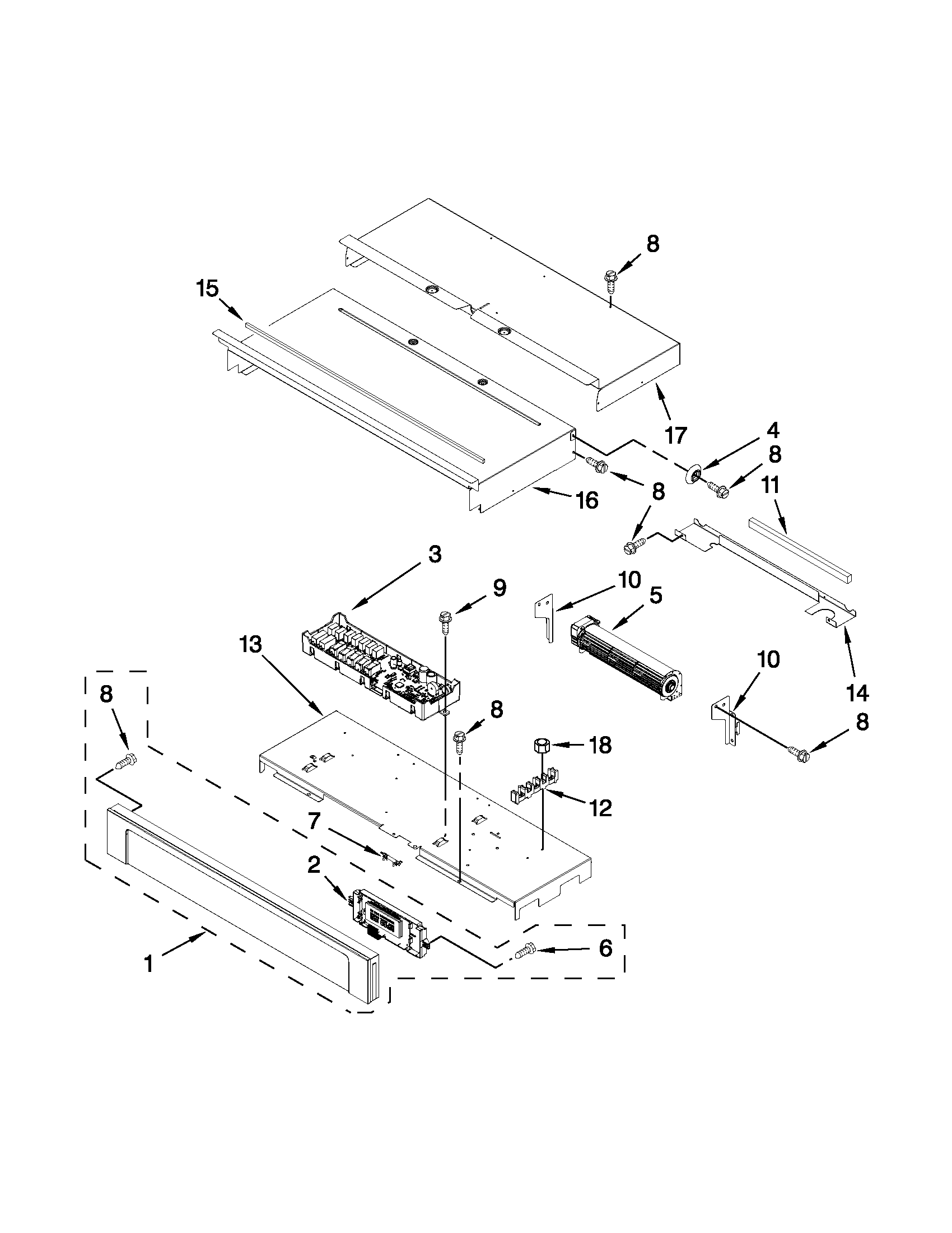

Control panel parts diagram
Thermal fusePart #W10436434
Replaced by #WPW10545255
?Manufacturer substitutionThis part replaces W10436434. Substitute parts can look different from the original.$19.84 |9% OFF Phone Price : $21.84In Stock - #12
Control panel parts diagram
Terminal blockPart #7401P038-60
Replaced by #WPW10245259
?Manufacturer substitutionThis part replaces 7401P038-60. Substitute parts can look different from the original.$24.63 |24% OFF Was : $32.40In Stock - #18

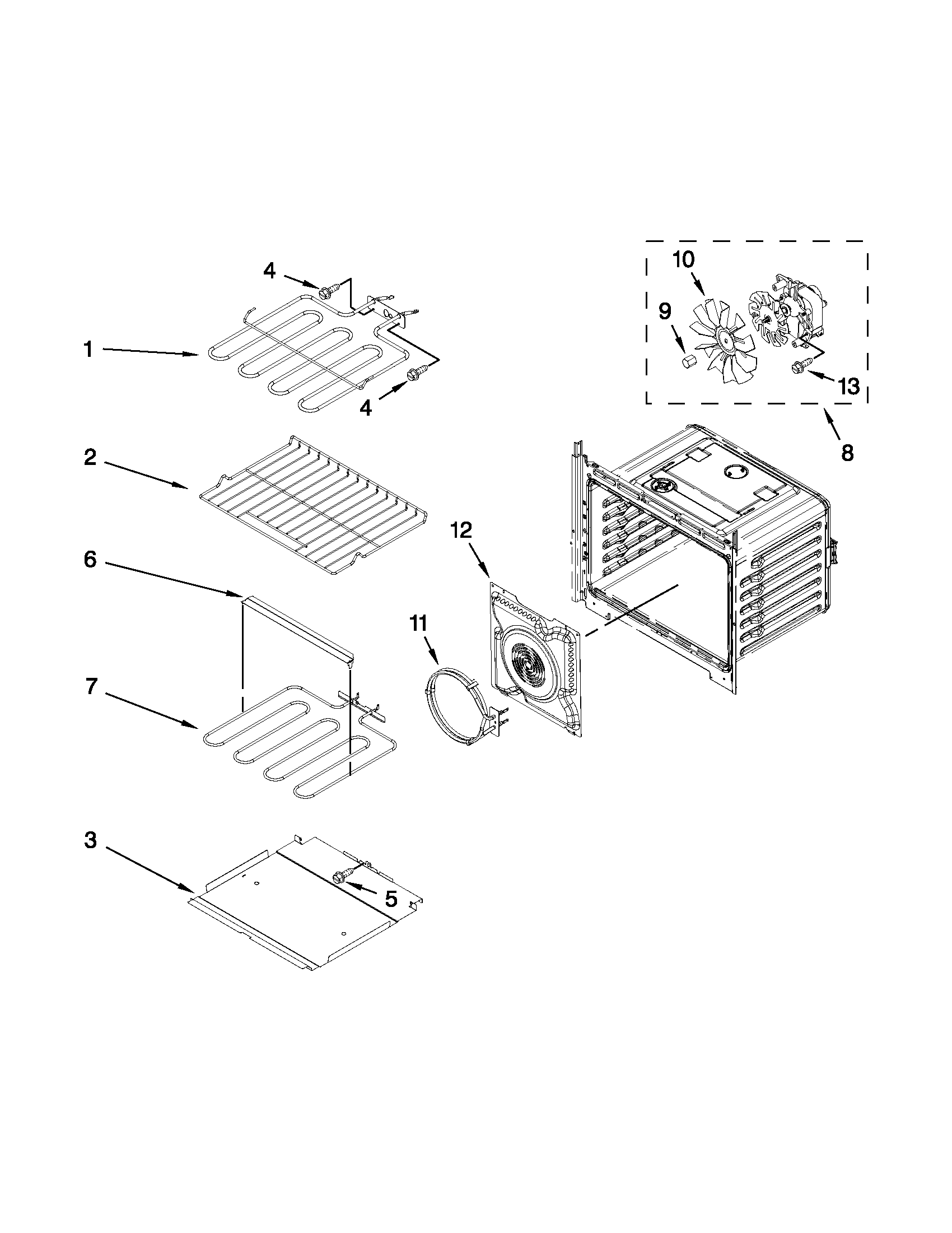

Oven parts diagram
Range high-limit thermostatPart #4449751
Replaced by #WP4449751
?Manufacturer substitutionThis part replaces 4449751. Substitute parts can look different from the original.$109.18 |10% OFF Phone Price : $121.18In Stock - #7
Internal oven parts diagram
Oven bake elementPart #W10282948
Replaced by #W11545804
?Manufacturer substitutionThis part replaces W10282948. Substitute parts can look different from the original.$59.33 |9% OFF Phone Price : $65.33In Stock - #9

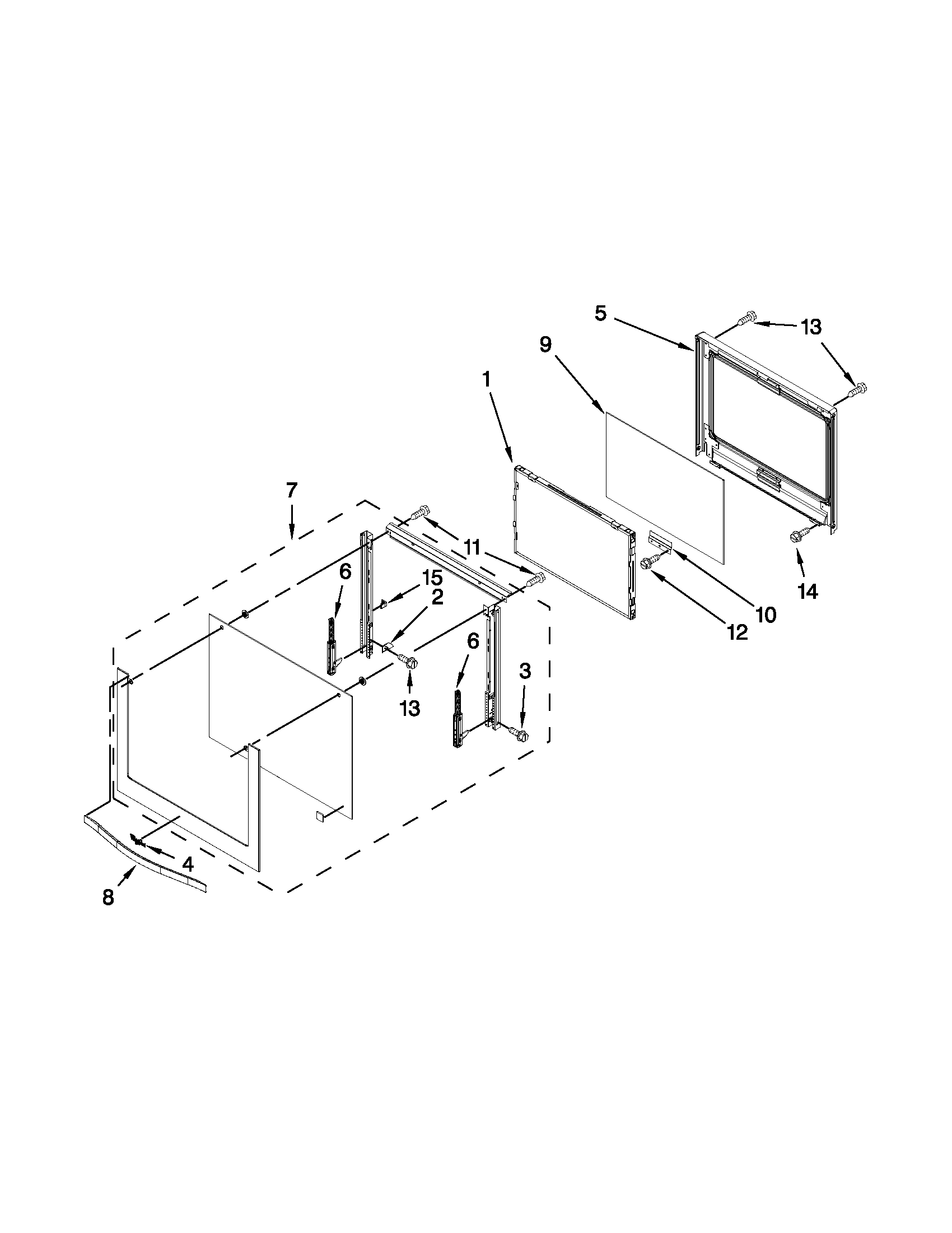

Oven door diagram
Oven door glassPart #W10284901
Replaced by #WPW10618107
?Manufacturer substitutionThis part replaces W10284901. Substitute parts can look different from the original.$107.08 |10% OFF Phone Price : $119.08In Stock - #1

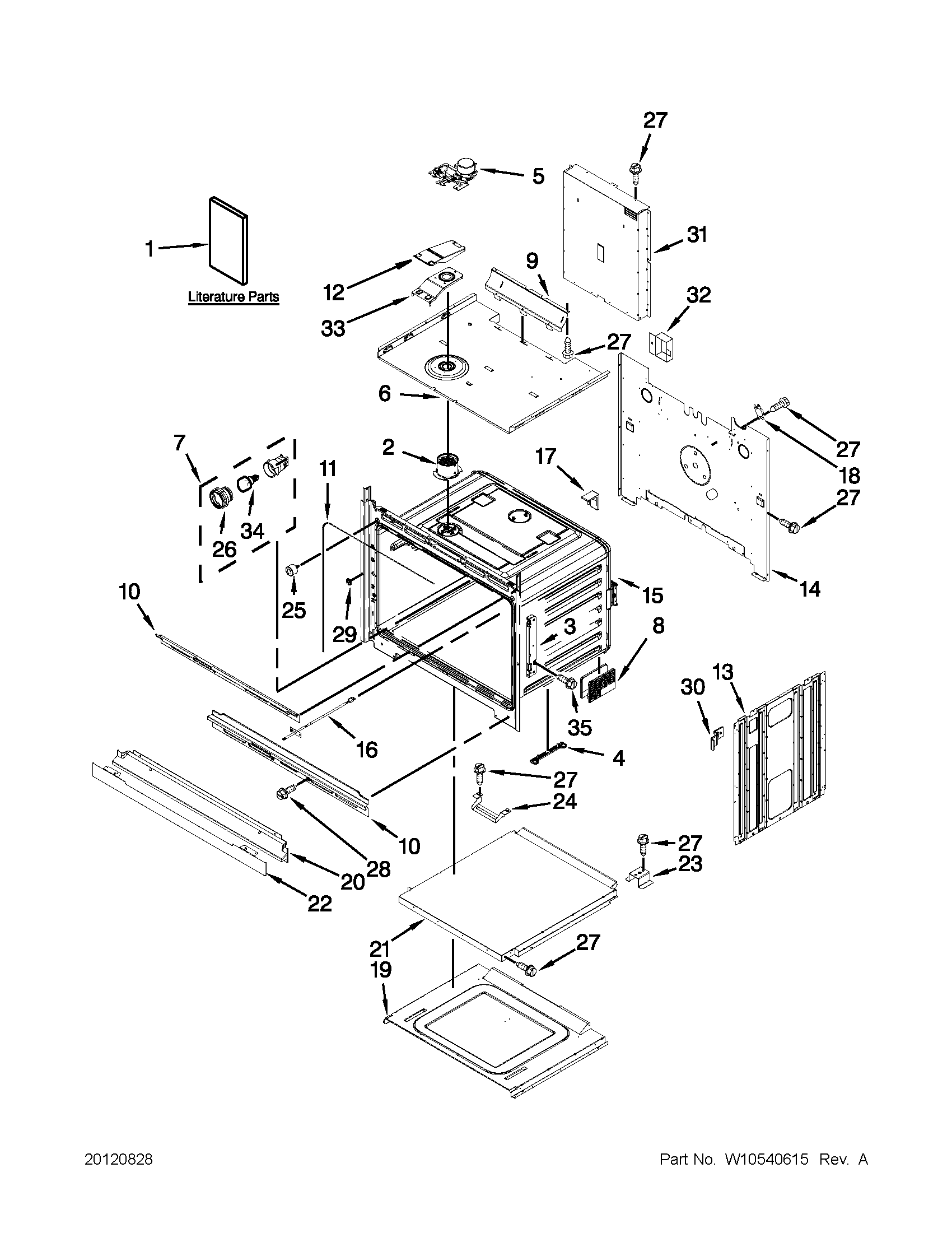

Internal oven parts diagram
Range broil elementPart #W10260252
Replaced by #WPW10260252
?Manufacturer substitutionThis part replaces W10260252. Substitute parts can look different from the original.$84.51 |7% OFF Phone Price : $90.51In Stock - #8
Internal oven parts diagram
FanPart #W10116228
Replaced by #W10794022
?Manufacturer substitutionThis part replaces W10116228. Substitute parts can look different from the original.$171.91 |7% OFF Phone Price : $183.91In Stock - #4A
Oven door diagram
NameplatePart #W10481434
Replaced by #W11178521
?Manufacturer substitutionThis part replaces W10481434. Substitute parts can look different from the original.$36.37 |14% OFF Phone Price : $42.37In Stock - #4
Oven door diagram
Appliance nameplatePart #W10481433
Replaced by #W11178521
?Manufacturer substitutionThis part replaces W10481433. Substitute parts can look different from the original.$36.37 |14% OFF Phone Price : $42.37In Stock - #2
Control panel parts diagram
Oven electronic control boardPart #W10286213
Replaced by #W10803991
?Manufacturer substitutionThis part replaces W10286213. Substitute parts can look different from the original.$348.61 |$12.00 OFF Phone Price : $360.61In Stock
