Heating & Cooling Combined Unit

Model # PGMD48G0908 Official ICP central package

Here are the diagrams and repair parts for Official ICP PGMD48G0908 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#48

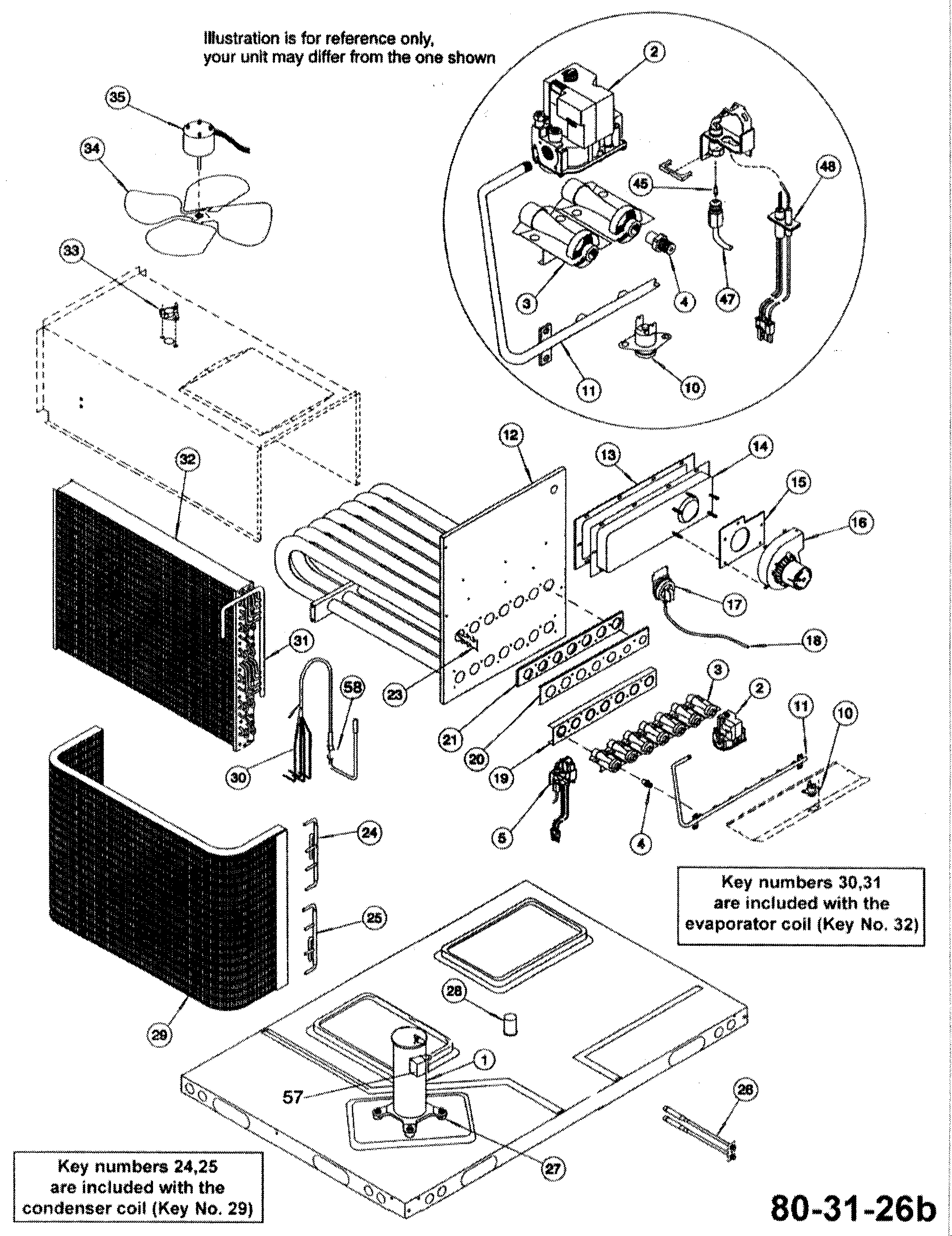

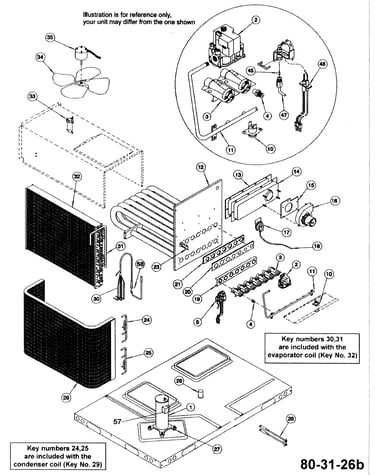

Inside view diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Transformer 1082611
#41

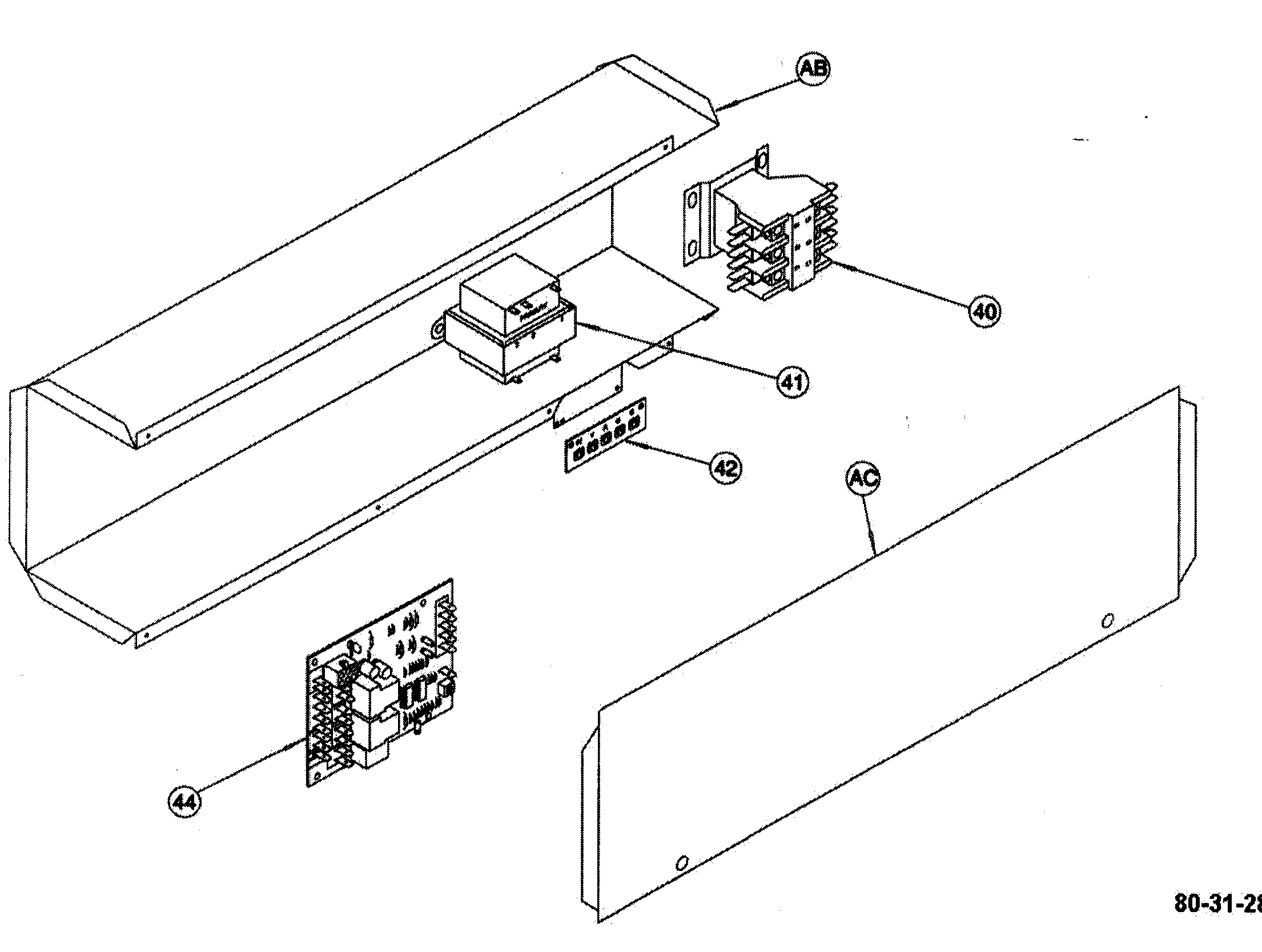

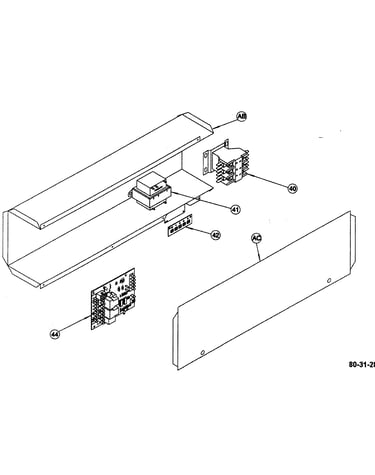

Control panel diagram

Transformer

Part #1082611

$101.35 |
11% OFF Phone Price : $113.35
In Stock
Capacitor 1094981
#28

Inside view diagram

Capacitor

Part #1094981

The manufacturer no longer makes this part, and there's no substitute part

Cap Rnrd 1094959
#6

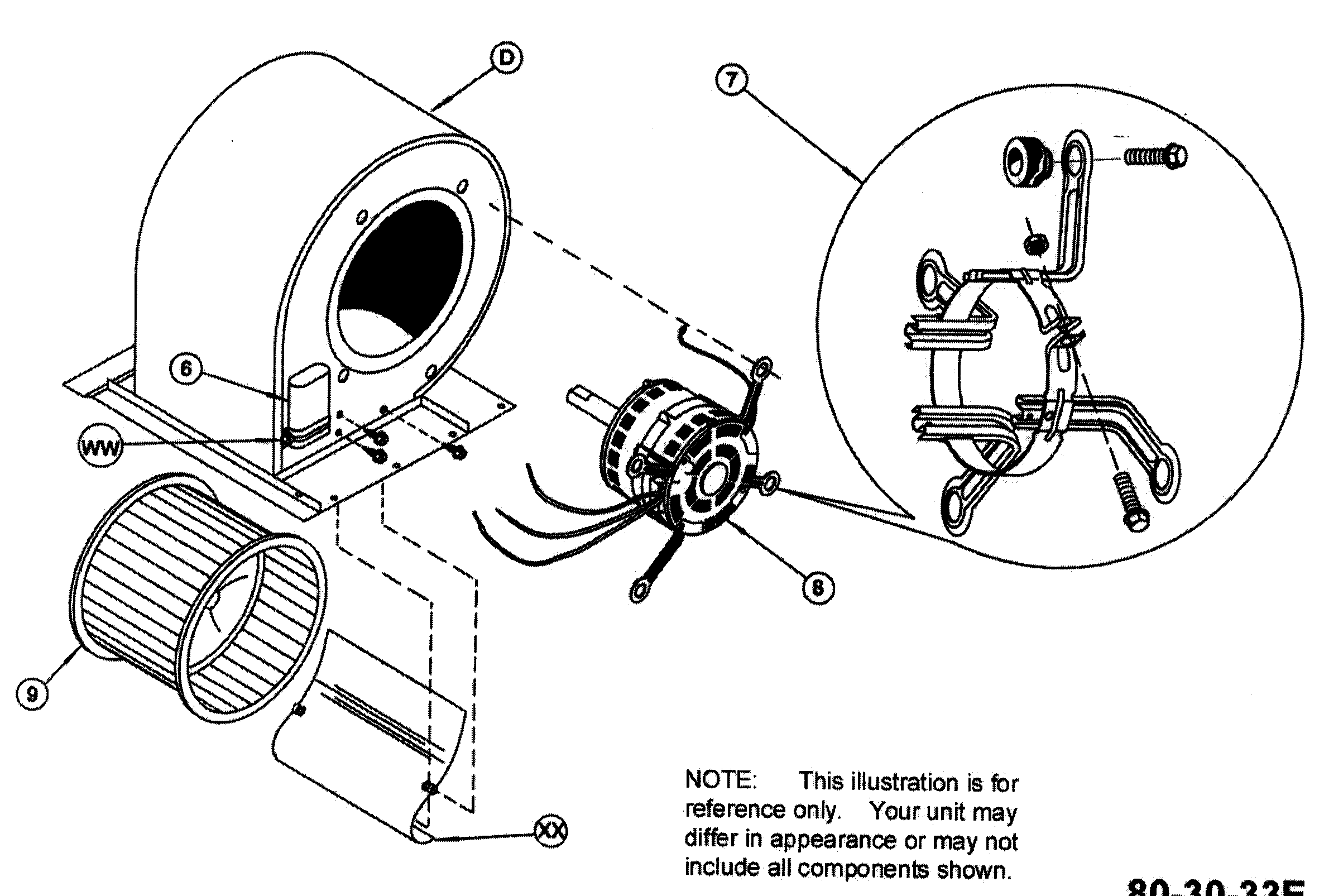

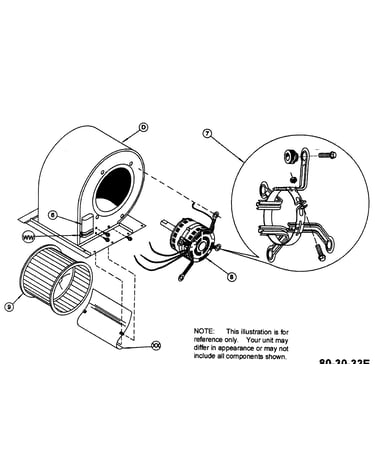

Blower assy diagram

Cap rnrd

Part #1094959

The manufacturer no longer makes this part, and there's no substitute part

Control F&l 1065295
#33

Inside view diagram

Control f&l

Part #1065295

Replaced by #3L05-1

?
Manufacturer substitution
This part replaces 1065295. Substitute parts can look different from the original.
$35.55 |
14% OFF Phone Price : $41.55
In Stock
Tube Assembly 1081492
#30

Inside view diagram

Tube assembly

Part #1081492

$75.82
In Stock
Mtr Cnd 1098504
#35

Inside view diagram

Mtr cnd

Part #1098504

$512.40
In Stock
Coil Cndsr 1082448
#29

Inside view diagram

Coil cndsr

Part #1082448

$3500.79
In Stock
Fan Cc 22" 1113971
#34

Inside view diagram

Fan cc 22"

Part #1113971

$239.93
In Stock
Condenser Fan Orifice 1065725
#C

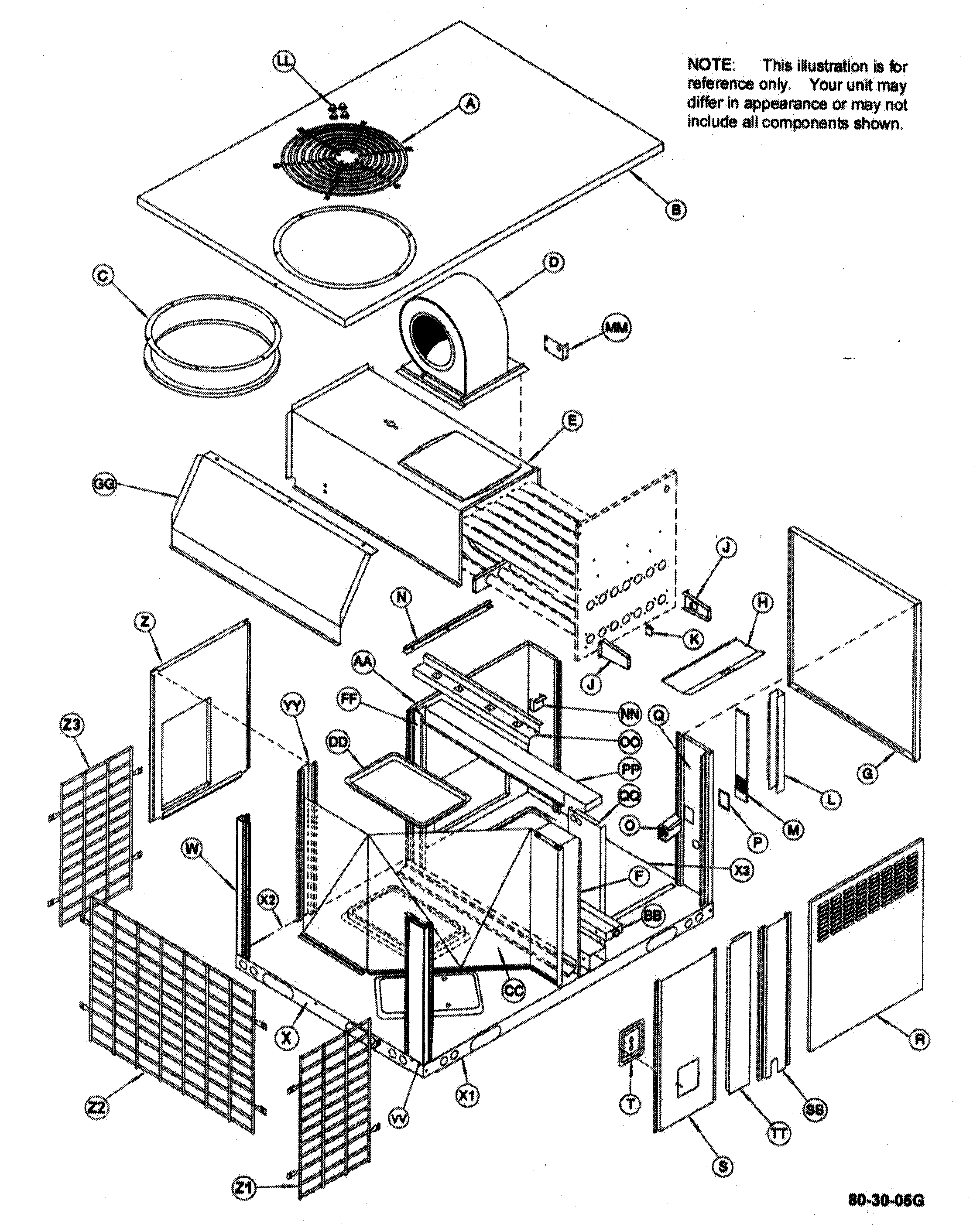

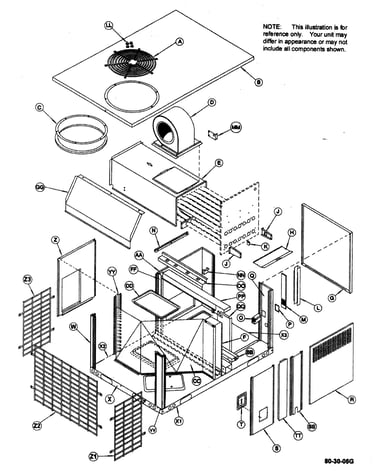

Outside view diagram

Condenser fan orifice

Part #1065725

$62.73
In Stock
