Model # 58712333F01B Official Kenmore dishwasher

Here are the diagrams and repair parts for Official Kenmore 58712333F01B dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

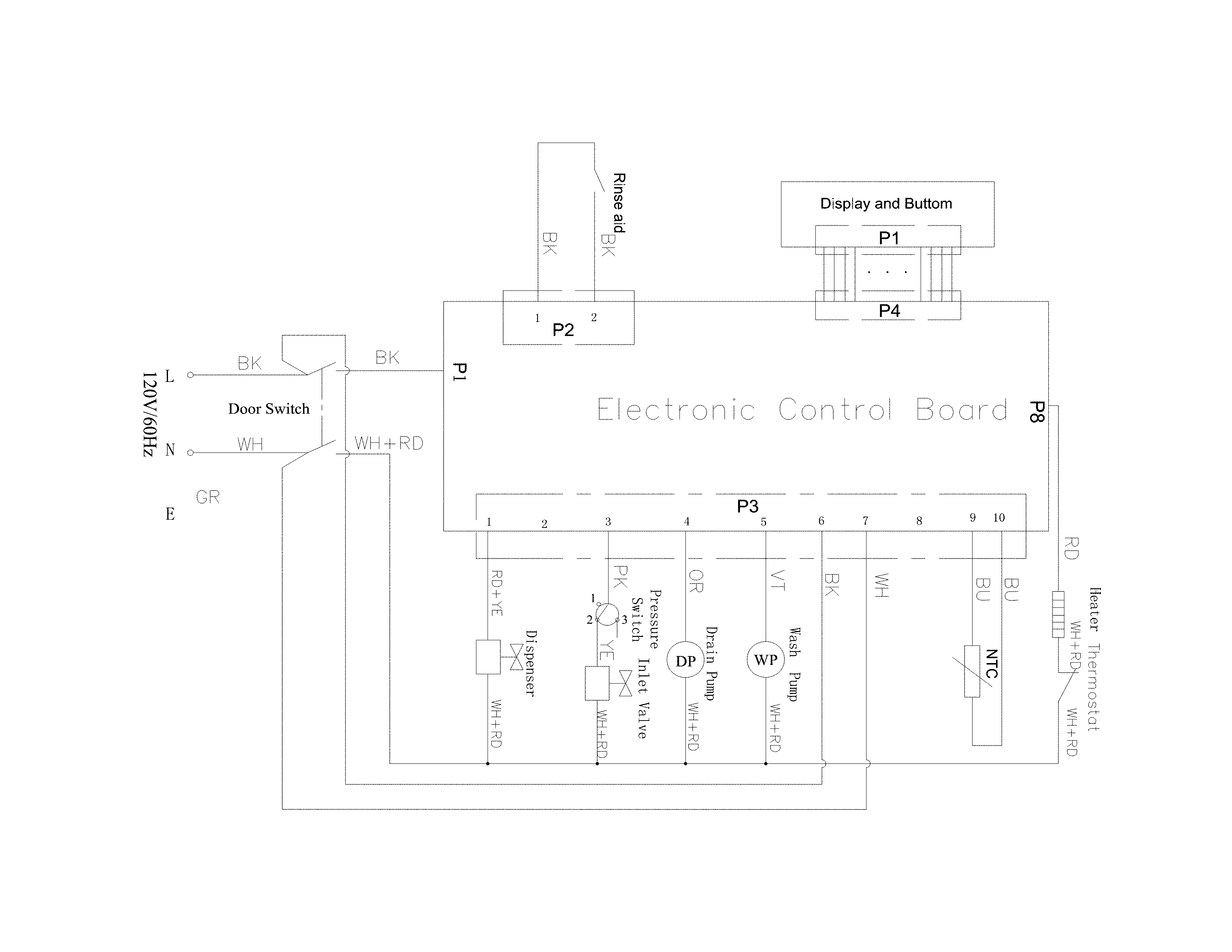

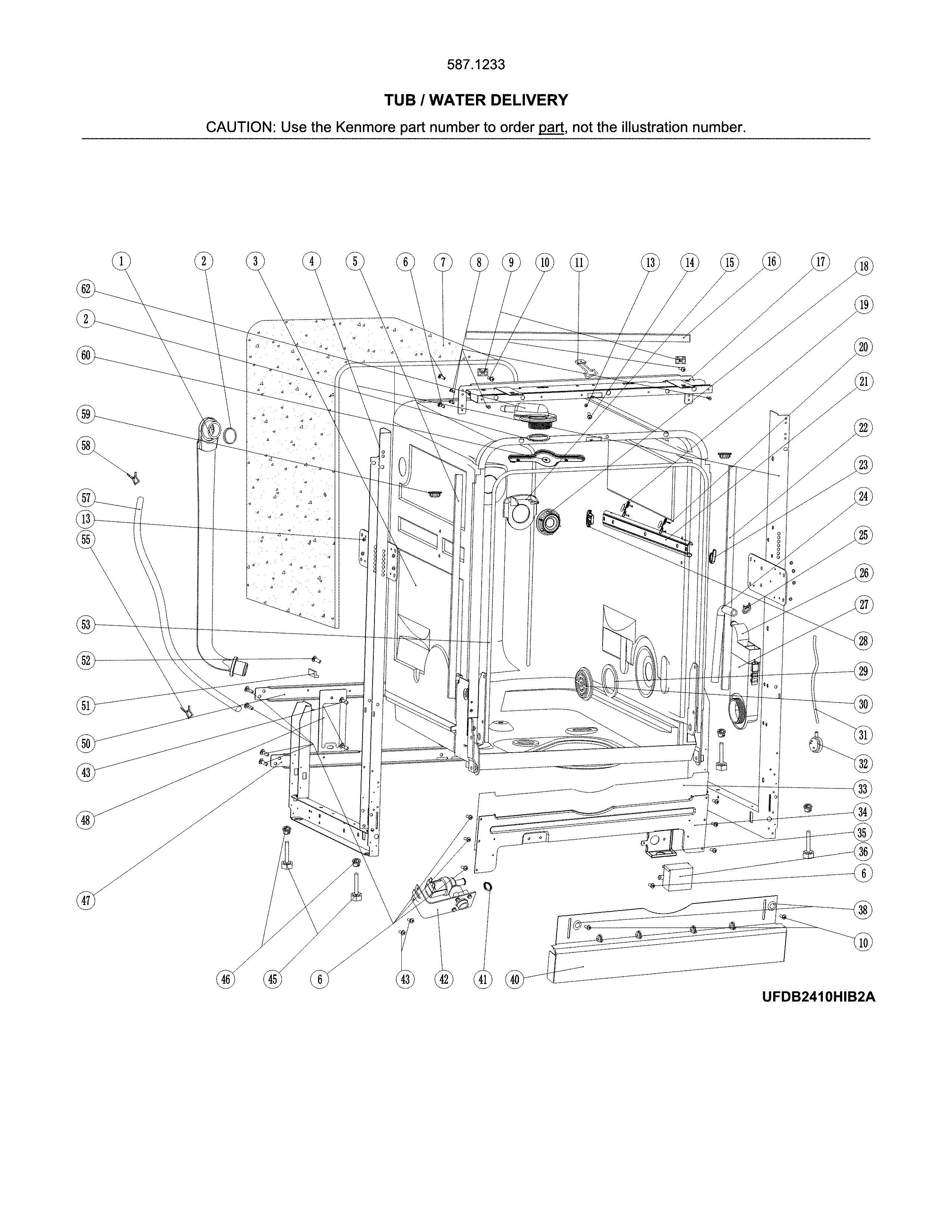

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Dishwasher Spray Arm, Middle (replaces 5304470267) 5304482491
#137

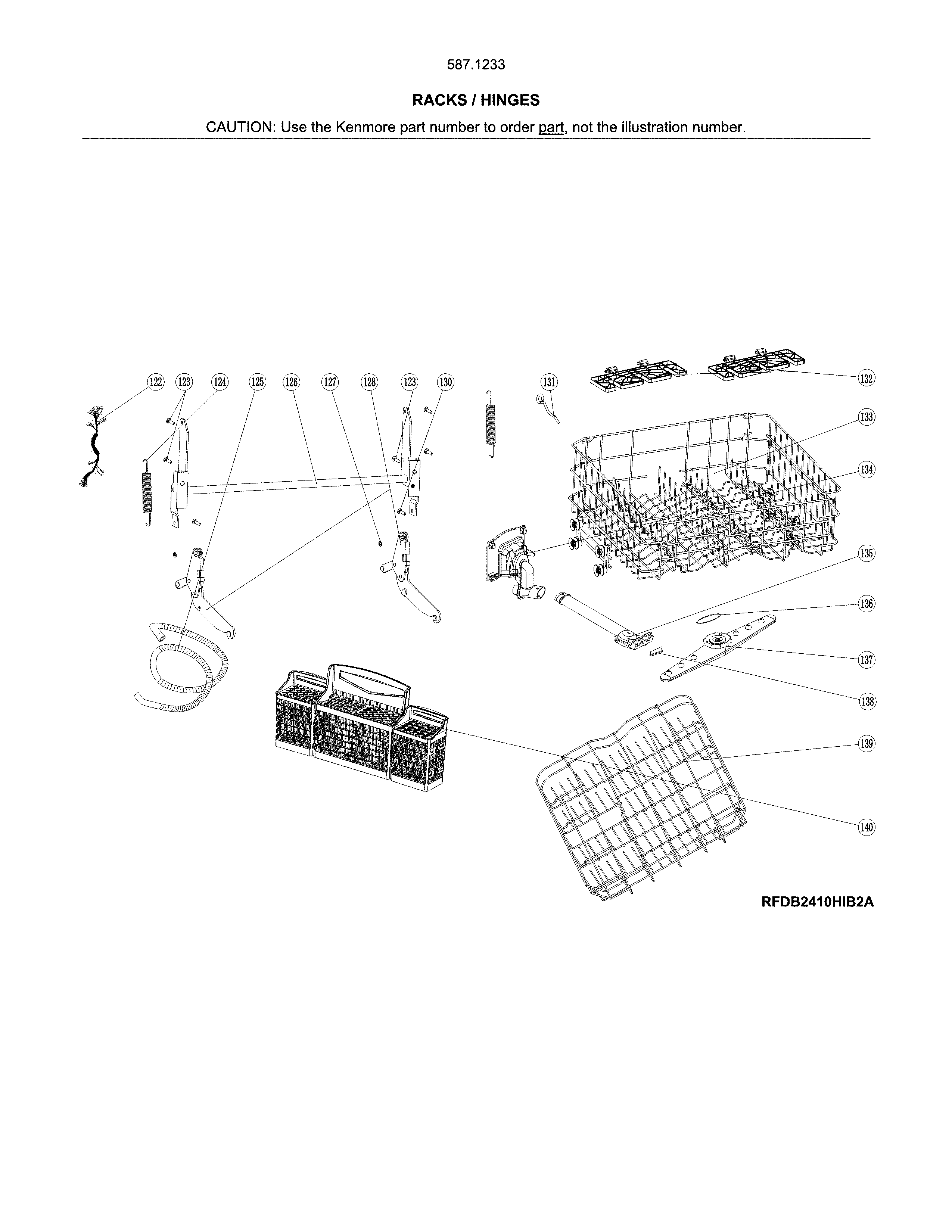

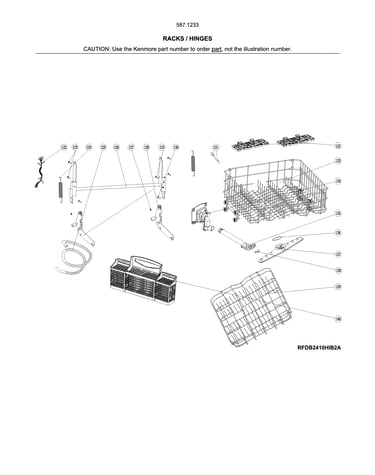

Racks/hinges diagram

Dishwasher spray arm, middle (replaces 5304470267)

Part #5304482491

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Dishwasher Circulation Pump Inlet Connector 5304482455
#93

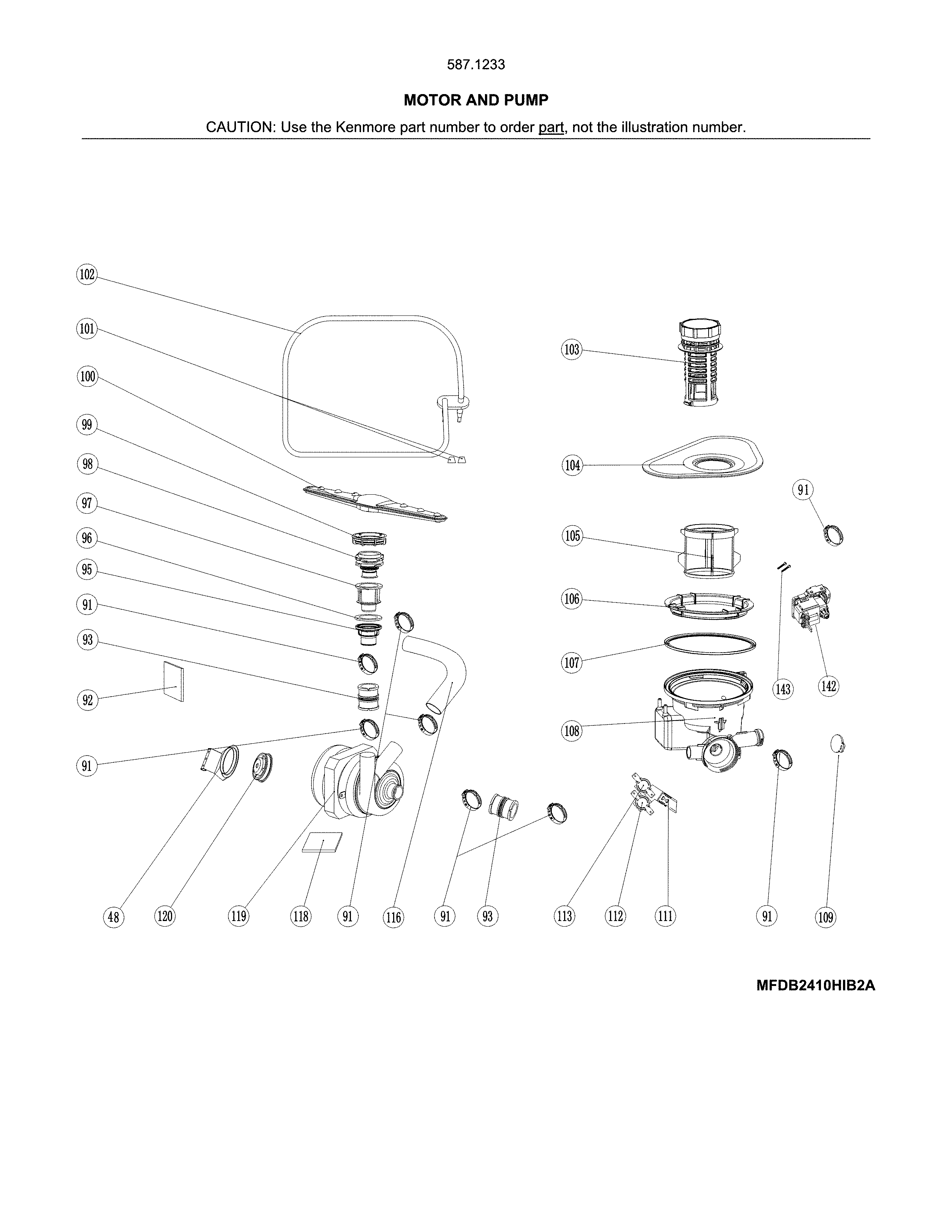

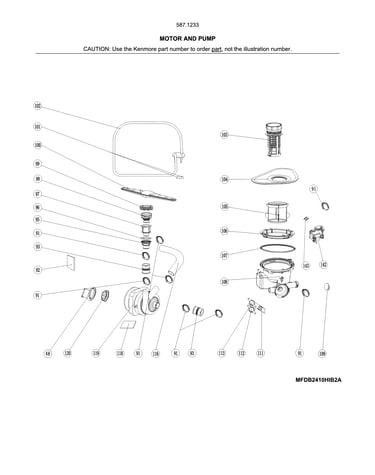

Motor and pump diagram

Dishwasher circulation pump inlet connector

Part #5304482455

$18.91
In Stock
Dishwasher Pump And Motor Assembly 5304482475
#119

Motor and pump diagram

Dishwasher pump and motor assembly

Part #5304482475

$165.41 |
7% OFF Phone Price : $177.41
In Stock
Electrolux Flapper 5304482469
#109

Motor and pump diagram

Electrolux flapper

Part #5304482469

This item is not returnable
$11.74 |
15% OFF Phone Price : $13.74
In Stock
Bracket 5304482454
#92

Motor and pump diagram

Bracket

Part #5304482454

$9.14
In Stock
Insulation 5304482444
#83

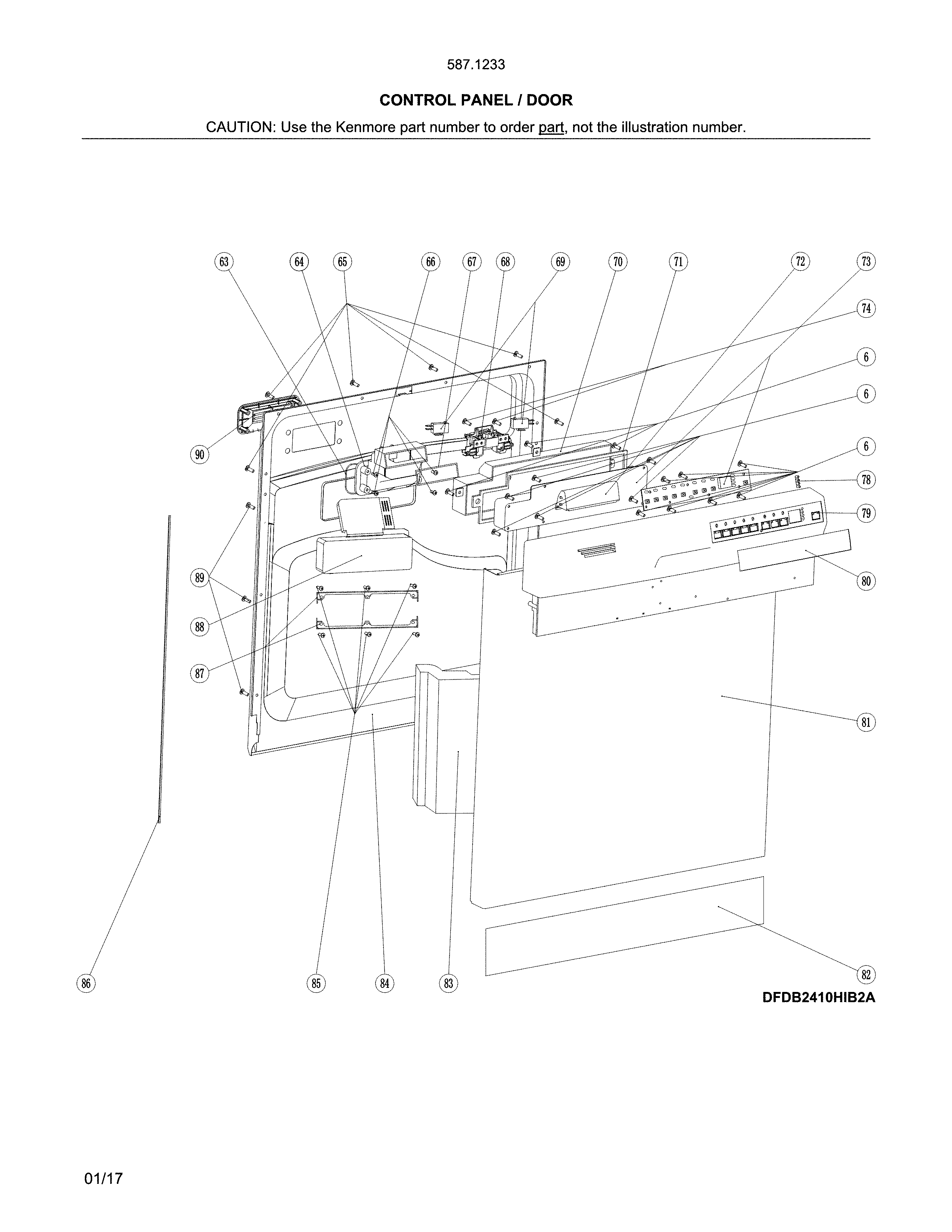

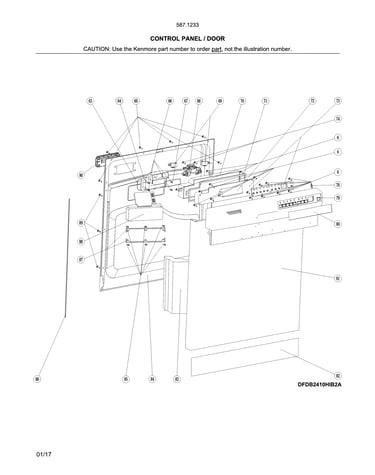

Control panel/door diagram

Insulation

Part #5304482444

$16.62
In Stock
Electrolux Guard 5304482448
#86

Control panel/door diagram

Electrolux guard

Part #5304482448

$12.51 |
14% OFF Phone Price : $14.51
In Stock
Repair Parts Catalog 5995683447
#NI

Control panel/door diagram

Repair parts catalog

Part #5995683447

This item is not returnable
$4.14
In Stock
Dishwasher Door Outer Panel (white) 5304482442
#81

Control panel/door diagram

Dishwasher door outer panel (white)

Part #5304482442

$192.85
In Stock
Dishwasher Dishrack, Lower (replaces 5304482493) 5304509280
#139

Racks/hinges diagram

Dishwasher dishrack, lower (replaces 5304482493)

Part #5304509280

$176.86 |
6% OFF Phone Price : $188.86
In Stock
