Thermador
Upright Freezer

Model # T24ID80NLP/16 Official Thermador built-in freezer column

Here are the diagrams and repair parts for Official Thermador T24ID80NLP-16 built-in freezer column, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

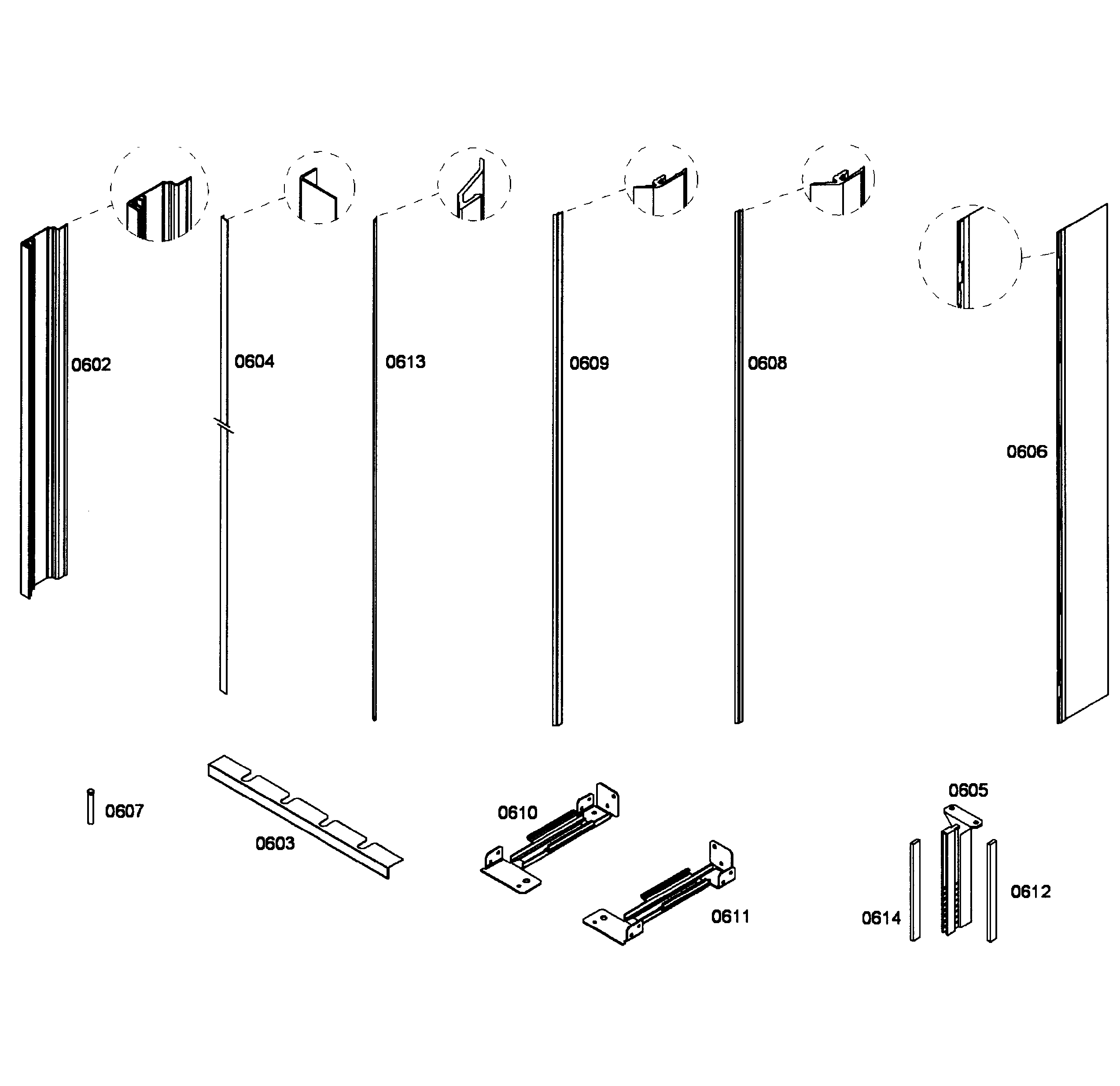

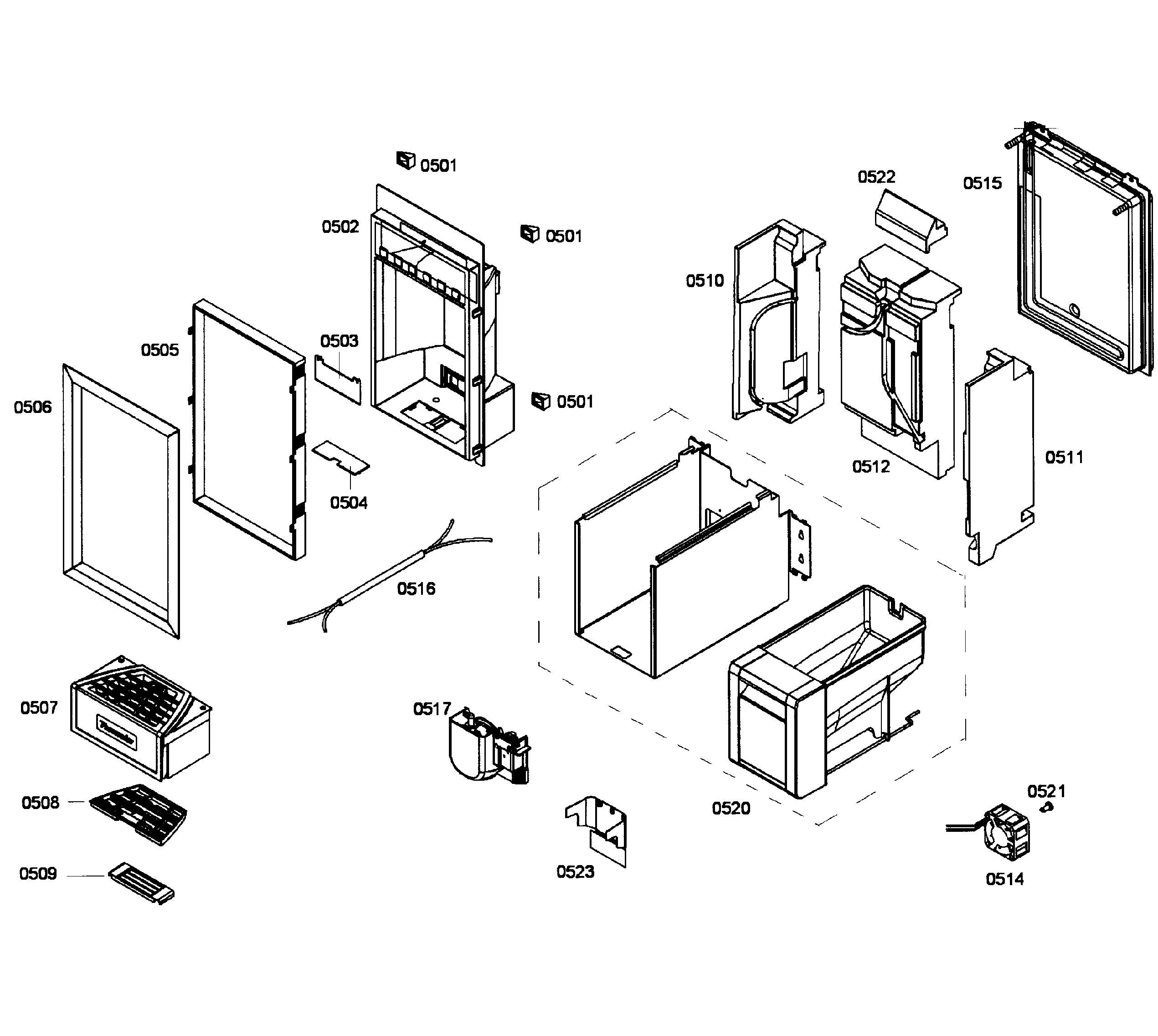

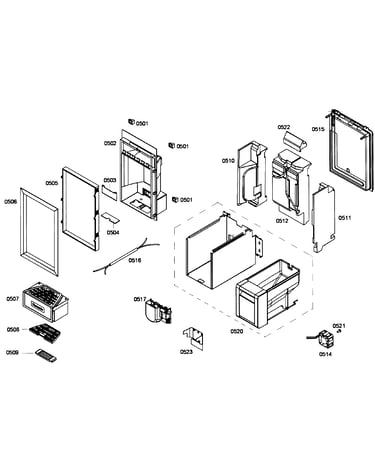

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Freezer Water Filter Cap 604684
#429

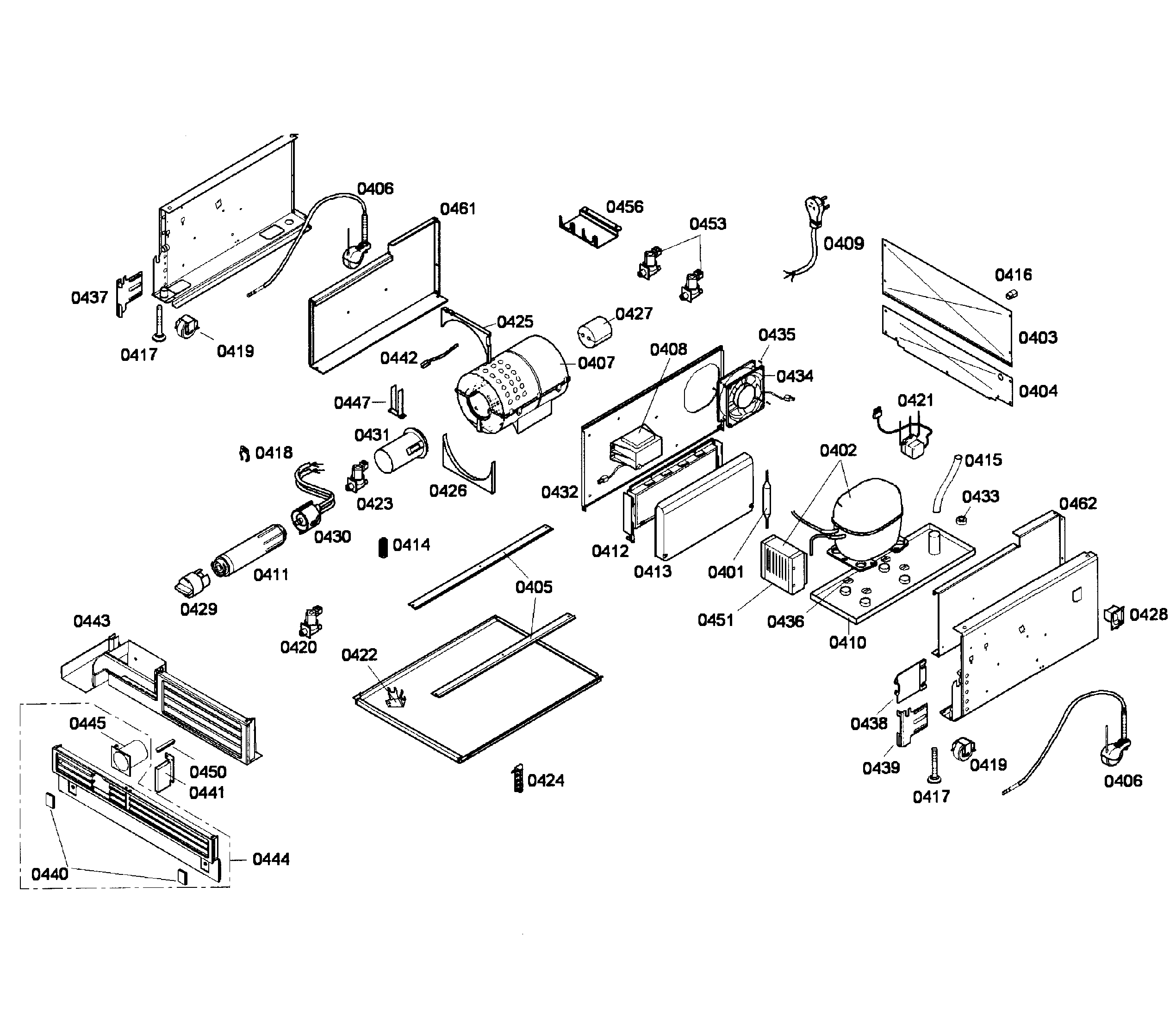

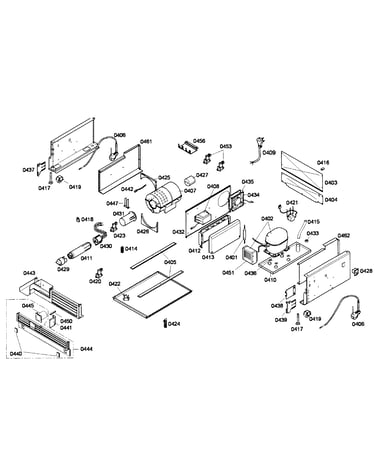

Compressor diagram

Freezer water filter cap

Part #604684

Replaced by #00604684

?
Manufacturer substitution
This part replaces 604684. Substitute parts can look different from the original.
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Clip 603971
#313

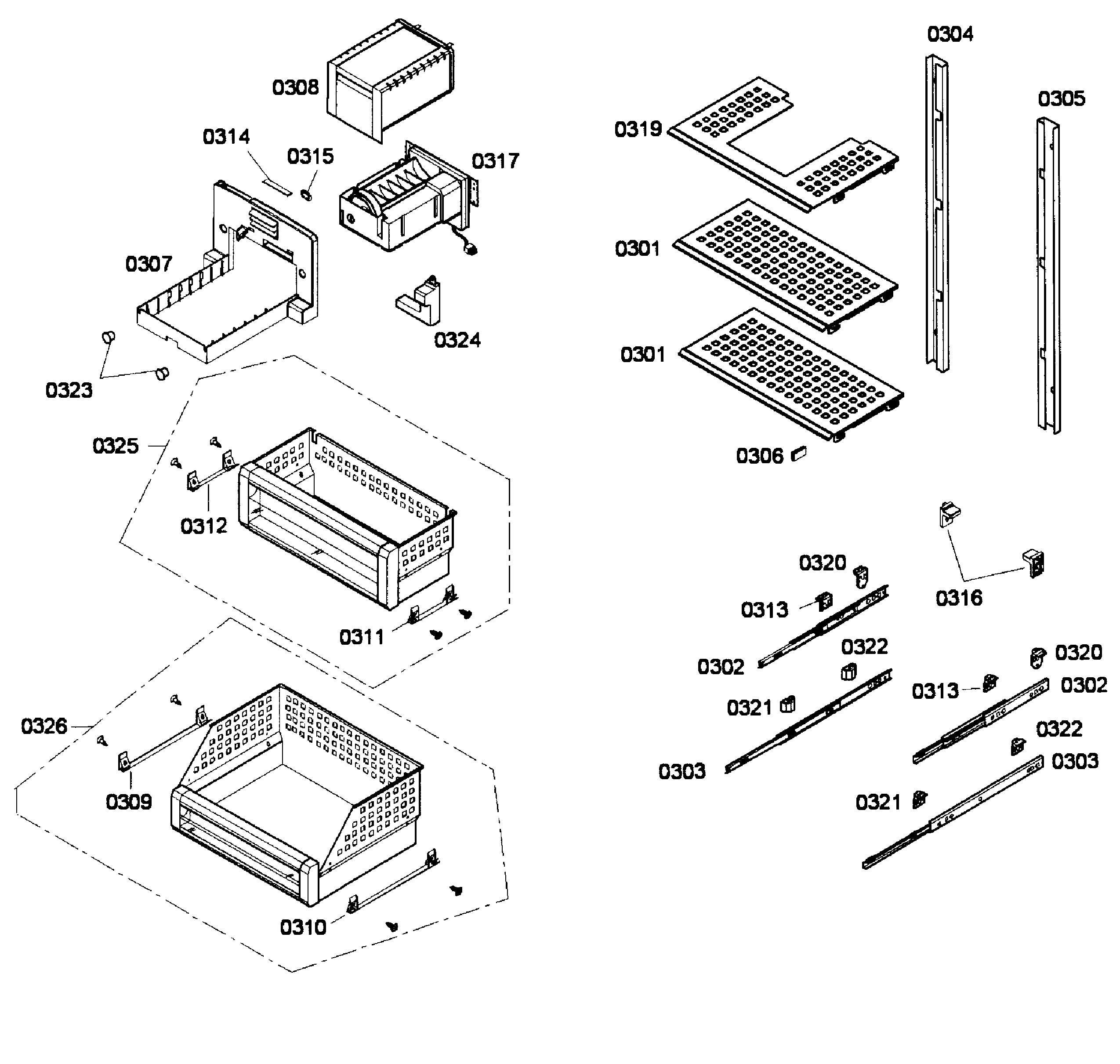

Shelfs diagram

Clip

Part #603971

Replaced by #00623319

?
Manufacturer substitution
This part replaces 603971. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Door Seal 247252
#214

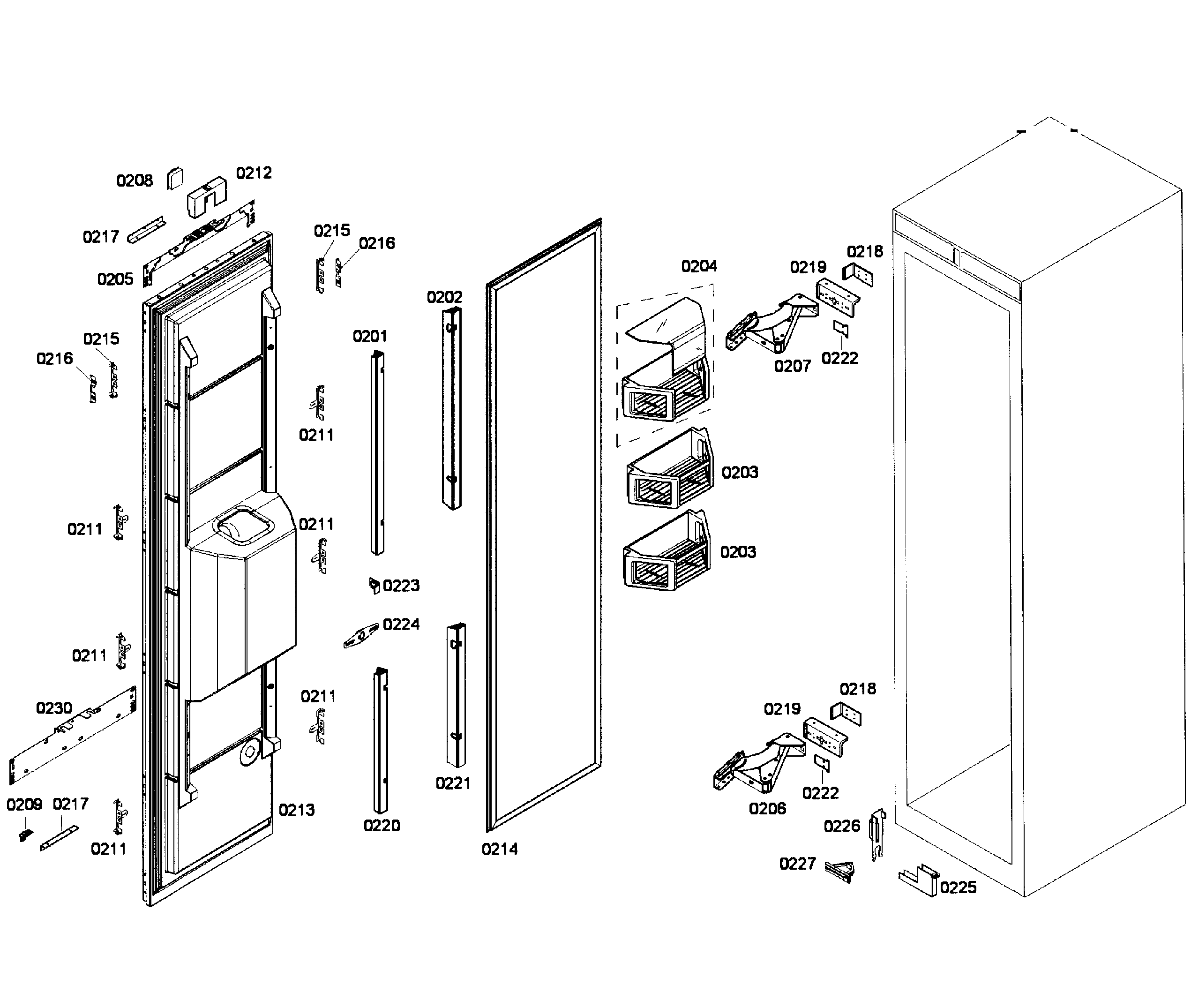

Door assy diagram

Door seal

Part #247252

Replaced by #00716384

?
Manufacturer substitution
This part replaces 247252. Substitute parts can look different from the original.
$142.09 |
8% OFF Phone Price : $154.09
In Stock
Fan 643804
#434

Compressor diagram

Fan

Part #643804

Replaced by #00652338

?
Manufacturer substitution
This part replaces 643804. Substitute parts can look different from the original.
$97.79 |
11% OFF Phone Price : $109.79
In Stock
Sensor 641078
#133

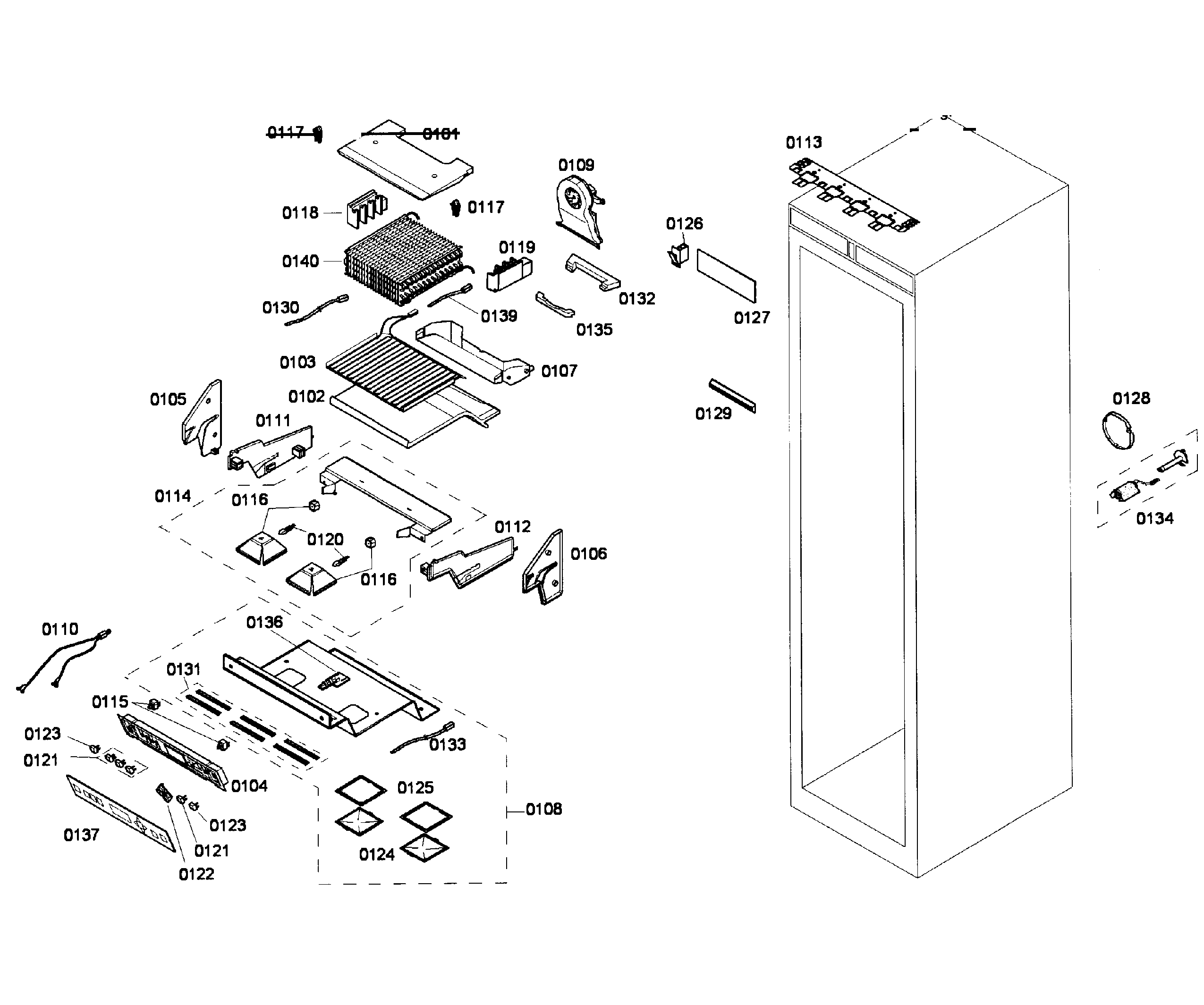

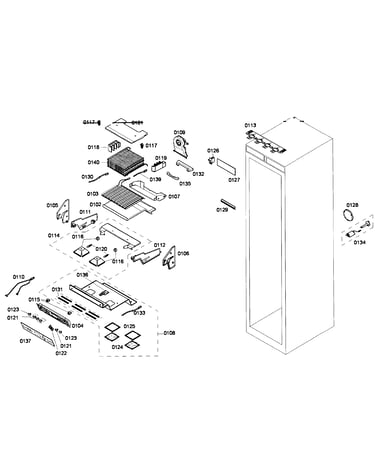

Cabinet parts diagram

Sensor

Part #641078

Replaced by #00641078

?
Manufacturer substitution
This part replaces 641078. Substitute parts can look different from the original.
$14.83
In Stock
Sealing 604019
#315

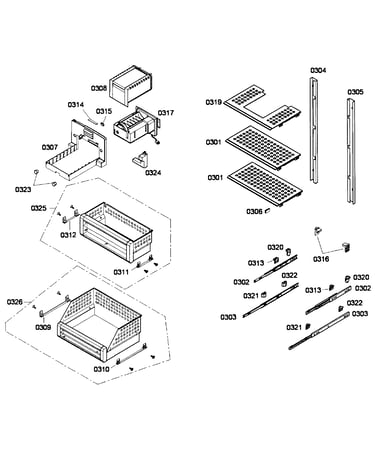

Shelfs diagram

Sealing

Part #604019

Replaced by #10006958

?
Manufacturer substitution
This part replaces 604019. Substitute parts can look different from the original.
This item is not returnable
$3.82
In Stock
Tray 660643
#203

Door assy diagram

Tray

Part #660643

Replaced by #00660643

?
Manufacturer substitution
This part replaces 660643. Substitute parts can look different from the original.
$237.29 |
5% OFF Phone Price : $249.29
In Stock
Basket-fro 661399
#326

Shelfs diagram

Basket-fro

Part #661399

Replaced by #00687900

?
Manufacturer substitution
This part replaces 661399. Substitute parts can look different from the original.
$250.95
In Stock
Tray 660642
#204

Door assy diagram

Tray

Part #660642

Replaced by #00678145

?
Manufacturer substitution
This part replaces 660642. Substitute parts can look different from the original.
$234.63 |
5% OFF Phone Price : $246.63
In Stock
Compressor 144508
#402

Compressor diagram

Compressor

Part #144508

Replaced by #00145436

?
Manufacturer substitution
This part replaces 144508. Substitute parts can look different from the original.
$653.52
In Stock
