Model # SCB2000CBB03 Official GE microwave

Here are the diagrams and repair parts for Official GE SCB2000CBB03 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

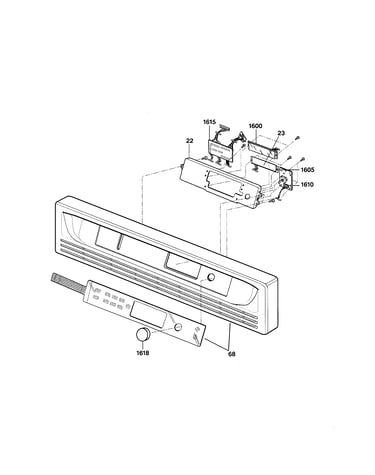

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Microwave Fuse WB27X10388
#1626

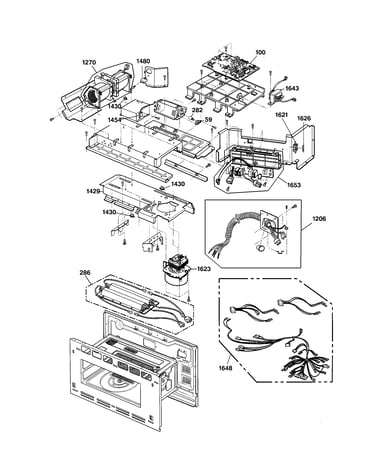

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Primary Interlock Switch (replaces Wb24x10029, Wb24x10113) WB24X10047
#1446

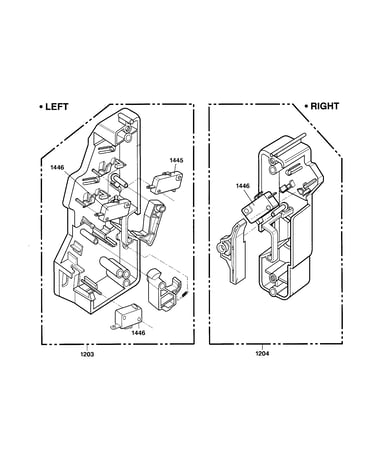

Latch board parts diagram

Microwave primary interlock switch (replaces wb24x10029, wb24x10113)

Part #WB24X10047

BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Diode WB27X10330
#1439

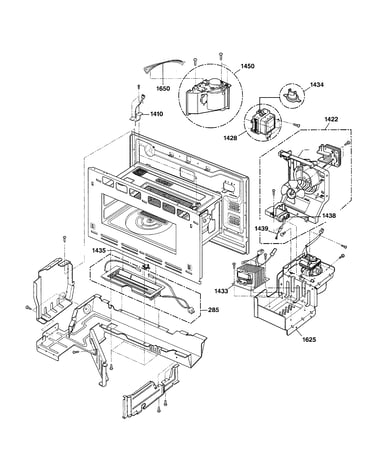

Interior parts (1) diagram

Diode

Part #WB27X10330

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB27X10330. Substitute parts can look different from the original.
BEST SELLER
$24.73 |
20% OFF Phone Price : $30.73
In Stock
Microwave Thermal Cut-off WB21X10046
#1430

Interior parts (2) diagram

Microwave thermal cut-off

Part #WB21X10046

$26.84 |
18% OFF Phone Price : $32.84
In Stock
Metal Tray WB49X10053
#1512

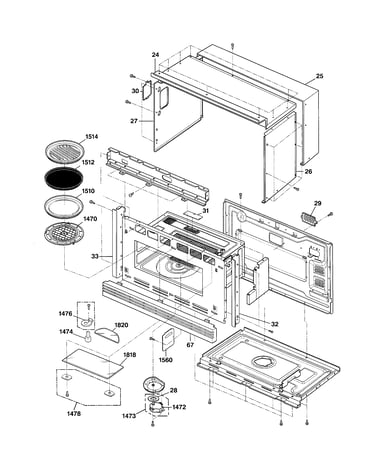

Oven cavity parts diagram

Metal tray

Part #WB49X10053

Replaced by #WB49X10240

?
Manufacturer substitution
This part replaces WB49X10053. Substitute parts can look different from the original.
$108.72 |
10% OFF Phone Price : $120.72
In Stock
Monitor Switch WB24X0817
#1445

Latch board parts diagram

Monitor switch

Part #WB24X0817

Replaced by #WB24X817

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Microwave Upper Glass Cover WB36X10129
#1818

Oven cavity parts diagram

Microwave upper glass cover

Part #WB36X10129

$106.96 |
10% OFF Phone Price : $118.96
In Stock
Microwave Grill Cooking Tray WB49X10054
#1514

Oven cavity parts diagram

Microwave grill cooking tray

Part #WB49X10054

Replaced by #WB49X10241

?
Manufacturer substitution
This part replaces WB49X10054. Substitute parts can look different from the original.
$102.72 |
10% OFF Phone Price : $114.72
In Stock
Door Glass M WB02X10685
#20

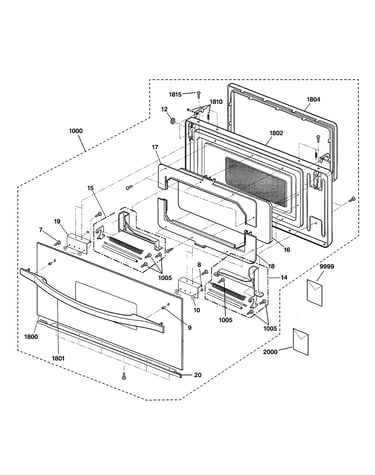

Door parts diagram

Door glass m

Part #WB02X10685

$32.77
In Stock
Thermostat,a WB20X10007
#1435

Interior parts (1) diagram

Thermostat,a

Part #WB20X10007

Replaced by #WB21X10149

?
Manufacturer substitution
This part replaces WB20X10007. Substitute parts can look different from the original.
$12.60 |
14% OFF Phone Price : $14.60
In Stock
