Lawn & Garden Engine

Model # 143584142 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143584142 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143584142 4-Cycle Engine
Needle Seat 631021
#12

Carburetor diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79
9% OFF Phone Price : $10.79
In Stock
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
Back Order
Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Carburetor Float 631023
#14

Carburetor diagram

Carburetor float

Part #631023

Replaced by #632019A

?
Manufacturer substitution
This part replaces 631023. Substitute parts can look different from the original.
This item is not returnable
$8.89
10% OFF Phone Price : $9.89
Back Order
Fuel Bowl 631025
#16

Carburetor diagram

Fuel bowl

Part #631025

Replaced by #631867

?
Manufacturer substitution
This part replaces 631025. Substitute parts can look different from the original.
This item is not returnable
$3.49
22% OFF Phone Price : $4.49
In Stock
Plug 27625
#25

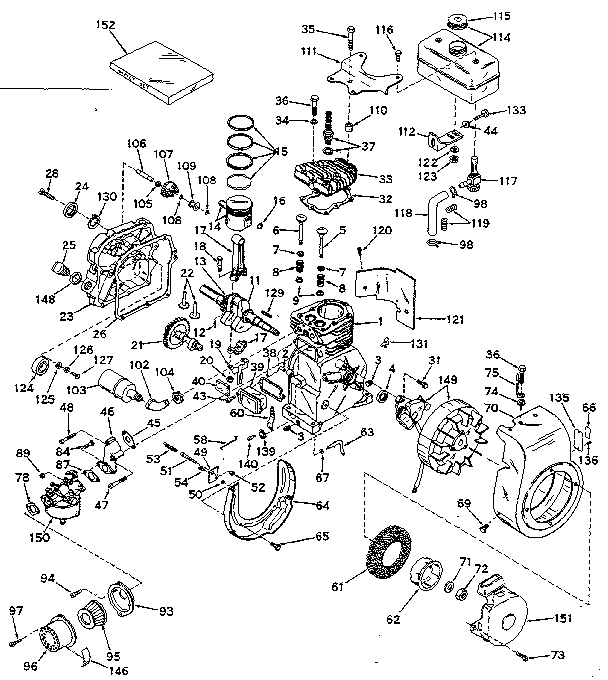

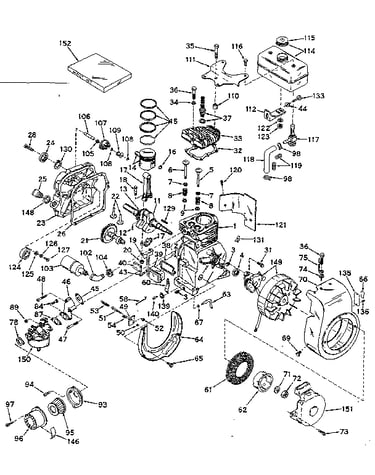

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Throttle Spring 631279
#2

Carburetor diagram

Throttle spring

Part #631279

Replaced by #631767

?
Manufacturer substitution
This part replaces 631279. Substitute parts can look different from the original.
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
/intke Valve 29314A
#5

Basic engine diagram

/intke valve

Part #29314A

The manufacturer no longer makes this part, and there's no substitute part

Stem Assembly 27136
#17

Carburetor diagram

Stem assembly

Part #27136

Replaced by #27136A

?
Manufacturer substitution
This part replaces 27136. Substitute parts can look different from the original.
This item is not returnable
$8.09
11% OFF Phone Price : $9.09
Back Order
/gvnr Clamp 31335
#139

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part
