Model # 11082403100 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11082403100 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

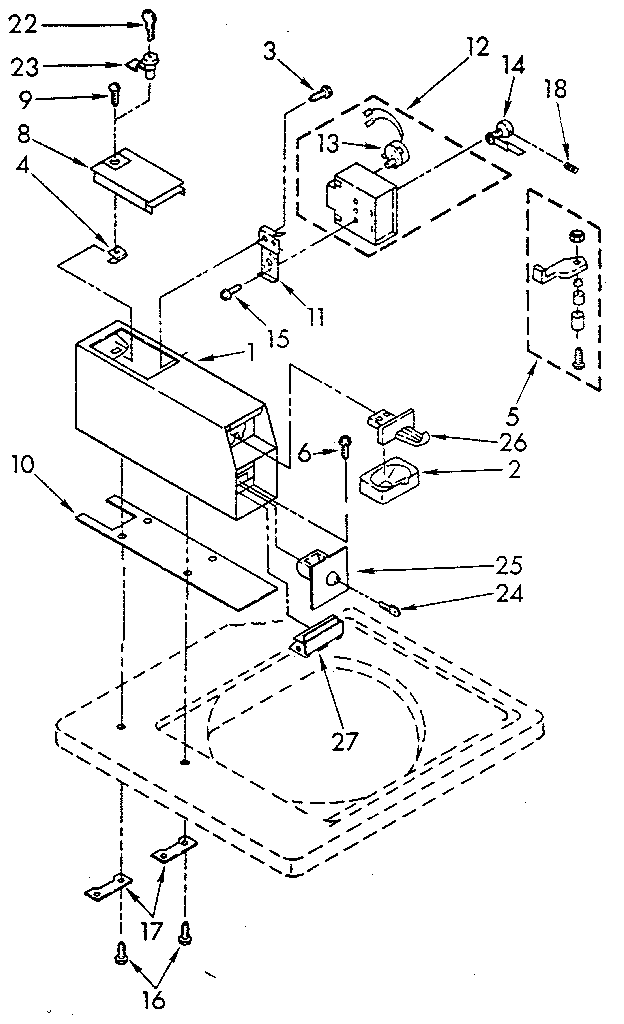

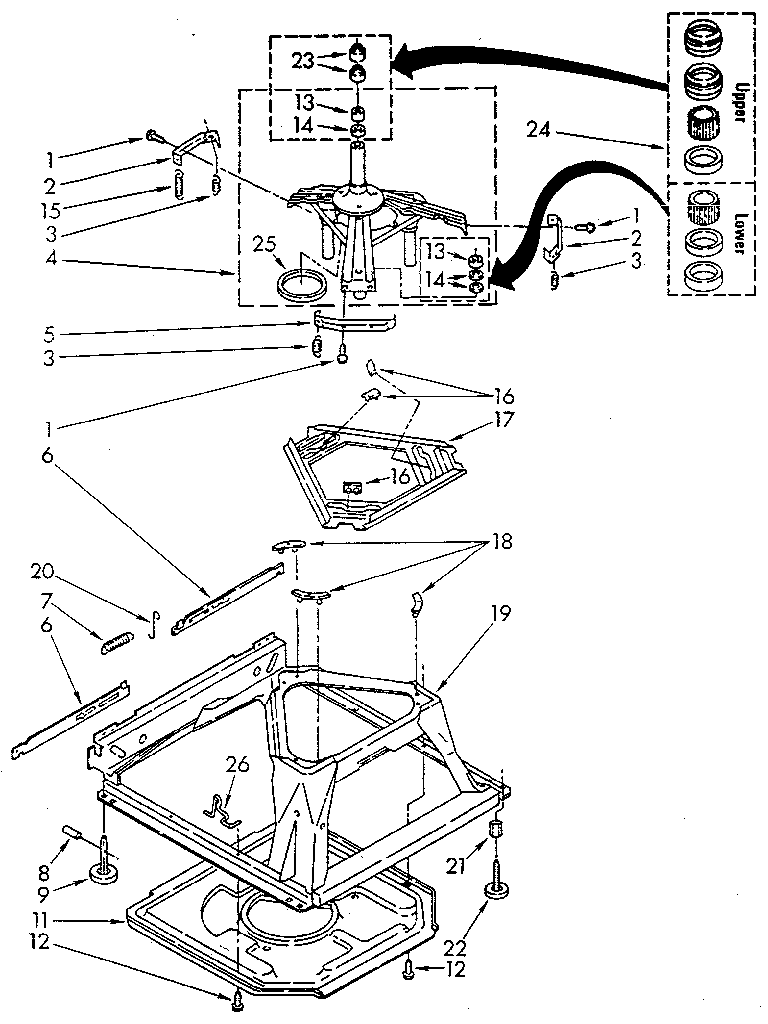

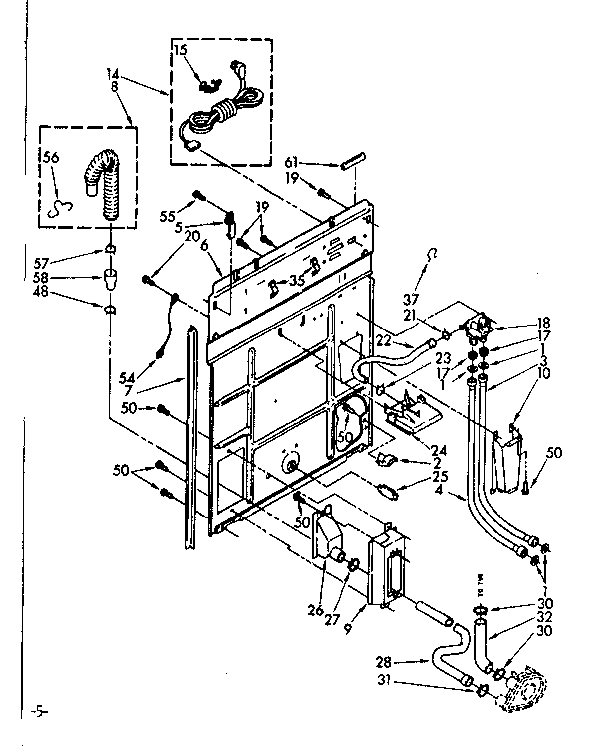

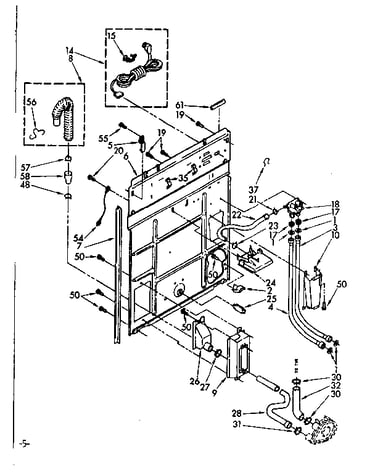

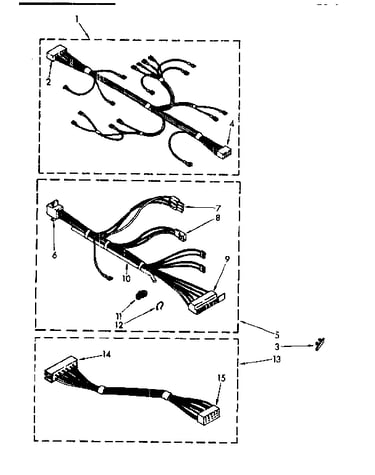

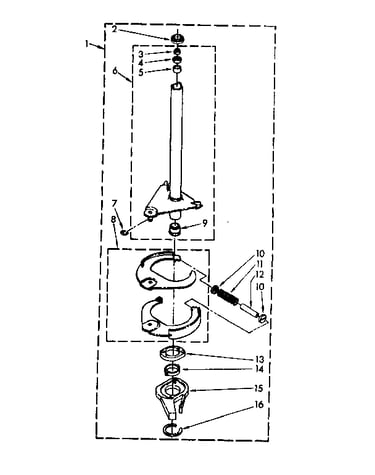

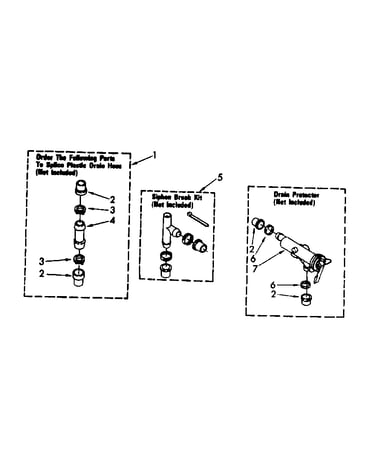

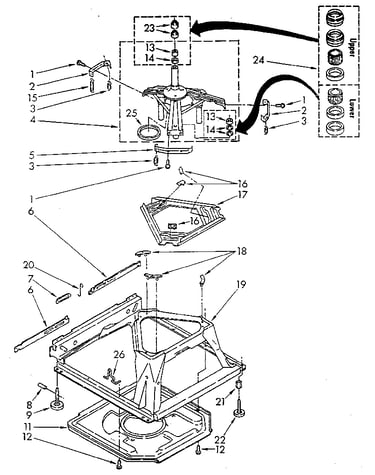

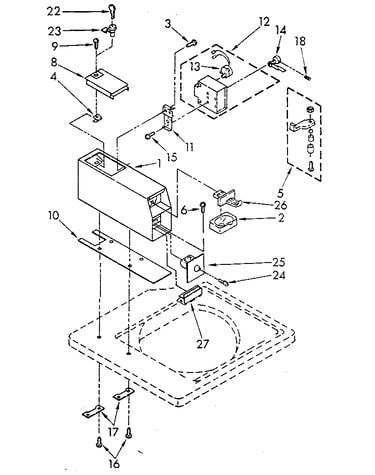

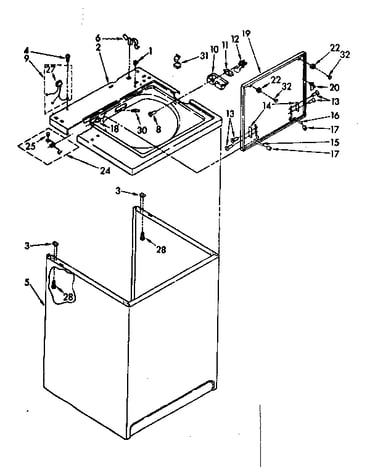

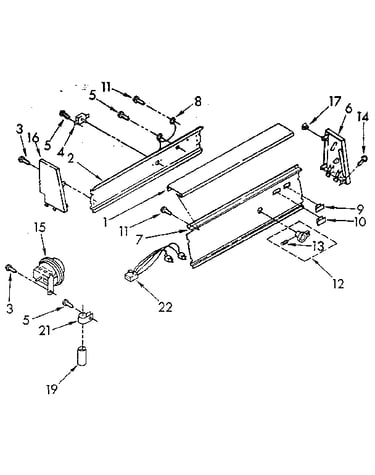

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 250 parts  |
Coupling 285140
#13

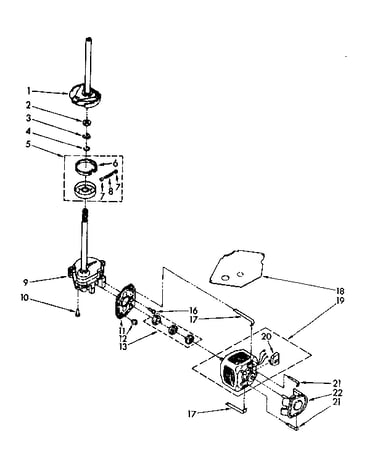

Brake, clutch, gearcase, motor and pump diagram

Coupling

Part #285140

Replaced by #285753A

?
Manufacturer substitution
This part replaces 285140. Substitute parts can look different from the original.
BEST SELLER
$23.24 |
21% OFF Phone Price : $29.24
In Stock
Gear 62570
#25

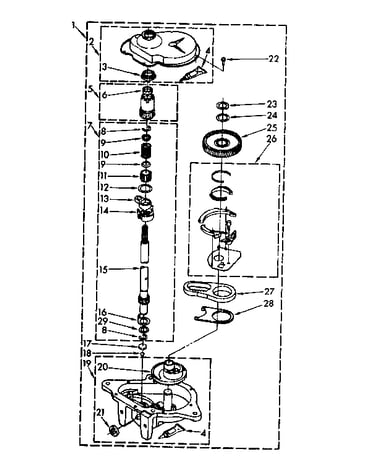

Gearcase diagram

Gear

Part #62570

Replaced by #3360629

?
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
BEST SELLER
$247.87 |
5% OFF Phone Price : $259.87
In Stock
Clutch 388949
#5

Brake, clutch, gearcase, motor and pump diagram

Clutch

Part #388949

Replaced by #285785

?
Manufacturer substitution
This part replaces 388949. Substitute parts can look different from the original.
BEST SELLER
$29.44 |
17% OFF Phone Price : $35.44
In Stock
Basketdriv 388951
Basketdriv

Part #388951

Replaced by #W10820043

?
Manufacturer substitution
This part replaces 388951. Substitute parts can look different from the original.
BEST SELLER
$118.18 |
9% OFF Phone Price : $130.18
In Stock
Water Pump 3348015
#22

Brake, clutch, gearcase, motor and pump diagram

Water pump

Part #3348015

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3348015. Substitute parts can look different from the original.
BEST SELLER
$33.87 |
15% OFF Phone Price : $39.87
In Stock
Washer Drive Block 389140
#13

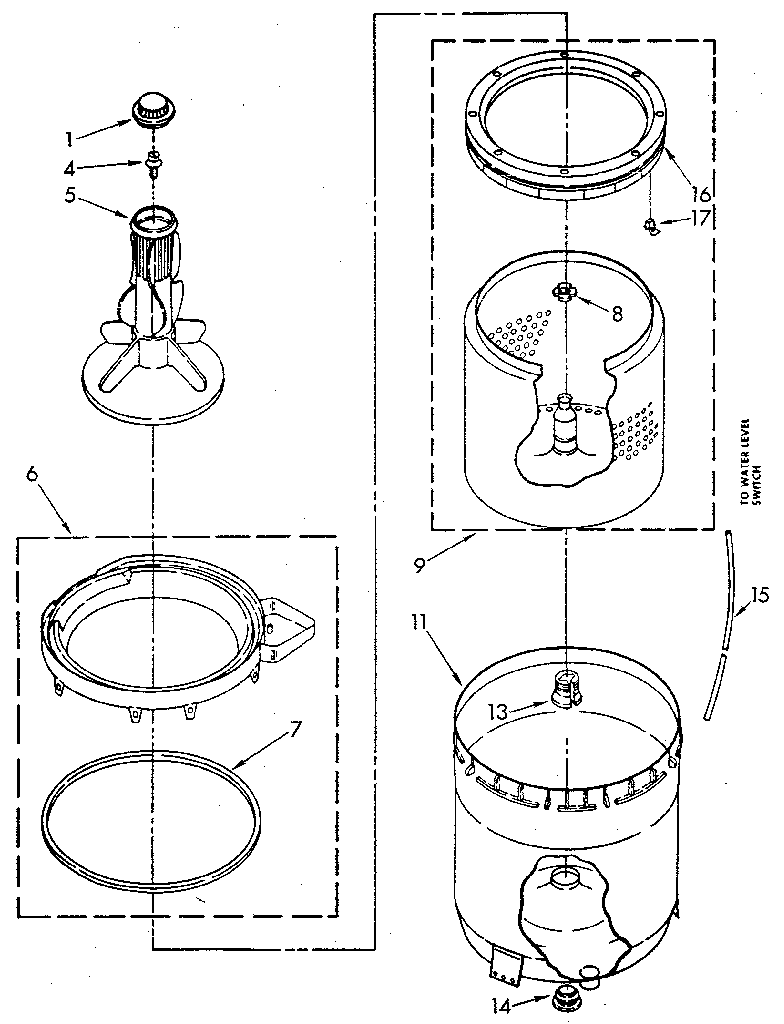

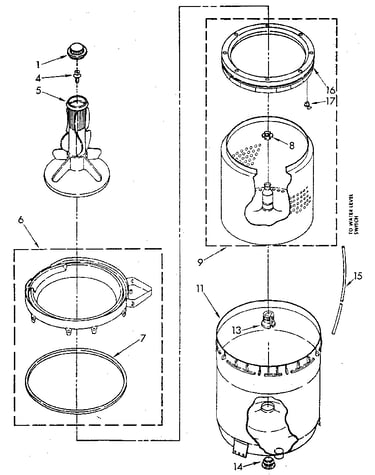

Agitator, basket and tub diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$23.94 |
20% OFF Phone Price : $29.94
In Stock
Washer Spanner Nut 21366
#8

Agitator, basket and tub diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Drive Motor 387780
#19

Brake, clutch, gearcase, motor and pump diagram

Drive motor

Part #387780

Replaced by #WP661600

?
Manufacturer substitution
This part replaces 387780. Substitute parts can look different from the original.
BEST SELLER
$131.50 |
8% OFF Phone Price : $143.50
Back Order
Washer Agitator Bolt 358237
#4

Agitator, basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.75 |
15% OFF Phone Price : $6.75
In Stock
Washer Tub Gasket 383727
#14

Agitator, basket and tub diagram

Washer tub gasket

Part #383727

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 383727. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
