Model # DW5000A1 Official Frigidaire 24" built-in dishwasher - 5995239026

Here are the diagrams and repair parts for Official Frigidaire DW5000A1 24" built-in dishwasher - 5995239026, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

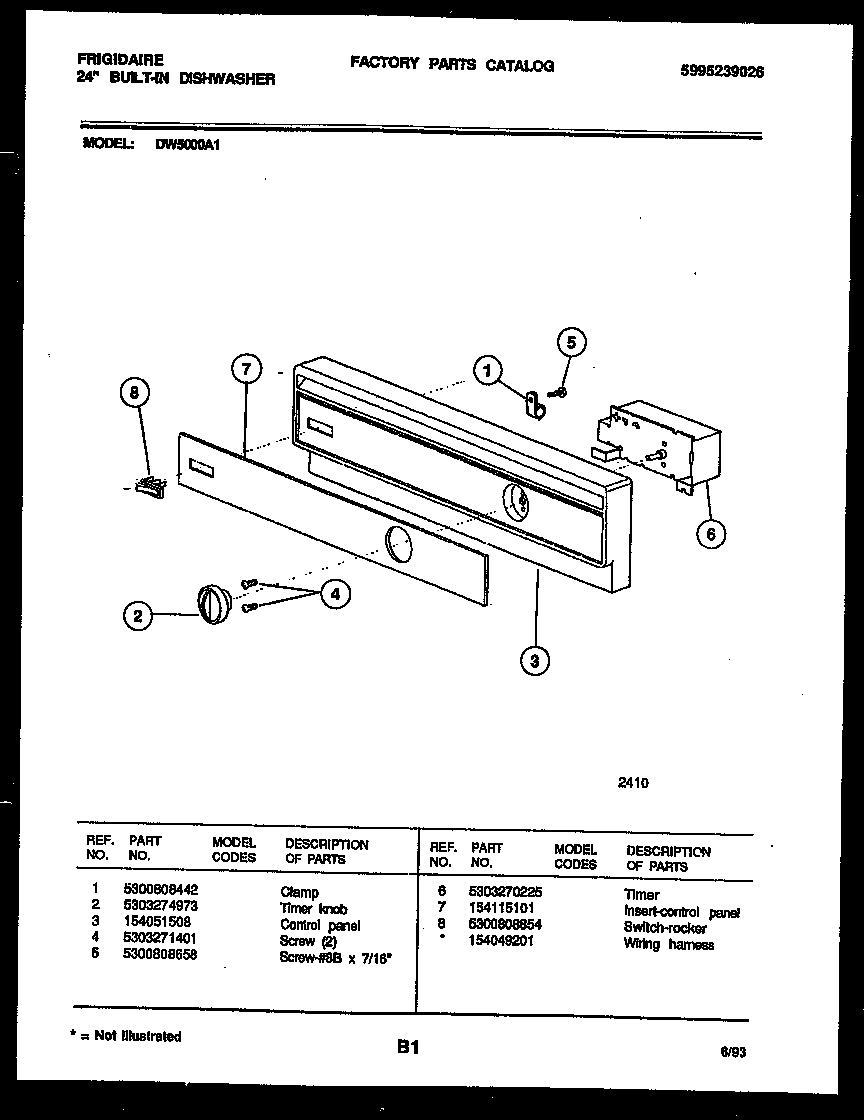

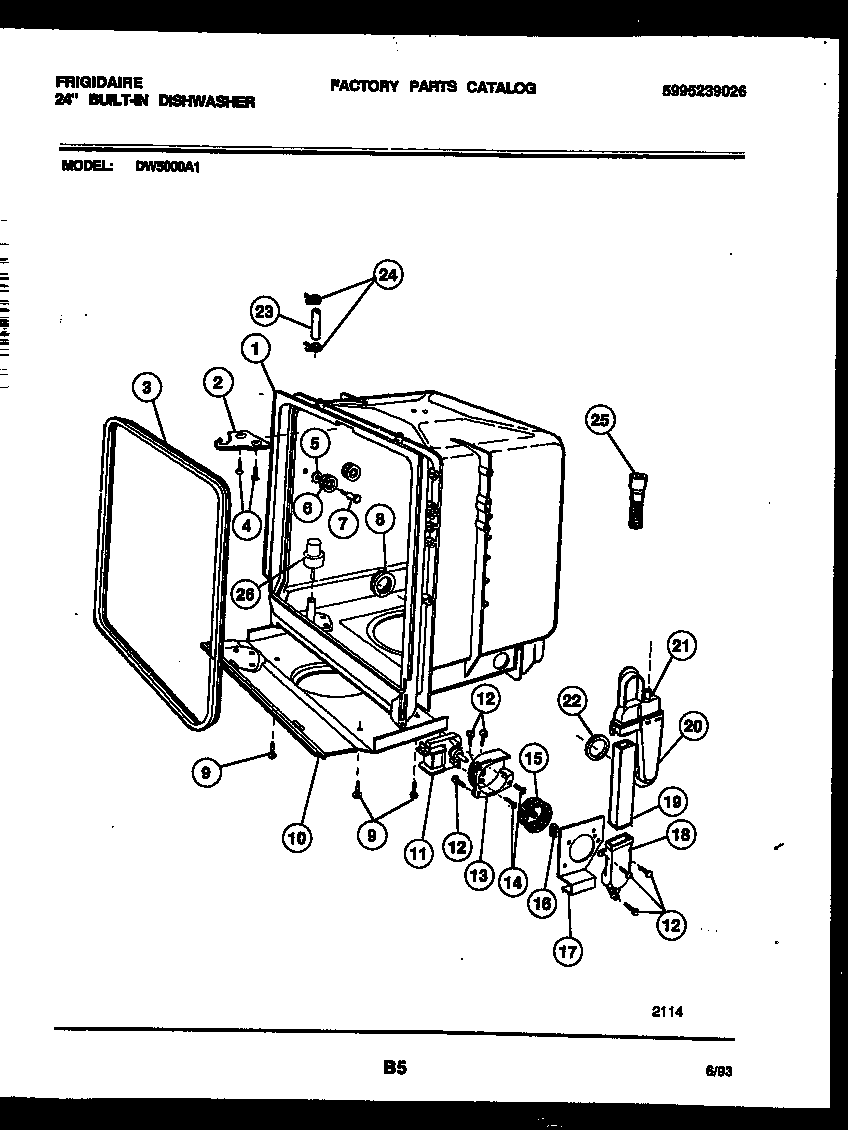

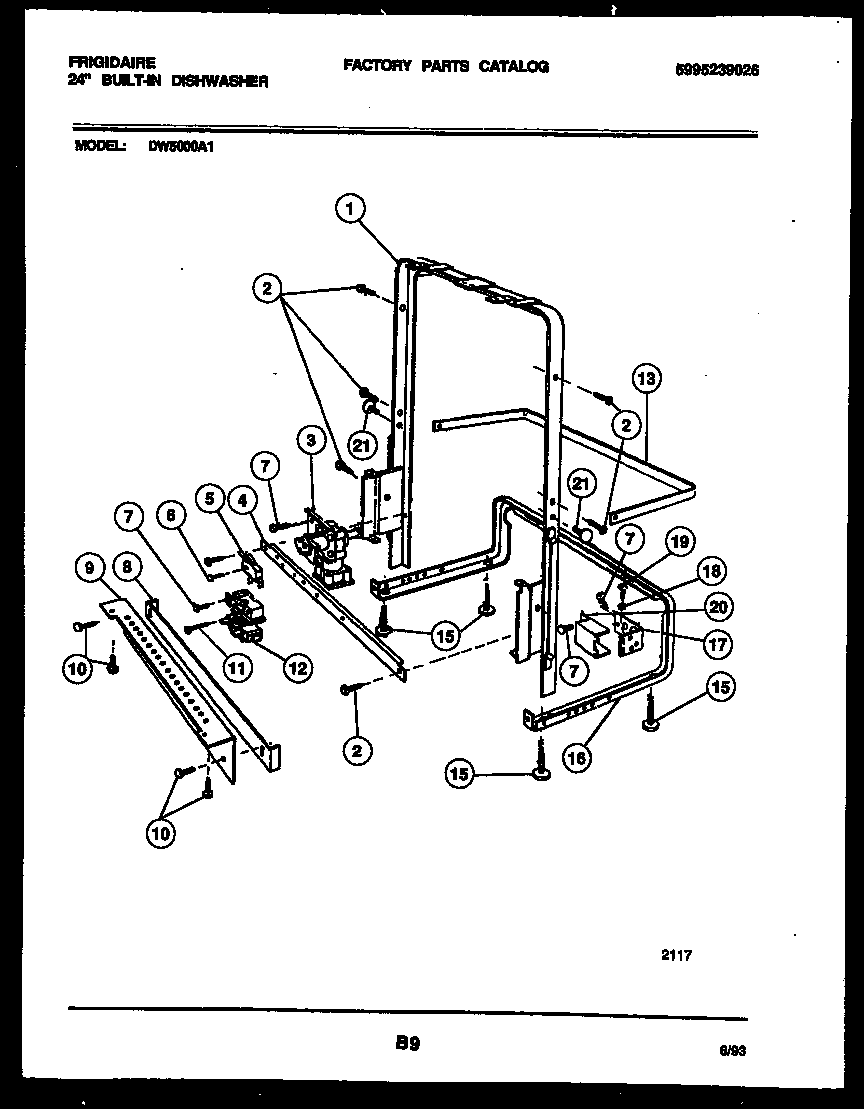

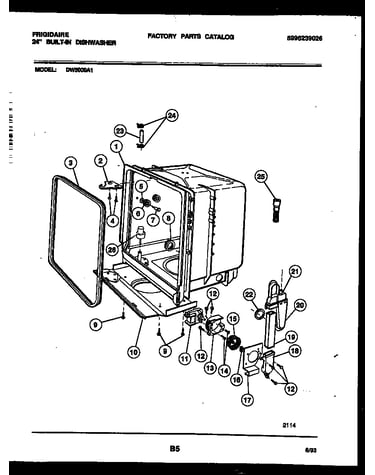

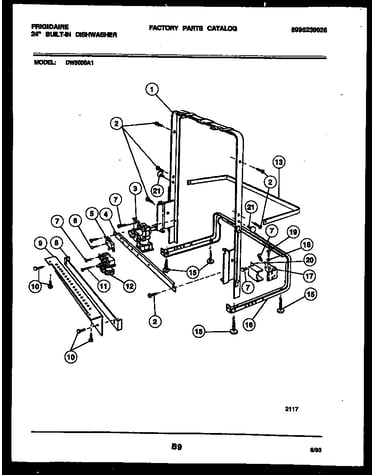

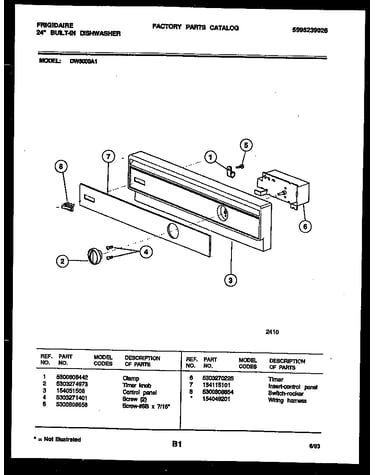

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Dishwasher Dishrack Roller, Lower 5300809640
#7

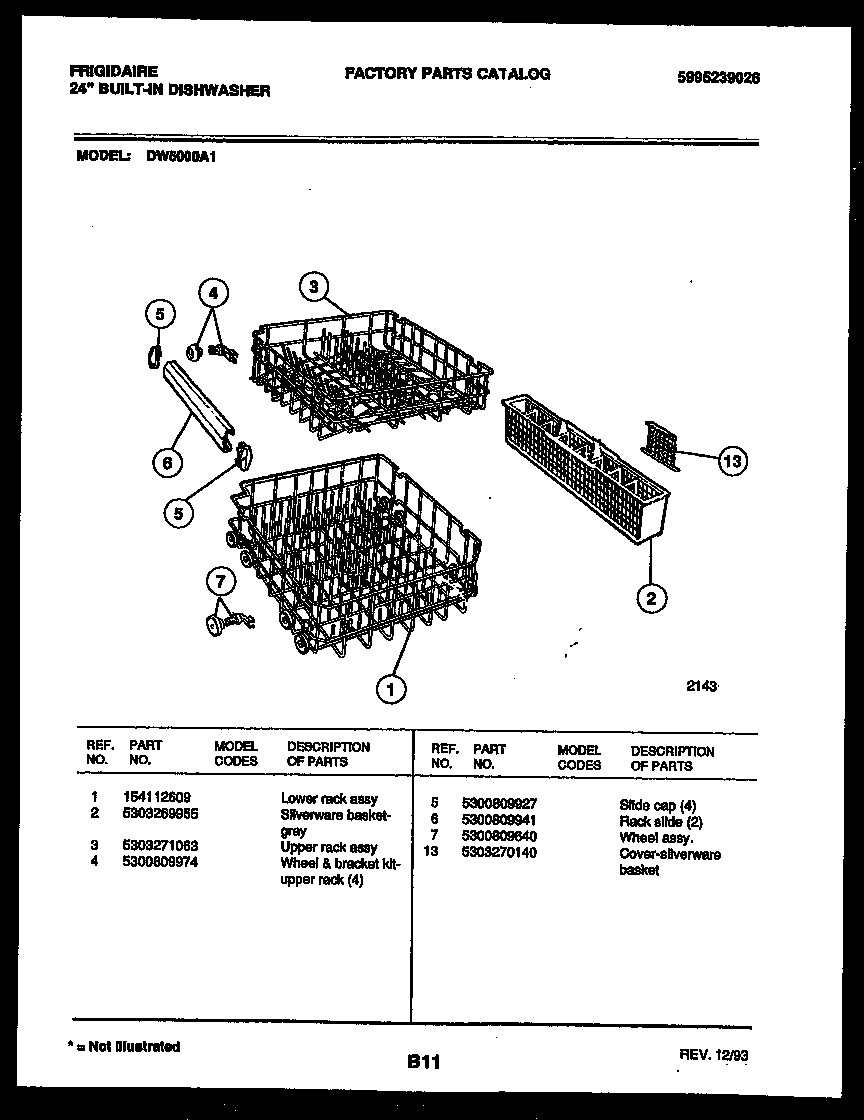

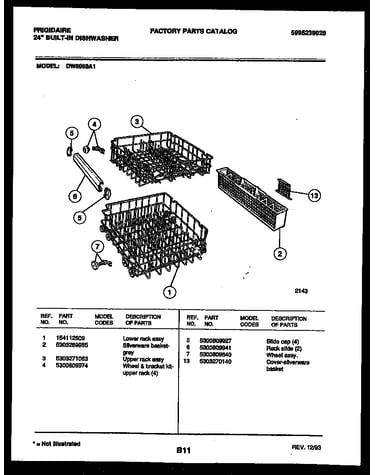

Racks and trays diagram

Dishwasher dishrack roller, lower

Part #5300809640

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 5300809640. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Heating Element Nut 154106201
#19

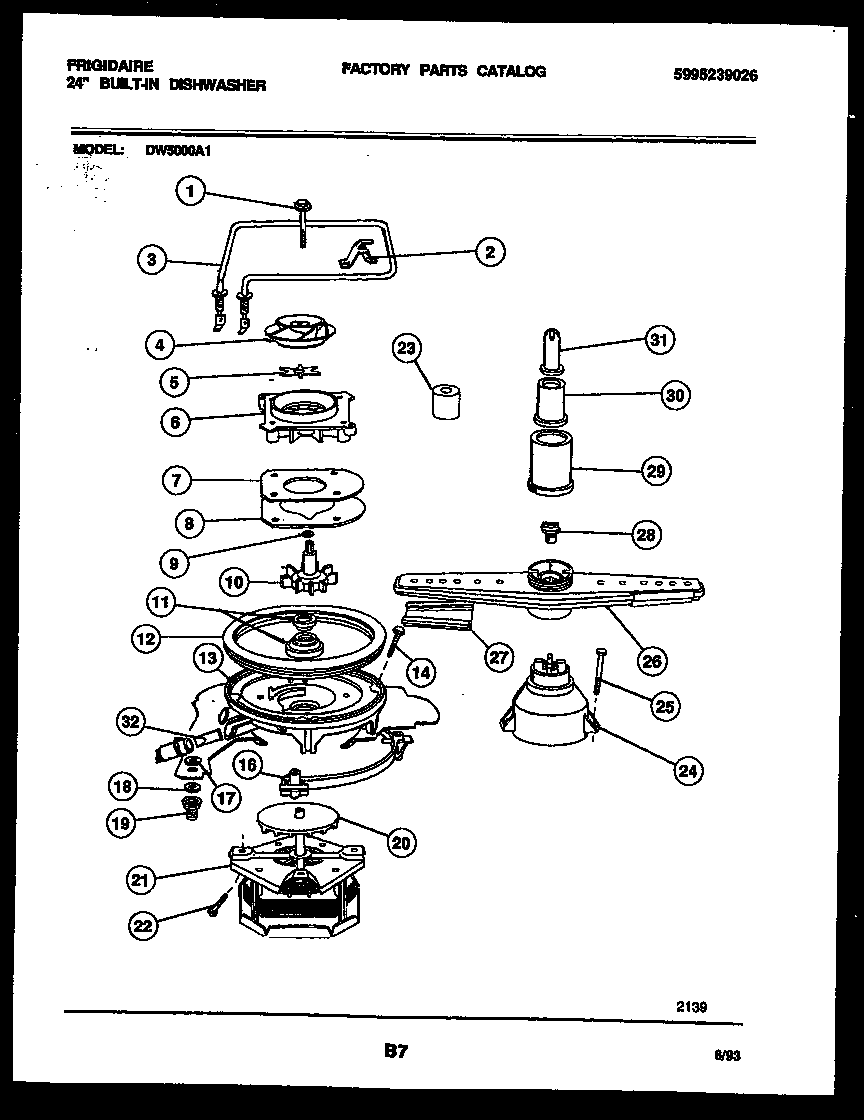

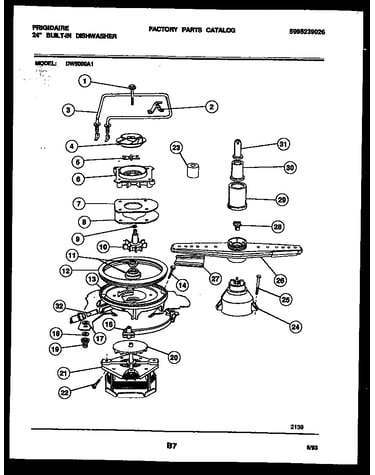

Motor pump parts diagram

Heating element nut

Part #154106201

Replaced by #154106202

?
Manufacturer substitution
This part replaces 154106201. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Basket 5303269955
#2

Racks and trays diagram

Basket

Part #5303269955

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 5303269955. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Nut-c'arm 154079601
#5

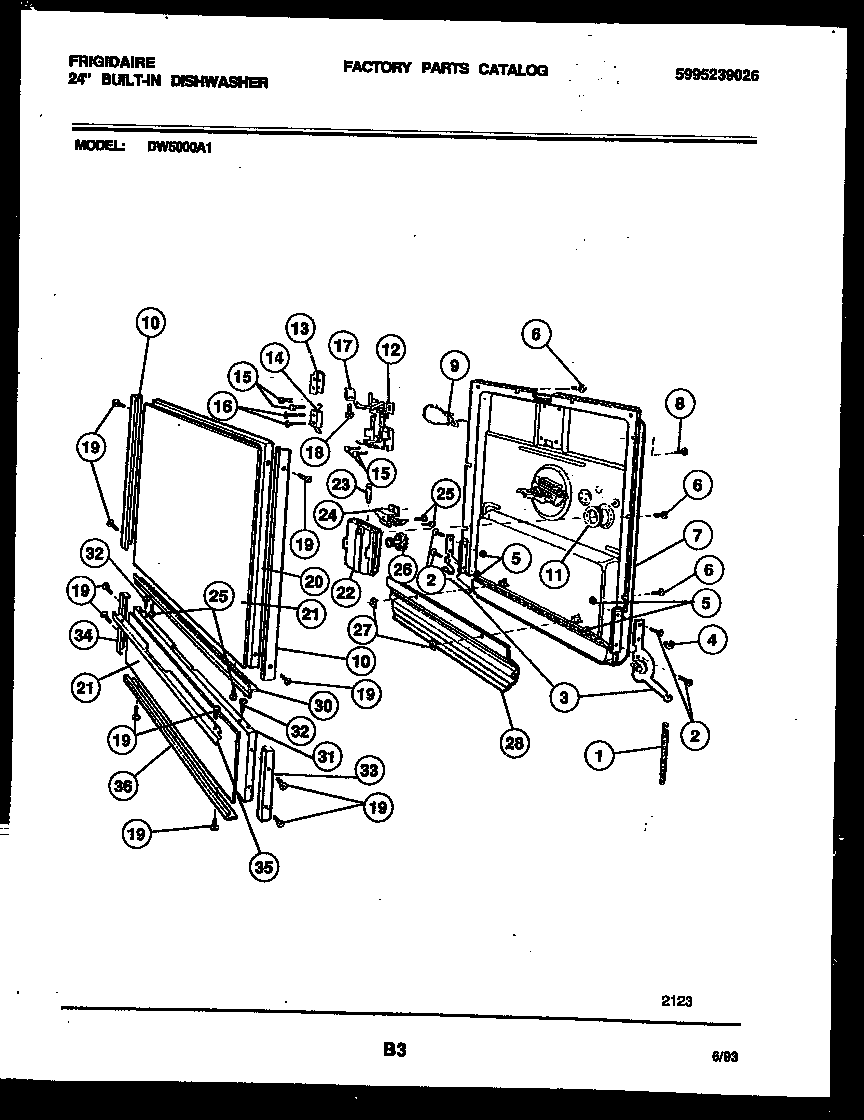

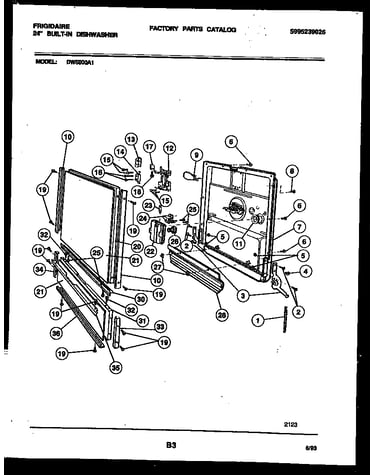

Door parts diagram

Nut-c'arm

Part #154079601

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 154079601. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Dishwasher Dishrack Slide Rail Stop (replaces 809927) 5300809927
#5

Racks and trays diagram

Dishwasher dishrack slide rail stop (replaces 809927)

Part #5300809927

This item is not returnable
$34.59 |
15% OFF Phone Price : $40.59
In Stock
Dishwasher Door Spring 5300809703
#1

Door parts diagram

Dishwasher door spring

Part #5300809703

$34.36 |
15% OFF Phone Price : $40.36
In Stock
Dishwasher Circulation Impeller 5300809918
#4

Motor pump parts diagram

Dishwasher circulation impeller

Part #5300809918

$64.09
In Stock
Screw 5300809696
Screw

Part #5300809696

Replaced by #154419403

?
Manufacturer substitution
This part replaces 5300809696. Substitute parts can look different from the original.
$12.69
In Stock
Screw 5300808658
Screw

Part #5300808658

Replaced by #154419403

?
Manufacturer substitution
This part replaces 5300808658. Substitute parts can look different from the original.
$12.69
In Stock
Dishwasher Detergent Dispenser Door Compression Spring 5300806567
#4

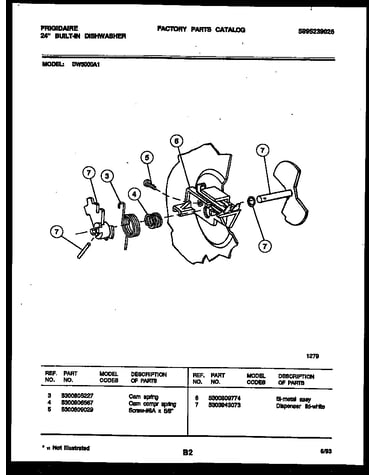

Cam diagram

Dishwasher detergent dispenser door compression spring

Part #5300806567

$29.93
In Stock
