Maytag
Electric Wall Oven

Model # CWE6200ACE Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag CWE6200ACE electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

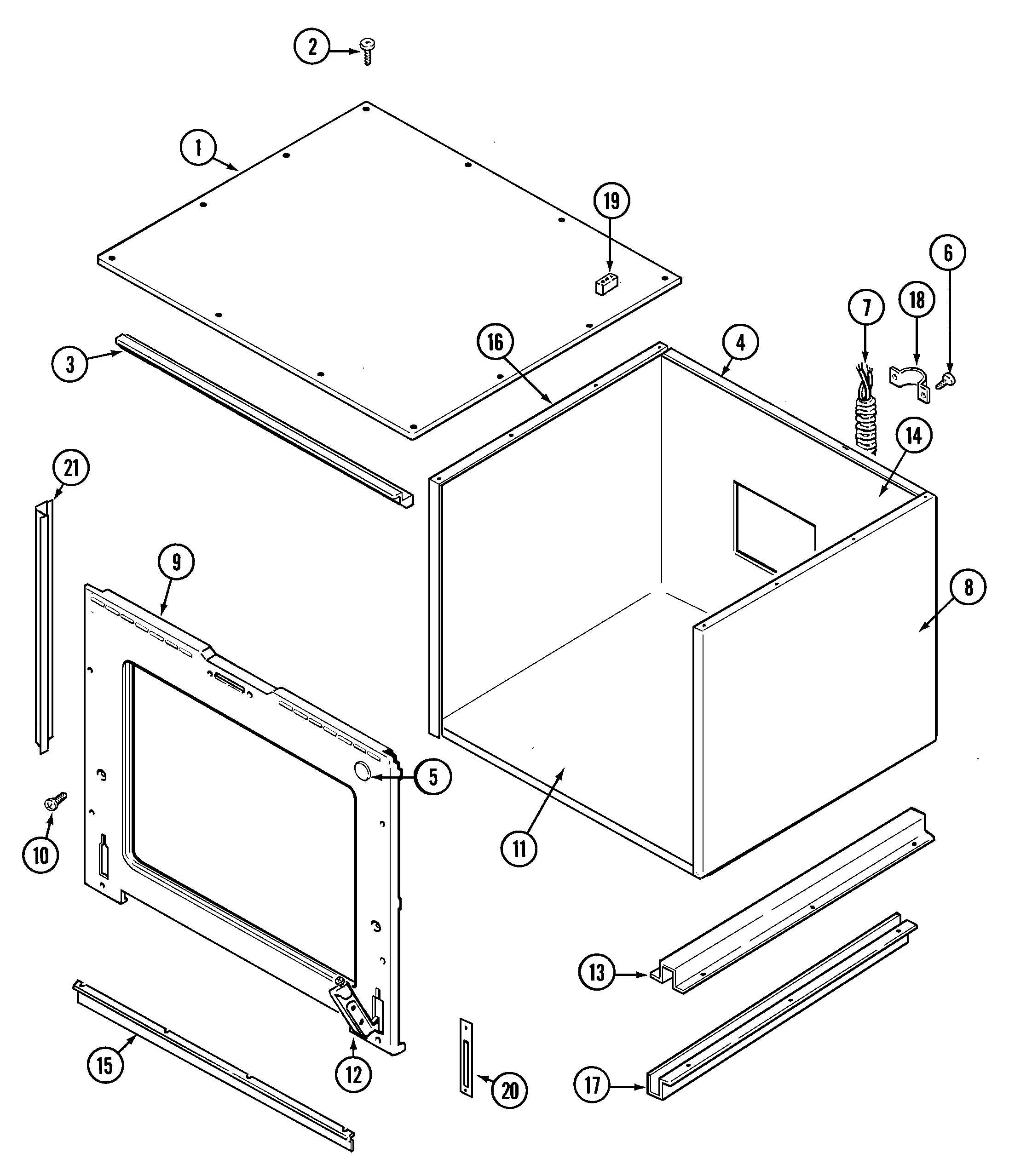

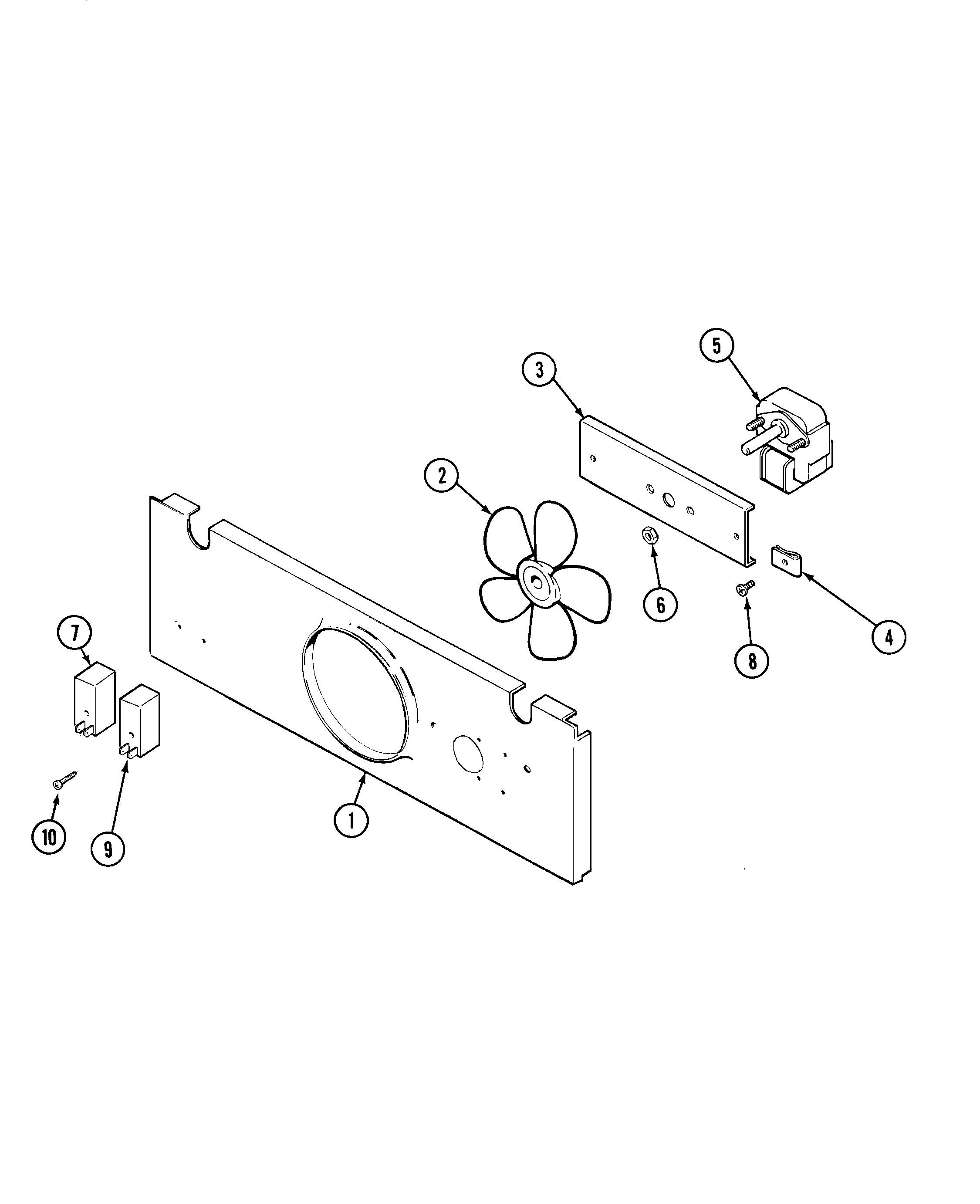

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Screw 708764
Screw

Part #708764

Replaced by #WP179051

?
Manufacturer substitution
This part replaces 708764. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw (blk) 704238
#7

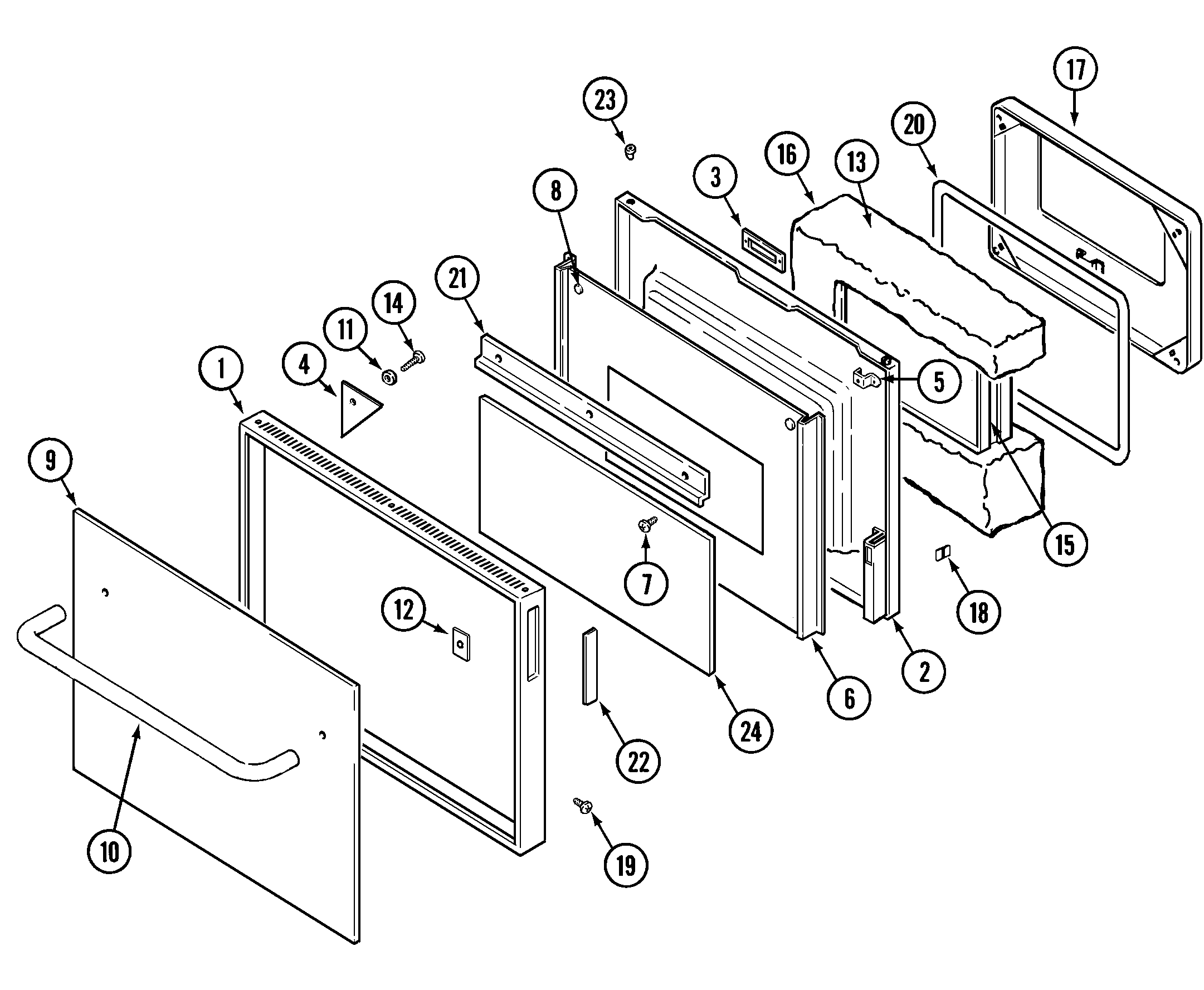

Door diagram

Screw (blk)

Part #704238

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 704238. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 707172
#11

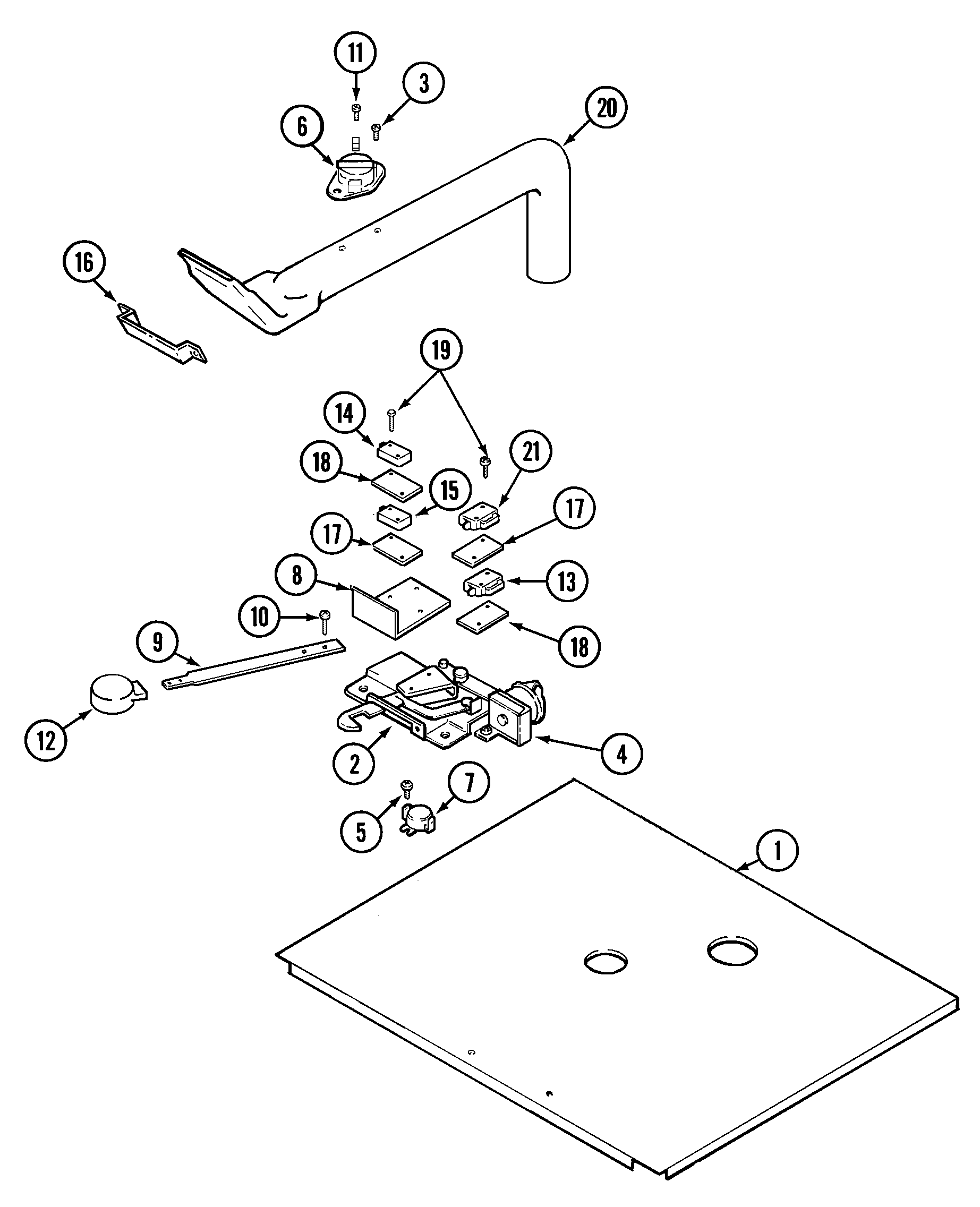

Internal controls diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Broiler Element 04100514
#6

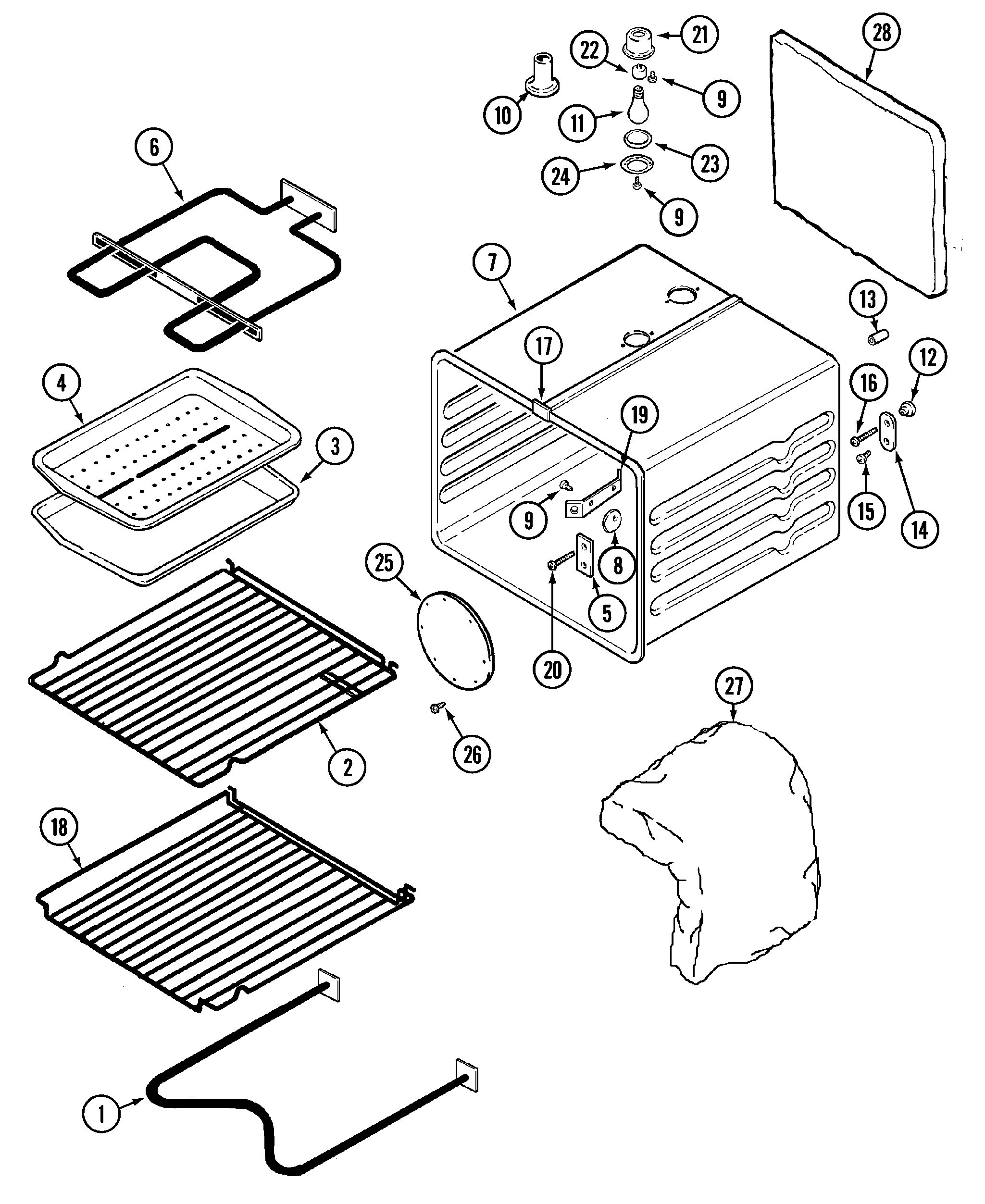

Oven diagram

Oven broiler element

Part #04100514

Replaced by #WPY04100514

?
Manufacturer substitution
This part replaces 04100514. Substitute parts can look different from the original.
$74.59 |
7% OFF Phone Price : $80.59
In Stock
Washer 702592
#26A

Oven diagram

Washer

Part #702592

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 702592. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Select Knob 04100276
#21

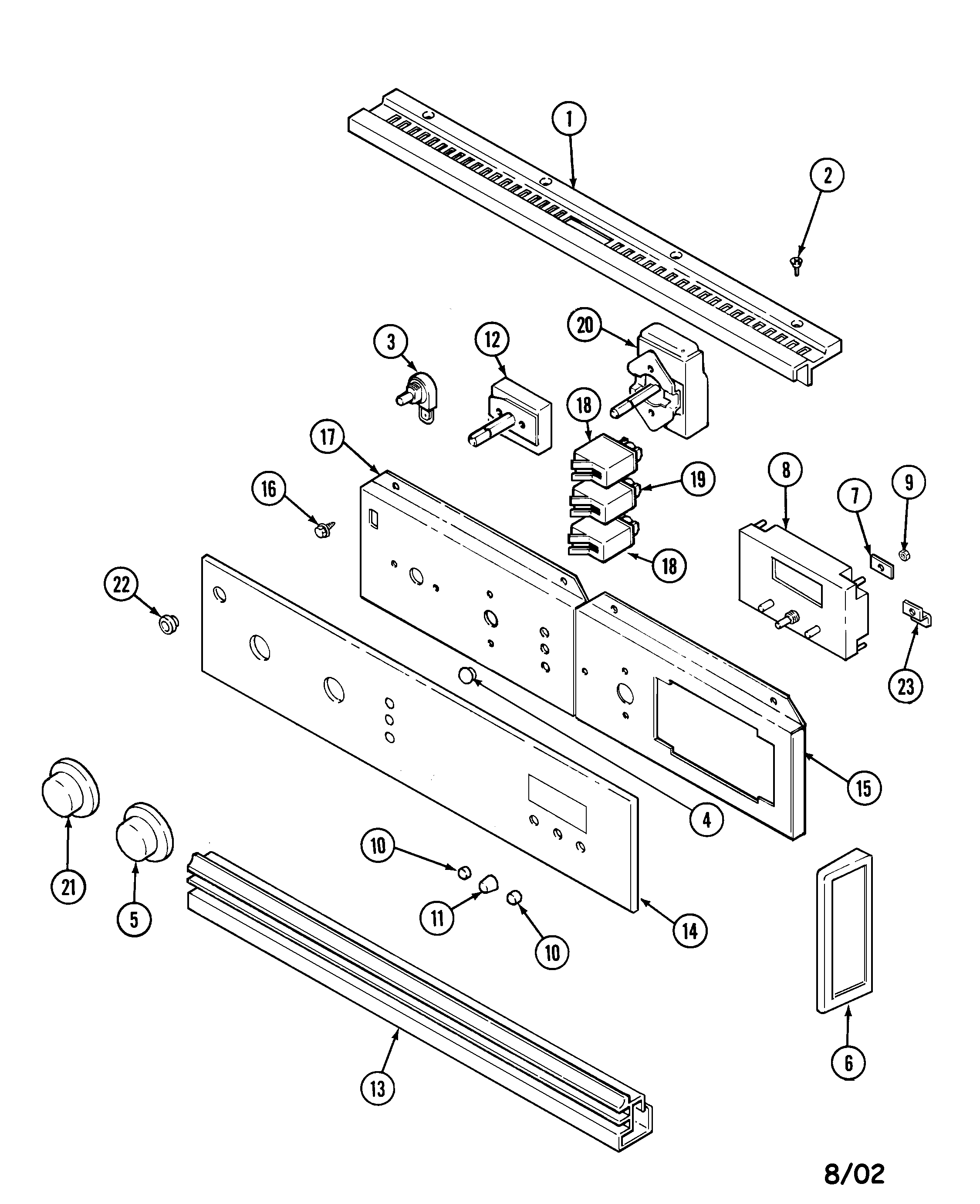

Control panel diagram

Select knob

Part #04100276

Replaced by #WPY704841

?
Manufacturer substitution
This part replaces 04100276. Substitute parts can look different from the original.
$30.89
In Stock
Clock Knob 704484
#10A

Control panel diagram

Clock knob

Part #704484

Replaced by #WP7711P492-60

?
Manufacturer substitution
This part replaces 704484. Substitute parts can look different from the original.
This item is not returnable
$13.20 |
13% OFF Phone Price : $15.20
In Stock
Clock Knob 704239
#10

Control panel diagram

Clock knob

Part #704239

Replaced by #WP7711P492-60

?
Manufacturer substitution
This part replaces 704239. Substitute parts can look different from the original.
This item is not returnable
$13.20 |
13% OFF Phone Price : $15.20
In Stock
Rivet 701662
Rivet

Part #701662

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 701662. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Insert 703165
#4

Oven diagram

Broiler insert

Part #703165

Replaced by #4396923

?
Manufacturer substitution
This part replaces 703165. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
