Tappan
Top-Mount Refrigerator

Model # 95-1987-00-03 Official Tappan top-mount refrigerator - lt30589010

Here are the diagrams and repair parts for Official Tappan 95-1987-00-03 top-mount refrigerator - lt30589010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

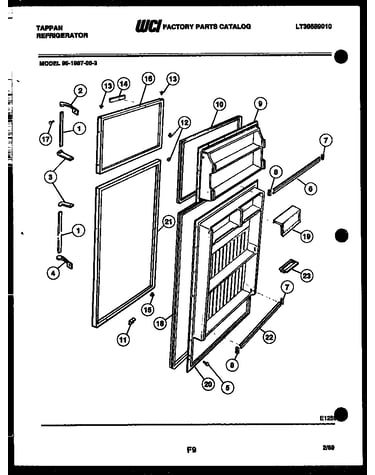

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Refrigerator Filter Drier 3001188
#6

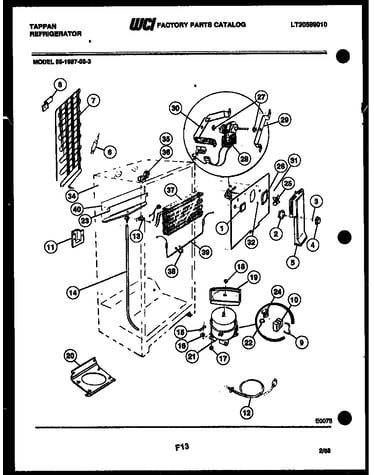

System and automatic defrost parts diagram

Refrigerator filter drier

Part #3001188

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 3001188. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Bulb 3001179
#33

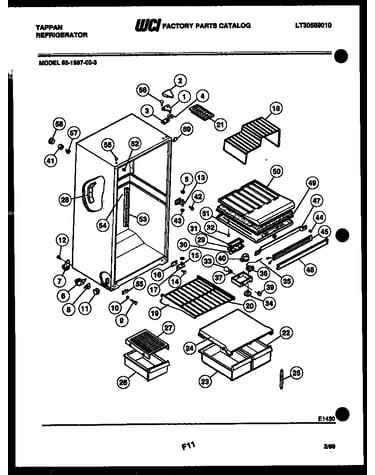

Cabinet parts diagram

Refrigerator bulb

Part #3001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3001179. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Refrigerator Fan Blade 3001357
#25

System and automatic defrost parts diagram

Refrigerator fan blade

Part #3001357

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 3001357. Substitute parts can look different from the original.
BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Refrigerator Defrost Timer 3001671
#40

Cabinet parts diagram

Refrigerator defrost timer

Part #3001671

Replaced by #215846602

?
Manufacturer substitution
This part replaces 3001671. Substitute parts can look different from the original.
BEST SELLER
$30.20 |
17% OFF Phone Price : $36.20
In Stock
Strap-evap/h 3001367
#38

System and automatic defrost parts diagram

Strap-evap/h

Part #3001367

Replaced by #5308000110

?
Manufacturer substitution
This part replaces 3001367. Substitute parts can look different from the original.
BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Evaporator Motor 3001421
#28

System and automatic defrost parts diagram

Evaporator motor

Part #3001421

Replaced by #5300158289

?
Manufacturer substitution
This part replaces 3001421. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Plug 3001320
#14

Cabinet parts diagram

Refrigerator plug

Part #3001320

Replaced by #241710601

?
Manufacturer substitution
This part replaces 3001320. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Screw 3001479
#56

Cabinet parts diagram

Refrigerator screw

Part #3001479

Replaced by #241710601

?
Manufacturer substitution
This part replaces 3001479. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Plug 3001321
#15

Cabinet parts diagram

Refrigerator plug

Part #3001321

Replaced by #5303001321

?
Manufacturer substitution
This part replaces 3001321. Substitute parts can look different from the original.
This item is not returnable
$13.24 |
13% OFF Phone Price : $15.24
In Stock
Complete Grommet 3001203
#17

System and automatic defrost parts diagram

Complete grommet

Part #3001203

Replaced by #218513300

?
Manufacturer substitution
This part replaces 3001203. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
