Model # DSC-TX66/W Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-TX66-W digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Sheet 428785901
#2

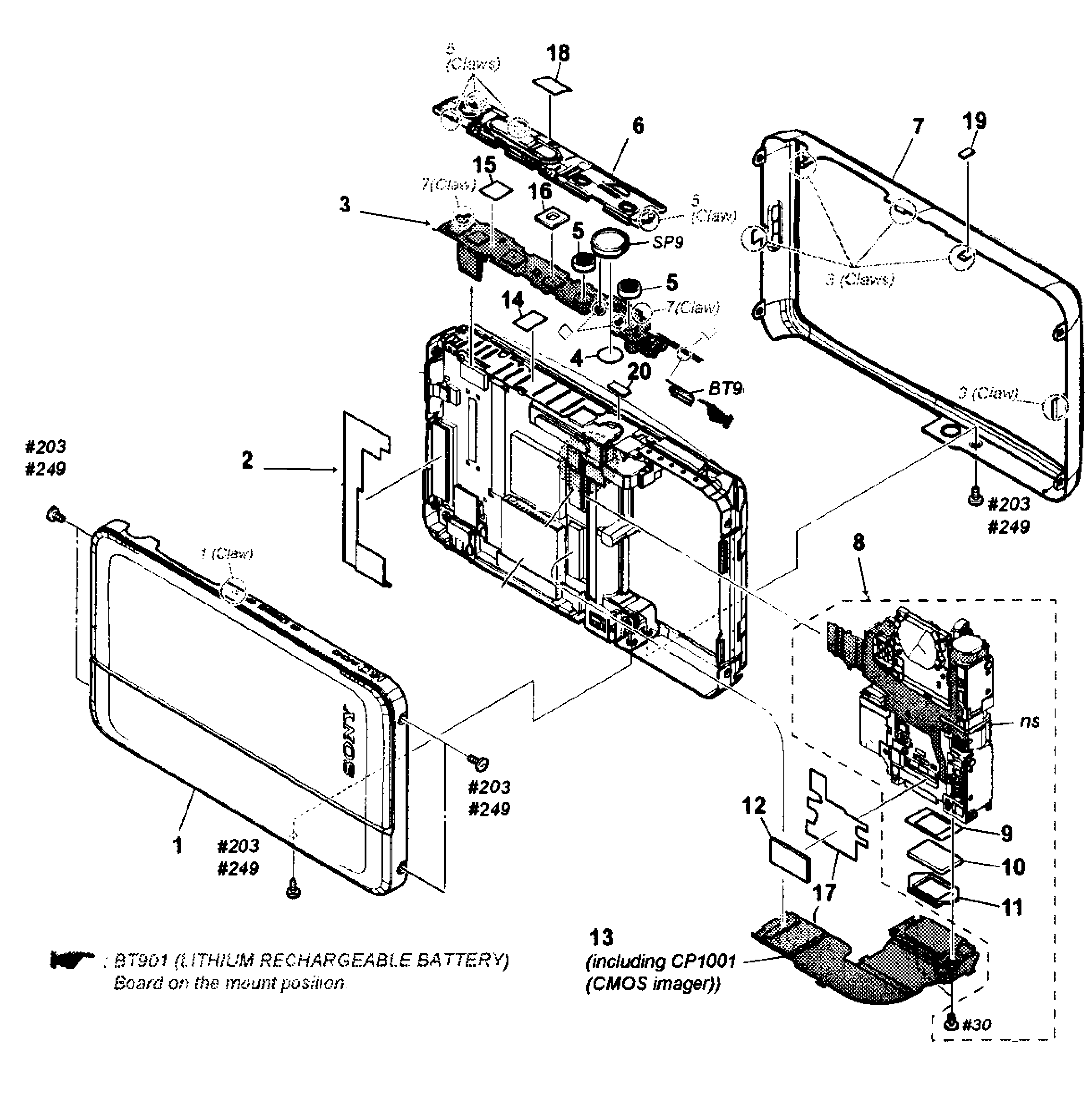

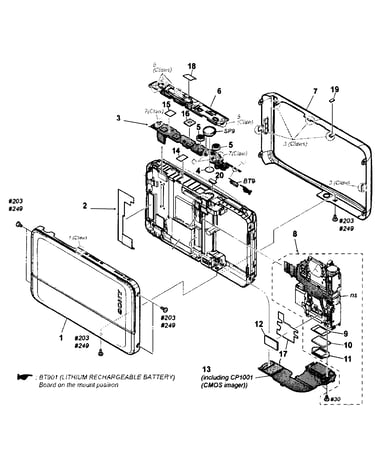

Front section diagram

Sheet

Part #428785901

This item is not returnable
$4.80
In Stock
Battery,li 185313011
#BT9

Front section diagram

Battery,li

Part #185313011

$16.17
In Stock
Mold Terminal 429043101
#57

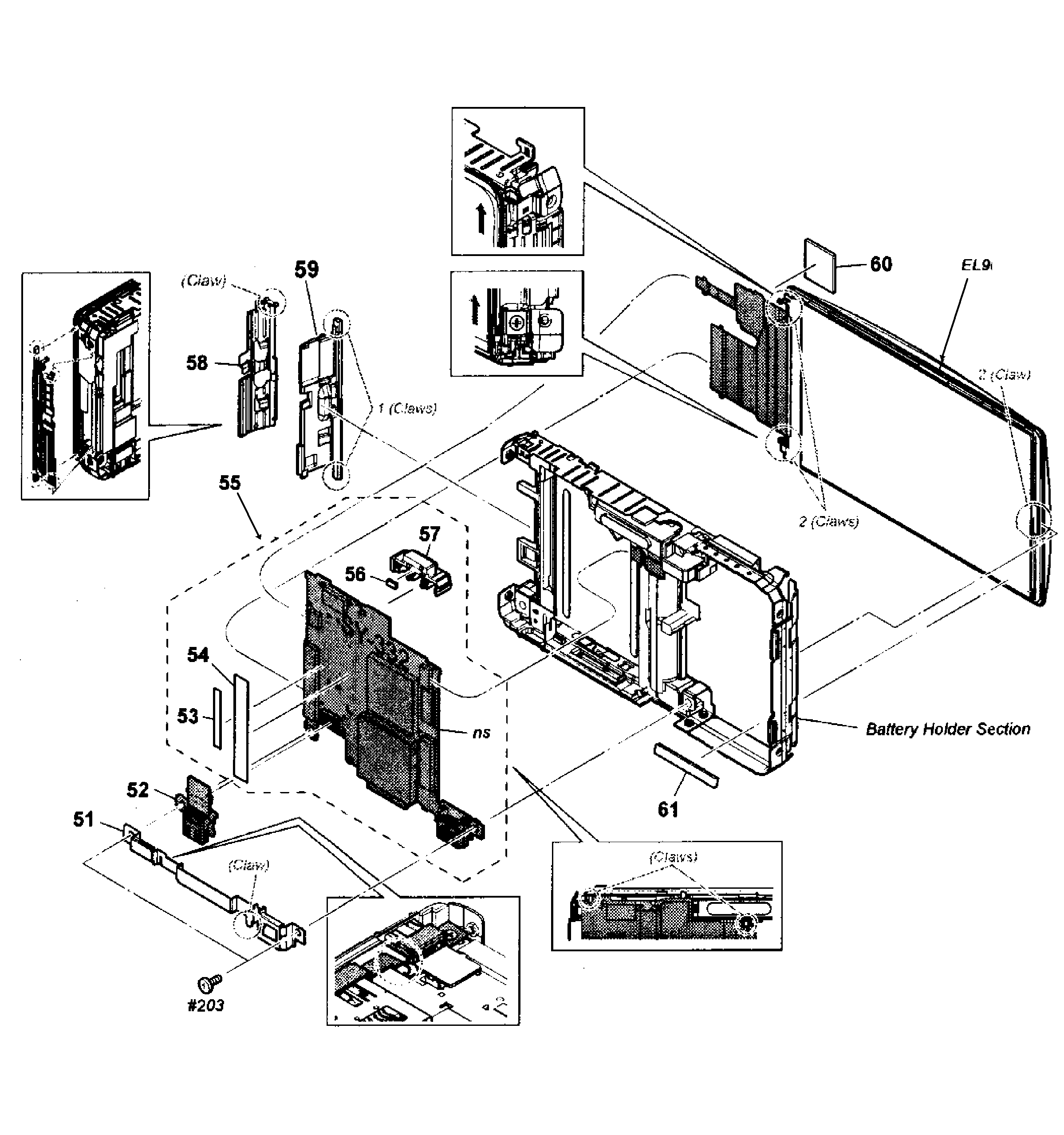

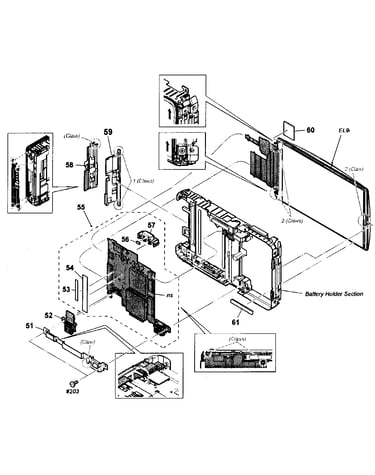

Main section diagram

Mold terminal

Part #429043101

This item is not returnable
$5.80
In Stock
Sheet 428786001
#102

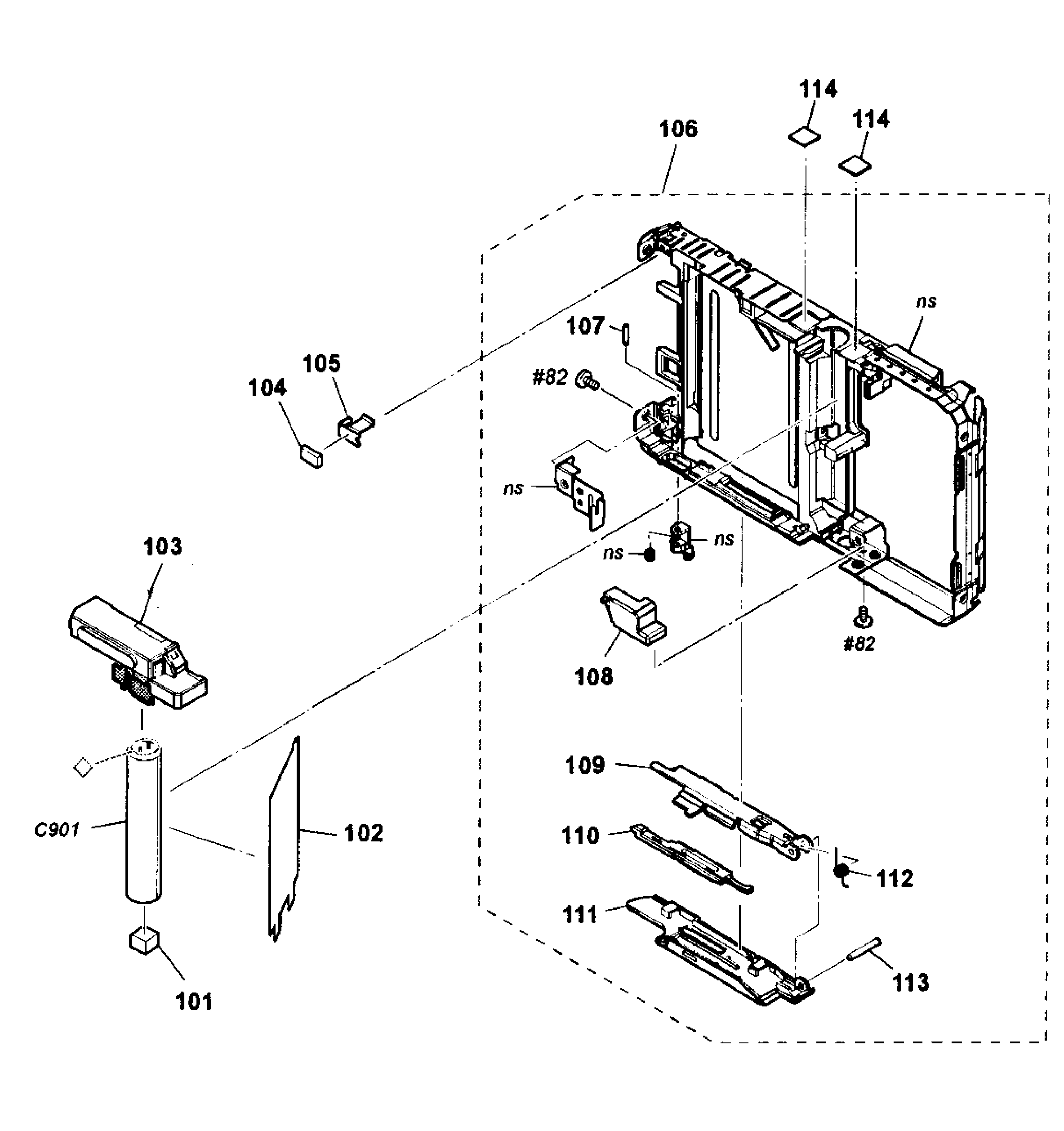

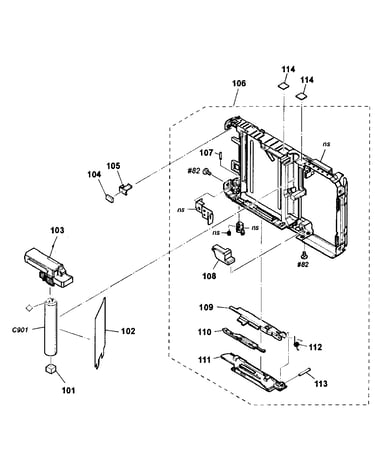

Battery section diagram

Sheet

Part #428786001

$8.03
In Stock
Pcb Rl-114 A1845326A
#3

Front section diagram

Pcb rl-114

Part #A1845326A

$30.16
In Stock
Cushion 440032101
#101

Battery section diagram

Cushion

Part #440032101

This item is not returnable
$2.65
In Stock
Cushion 440050401
#61

Main section diagram

Cushion

Part #440050401

This item is not returnable
$2.65
In Stock
Base Strap 428785011
#59

Main section diagram

Base strap

Part #428785011

$10.31
In Stock
Metal Sheet 429043201
#58

Main section diagram

Metal sheet

Part #429043201

This item is not returnable
$4.80
In Stock
Sony Claw,bt 428784801
#110

Battery section diagram

Sony claw,bt

Part #428784801

This item is not returnable
$2.65
In Stock
