Model # KEBI271YWH3 Official KitchenAid wall oven
Here are the diagrams and repair parts for Official KitchenAid KEBI271YWH3 wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

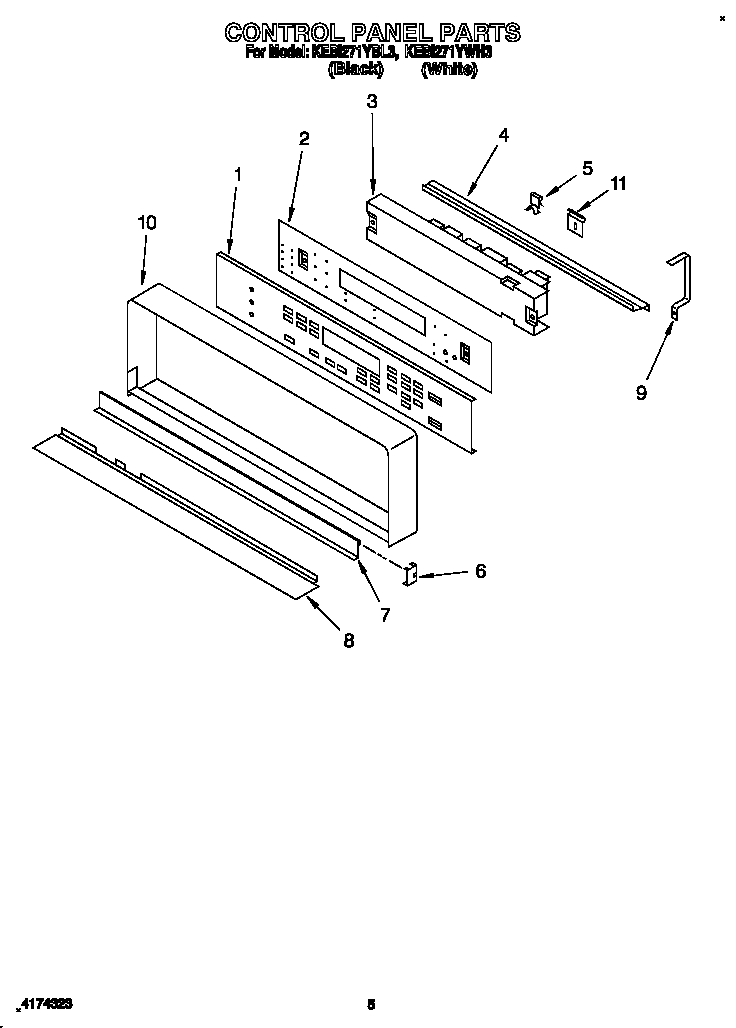

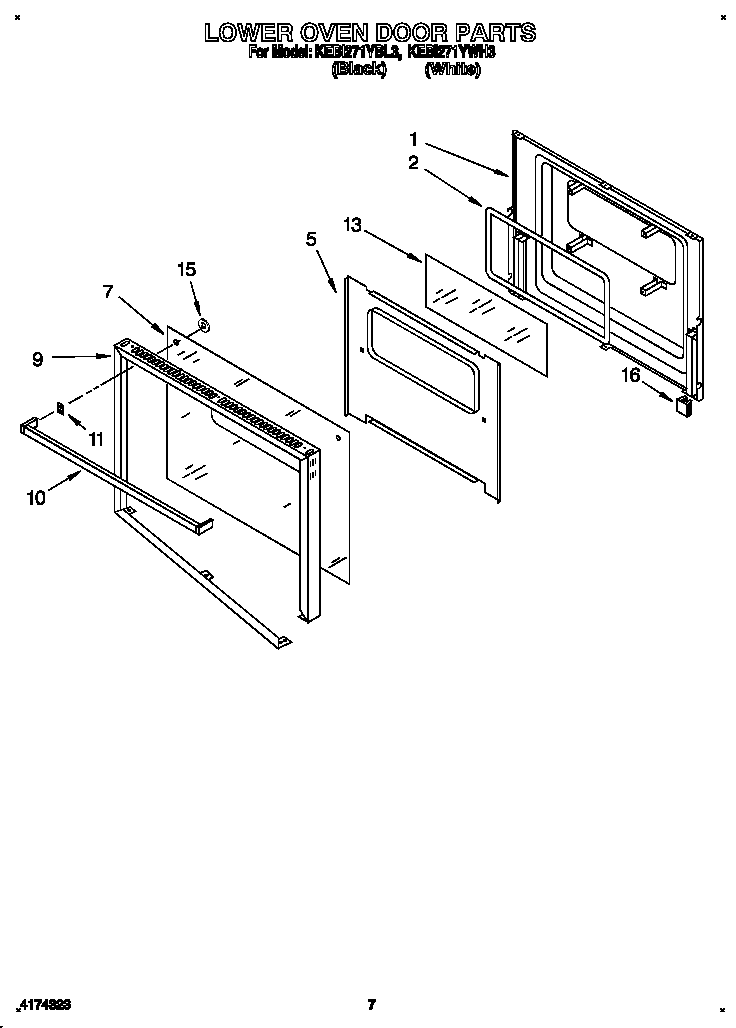

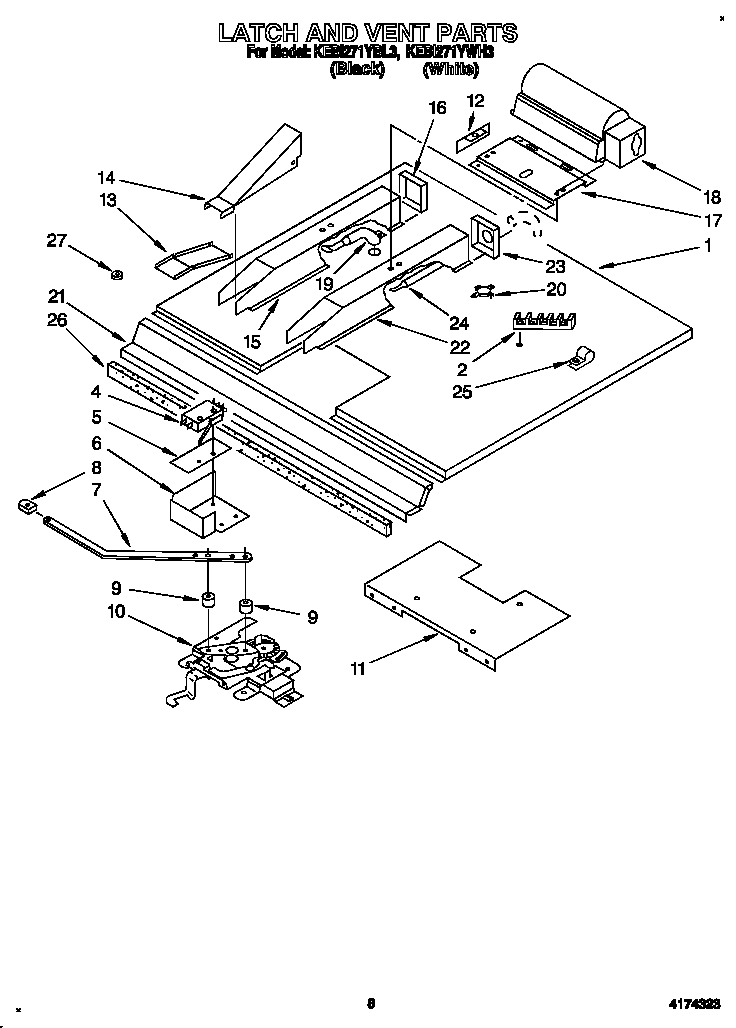

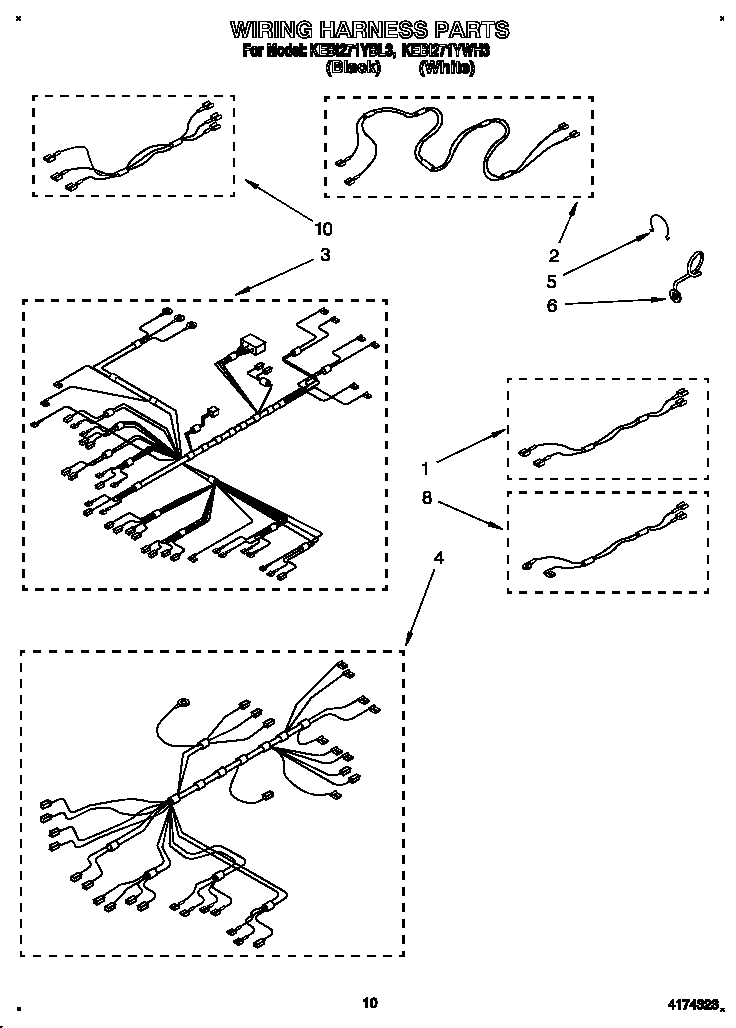

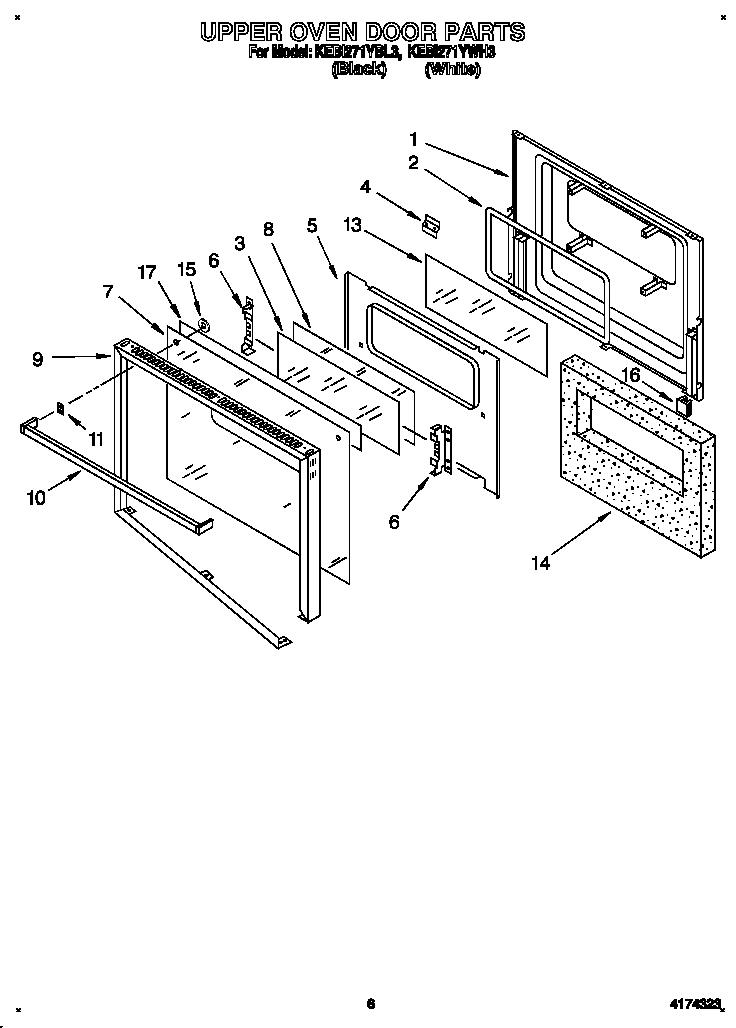

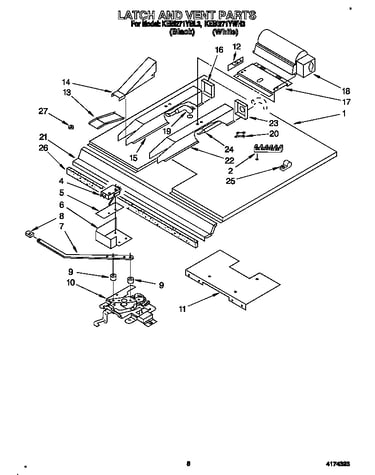

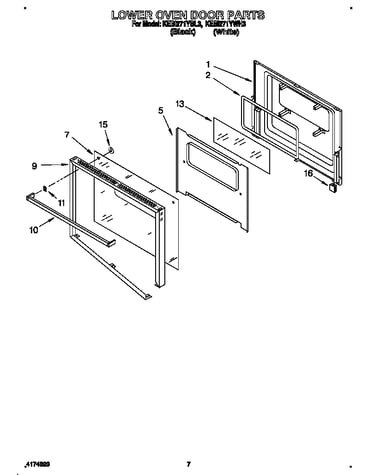

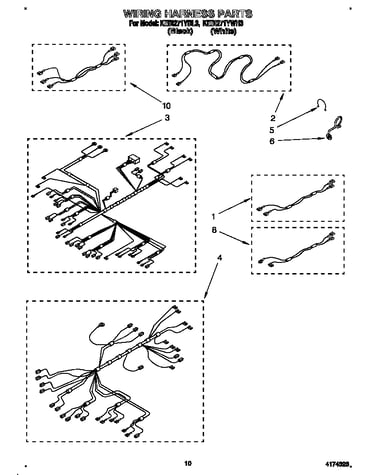

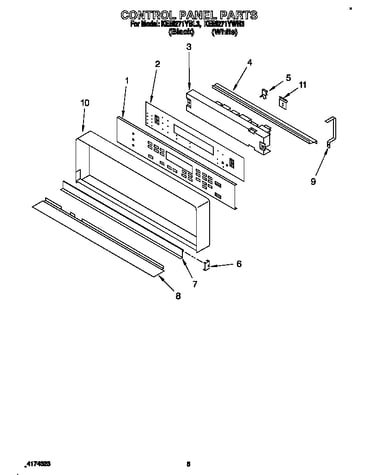

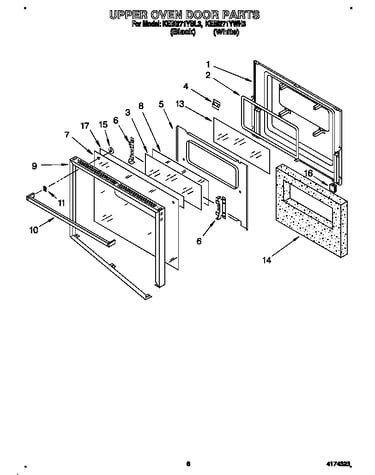

SELECT DIAGRAM
Browse Parts forKEBI271YWH3 Wall Ovens
#NI
All parts diagram
AdhesivePart #482338
Replaced by #WP482338
?Manufacturer substitutionThis part replaces 482338. Substitute parts can look different from the original.$29.41 |17% OFF Phone Price : $35.41In Stock#NI
All parts diagram
Touchup ngPart #72110
Replaced by #72110
?Manufacturer substitutionThis part replaces 72110. Substitute parts can look different from the original.This item is not returnable$13.24 |13% OFF Phone Price : $15.24In Stock#NI
All parts diagram
Spray blPart #830864
Replaced by #285006
?Manufacturer substitutionThis part replaces 830864. Substitute parts can look different from the original.This item is not returnable$37.46 |14% OFF Phone Price : $43.46In Stock- #7

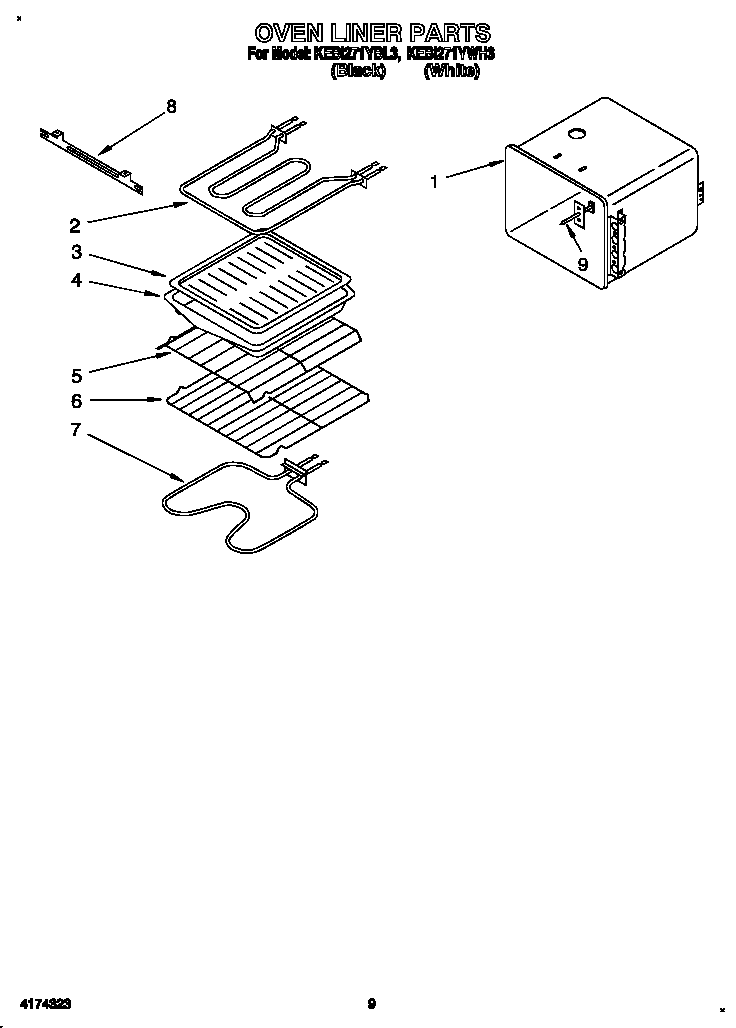

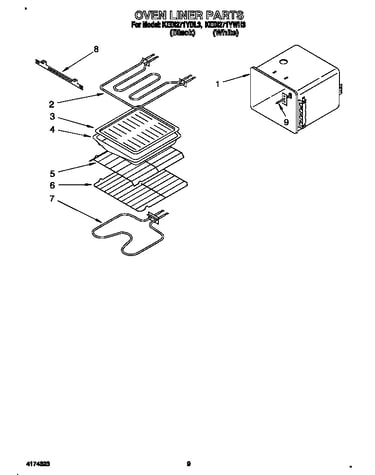

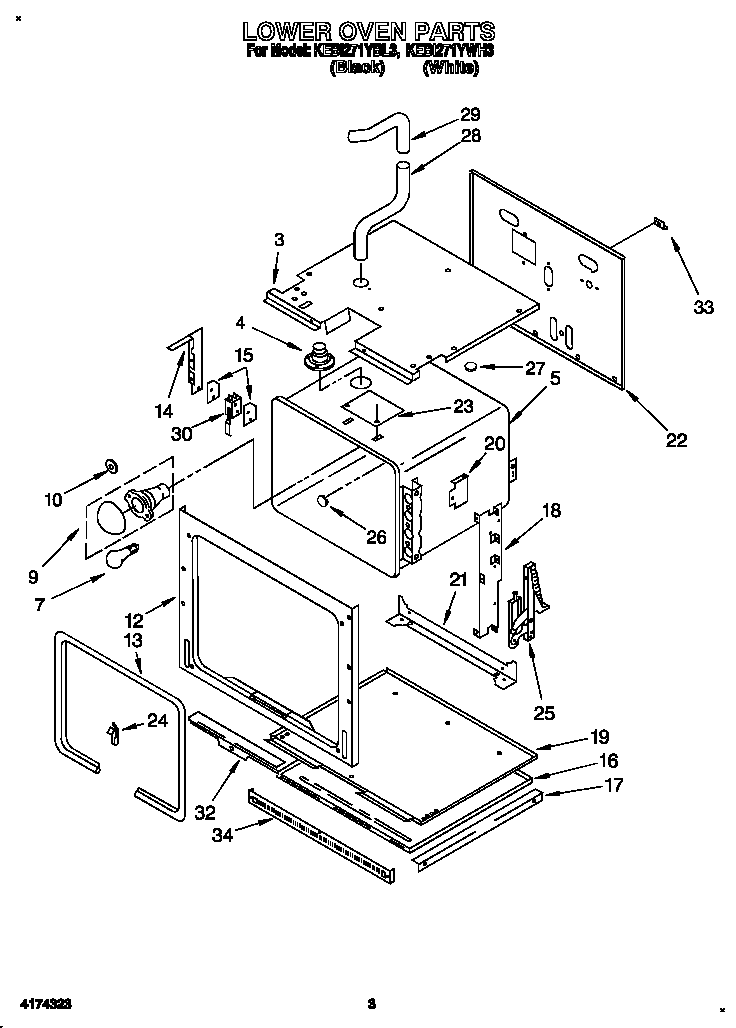

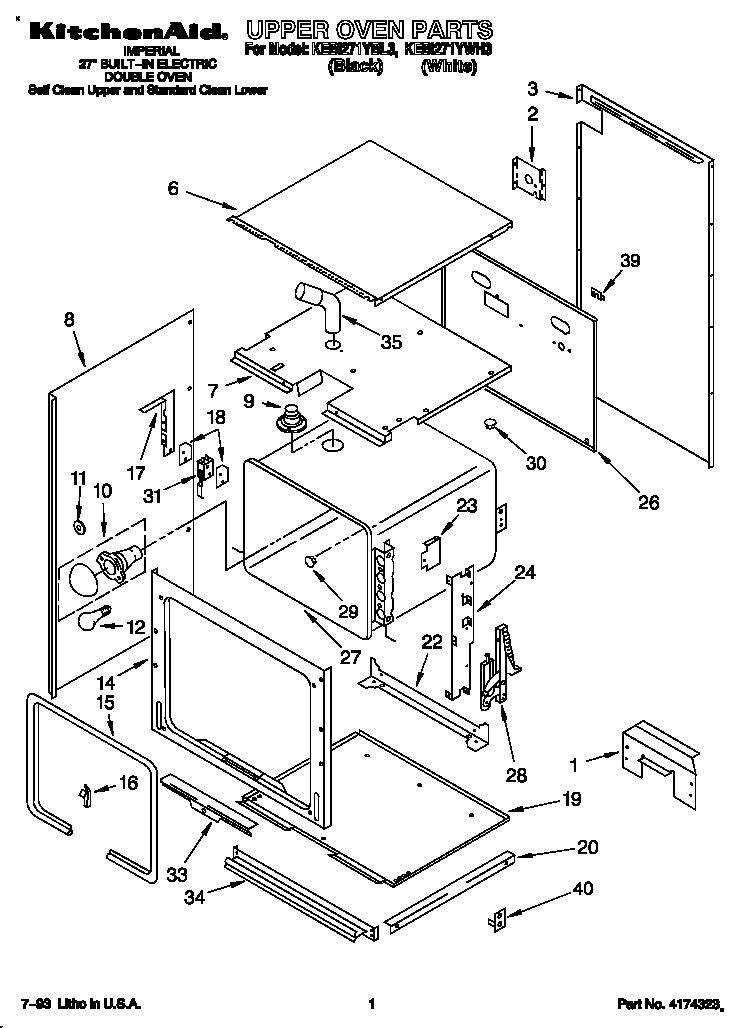

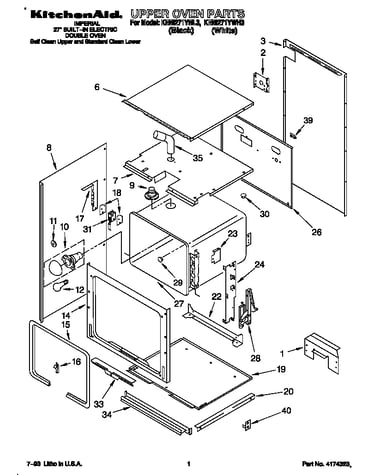

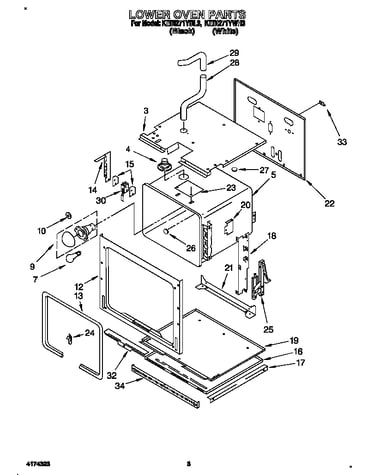

Oven liner diagram
Range bake elementPart #661416
Replaced by #WP661416
?Manufacturer substitutionThis part replaces 661416. Substitute parts can look different from the original.$76.70 |7% OFF Phone Price : $82.70In Stock - #3
Oven liner diagram
Grid panPart #3147563
Replaced by #4396923
?Manufacturer substitutionThis part replaces 3147563. Substitute parts can look different from the original.$31.03 |16% OFF Phone Price : $37.03In Stock - Range screw
Part #3177991
Replaced by #WP3177991
?Manufacturer substitutionThis part replaces 3177991. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #4
Oven liner diagram
Broiler panPart #3147845
Replaced by #4396923
?Manufacturer substitutionThis part replaces 3147845. Substitute parts can look different from the original.$31.03 |16% OFF Phone Price : $37.03In Stock #NI
All parts diagram
Spray thPart #350942
Replaced by #350942
?Manufacturer substitutionThis part replaces 350942. Substitute parts can look different from the original.$96.13In Stock#NI
All parts diagram
Cooking appliance 14-gauge splicing wire, 200-degree c (red)Part #242831
$317.07In Stock#NI
All parts diagram
Spray wPart #350930
$10.98In Stock
