Model # PGB58B1352C/P1183311C Official Amana packaged air conditioner - pgb series

Here are the diagrams and repair parts for Official Amana PGB58B1352C-P1183311C packaged air conditioner - pgb series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

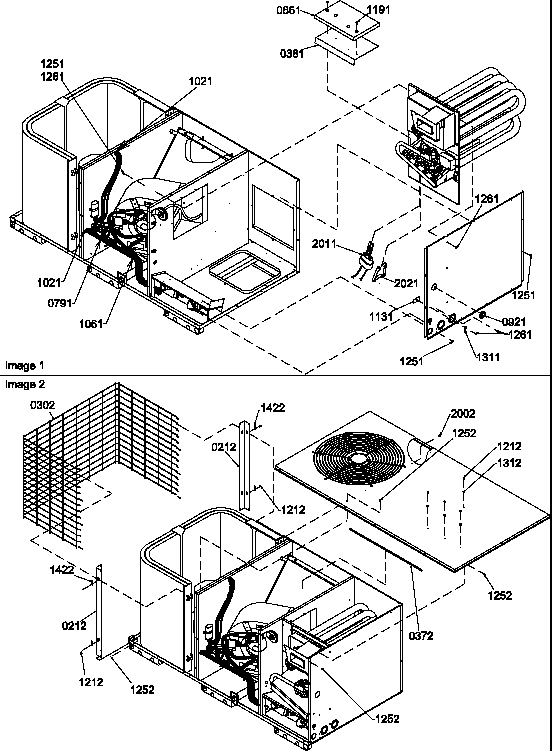

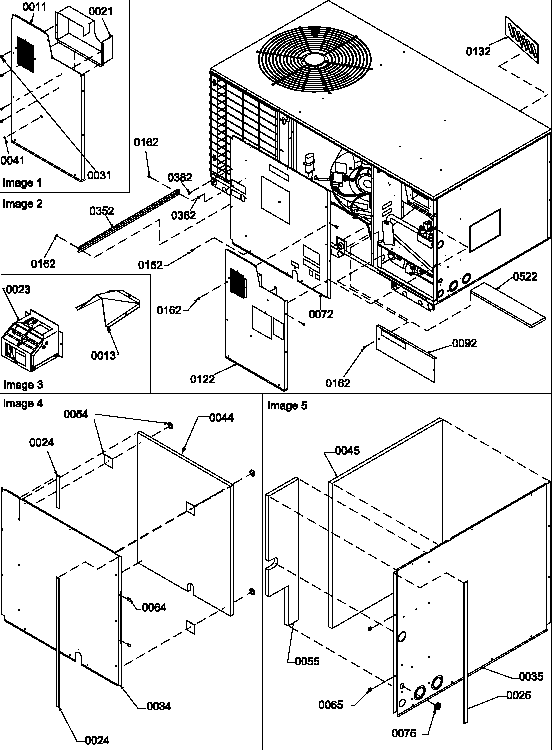

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Screw M0211017
#1161

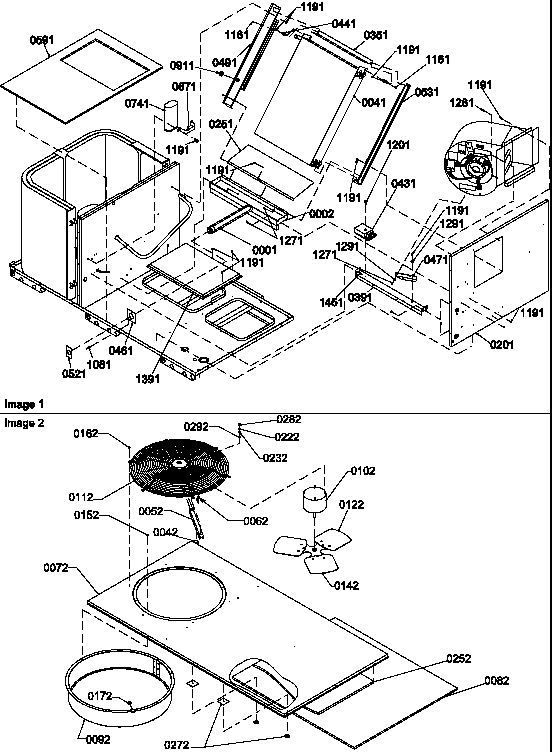

Blower/top assy diagram

Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0216544
#152

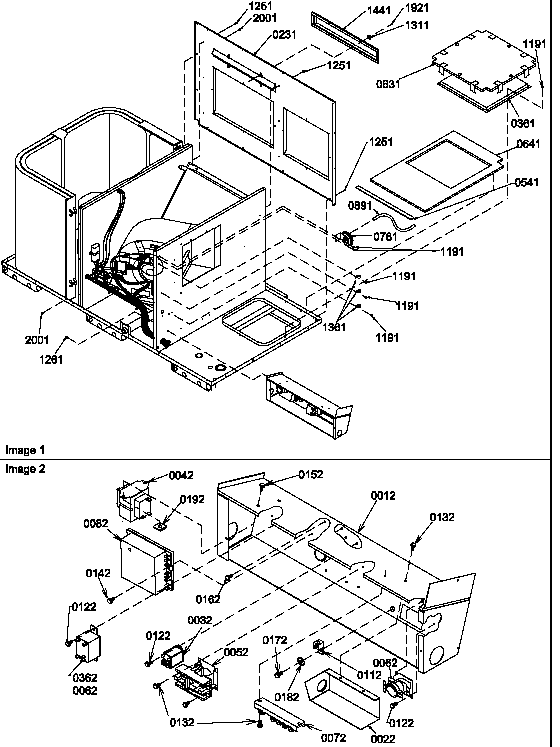

Back cover/control box diagram

Screw

Part #M0216544

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces M0216544. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0216515
#122

Back cover/control box diagram

Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw M0211022
#121

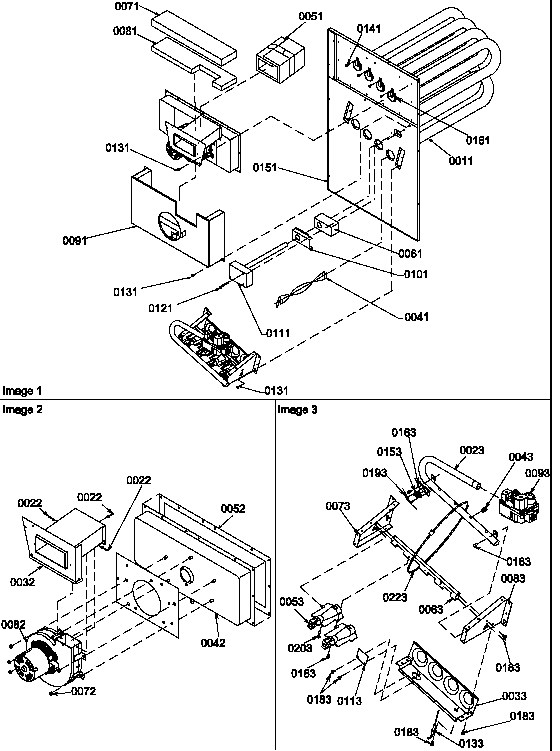

Heat exchanger/collector box/manifold diagram

Screw

Part #M0211022

Replaced by #WP3400886

?
Manufacturer substitution
This part replaces M0211022. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Cord Clip M0104101
#42

Blower/top assy diagram

Cord clip

Part #M0104101

Replaced by #WPM0104106

?
Manufacturer substitution
This part replaces M0104101. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Orifice 10716003
#43

Heat exchanger/collector box/manifold diagram

Orifice

Part #10716003

Replaced by #0163F00018

?
Manufacturer substitution
This part replaces 10716003. Substitute parts can look different from the original.
This item is not returnable
$4.29
In Stock
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Grommet M0282015
Grommet

Part #M0282015

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282015. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0267144
#202

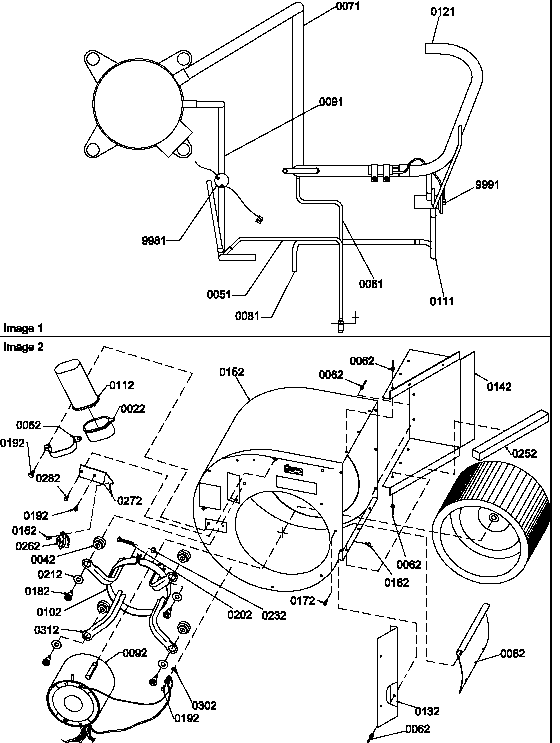

Tubing/blower diagram

Screw

Part #M0267144

Replaced by #3400241

?
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
$12.49
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
