Comfort Glow
Space Heater

Model # PHS/S Official Comfort Glow kerosene heater

Here are the diagrams and repair parts for Official Comfort Glow PHS-S kerosene heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Pipe M47904504
#564

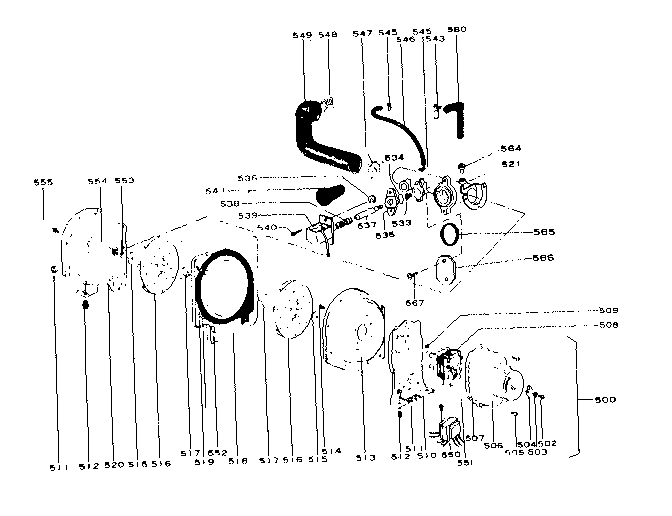

Combustion blower assembly, air bracket and solenoid diagram

Pipe

Part #M47904504

The manufacturer no longer makes this part, and there's no substitute part

Sensor M47903705
#419

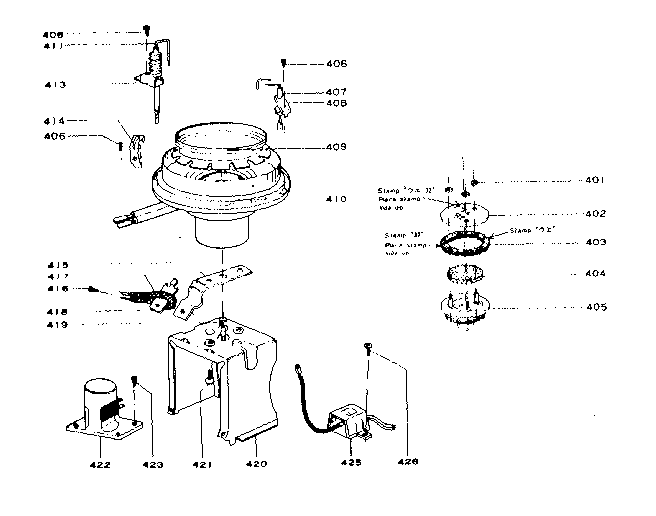

Pot assembly diagram

Sensor

Part #M47903705

The manufacturer no longer makes this part, and there's no substitute part

Holder M47222754
#408

Pot assembly diagram

Holder

Part #M47222754

The manufacturer no longer makes this part, and there's no substitute part

Fan M47208410
#624

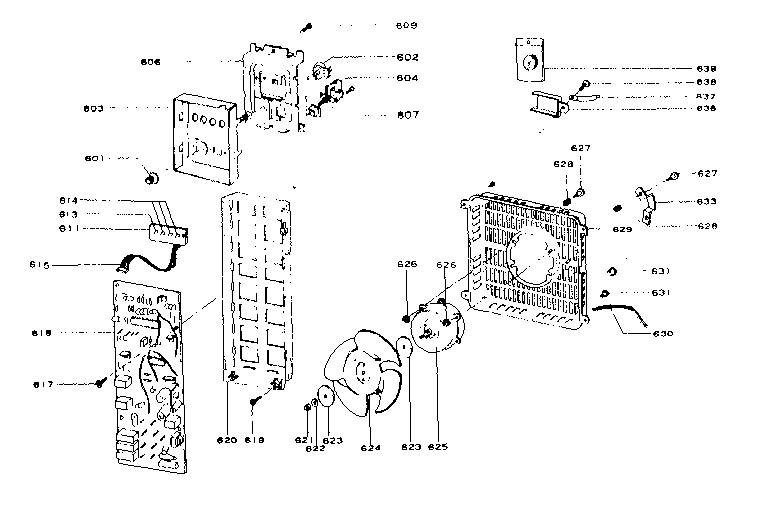

Controller fan motor assembly control panel assembly diagram

Fan

Part #M47208410

The manufacturer no longer makes this part, and there's no substitute part

Lid M47214267
#302

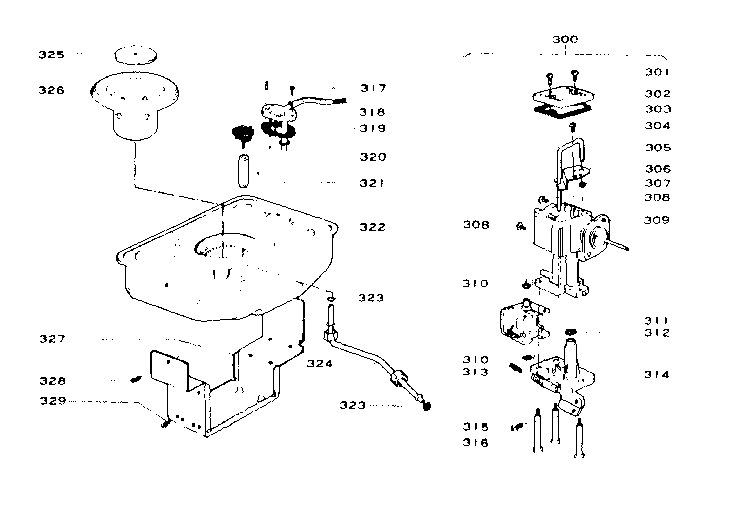

Fuel system diagram

Lid

Part #M47214267

The manufacturer no longer makes this part, and there's no substitute part

Sensor M47903336
Sensor

Part #M47903336

The manufacturer no longer makes this part, and there's no substitute part

Switch M47903200
Switch

Part #M47903200

The manufacturer no longer makes this part, and there's no substitute part

Pot Assembly M47904700
Pot assembly

Part #M47904700

The manufacturer no longer makes this part, and there's no substitute part

Screw T029P211H43
#514

Combustion blower assembly, air bracket and solenoid diagram

Screw

Part #T029P211H43

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin M47202660
#103

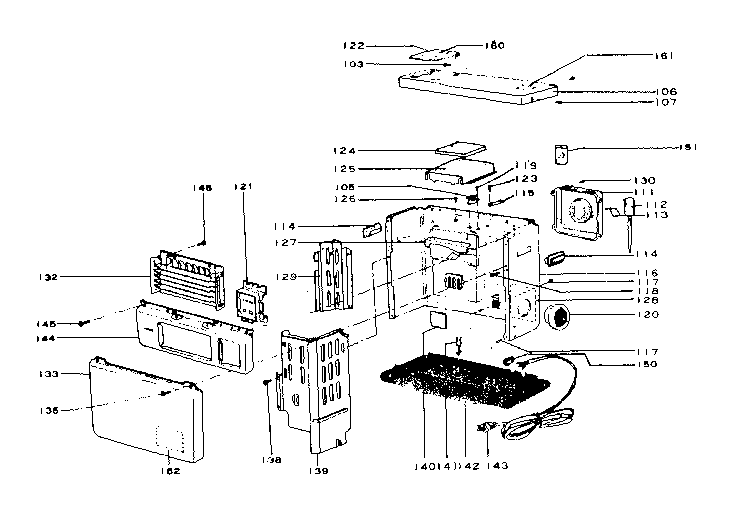

Body diagram

Hinge pin

Part #M47202660

The manufacturer no longer makes this part, and there's no substitute part
