Model # AZ51H06EADV1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AZ51H06EADV1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

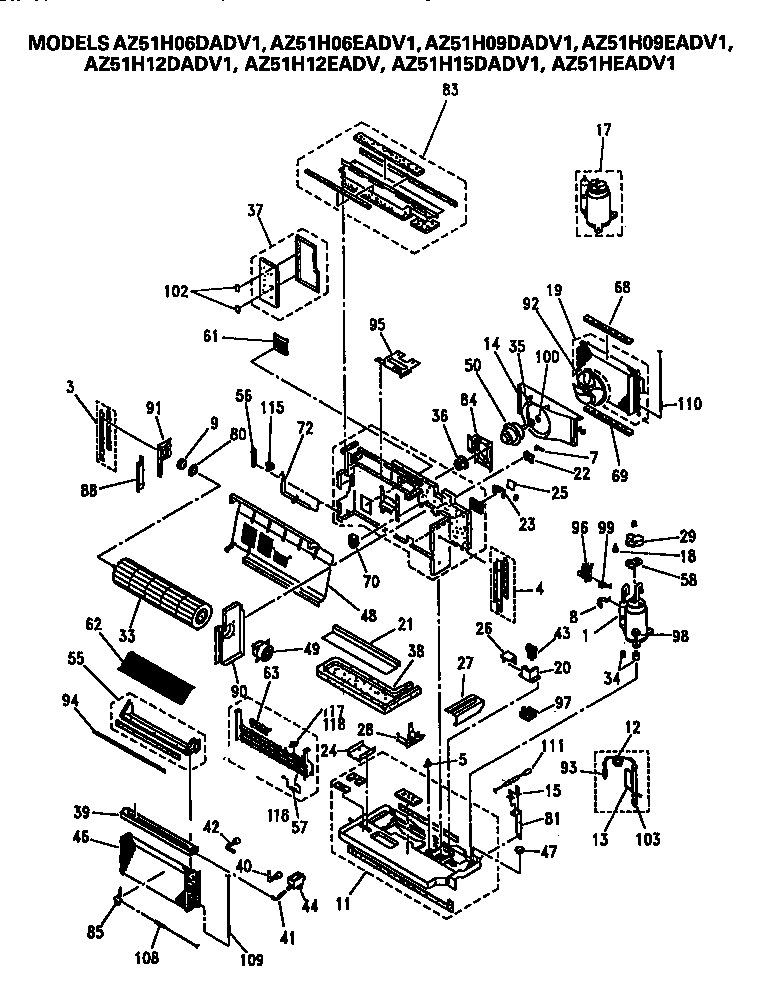

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Capillry Kit WJ53X184

#13

All parts diagram

Capillry kit

Part #WJ53X184

$10.99
In Stock
U&c/installa 49-7269

#9999

All parts diagram

U&c/installa

Part #49-7269

$8.59 |
10% OFF Phone Price : $9.59
In Stock
Baffle WP70X110

#NI

All parts diagram

Baffle

Part #WP70X110

The manufacturer no longer makes this part, and there's no substitute part

Filter WP85X15

#NI

All parts diagram

Filter

Part #WP85X15

The manufacturer no longer makes this part, and there's no substitute part

Screen WP85X17

#49

All parts diagram

Screen

Part #WP85X17

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan WP70X107

#NI

All parts diagram

Drain pan

Part #WP70X107

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor WP94X111

#38

All parts diagram

Fan motor

Part #WP94X111

The manufacturer no longer makes this part, and there's no substitute part

Indoor Blower Asm WP74X05

#27

All parts diagram

Indoor blower asm

Part #WP74X05

The manufacturer no longer makes this part, and there's no substitute part

Strainer WJ56X86

#161

All parts diagram

Strainer

Part #WJ56X86

The manufacturer no longer makes this part, and there's no substitute part

Partition Ls WP65X17

#88

All parts diagram

Partition ls

Part #WP65X17

The manufacturer no longer makes this part, and there's no substitute part
