Whirlpool
Electric Range

Model # RGE8800H Official Whirlpool electric range

Here are the diagrams and repair parts for Official Whirlpool RGE8800H electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

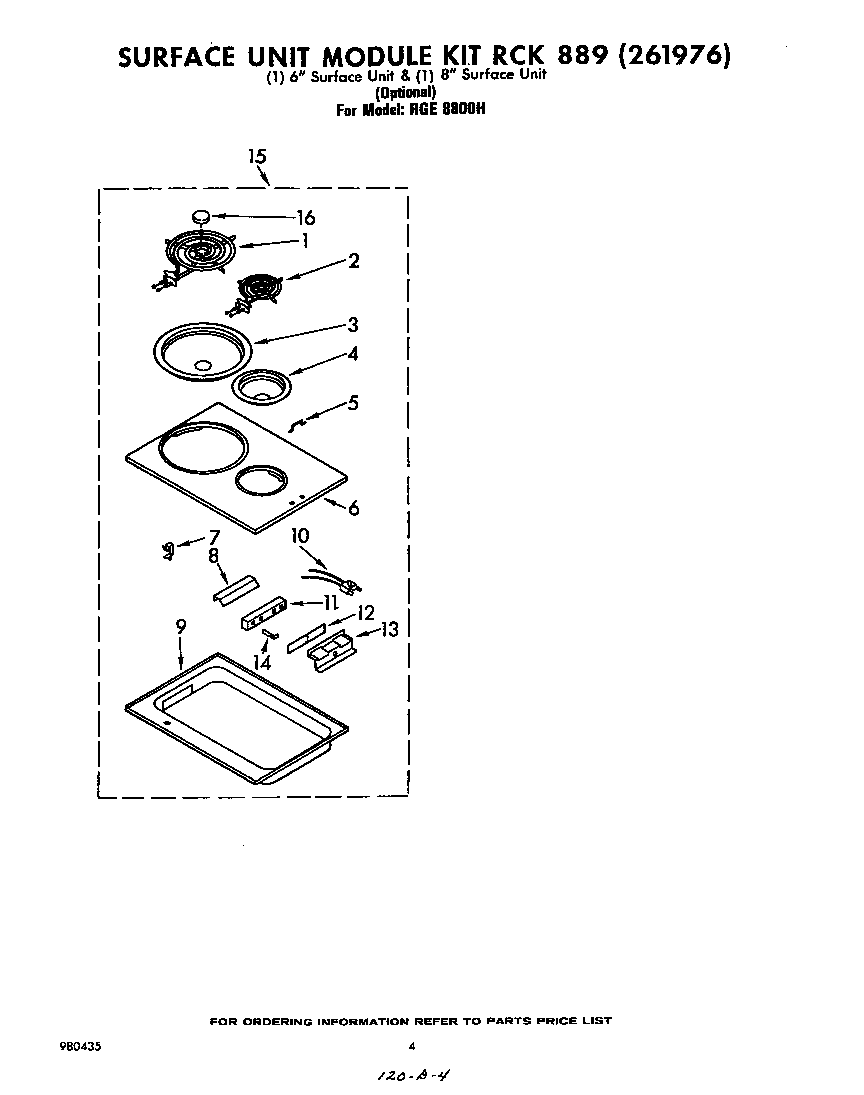

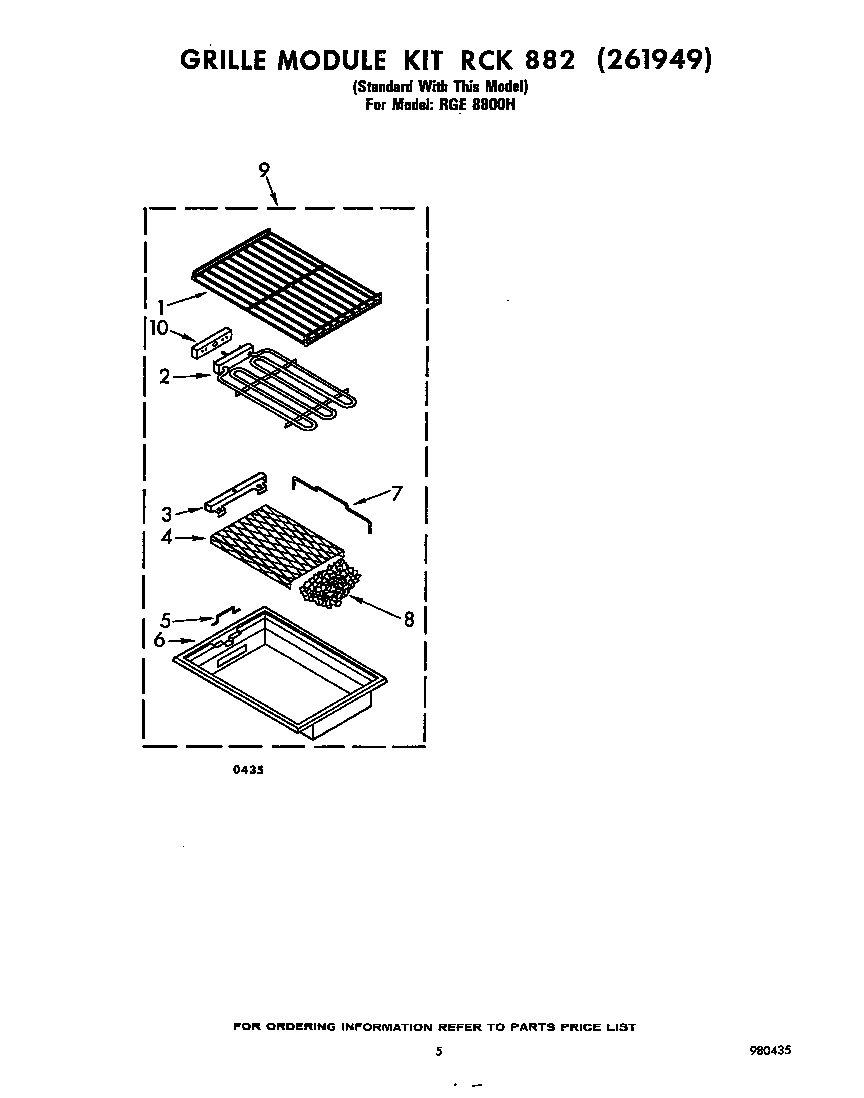

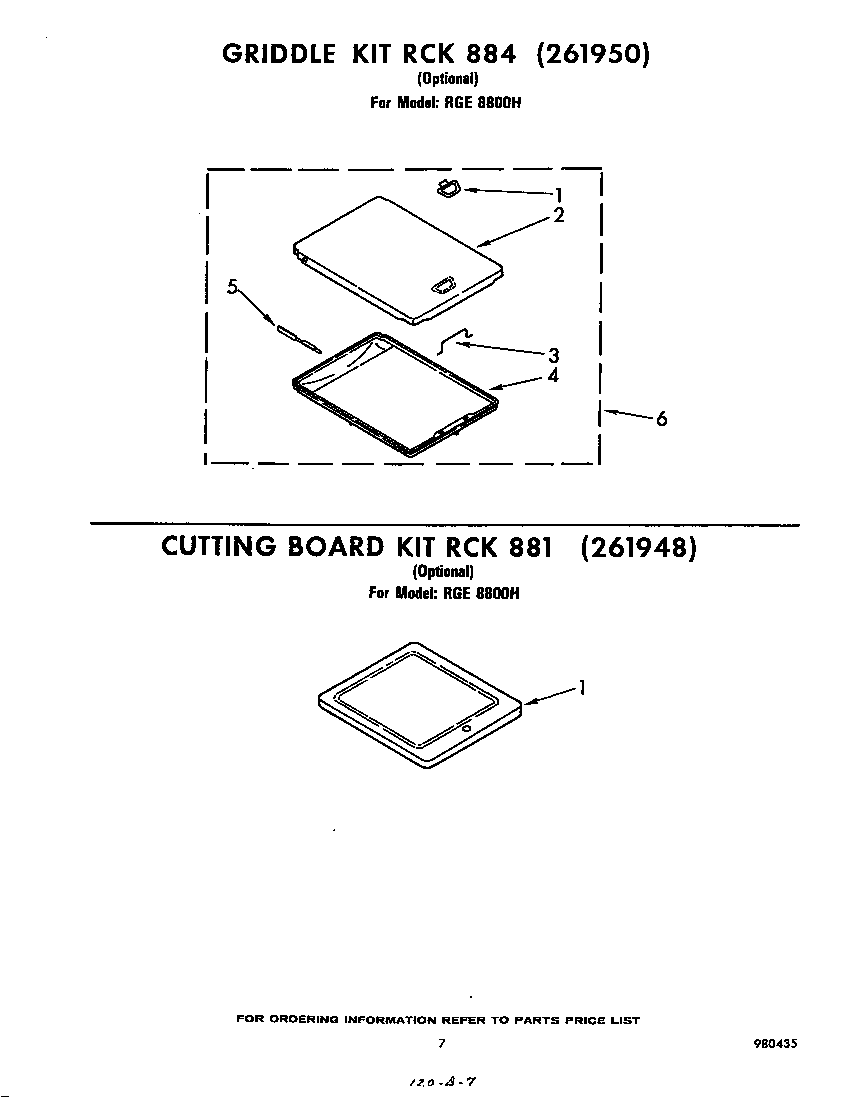

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

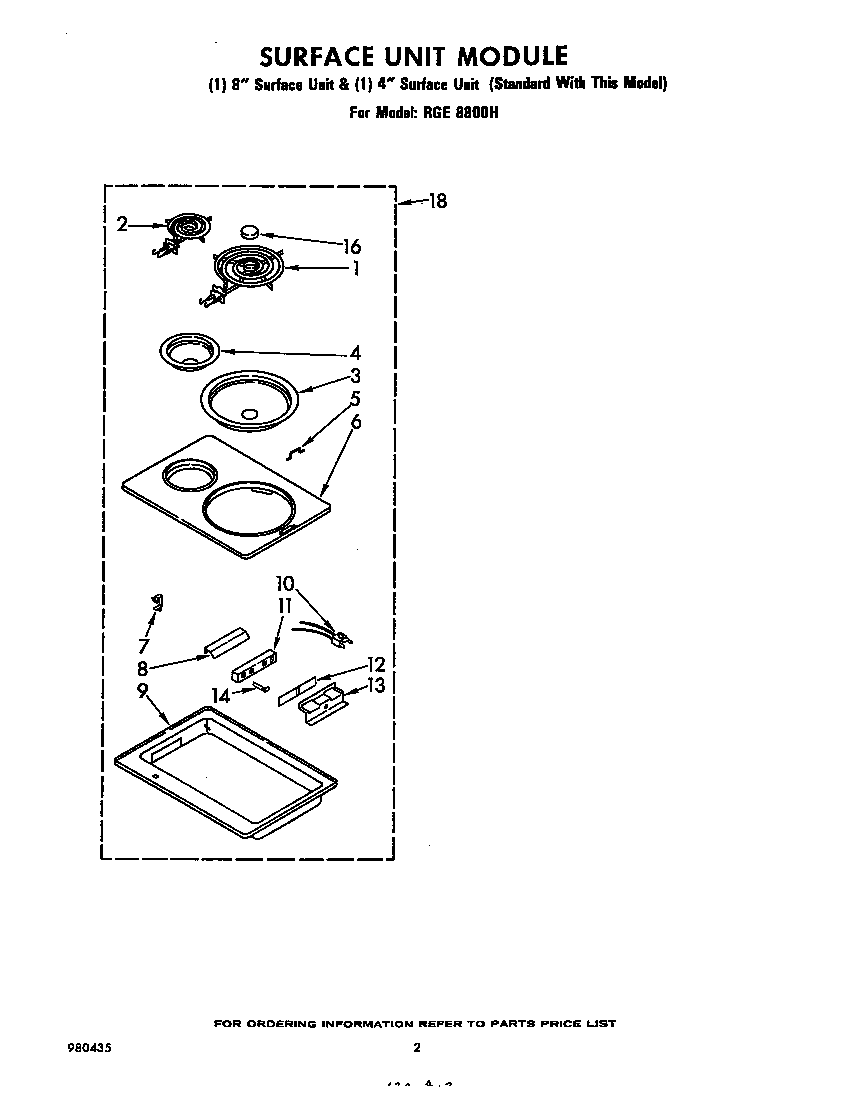

Receptacle Element 868464
Receptacle element

Part #868464

Replaced by #330031

?
Manufacturer substitution
This part replaces 868464. Substitute parts can look different from the original.
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Drip Bowl 868447
Drip bowl

Part #868447

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 868447. Substitute parts can look different from the original.
BEST SELLER
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Block 241212
#8

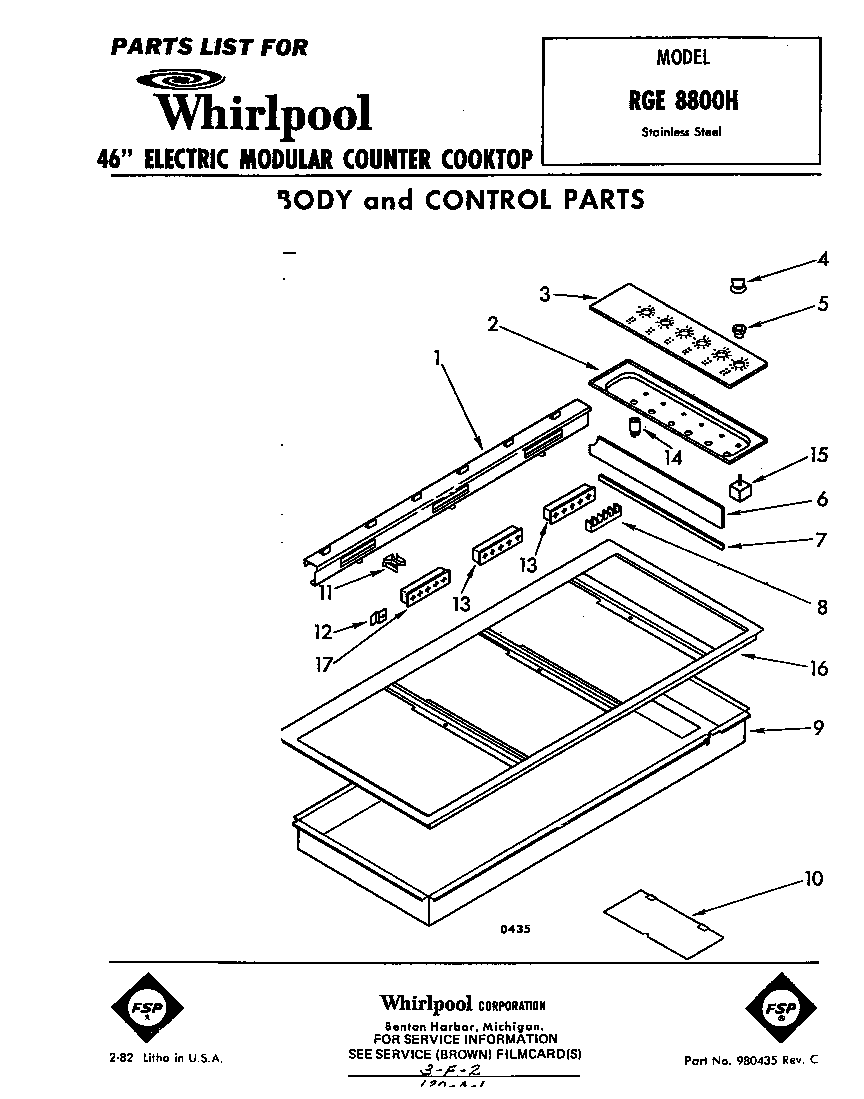

Body and control diagram

Block

Part #241212

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 241212. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Unit 868445
Unit

Part #868445

The manufacturer no longer makes this part, and there's no substitute part

Screw 868430
#16A

Body and control diagram

Screw

Part #868430

This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Unit 868449
Unit

Part #868449

The manufacturer no longer makes this part, and there's no substitute part

Spit Bar 868454
#4

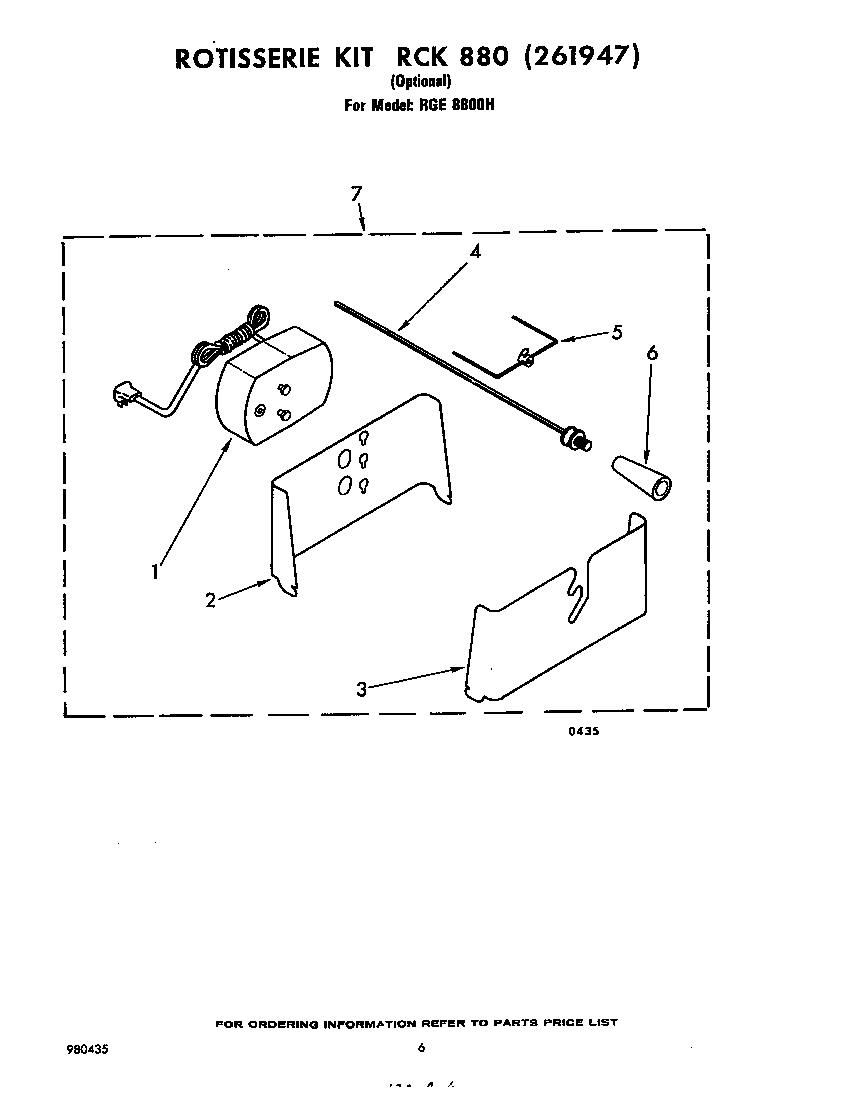

Rotisserie rck880(261947) diagram

Spit bar

Part #868454

The manufacturer no longer makes this part, and there's no substitute part

Insulator 868814
Insulator

Part #868814

The manufacturer no longer makes this part, and there's no substitute part

Medallion 868522
Medallion

Part #868522

The manufacturer no longer makes this part, and there's no substitute part

Kit, Surface Unit Module (6/6) 261951
#13

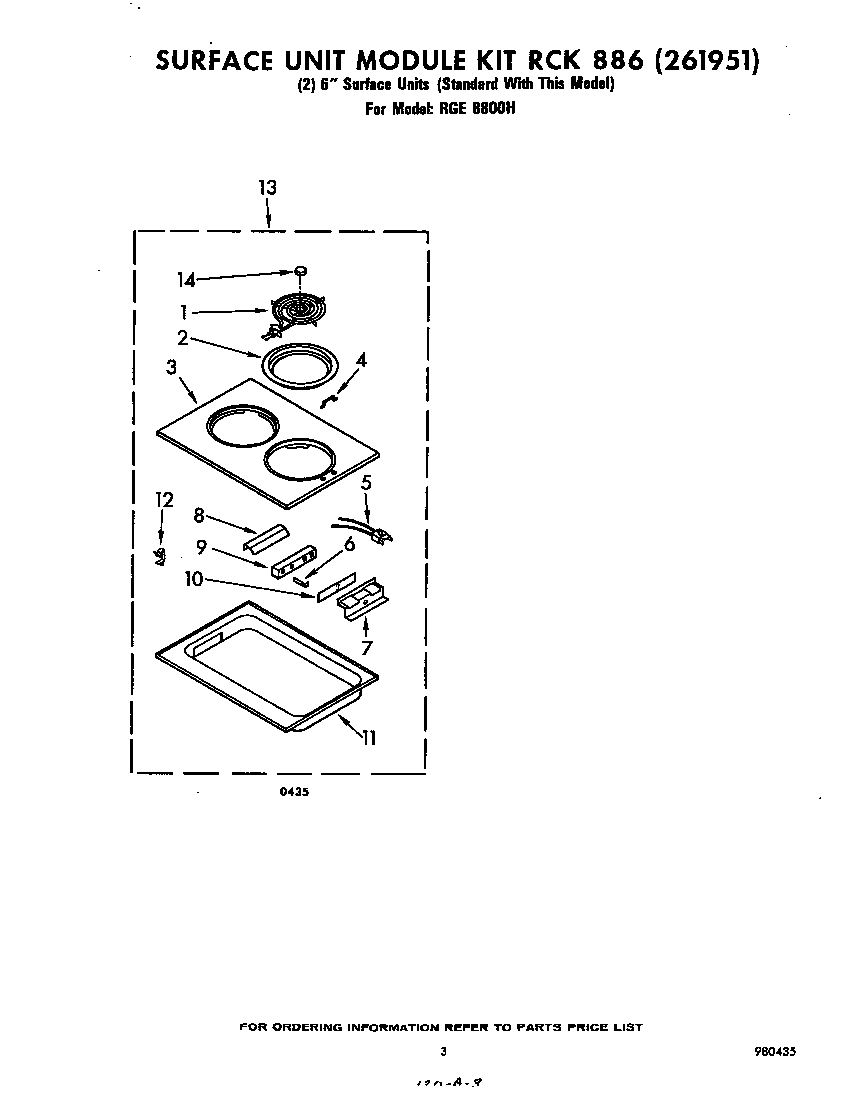

Surface unit kit rck 886(261951) diagram

Kit, surface unit module (6/6)

Part #261951

The manufacturer no longer makes this part, and there's no substitute part
