Model # GY397LXUS03 Official Whirlpool 30" electric slide-in range

Here are the diagrams and repair parts for Official Whirlpool GY397LXUS03 30" electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Range Radiant Surface Element 8273994
#5

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$102.34 |
10% OFF Phone Price : $114.34
In Stock
Polish 3191048
#NI

Optional parts (not included) diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range Dual Radiant Surface Element W10275049

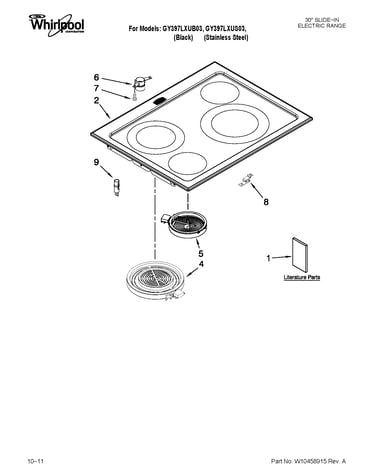

#4

Cooktop parts diagram

Range dual radiant surface element

Part #W10275049

Replaced by #WPW10275049

?
Manufacturer substitution
This part replaces W10275049. Substitute parts can look different from the original.
$144.16 |
8% OFF Phone Price : $156.16
In Stock
Range Membrane Switch W10207928
#8

Control panel parts diagram

Range membrane switch

Part #W10207928

Replaced by #WPW10207928

?
Manufacturer substitution
This part replaces W10207928. Substitute parts can look different from the original.
$192.89 |
6% OFF Phone Price : $204.89
In Stock
Screw 7101P634-60

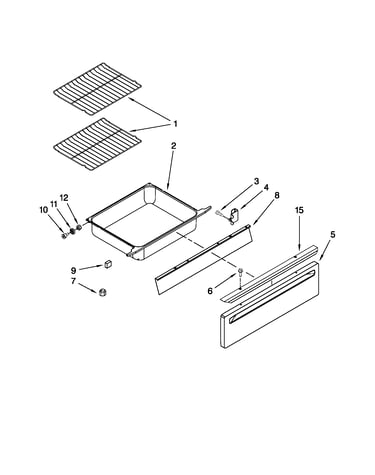

#6

Drawer and rack parts diagram

Screw

Part #7101P634-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P634-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Insulation 240132
#NI

Optional parts (not included) diagram

Insulation

Part #240132

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 261514
#NI

Optional parts (not included) diagram

Insulation

Part #261514

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 261514. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock

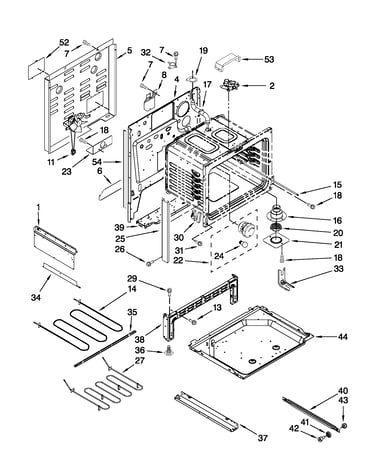

Screw 7101P336-60
#31

Chassis parts diagram

Screw

Part #7101P336-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P336-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Range Screw (replaces 98008545) WP98008545
#17

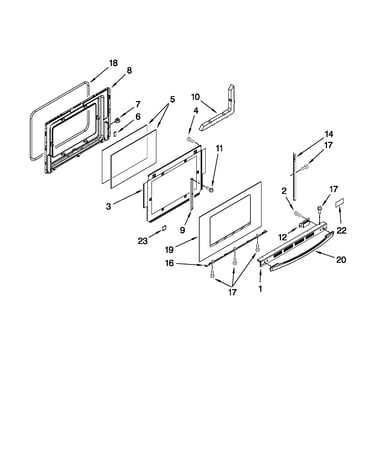

Door parts diagram

Range screw (replaces 98008545)

Part #WP98008545

This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
