Model # 536292521 Official Craftsman cultivator

Here are the diagrams and repair parts for Official Craftsman 536292521 cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |

Knob 57171
#944

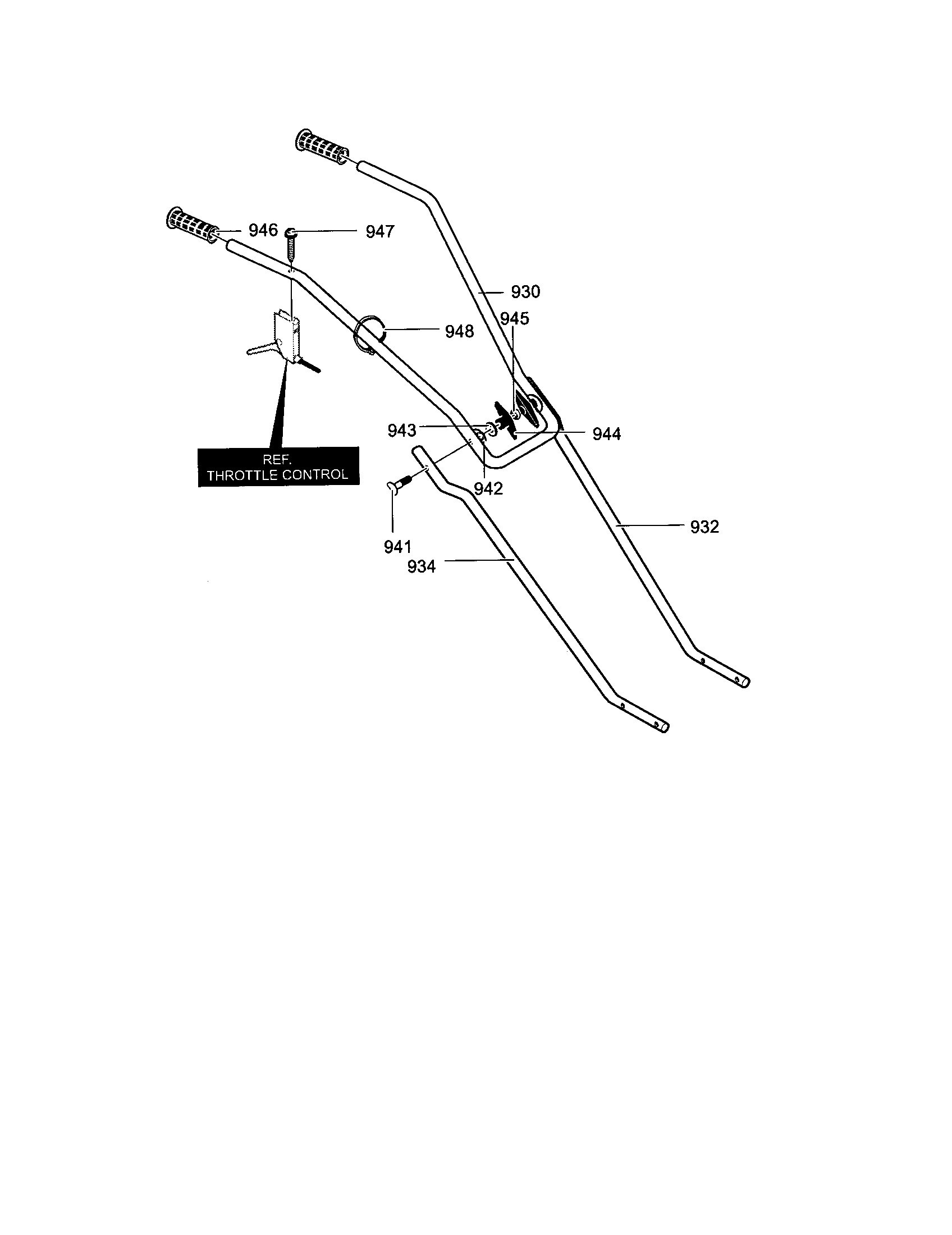

Handle diagram

Knob

Part #57171

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 57171. Substitute parts can look different from the original.
BEST SELLER
$10.93
15% OFF Phone Price : $12.93
In Stock
Washer,.343i 783000
#942

Handle diagram

Washer,.343i

Part #783000

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 783000. Substitute parts can look different from the original.
This item is not returnable
In Stock
Retainer Cap 73664
#663

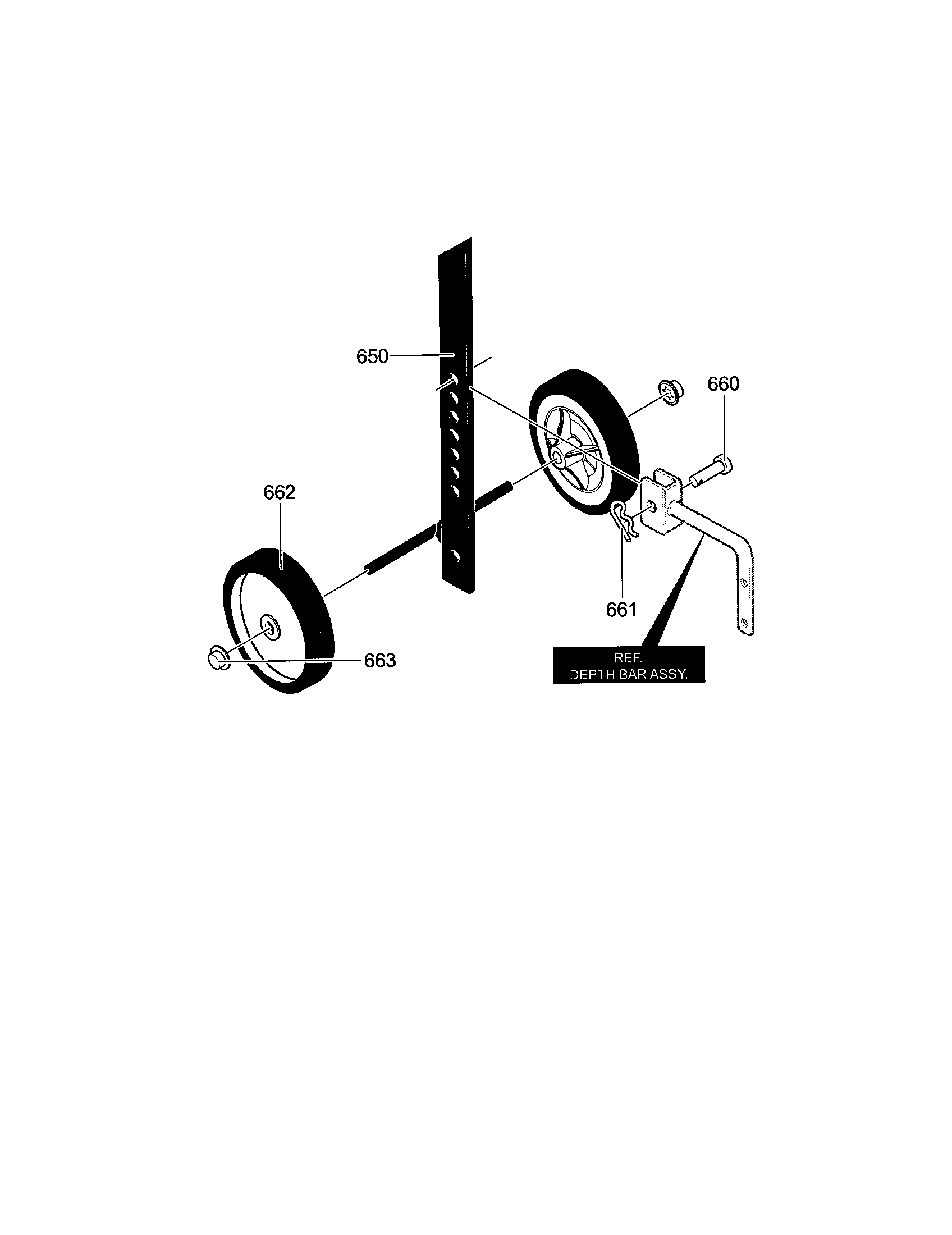

Wheel support diagram

Retainer cap

Part #73664

Replaced by #73664MA

?
Manufacturer substitution
This part replaces 73664. Substitute parts can look different from the original.
This item is not returnable
$8.49
11% OFF Phone Price : $9.49
In Stock
Tire And Rim 339277
#662

Wheel support diagram

Tire and rim

Part #339277

Replaced by #339277MA

?
Manufacturer substitution
This part replaces 339277. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cable 319306
#17

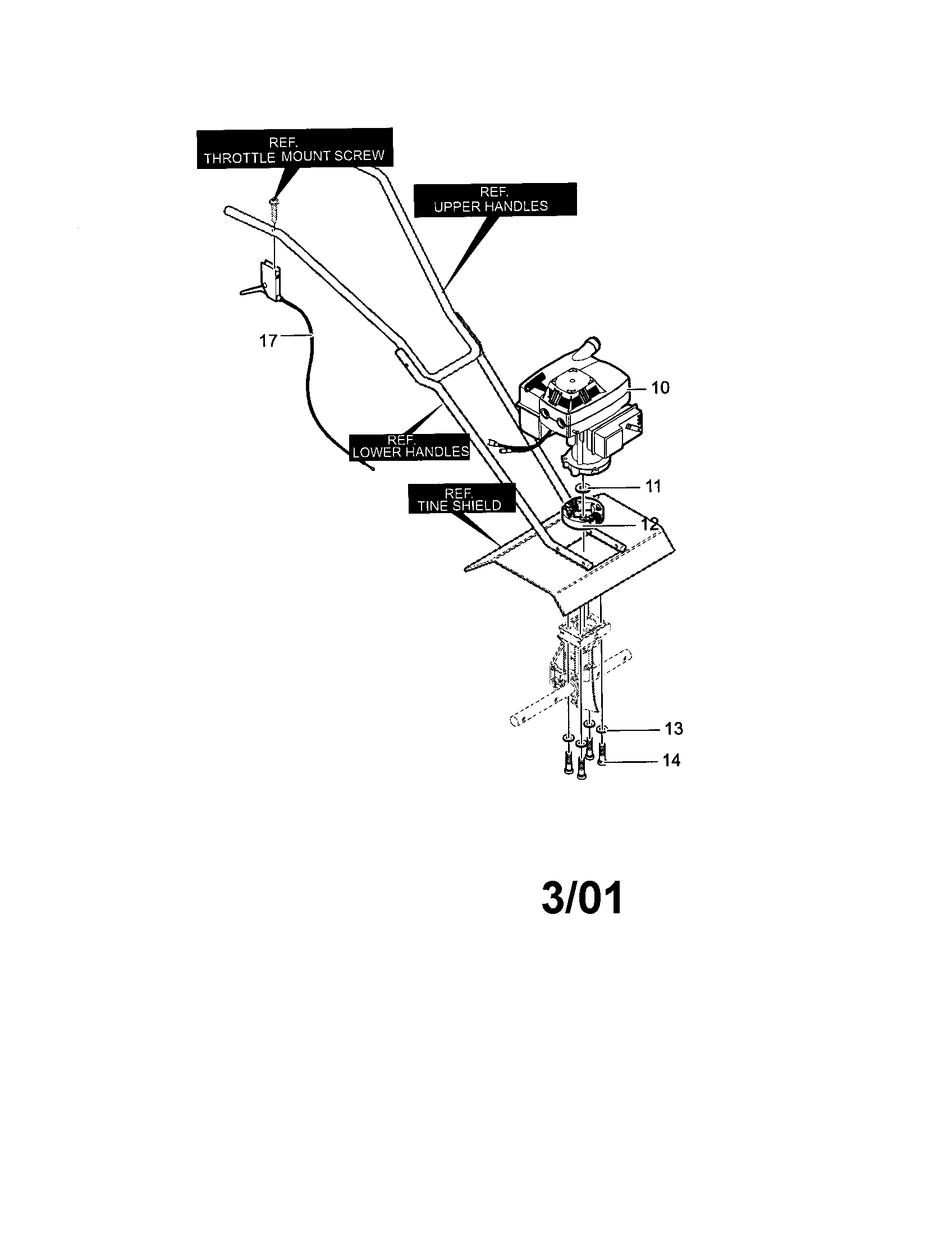

Engine diagram

Cable

Part #319306

Replaced by #319306MA

?
Manufacturer substitution
This part replaces 319306. Substitute parts can look different from the original.
This item is not returnable
$34.89
15% OFF Phone Price : $40.89
In Stock
Washer 56158
#490

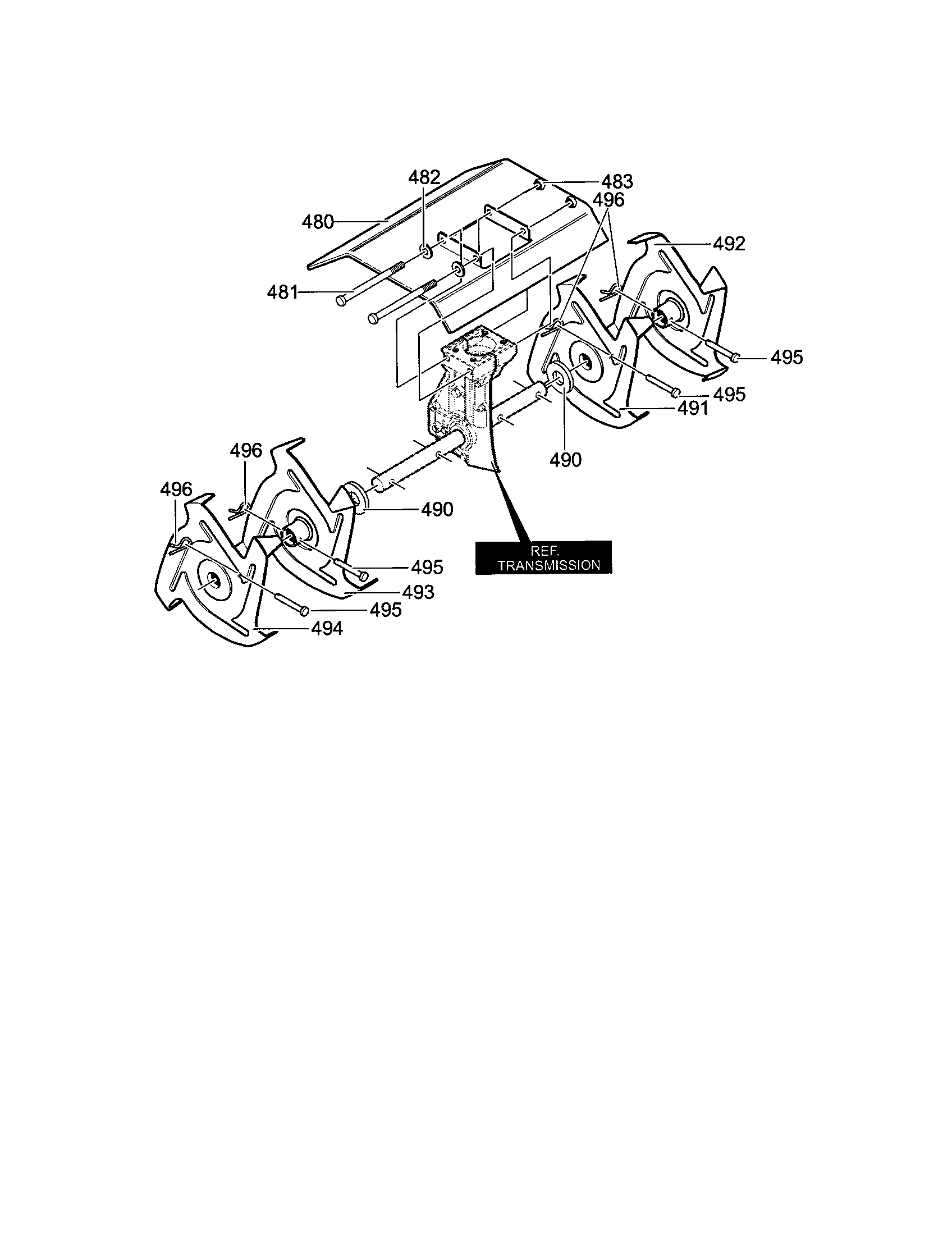

Shield-tine diagram

Washer

Part #56158

Replaced by #56158MA

?
Manufacturer substitution
This part replaces 56158. Substitute parts can look different from the original.
This item is not returnable
$8.09
11% OFF Phone Price : $9.09
In Stock
Pin 56123
#495

Shield-tine diagram

Pin

Part #56123

Replaced by #56123MA

?
Manufacturer substitution
This part replaces 56123. Substitute parts can look different from the original.
In Stock
Lock Nut 46931
#483

Shield-tine diagram

Lock nut

Part #46931

Replaced by #15X89MA

?
Manufacturer substitution
This part replaces 46931. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 426635
#947

Handle diagram

Screw

Part #426635

Replaced by #426635MA

?
Manufacturer substitution
This part replaces 426635. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut, 1/4-20 782585
#312

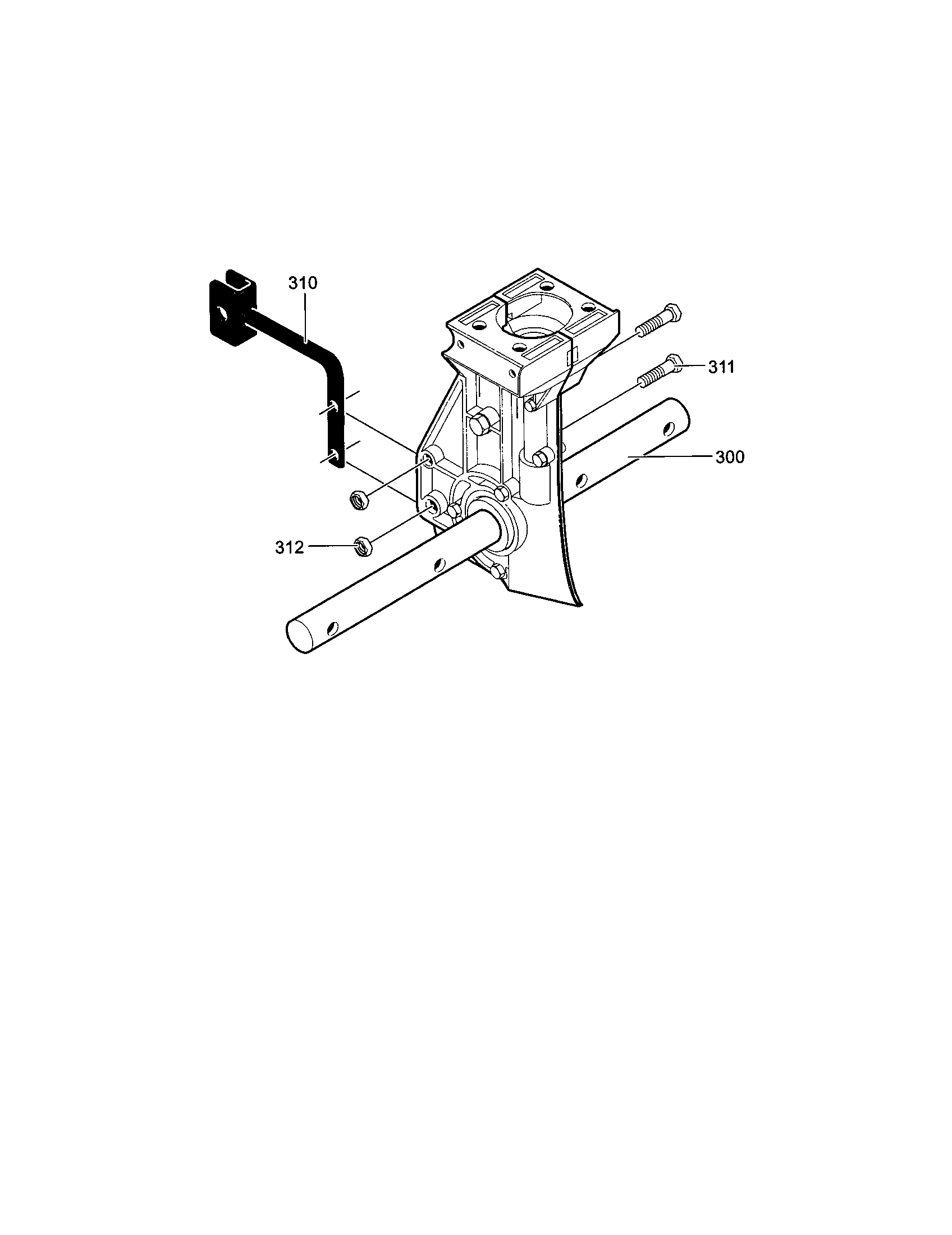

Transmission diagram

Nut, 1/4-20

Part #782585

Replaced by #703251

?
Manufacturer substitution
This part replaces 782585. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
