Model # SCS3617RS04 Official Whirlpool gas counter unit
Here are the diagrams and repair parts for Official Whirlpool SCS3617RS04 gas counter unit, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
SCS3617RS04 Cooktops
#9

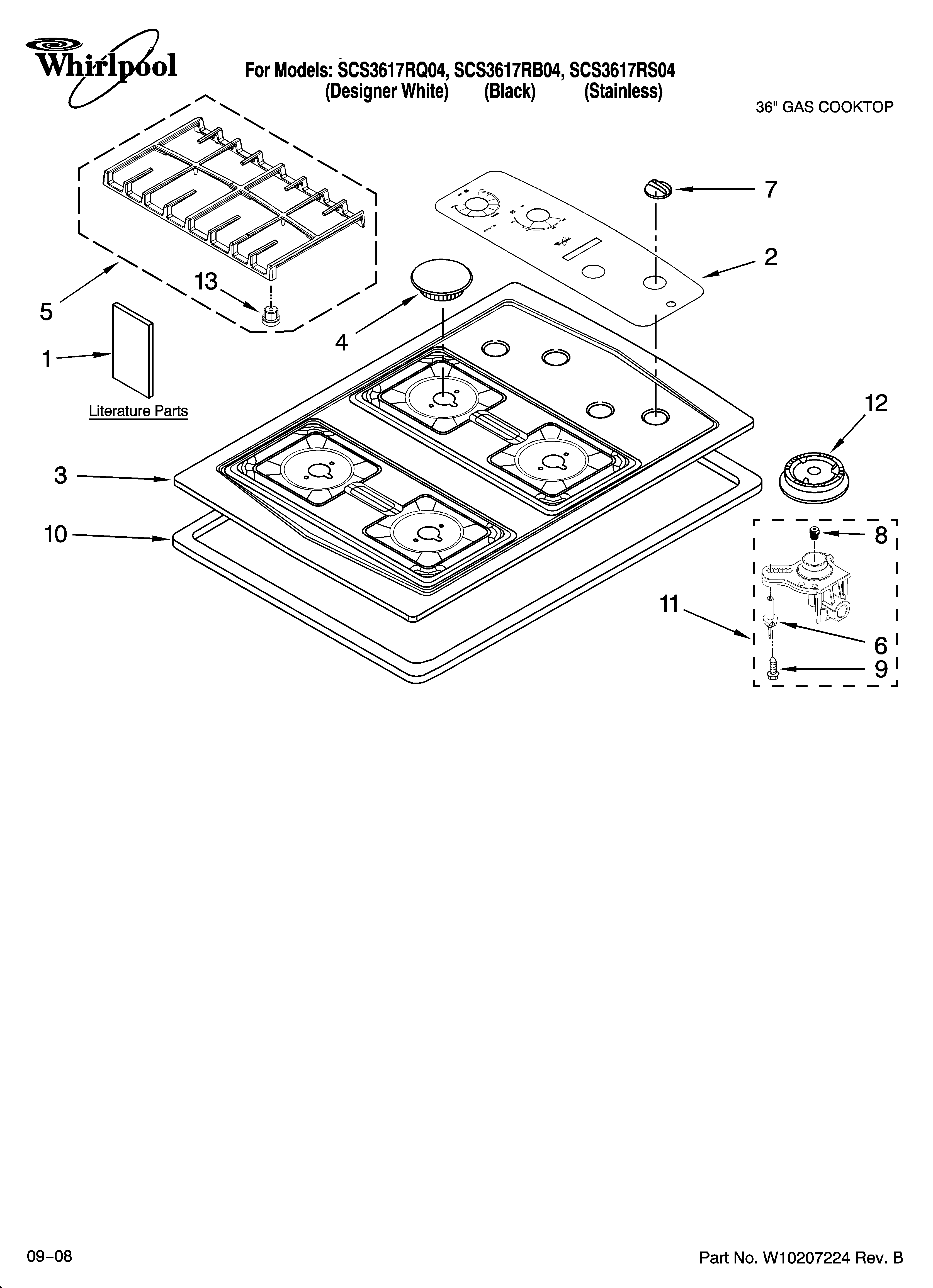

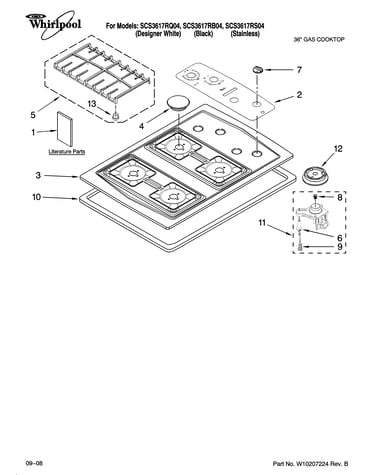

Cooktop, burner and grate parts diagram
Range screw
Part #8273062
Replaced by #WP8273062
?
Manufacturer substitution
This part replaces 8273062. Substitute parts can look different from the original.
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
#12
Cooktop, burner and grate parts diagram
Burner head
Part #8286181
Replaced by #WPW10406243
?
Manufacturer substitution
This part replaces 8286181. Substitute parts can look different from the original.
This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
#13

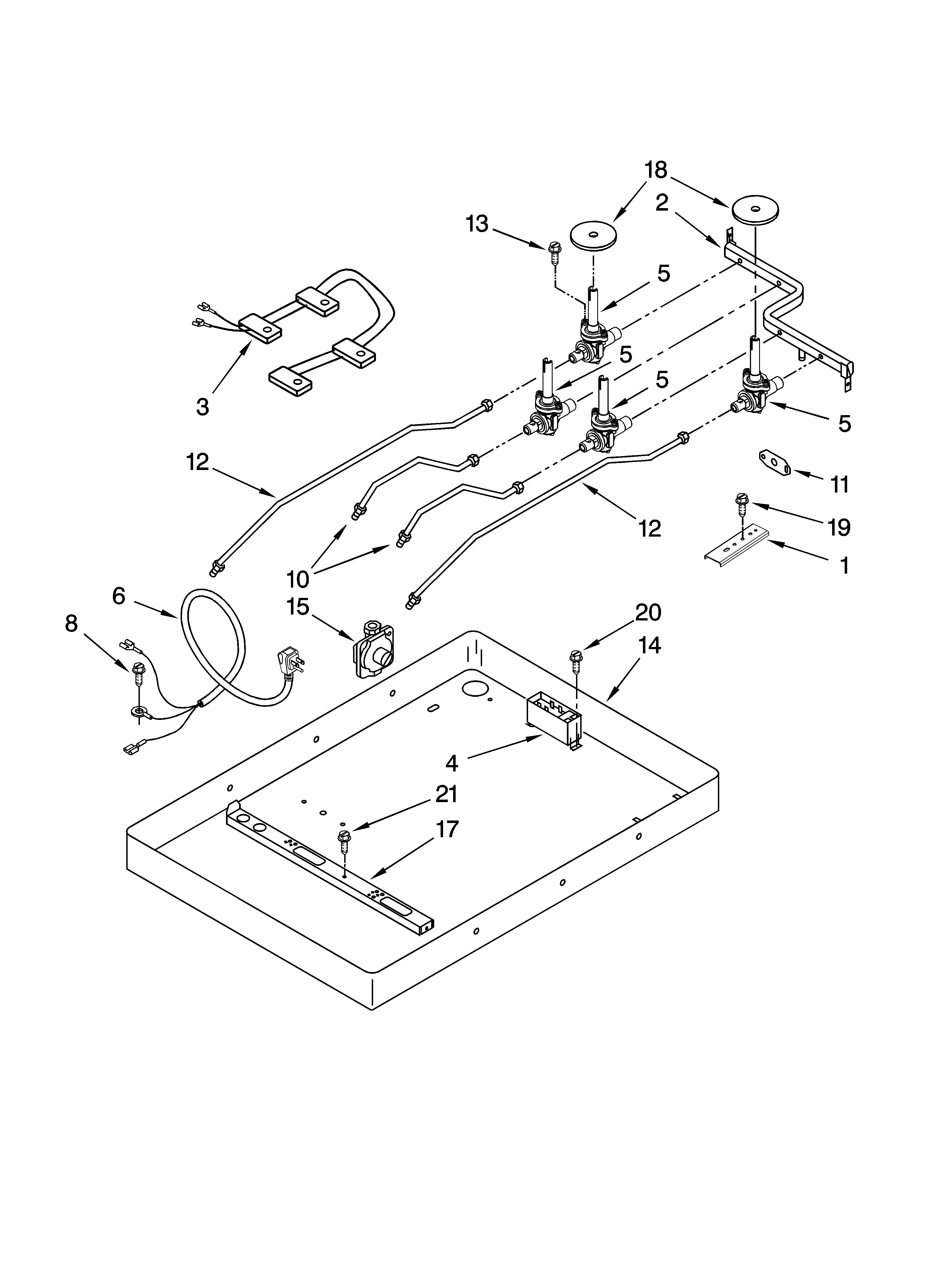

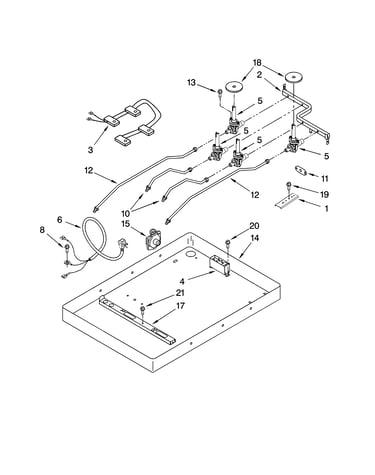

Burner box, gas valves, and switches diagram
Range screw
Part #3196160
Replaced by #W10491985
?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#11B
Cooktop, burner and grate parts diagram
Cooktop holder orifice
Part #W10128451
Replaced by #WPW10128451
?
Manufacturer substitution
This part replaces W10128451. Substitute parts can look different from the original.
$50.93 |
11% OFF Phone Price : $56.93
In Stock
#12A
Cooktop, burner and grate parts diagram
Burner head
Part #8286184
Replaced by #WPW10406283
?
Manufacturer substitution
This part replaces 8286184. Substitute parts can look different from the original.
$50.15 |
11% OFF Phone Price : $56.15
In Stock
#6
Cooktop, burner and grate parts diagram
Surface igniter
Part #9782116
Replaced by #WP9782116
?
Manufacturer substitution
This part replaces 9782116. Substitute parts can look different from the original.
This item is not returnable
$32.64 |
16% OFF Phone Price : $38.64
In Stock
#21
Burner box, gas valves, and switches diagram
Range screw
Part #4449809
Replaced by #WP4449809
?
Manufacturer substitution
This part replaces 4449809. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#8
Burner box, gas valves, and switches diagram
Range screw
Part #3177991
Replaced by #WP3177991
?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#5
Burner box, gas valves, and switches diagram
Cooktop burner valve
Part #4456817
Replaced by #WP4456817
?
Manufacturer substitution
This part replaces 4456817. Substitute parts can look different from the original.
$149.41 |
7% OFF Phone Price : $161.41
In Stock
#1
Burner box, gas valves, and switches diagram
Mounting bracket
Part #4455917
Replaced by #8186533
?
Manufacturer substitution
This part replaces 4455917. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
