Power Drill

Model # 31511380 Official Craftsman 3/8" electric drill

Here are the diagrams and repair parts for Official Craftsman 31511380 3/8" electric drill, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
31511380 Power Tools
Ball Bearing 1-621221-01
#3

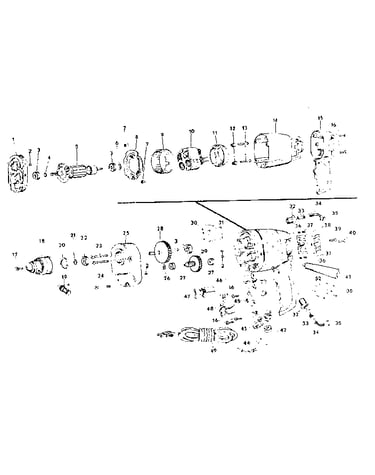

Unit parts diagram

Ball bearing

Part #1-621221-01

The manufacturer no longer makes this part, and there's no substitute part

Access Cov-r 3-614035-02
#38

Unit parts diagram

Access cov-r

Part #3-614035-02

The manufacturer no longer makes this part, and there's no substitute part

Chuck 1-623261-00
#18

Unit parts diagram

Chuck

Part #1-623261-00

The manufacturer no longer makes this part, and there's no substitute part

Fan Shroud 4-613850-02
#8

Unit parts diagram

Fan shroud

Part #4-613850-02

The manufacturer no longer makes this part, and there's no substitute part

Back-up Pad 1-623315-00
#46

Unit parts diagram

Back-up pad

Part #1-623315-00

The manufacturer no longer makes this part, and there's no substitute part

Br Holder 2-623877-01
#32

Unit parts diagram

Br holder

Part #2-623877-01

The manufacturer no longer makes this part, and there's no substitute part

Gear Cover 4-613847-07
#1

Unit parts diagram

Gear cover

Part #4-613847-07

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-772969-803
#45

Unit parts diagram

Screw

Part #1-772969-803

The manufacturer no longer makes this part, and there's no substitute part

Spndl W/gear 2-606552-01
#28

Unit parts diagram

Spndl w/gear

Part #2-606552-01

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
