Model # ACD082XH0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACD082XH0 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |

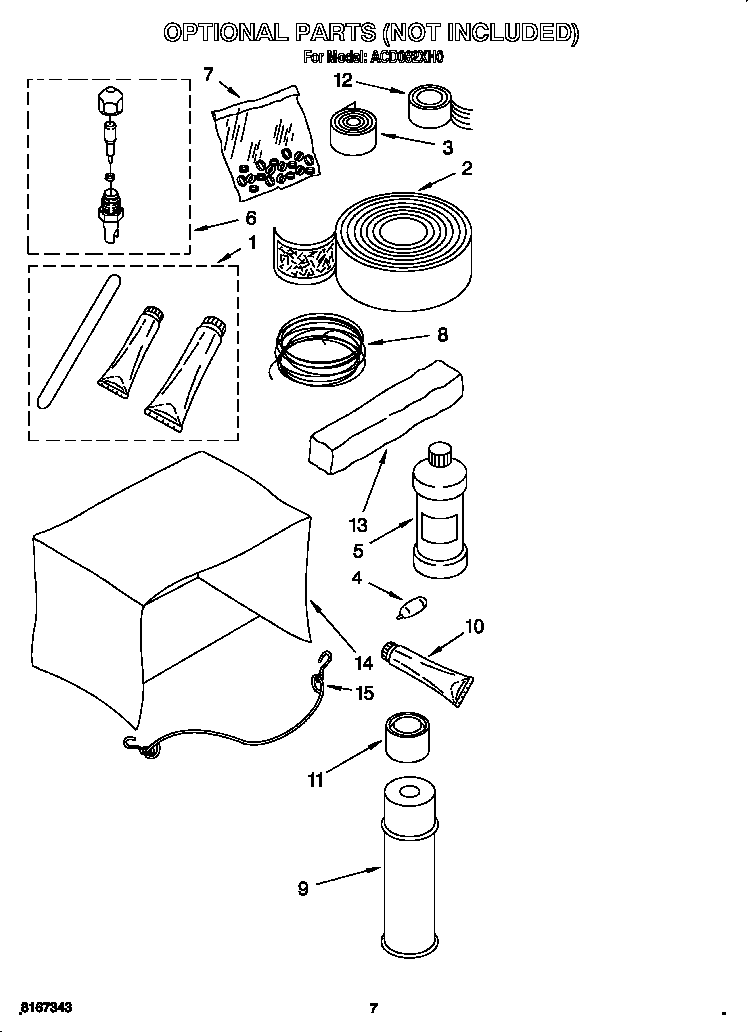

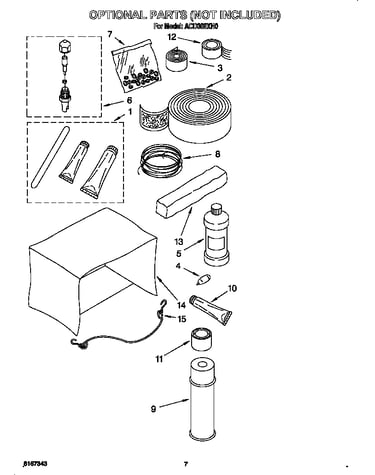

Cement 279368
#10

Optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Valve Kit 978025
#6B

Optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Valve Kit 978026
#6C

Optional diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
15% OFF Phone Price : $40.19
In Stock
Capacitor 470168
#16

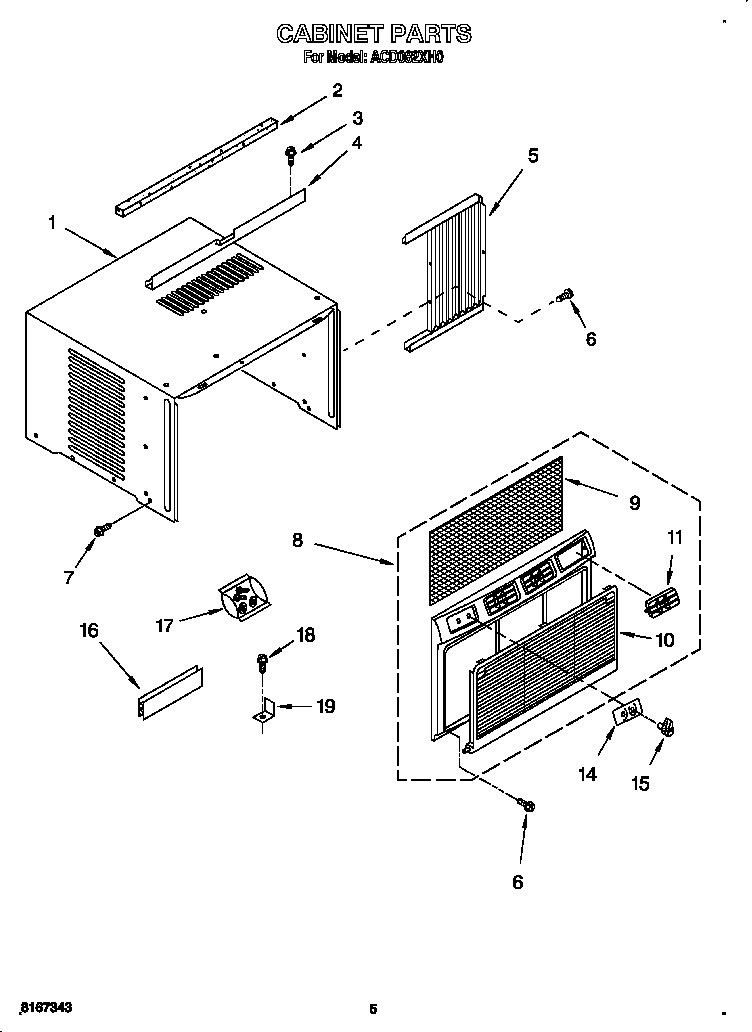

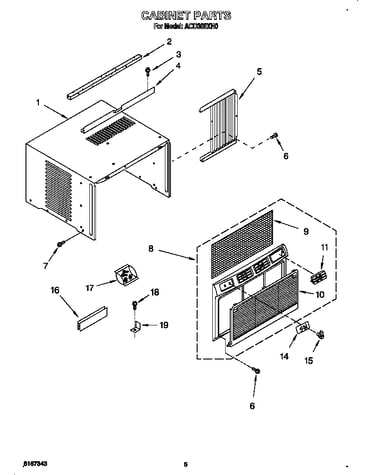

Cabinet diagram

Capacitor

Part #470168

Replaced by #212643

?
Manufacturer substitution
This part replaces 470168. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Sealer 212643
#12

Optional diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Valve Kit 978030
#6G

Optional diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Seal Strip 1180698
#8

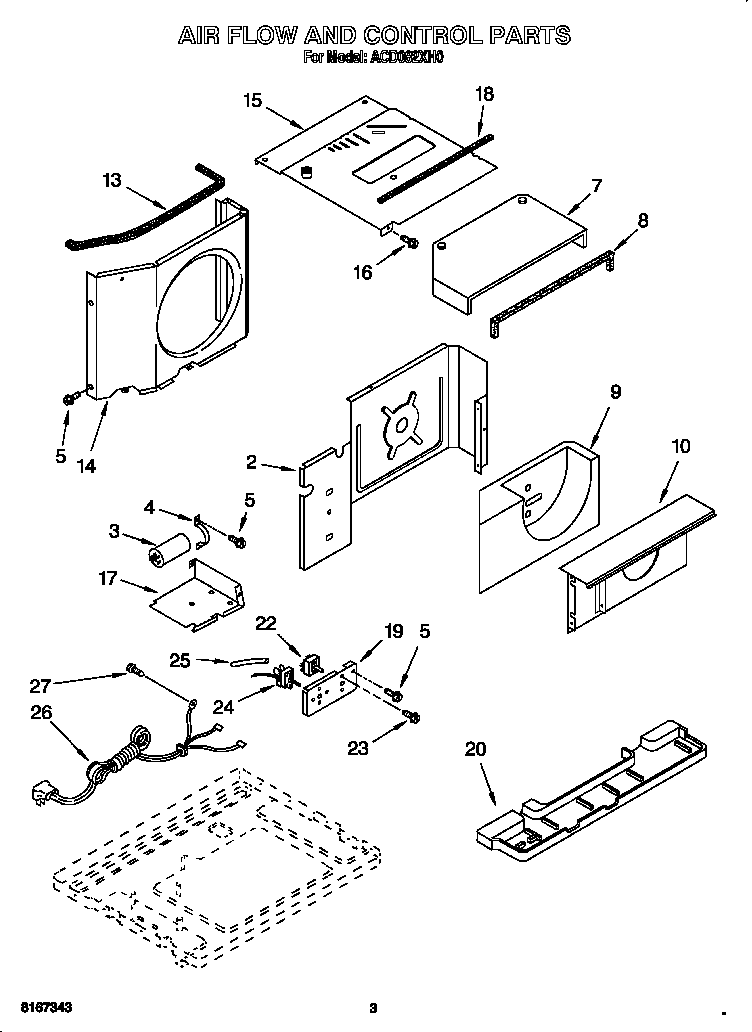

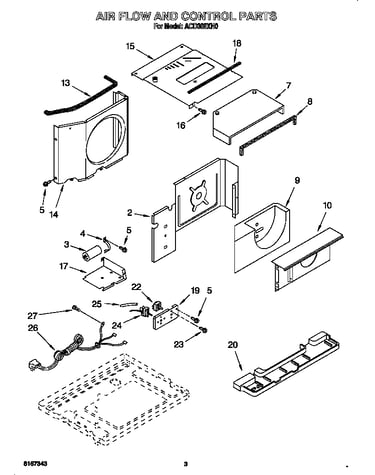

Airflow and control diagram

Seal strip

Part #1180698

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 1180698. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal 949090
#32

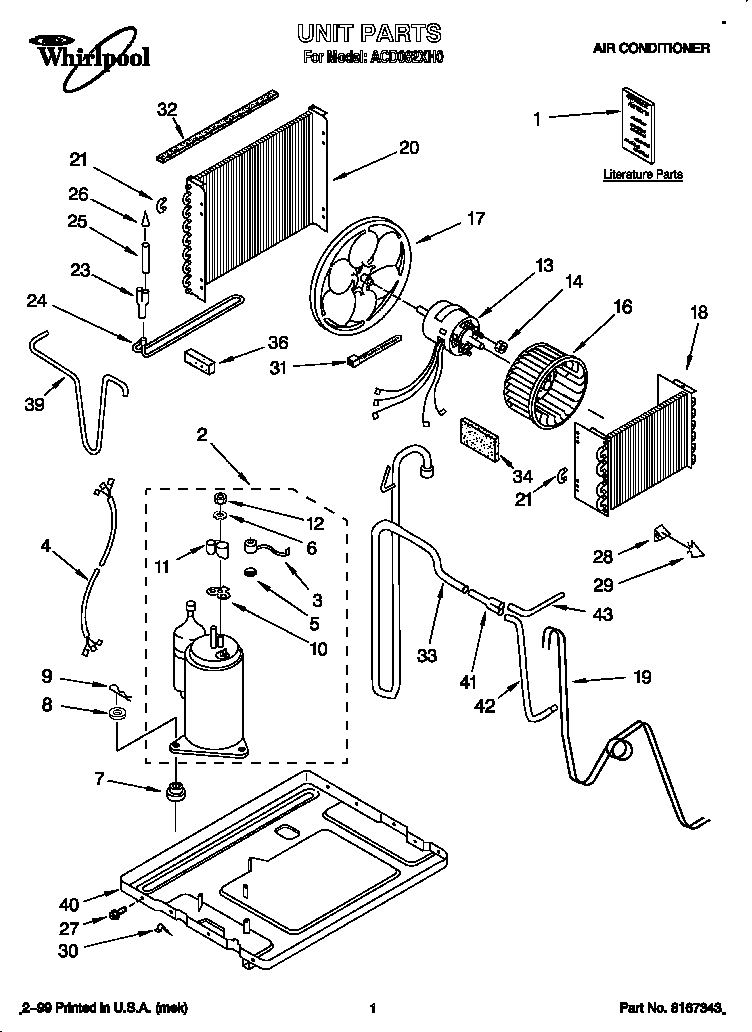

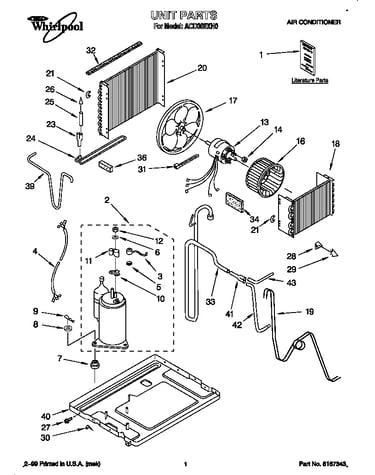

Unit diagram

Seal

Part #949090

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 949090. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Seal 859600
#36

Unit diagram

Seal

Part #859600

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 859600. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Ge Room Air Conditioner Outdoor Cover 484184
#14D

Optional diagram

Ge room air conditioner outdoor cover

Part #484184

$54.49 |
10% OFF Phone Price : $60.49
In Stock
